Name: LECTROSONICS WM/E01
Brand: Lectrosonics
SKU: lec.wme01-19
Price: 1969.0 EUR
Availability: InStock

Description
In the Box

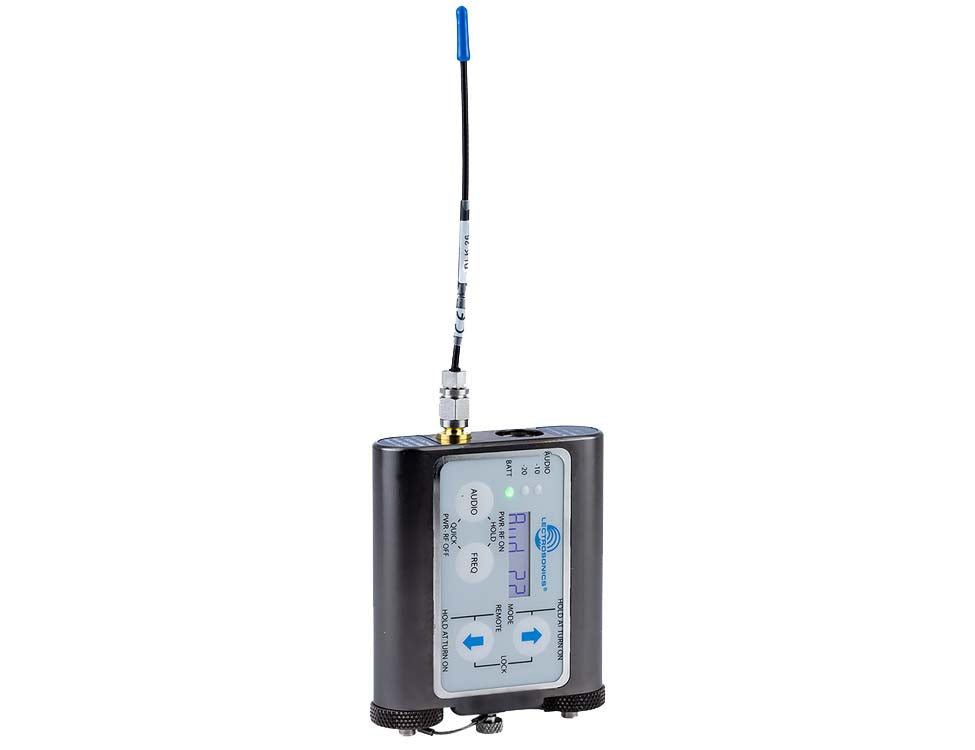

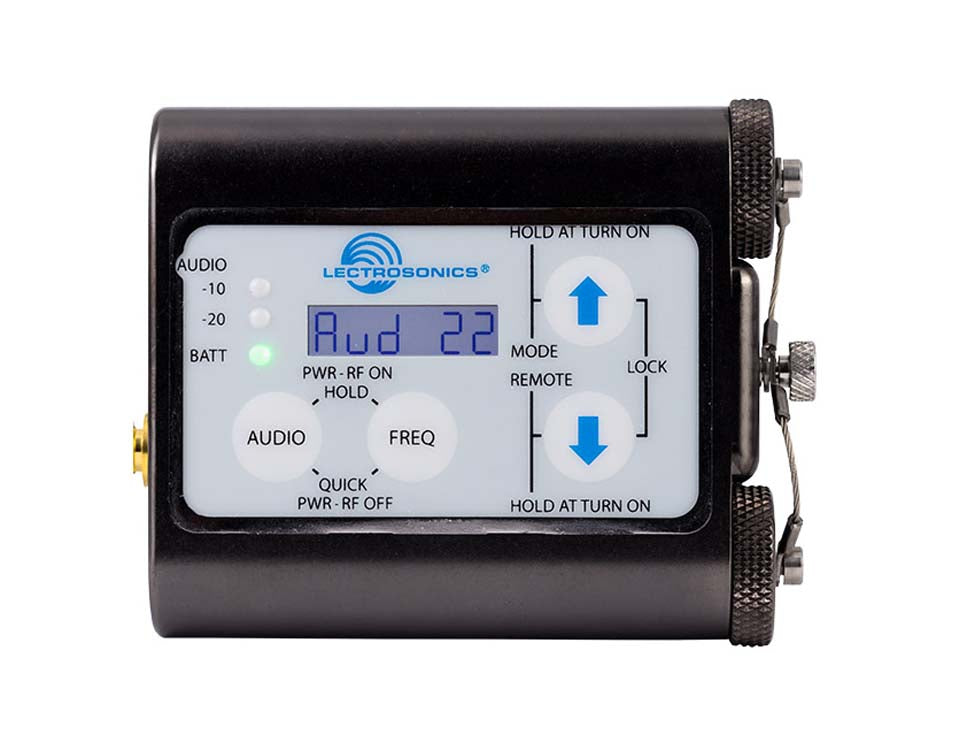

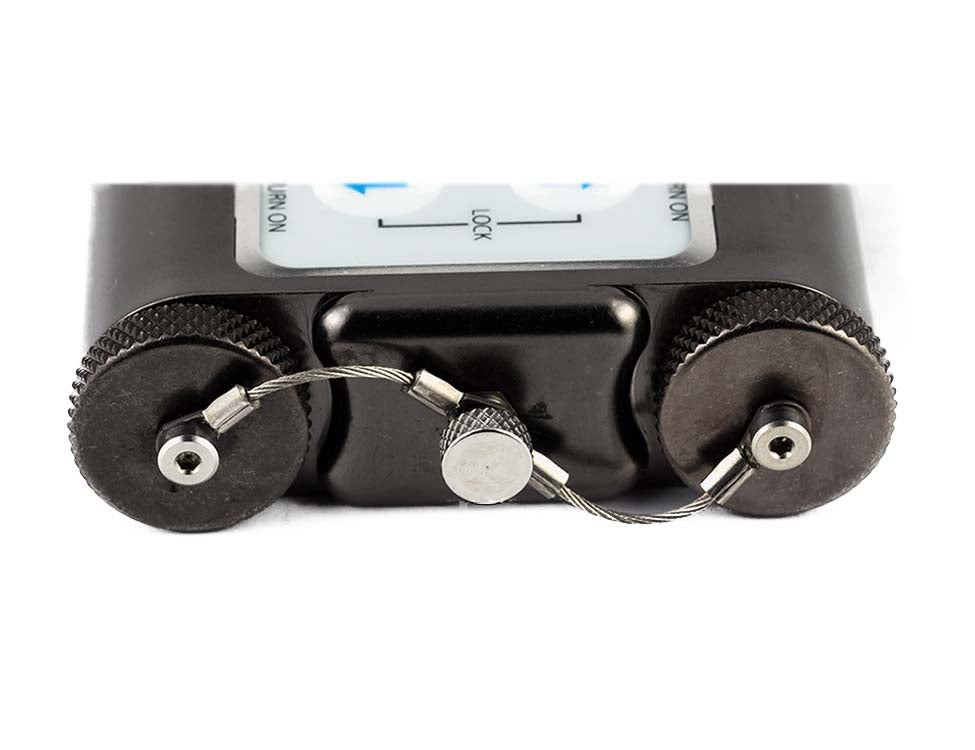

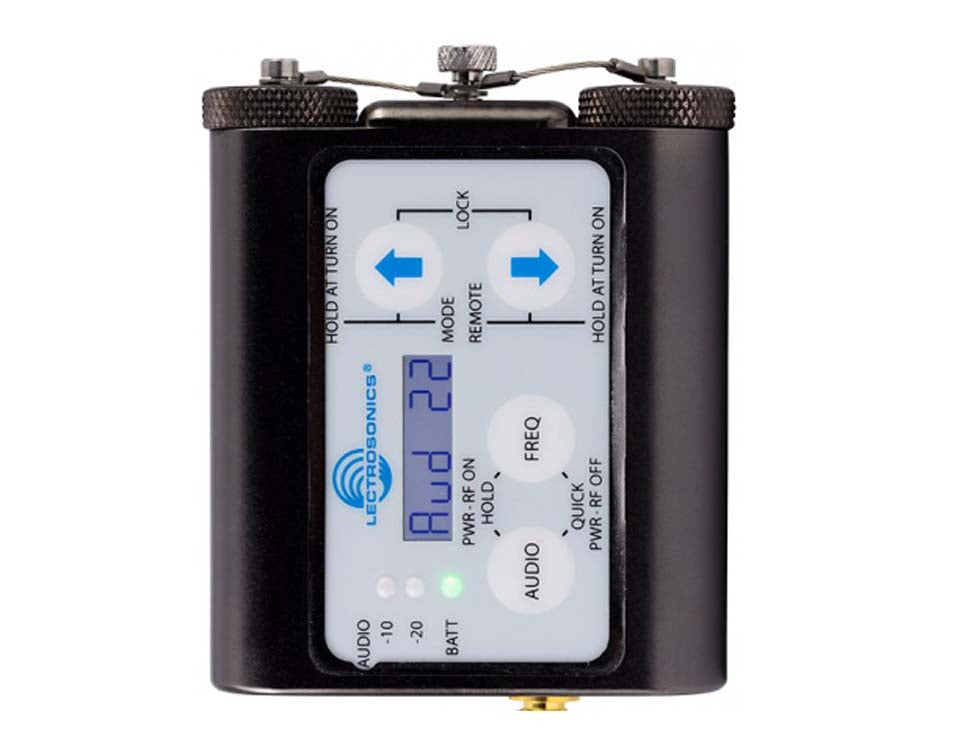

Designed for wet or dusty environments, the WM transmitter features O-ring sealed battery compartments and input jack, a compression sealed antenna port and gasket sealed control panel and back cover. Dual AA batteries provide twice the operating time of earlier watertight transmitter designs. Larger membrane switches and control panel and a highly visible, backlit LCD enhance the user interface.

The Digital Hybrid Wireless design combines 24-bit digital audio with analog FM resulting in a system that has the same operating range as analog systems, the same spectral efficiency as analog systems, the same long battery life as analog systems, plus the excellent audio fidelity typical of pure digital systems.

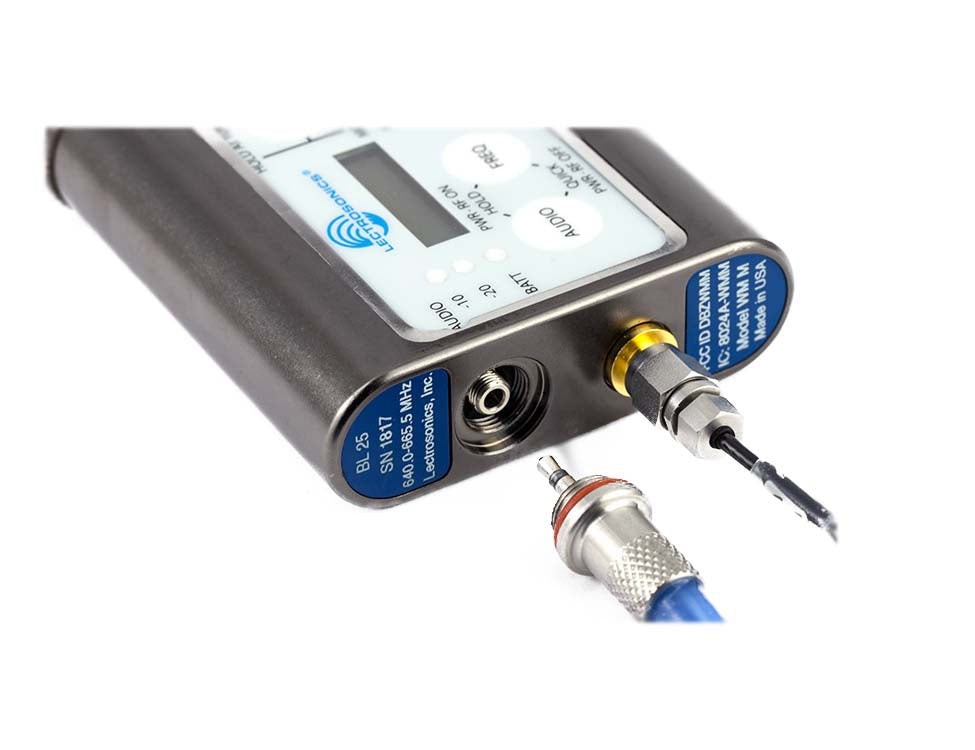

The WM transmitter features the unique servo bias input circuitry with a standard TA5M type input jack for use with electret lavaliere mics, dynamic mics or line level signals. The input connector is mounted in a recessed opening which provides a captive seat for the O-ring on the microphone connector. This captures the O-ring allowing it to be tightened firmly.

The antenna is mounted with a compressible strain relief under a flange that presses the strain relief into a tapered opening for a watertight connection. The transmitter is remote control compatible for hands free setup and adjustment using audible tones delivered into the microphone from a tiny loudspeaker in the remote control unit. The transmitter can be put to sleep to conserve battery power during setup while the transmitter is buried deep inside costuming, then awakened for normal operation when the production begins. Other features include frequency and audio level adjustment and control lockout.

FEATURES:

"Digital Hybrid Wireless" technology
50mW output power
machined aluminum, corrosion resistant housing
water resistant seals for use in wet environments
LCD interface with lockout option
programmable compatibility modes for use with a wide variety of different receivers
servo Bias input circuitry with selectable voltage
2x AA battery compartment
weight 151g with batteries
