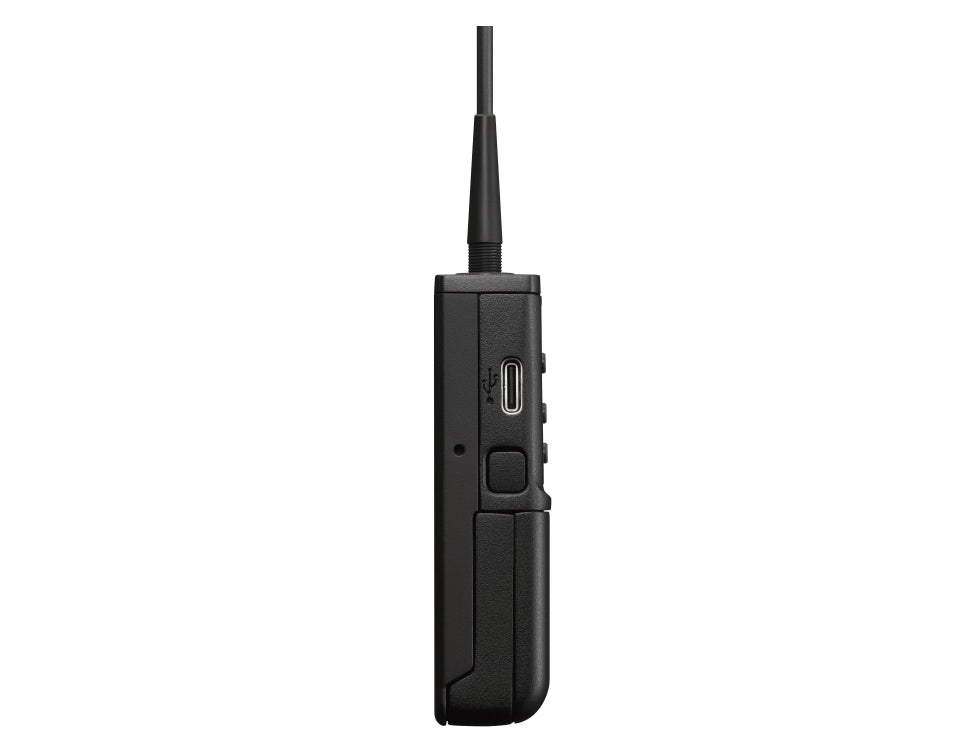

SONY UWP-D UTX-B40

UTX-B40 BODYPACK TRANSMITTER:

• oscillator type: crystal-controlled PLL synthesizer
• antenna type: 1/4 wave length wire antenna
• carrier frequencies: 21CE 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
• RF output power: 30 mW/5 mW selectable
• capsule type: elect retcondenser
• directivity: omni-directional
• input connector: 3.5 mm diameter 3-pole locking mini jack
• reference audio input level: -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) and +4 dBu (LINE input)
• audio attenuator adjustment range: 0 dB to 27 dB (3 dB steps)
• frequency response: 23 Hz to 18 kHz
• signal-to-noise ratio: 60 dB (-60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.) and 96 dB (GAIN MODE set to NORMAL, max.)
• distortion: 0.9% or less (-60 dBV, 1 kHz input)
• audio delay: approx. 0.35 ms
• tone signal frequency: in UWP-D compander mode 32.382 kHz, in UWP compander mode 32 kHz and in WL800 compander mode 32.768 kHz
• display: OLED
• power requirements: DC 3.0 V (two LR6/AA size alkaline batteries) and DC 5.0 V (supplied from USB Type-C connector)
• battery life: approx. 8 hours with output power of 30 mW
• operating temperature: 0 °C to 50 °C
• storage/transport temperature: -20 °C to +55 °C
• dimensions (W x H x D in mm): 63 x 73 x 19 (excluding antenna)
• mass: approx. 83 g (excluding batteries)

ECM-V1BMP LAVALIER MICROPHONE:

• Type: electret condenser microphone
• frequency response: 40 Hz to 20,000 Hz
• directivity: omni-directional
• sensitivity: -43.0 ±3 dB (0 dB =1 V/Pa, at 1 kHz)
• operating temperature: 0 °C to 50 °C
• storage temperature: -20 °C to 55 °C
• cable: 2.3 mm dia., 2-conductor shielded cable, 1.2 m long
• weight: approx. 16.2 g
