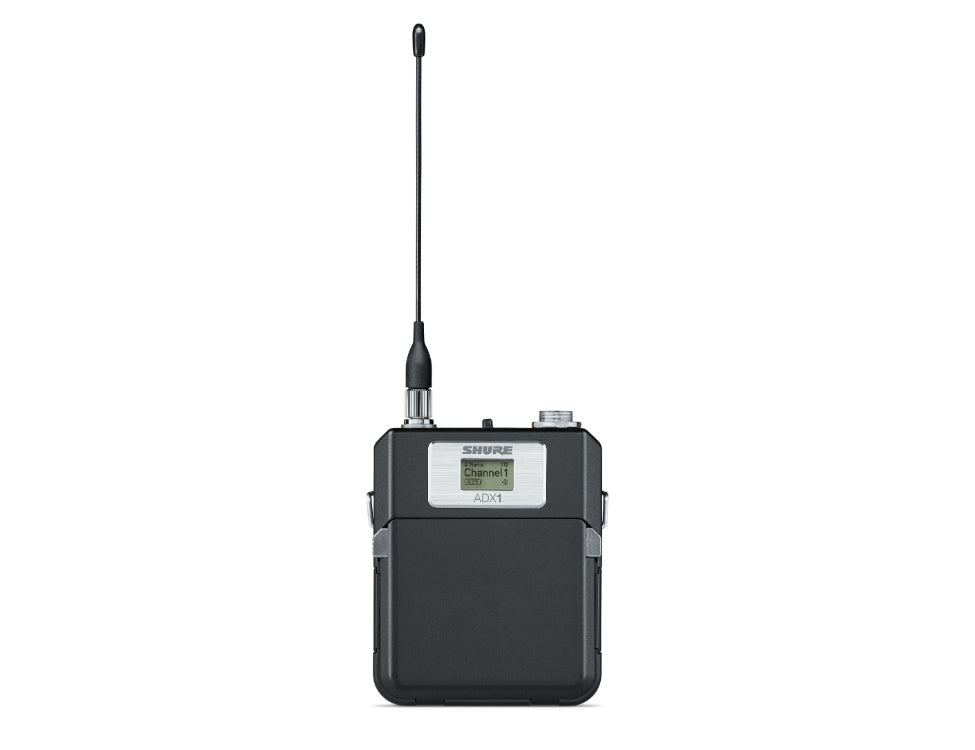

SHURE ADX1

GENERAL:

• mic offset range: -12 to 21 dB (in 1 dB steps)
• battery type: Shure SB910 Rechargeable Li-Ion
• battery runtime @ 10 mW: Shure SB910 up to 10 hours
• dimensions (H x W x D in mm): 91 x 68 x 19
• weight: 142 g without battery
• housing: aluminum
• operating temperature range: -18°C to 45°C
• storage temperature range: -29°C to 74°C

AUDIO INPUT:

• connector: 4-Pin male mini connector (TA4M) or Lemo connector
• configuration: unbalanced
• impedance: 4-Pin male mini connector (TA4M) 910 kOhm and Lemo connector 8.2 kOhm
• maximum input level (1 kHz at 1% THD): pad off 8.5 dBV (7.5 Vpp) and pad on 20.5 dBV (30 Vpp)
• preamplifier equivalent input noise (EIN, system gain setting +20): -120 dBV, A-weighted, typical

RF OUTPUT:

• antenna type: UHF 1/4 wave
• connector type: SMA
• impedance: 50 Ohm
• occupied bandwidth: <200 kHz
• channel-to-channel spacing: standard mode 350 kHz and high density mode 125 kHz
• modulation type: Shure axient digital proprietary
• power: 2 mW, 10 mW, 40 mW
• specific absorption rate (SAR): < 0.20 W/kg

SHOWLINK:

• network type: IEEE 802.15.4
• antenna type: Zigbee dual conformal
• frequency range: 2.40 to 2.4835 GHz (24 channels)
• RF output power: 10 dBm (ERP)
