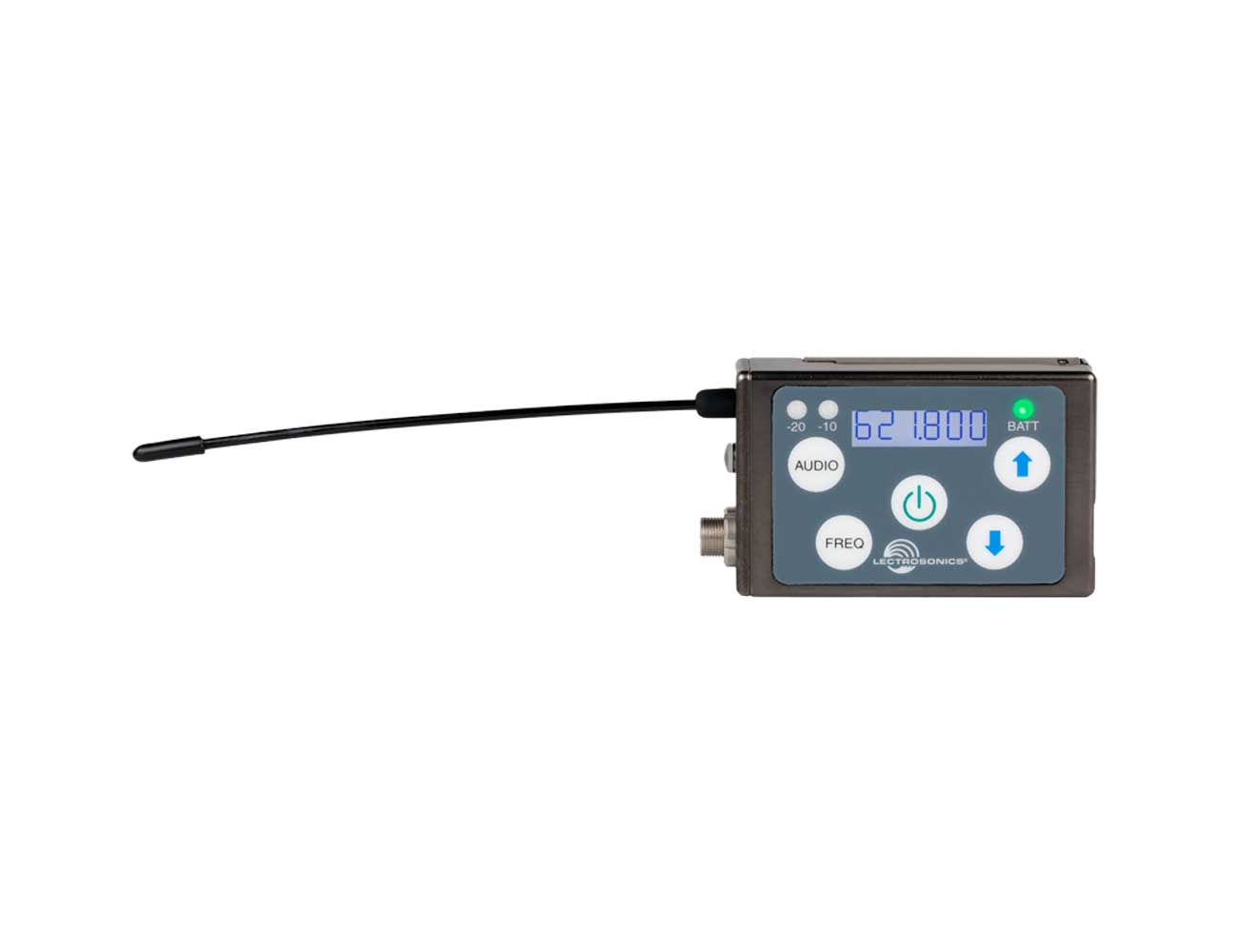

LECTROSONICS SSM/E01

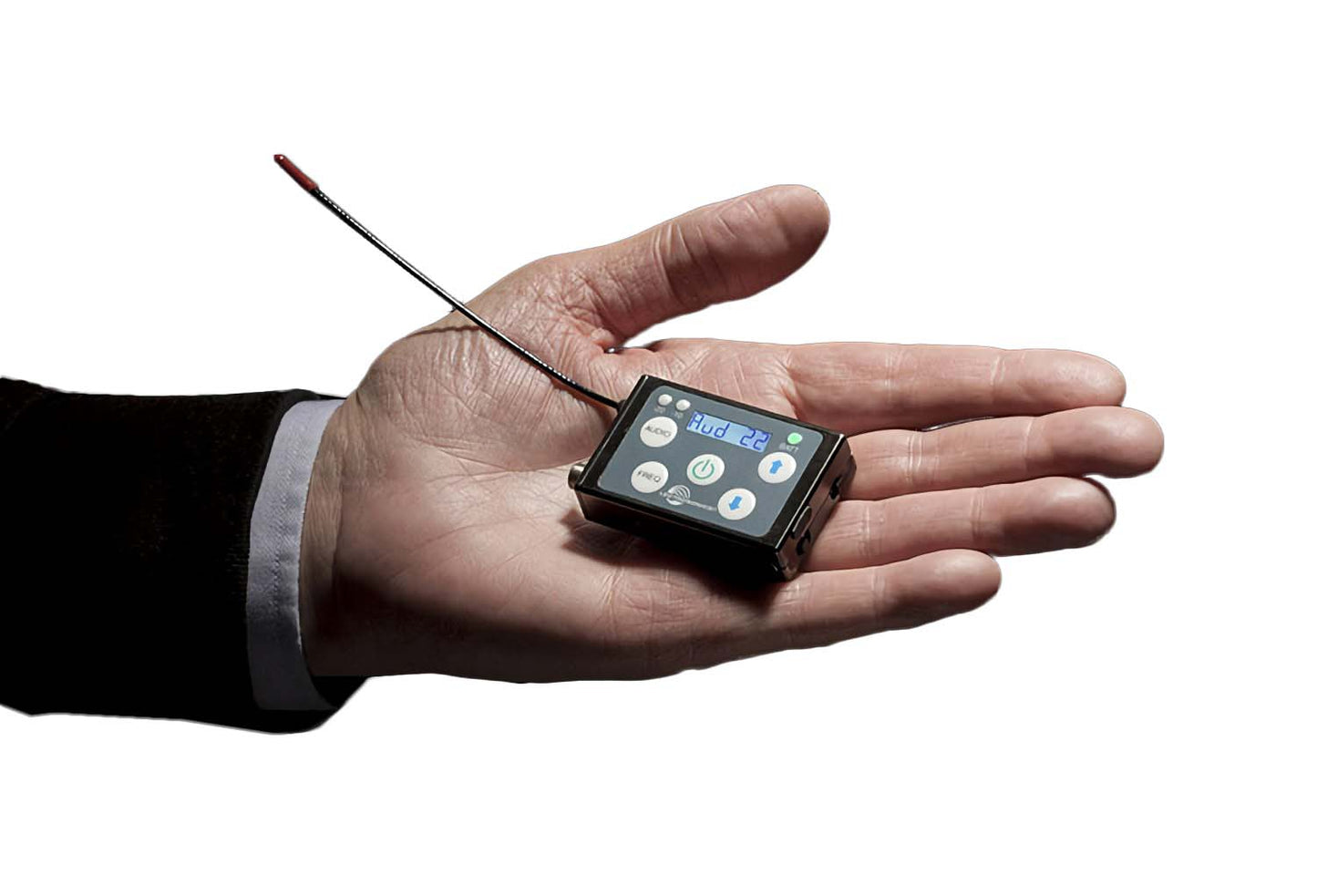

The SSM micro belt-pack transmitter is ideal in theatrical or any other production where concealment in costuming is required. In spite of its tiny size, the transmitter offers an extensive feature set and performance on par with all of the Digital Hybrid Wireless models.

Frequencies are selectable in 100kHz or 25kHz steps across a maximum tuning range of 76.7MHz. This yields a total of 3072 available frequencies across three standard frequency blocks. The tuning range varies in other blocks to meet applicable frequency allocations.

The servo bias input accepts mic or line level signals with a wide range of gain adjustment in 1dB steps. Accurate LED indications on the keypad allow precise gain adjustments to be made for the maximum signal to noise ratio and minimum distortion. The limiter in the preamp can cleanly handle signal peaks over 30 dB above full modulation, allowing the input gain to be set high enough to achieve the maximum signal to noise ratio, yet provide protection against input overload.

Compatibility with earlier analog Lectrosonics receivers, Lectrosonics IFB receivers and some receivers from other manufacturers is provided by DSP emulation modes selected in the LCD menu.

"Digital Hybrid Wireless" combines 24-bit digital audio with an analog FM radio link to provide outstanding audio quality and the extended operating range of the best analog wireless systems. The design overcomes channel noise in a dramatically new way, digitally encoding the audio bitstream in the transmitter and decoding it in the receiver, yet sending the encoded information via an analog FM wireless link. This proprietary DSP algorithm eliminates a compandor circuit and its artifacts and preserves the RF spectral footprint of analog FM designs to simplify multi-channel coordination with exisiting analog wireless systems.

FEATURES:

• tunable across three standard frequency blocks (76.8MHz)
• Digital Hybrid Wireless technology audio for compandor-free digital quality
• selectable 25 or 50mW RF power
• compatibility modes for use with analog receivers
• 25 or 100kHz tuning steps for up to 3072 selectable frequencies
• wide range input gain control in 1dB steps
• quick change Lithium-ion rechargeable battery
• audio coupled remote control
• membrane switch control panel with LCD display
• wide input dynamic range
• DSP based pilot-tone signal
• circulator/isolator output stage
• splash-proof, machined aluminum housing
• non-corrosive, super-hard finish
• dimensions 58.4 x 38 x 14.2 mm
• weight 65.2g including lithium battery pack
• delivery includes 1x LB-50 battery, a single charger and 2x belt clips (antenna up and antenna down)
