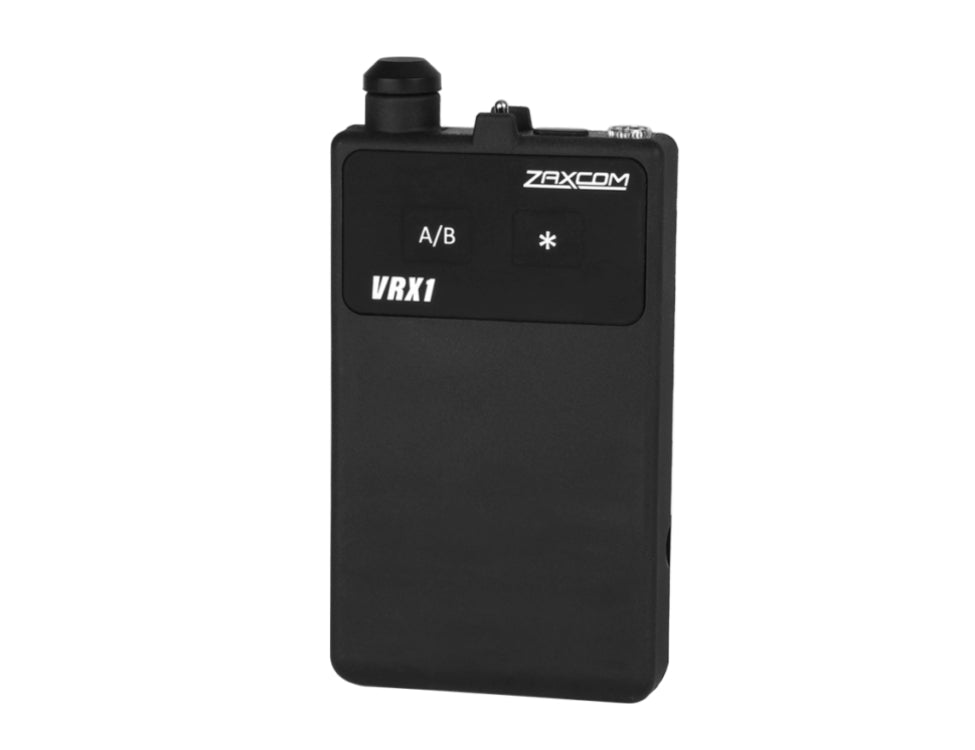

ZAXCOM VRX1

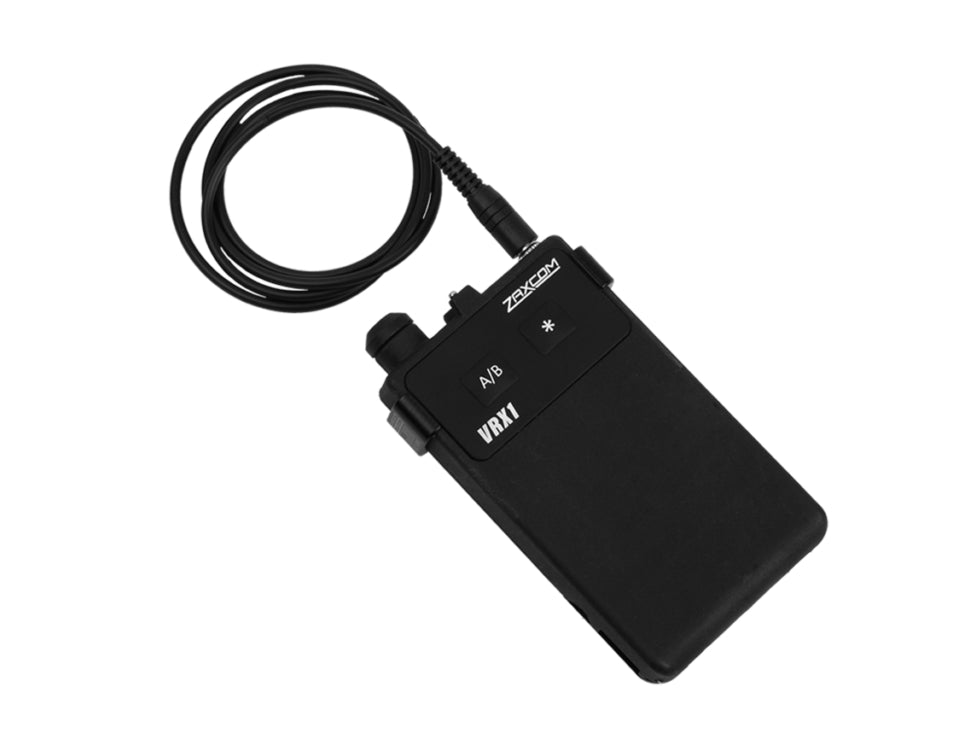

VRX1 is an analog VHF IFB audio receiver built to monitor audio and cue talent in the film, television, and broadcast industries. Simply connect an earpiece or headphones to the 3.5mm output for clean, reliable audio performance.

Among its core features is an intuitive voice prompt system, voting, frame specific audio delay, an adaptive squelch, headphone equalization, and multiple power options all in a rugged, easy to use device.

TECHNOLOGY

VRX1 features an innovative direct conversion design to receive audio that reduces all forms of RF interference while extending battery life.

CONNECTIVITY

VRX1 operates in the VHF 192-217 MHz frequency range and is pre-programmed with 10 standard channels for quick setup:

216.025 / 216.075 / 216.175 / 216.275 / 216.425 / 216.525 / 216.725 / 216.825 / 216.925 / 216.975

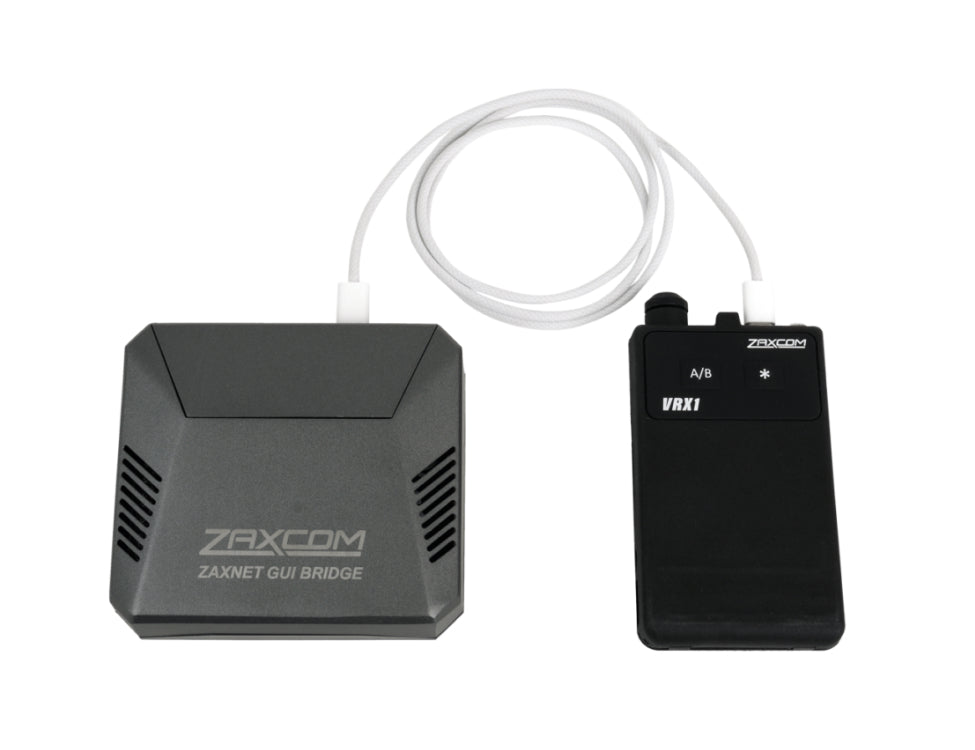

Pre-programmed channels can be reconfigured through the optional Zaxcom GUI Bridge (ZGB).

COMPATIBILITY

VRX1 is compatible with analog VHF FM Comtek transmitters operating on 192-217 MHz. This allows you to mix and match VRX1 with other Comtek IFB receivers connected to the same transmitter.

CURRENT TRANSMITTER COMPATIBILITY:

• Comtek BST 75-216
• Comtek BST 25-216
• Comtek M-216

OPERATION, VOICE PROMPTS & VOTING

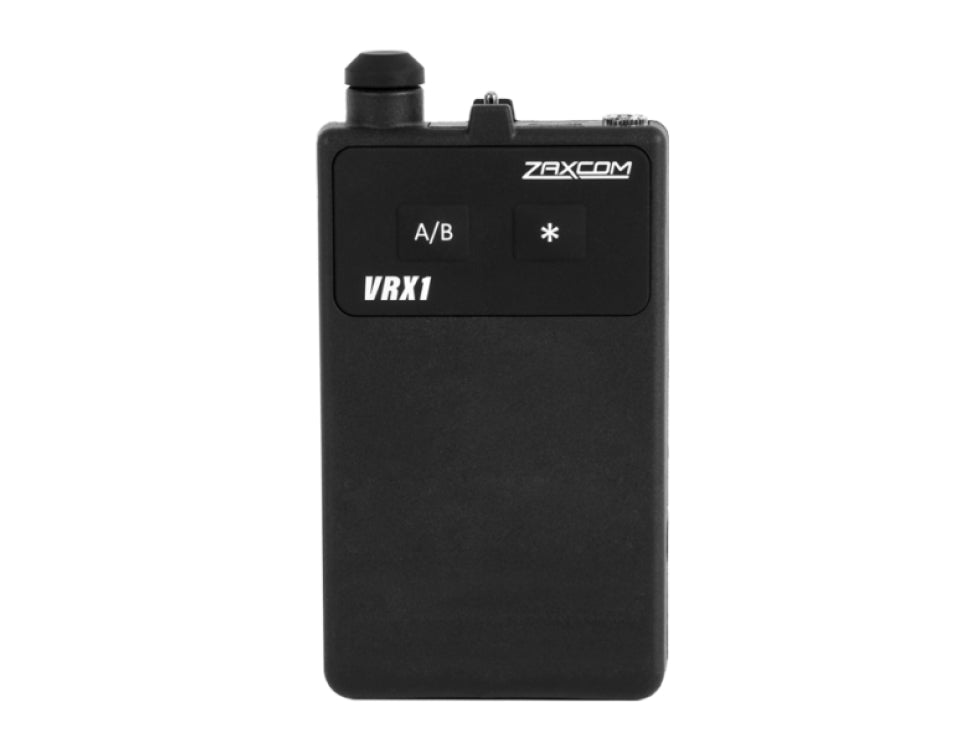

Front A/B and * buttons control settings and can be programmed to limit control or be completely disabled.

Voice prompts announce the current channel selection, battery life, and other key settings through headphones. Voice prompts can also adjust key settings, providing a seamless interaction without needing to look down at the device.

Voting allows VRX1 to automatically connect to the strongest transmitter signal when more than one transmitter is in operation.

Voice prompts and voting can be disabled.

AUDIO RELAY

VRX1 has audio delay settings that can be customized from 1 to 15 frames.

SQUELCH

An adaptive squelch algorithm intelligently minimizes noise when a transmitter signal is absent.

CAMERA AUDIO

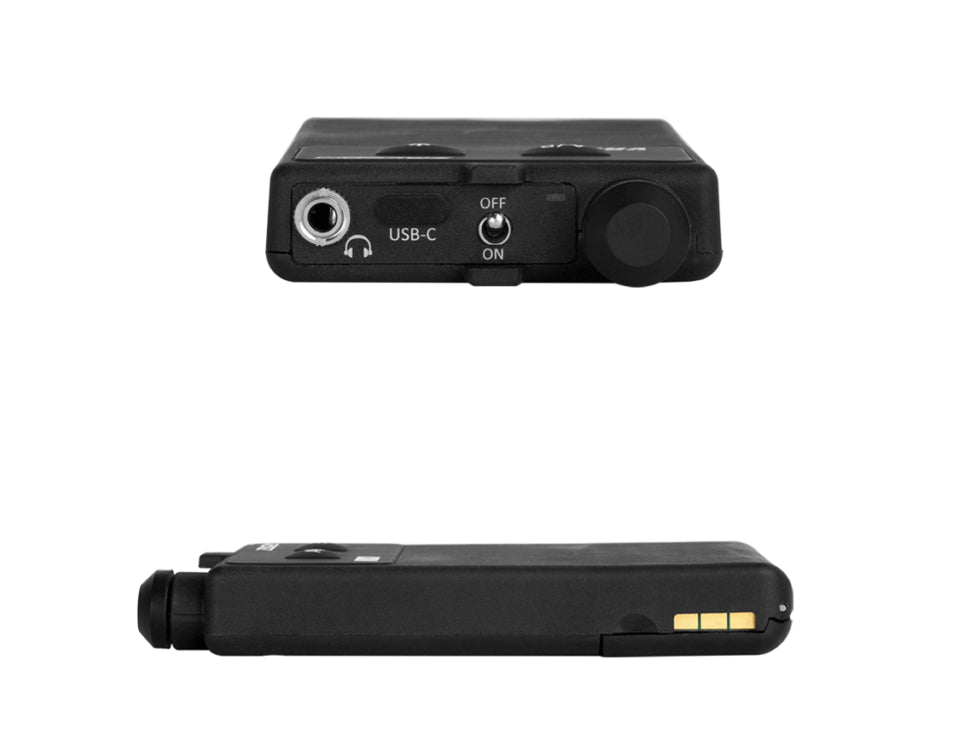

The 3.5mm audio output is selectable to be unbalanced or balanced allowing you to feed a single track of audio to the input of a camera.

POWER

VRX1 can be powered through 2x AA alkaline, NiMH, or lithium batteries.

• 2x Alkaline batteries up to 9 hours
• 2x NiMH AA batteries up to 13 hours
• 2x Lithium AA batteries up to 17 hours

The USB-C port provides power when connected to a power source.

Additionally, you can charge rechargeable NiMH batteries without removing them from the receiver by connecting a USB-C power source. LED indicators provide charging status.

ACCESSORIES

An optional E/V Clip is compatible with both VRX1 and ERX3TCD for quick placement.

An optional VRX Dual Charger is capable of charging two VRX1 receivers.

OPTIONAL FREQ. RANGE

VRX1 is also available in the 76-86 MHz frequency range via special order.

VRX1 DIGITAL DEVELOPMENT

Zaxcom is developing a digital VHF transmitter. To support this future product, VRX1 is designed to work as an analog and digital VHF FM receiver, future-proofing the device.
