Description
NESO 2.4 is a DIGITAL AUDIO TRANSMISSION SYSTEM for monitoring applications to be used in TV productions, TV sets, theatre, stage management, technicians, etc.
NESO 2.4 system is made of a radio frequency base station which works on the 2.4GHz ISM band, and a complete range of hearing terminals both in-the-canal and behind-the-ear, all of them focused to high quality audio transmission/reception for professional applications.

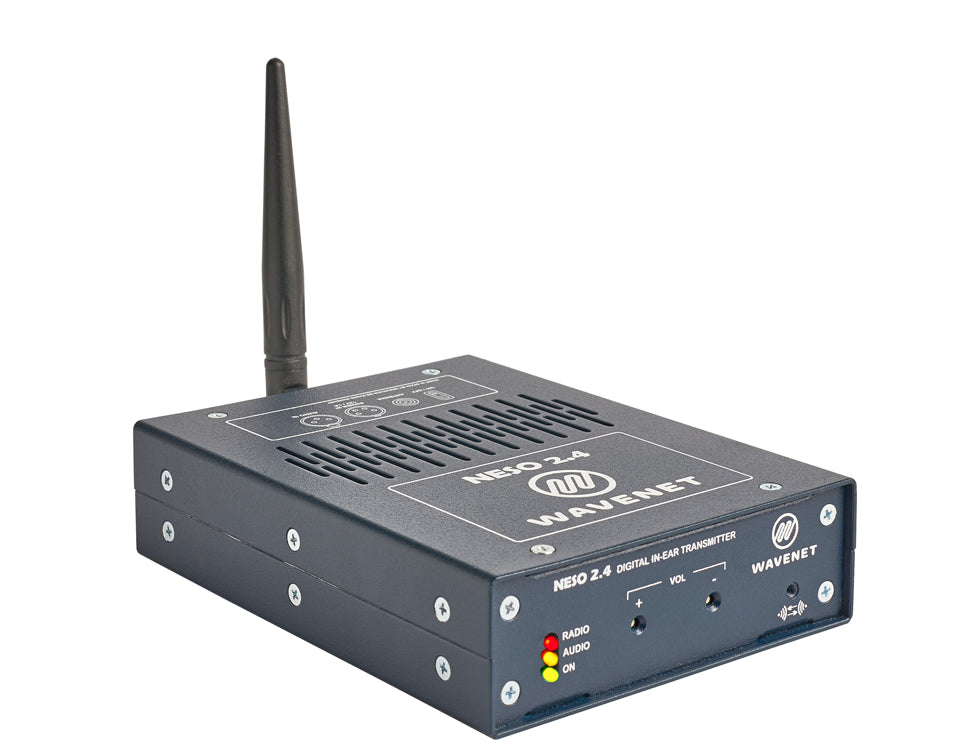

NESO 2.4 BASE STATION:
- 2.4 GHz ISM band transmitter
- frequency hopping technology and GFSK modulation
Specifications
NESO 2.4 MAIN FEATURES BASE STATION:
- frequency: comply with ISM 2.4 GHz (UN 85)
- output power : +20dBm
- power density (FH): +20dBm/100 KHz
- audio input level: line (+4 dB) on XLR3
- audio bandwidth: 50 Hz to 10 kHz
- distorsion: < 0,2%
- estimated range (LOS): ~80 m (depending on eviroment)
- power: 220V with VAC converter or direct 12V VDC on XLR4
- dimensions(W x D x H in mm): 155 x 115 x 35
- weight: 300 g
- technical regulation referenced: EN 300.328
