Description
The classic 4088 Directional Headset Microphone is the industry standard in professional headset mics. It offers an open and natural sound making it ideal for both spoken word and vocal performance applications.
This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, this microphone will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 inch) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance - a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.
The smooth and elegant design of the 4088 Directional Headset Microphone makes it the most invisible head-worn true cardioid microphone in the world. This microphone has a secure, dual-ear design that can be used for various performing talent applications. It has a small .64 cm (.25 in) diameter, which allows for discreet use. It only weighs 14 g (.5 oz) and is very comfortable when worn for long periods. The microphone can be mounted on the right or left side.
The boom is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid "popping", the capsule should not be placed directly in front of the mouth.
FEATURES:
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
Specifications
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
- Distortion, THD < 0.5%: 137 dB SPL RMS, 140 dB SPL peak
- Distortion, THD < 1%: 139 dB SPL RMS, 142 dB SPL peak
- Dynamic range: Typ. 116 dB
- Max. SPL, THD 10%: 147 dB SPL peak
- Rated output impedance: 30 - 40 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD9001 XLR Adapter
- Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter / With DAD9001: P48 (Phantom Power). Will work from 12 V
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
- Connector: MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
- Weight: 14 g (0.5 oz) incl. Cable and MicroLock connector
- Microphone diameter: 5.4 mm
- Microphone length: 11 mm
- Cable length: 1.2 m
- Cable diameter: 1.6 mm
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
- Temperature range: -40°C to 45°C
- Relative humidity (RH): Up to 90%

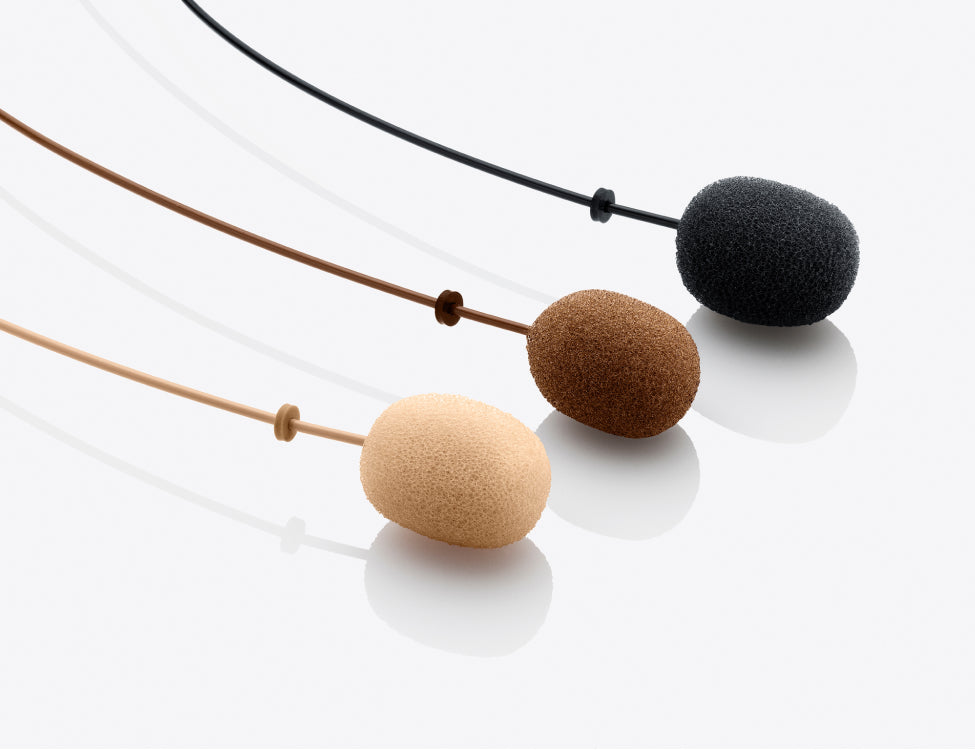

- Colors: Black, Beige, Brown
