- DPA DPK2015 piano stereo kit
Description
DPK2015 is an out-of-the-box miking solution that takes a minute to install and ensures that the true voice of the piano shines. By bundling components and specifying a workflow, this kit is a turnkey stereo solution for piano miking.

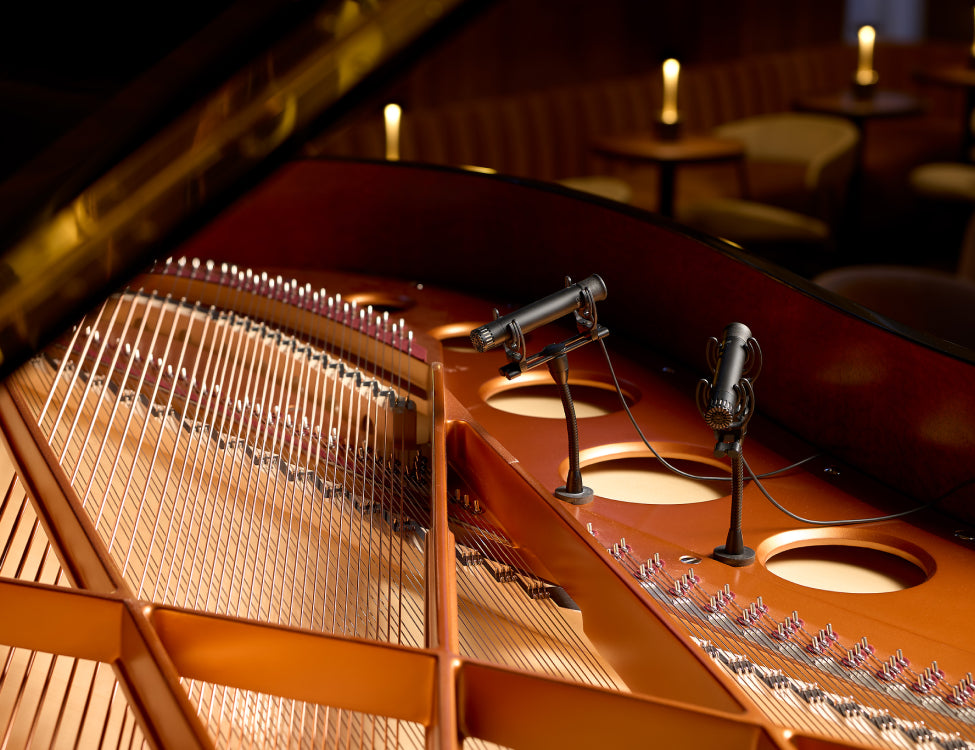

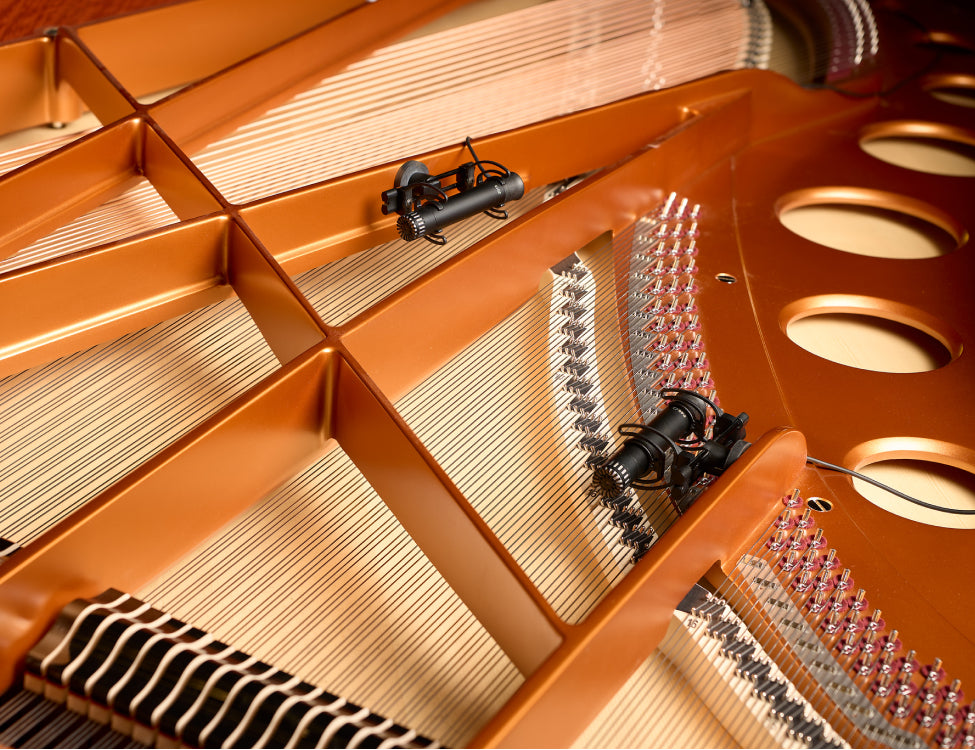

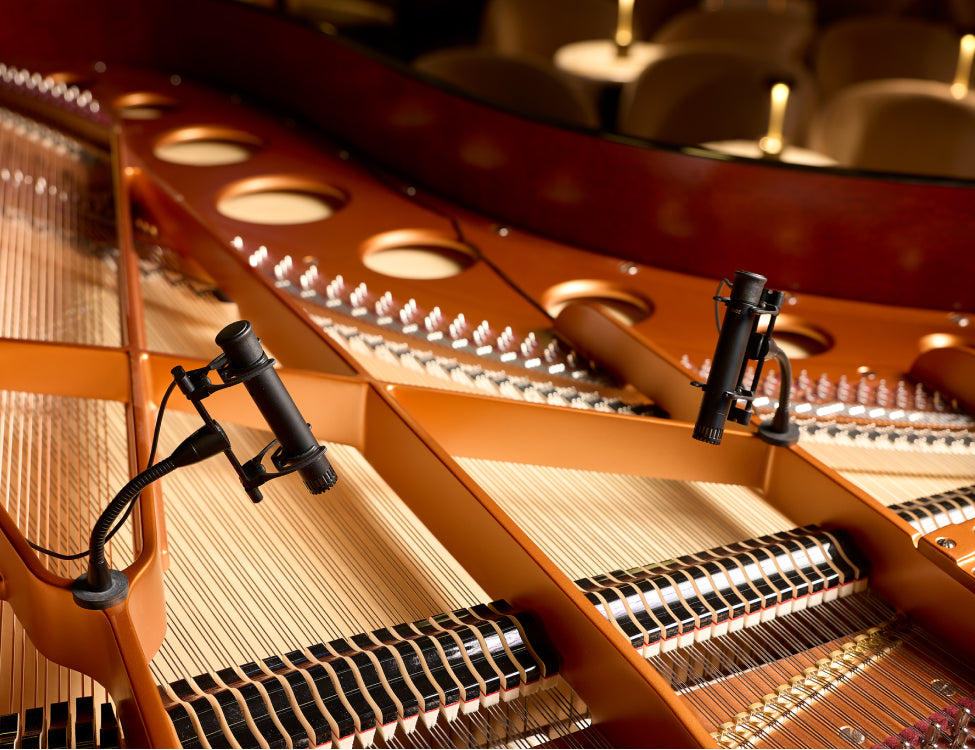

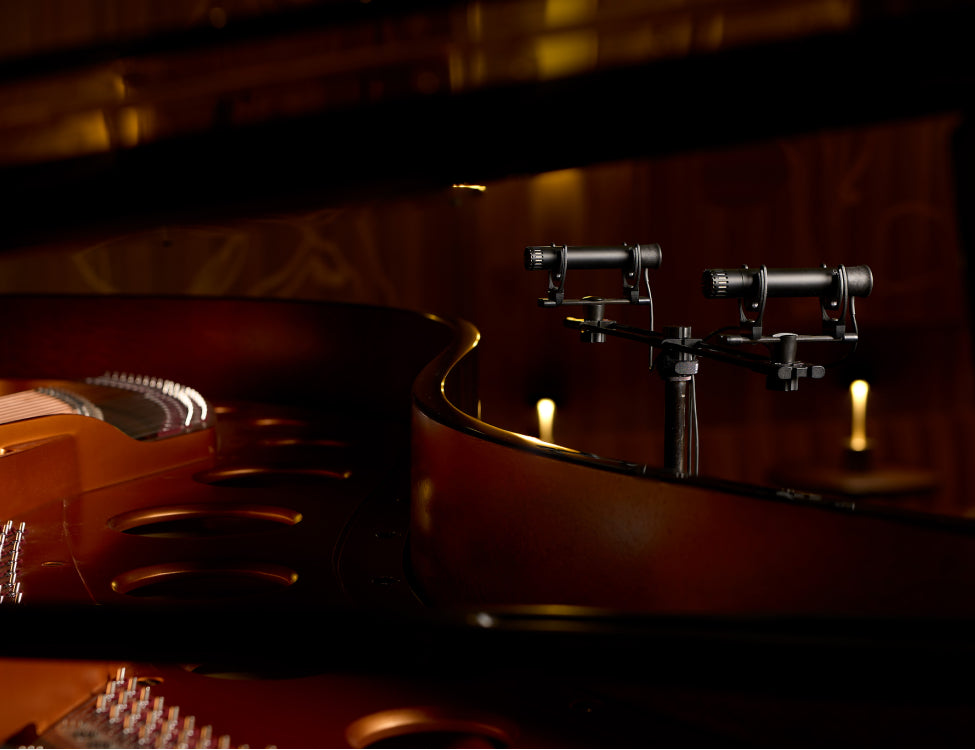

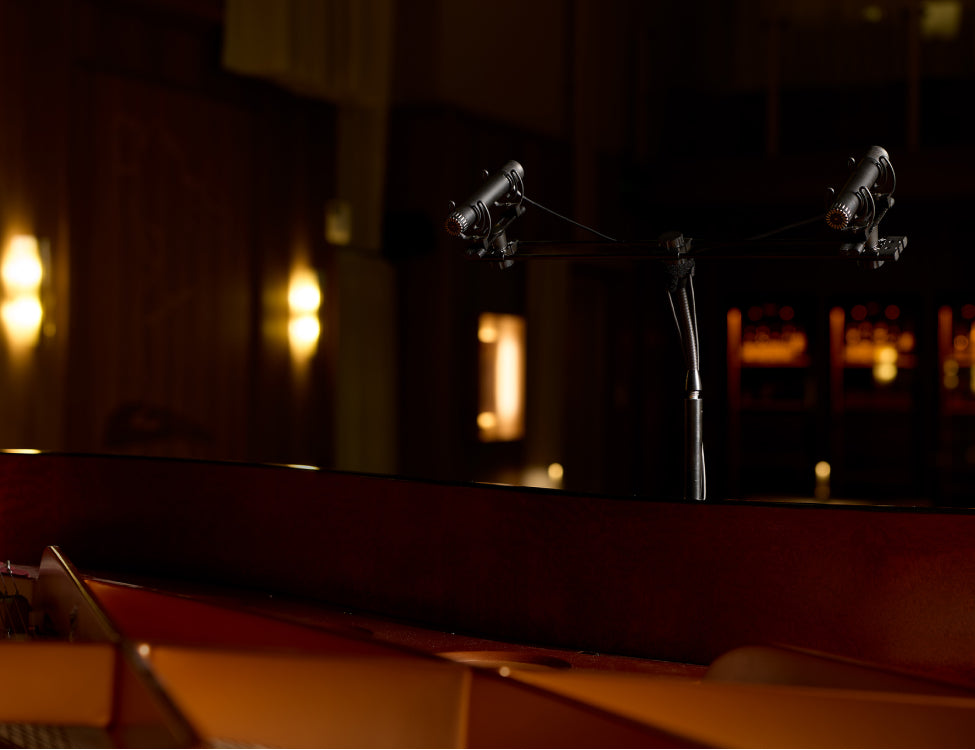

The DPK2015 is designed for versatile mounting: inside or outside the piano, lid open or closed.
This is a complete stereo kit featuring two 2015 Wide Cardioid Microphones. The mics are carefully selected within ±1 dB sensitivity @1 kHz.
DPK2015 is often described by professional sound engineers as slightly “sweeter” with excellent blend, a natural stereo image and a surprisingly full sound in several placements. Due to the wide pick-up pattern, it is valued for its fast and easy yet flexible mounting solution.
- Signature DPA sound – transparent and detailed, with high fidelity
- Wide cardioid pickup pattern – homogeneous stereo perspective and ease of placement compared to the narrower cardioid or super-cardioid alternatives
- Fast, flexible mounting – for live touring or studio work; inside or outside grand piano, lid open or closed
- Compact protective case – designed for intuitive and fast setup
- Shock-isolation and vibration control via included mounts – keeping stability and reducing unwanted structure borne noise
Specifications
Acoustic
- Directional Pattern: Wide cardioid
- Principle of Operation: Pressure gradient
- Cartridge Type: Pre-polarized condenser
- Frequency Response: 20 Hz – 20 kHz
- Effective Frequency Range: 40 Hz – 18 kHz ±2 dB at 30 cm
- Sensitivity: 12 mV/Pa ±2 dB at 1 kHz
Noise & Distortion
- Equivalent Noise Level, A-Weighted: 18 dB(A) typical re. 20 µPa
- Equivalent Noise Level, A-Weighted: 20 dB(A) maximum
- Distortion, THD <1%: 147 dB SPL
- Distortion, THD <1%: 150 dB SPL peak
- Dynamic Range: 132 dB typical
- Maximum SPL, THD 10%: 153 dB SPL peak
Output & Connectivity
- Rated Output Impedance: 60 Ω
- Cable Drive Capability: 100 m
- Output Balance Principle: Impedance balancing with Active Drive
- Common Mode Rejection Ratio (CMRR): >60 dB
- Maximum Output Voltage, RMS: 8.7 V (21 dBu)
- Connector: XLR-3M
- Connector Pin 1: Shield
- Connector Pin 2: Signal + phase
- Connector Pin 3: - phase
- Polarity: +V at pin 2 for positive sound pressure
Power
- Power Supply: P48 phantom power for full performance
- Current Consumption: 0.7 mA
Physical
- Weight: 83 g
- Microphone Diameter: 19 mm
- Capsule Diameter: 17 mm
- Microphone Length: 94 mm
- Color: Black
Environmental
- Temperature Range: -40°C to 45°C
- Relative Humidity (RH): Up to 90%

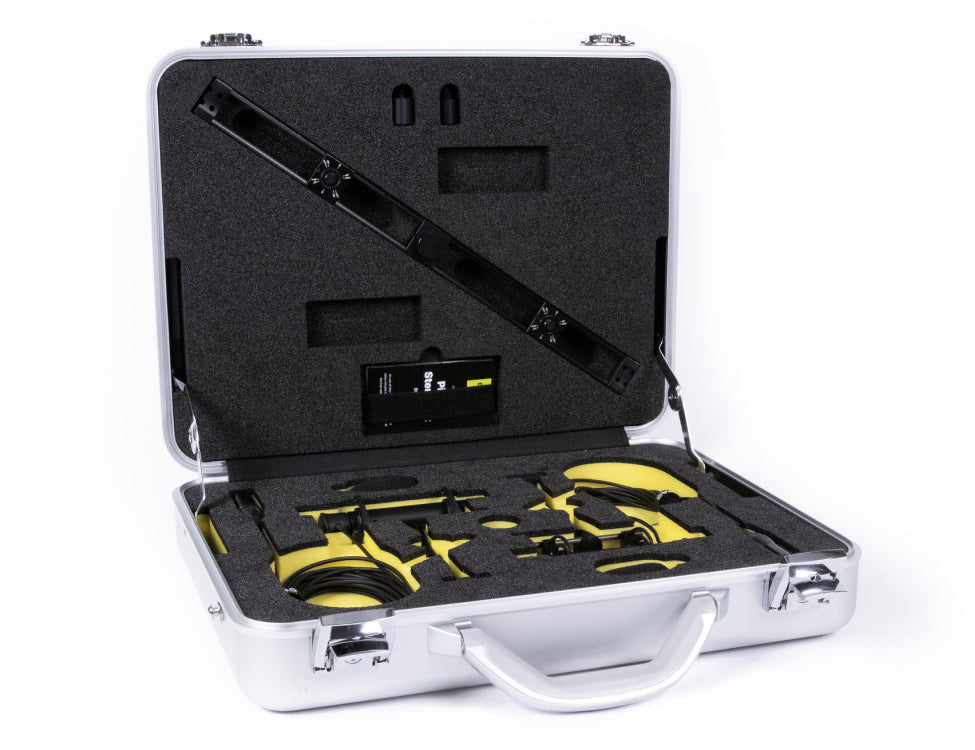

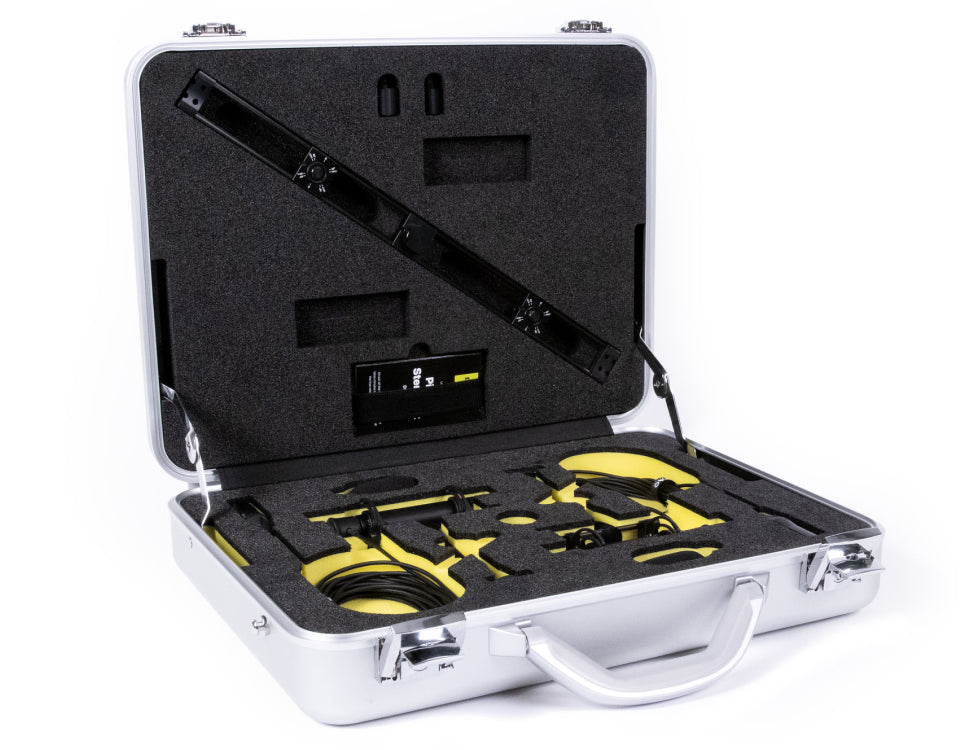

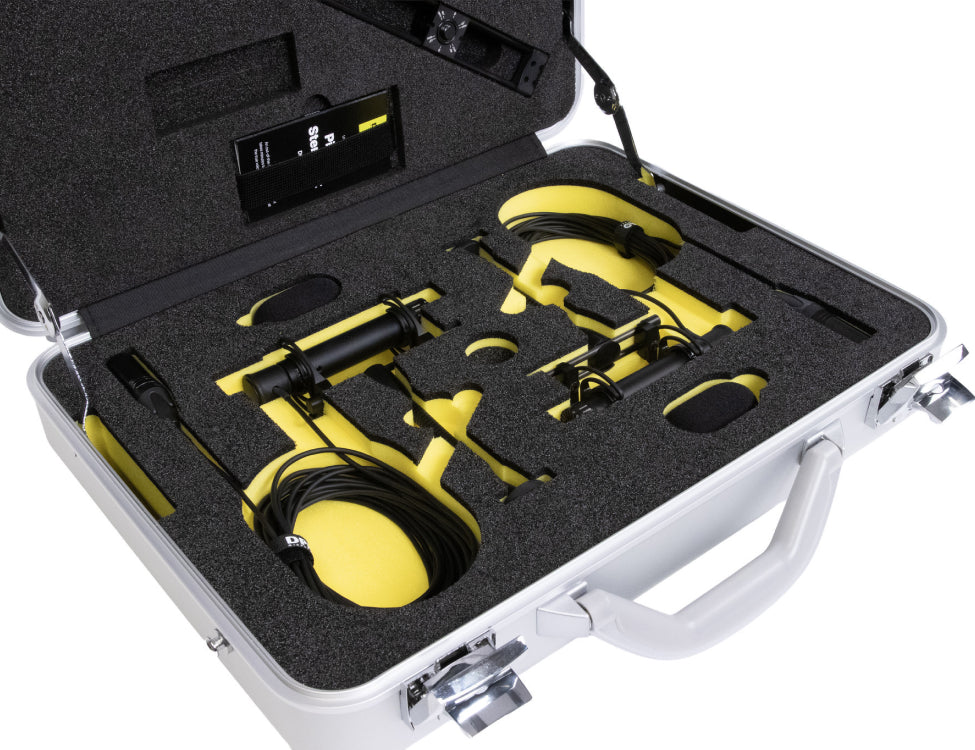

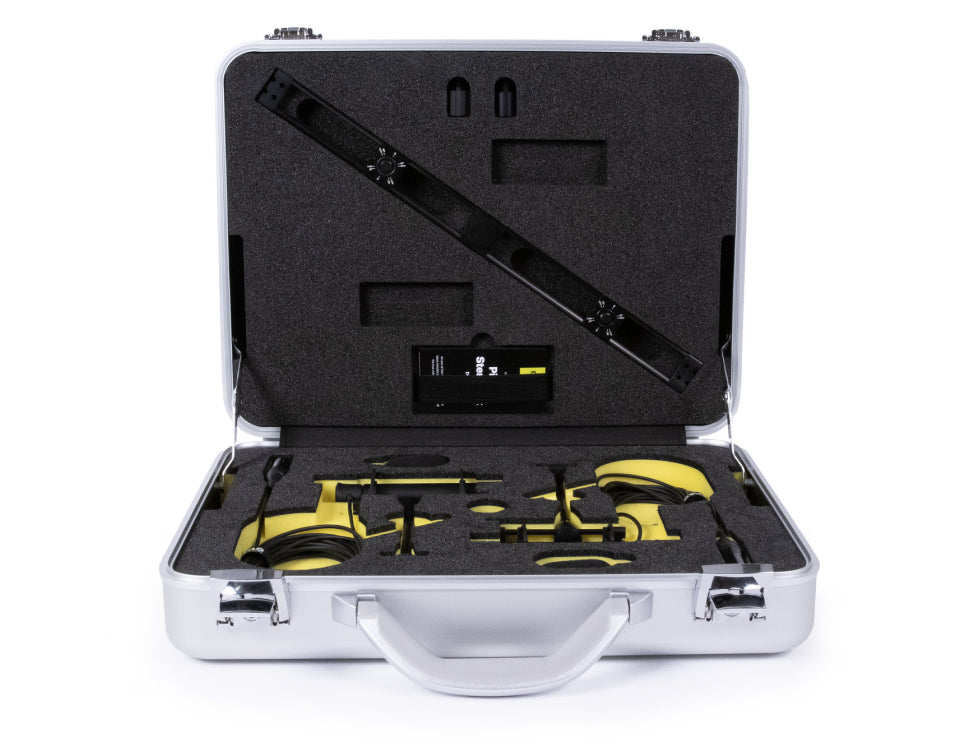

In the Box
- 2× 2015 Wide Cardioid Microphones (selected stereo pair)
- 2× GM1500 Gooseneck Mount
- 2× DAO2015 Microphone Cable with XLR
- 1× SBO400 Lightweight Stereo Boom
- 2× DUA0020 Foam Windscreen

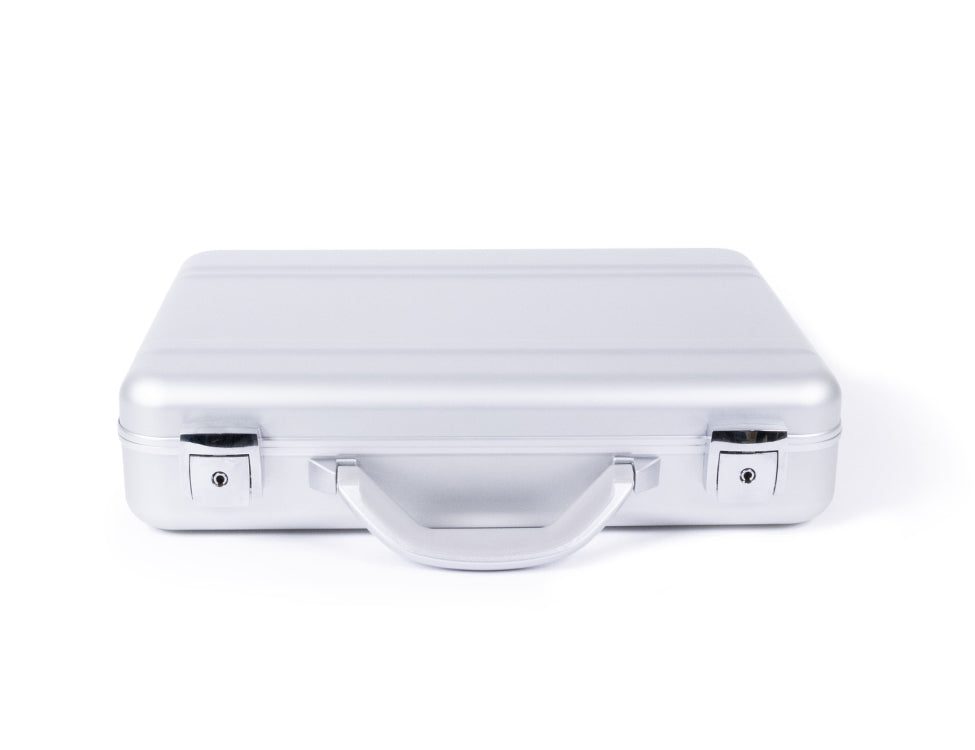

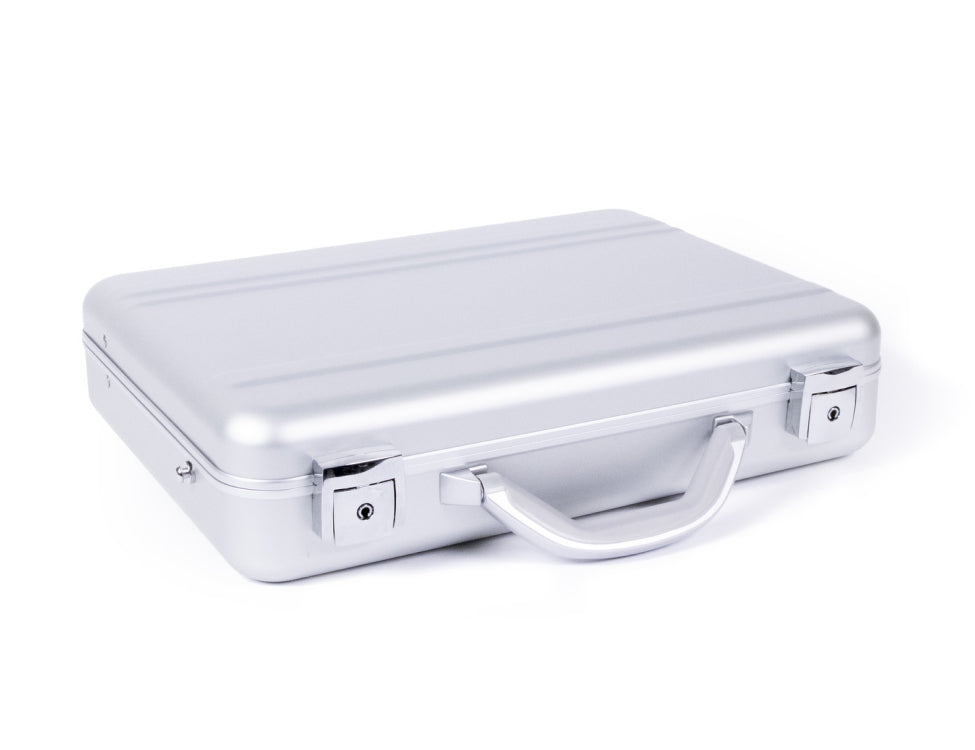

- Protective carrying case
