Description
DPA has collected the award-winning miniature lavalier microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.
Used with the vast array of complimentary accessories, the miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.
4061 INSTRUMENT MICROPHONE KIT

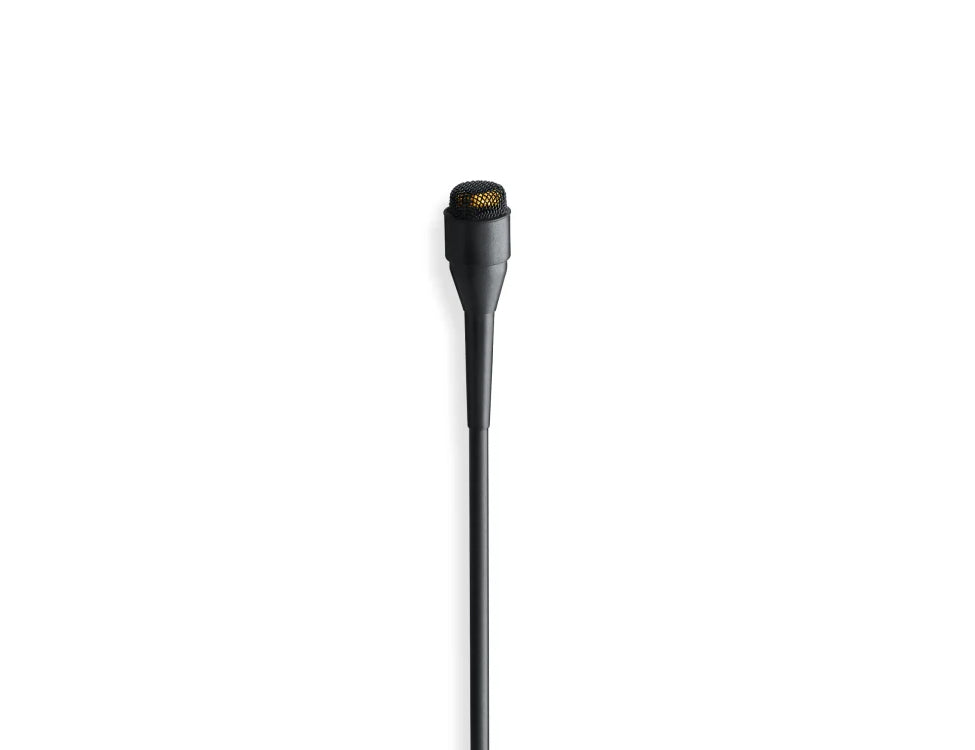

Similar to the 4060 Instrument Microphone Kit, this kit is designed to use as a close-miking solution for a wide variety of musical instruments. The 4061 Miniature Omnidirectional Microphone, Loud SPL offers a very clean, detailed and natural sound quality. This leaves it up to the user to decide on the correct placement to achieve the desired timbre. The mic can handle 144 dB peak before clipping, allowing the microphone to be used even for snare drums, guitar/bass speaker cabinets or other high SPL sound sources.

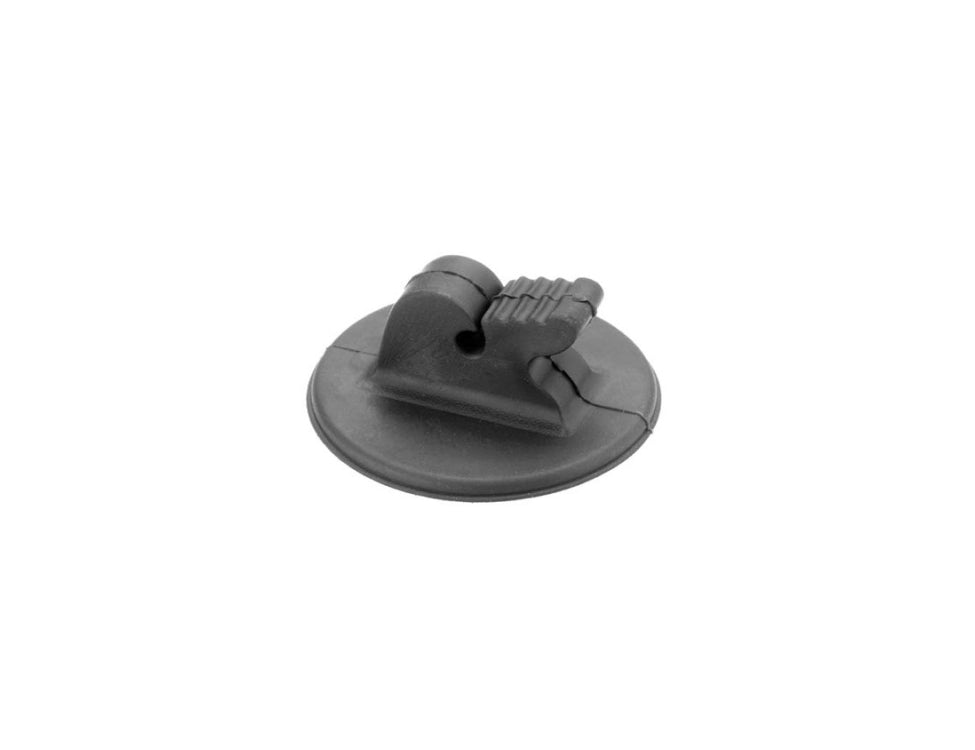

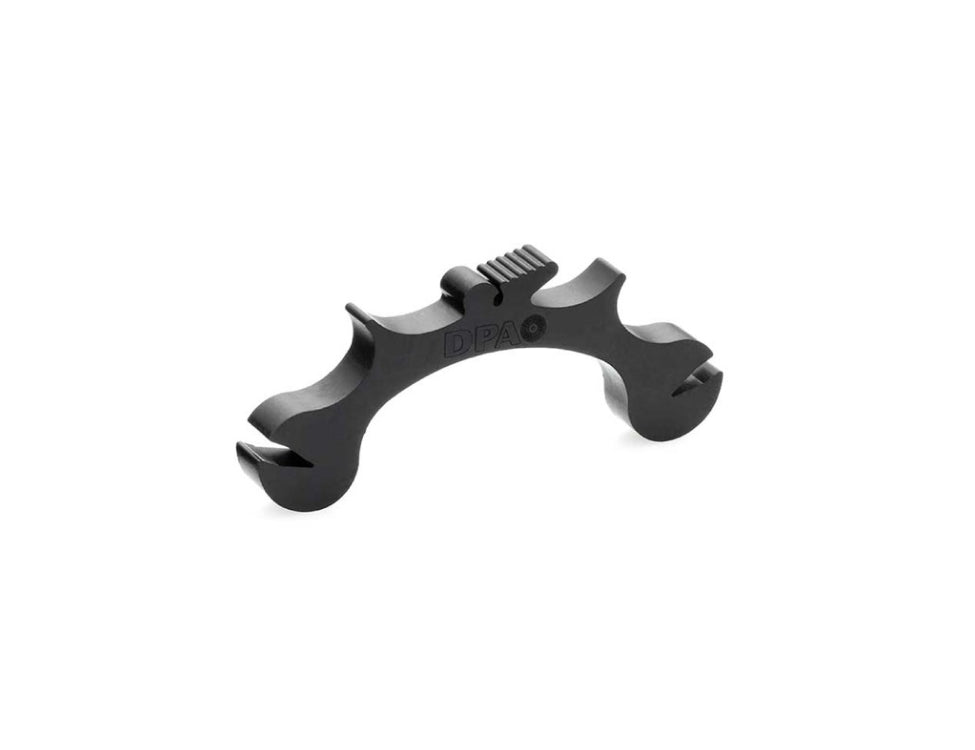

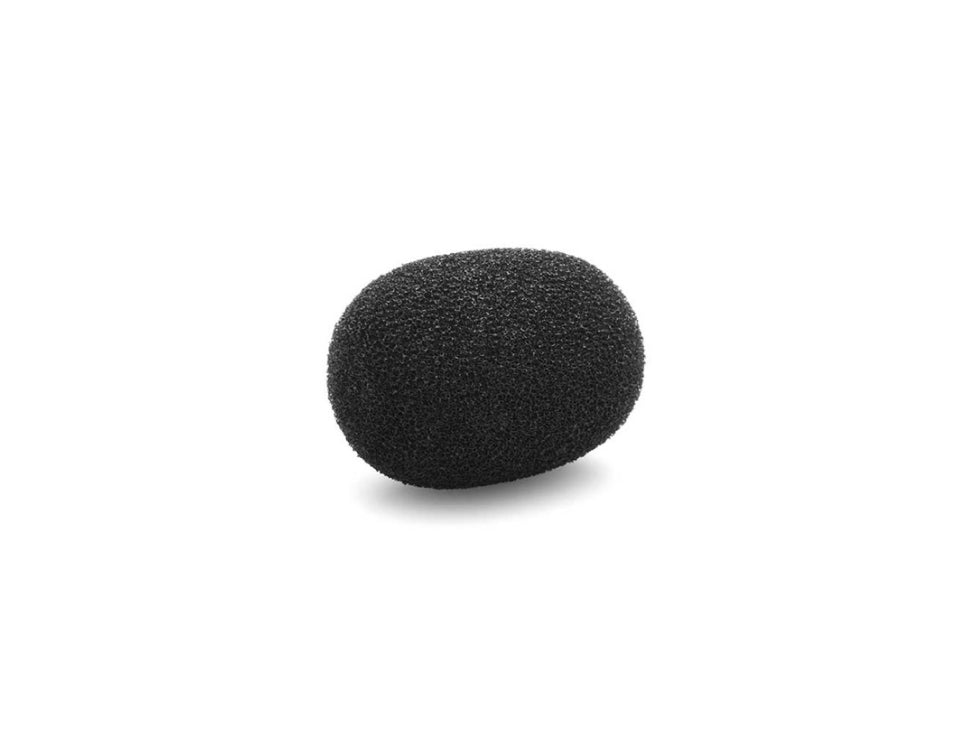

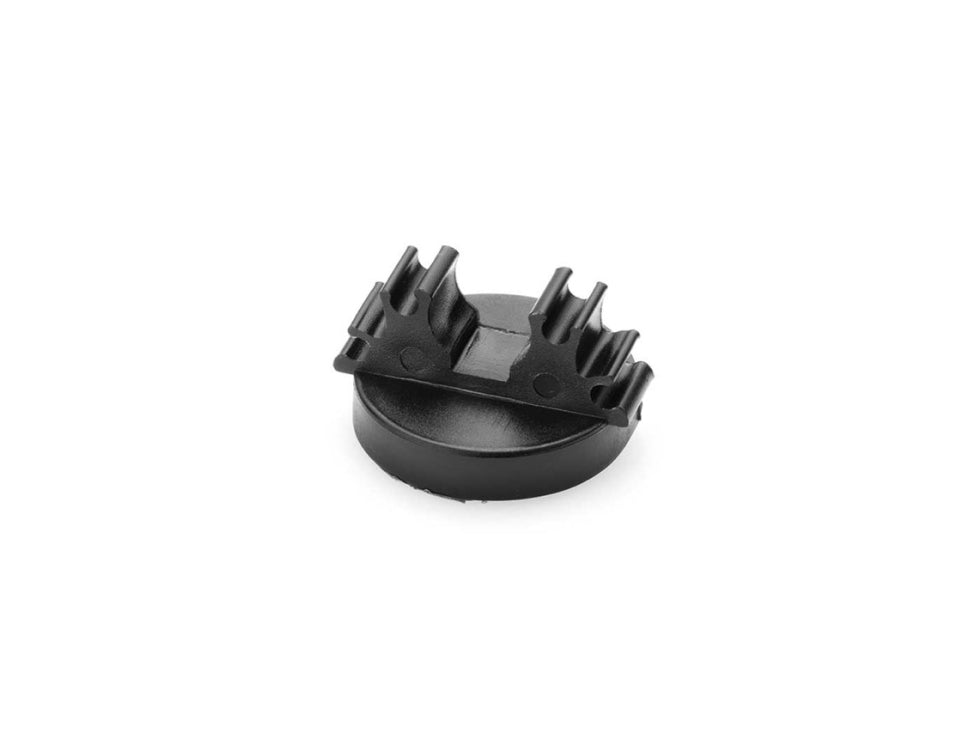

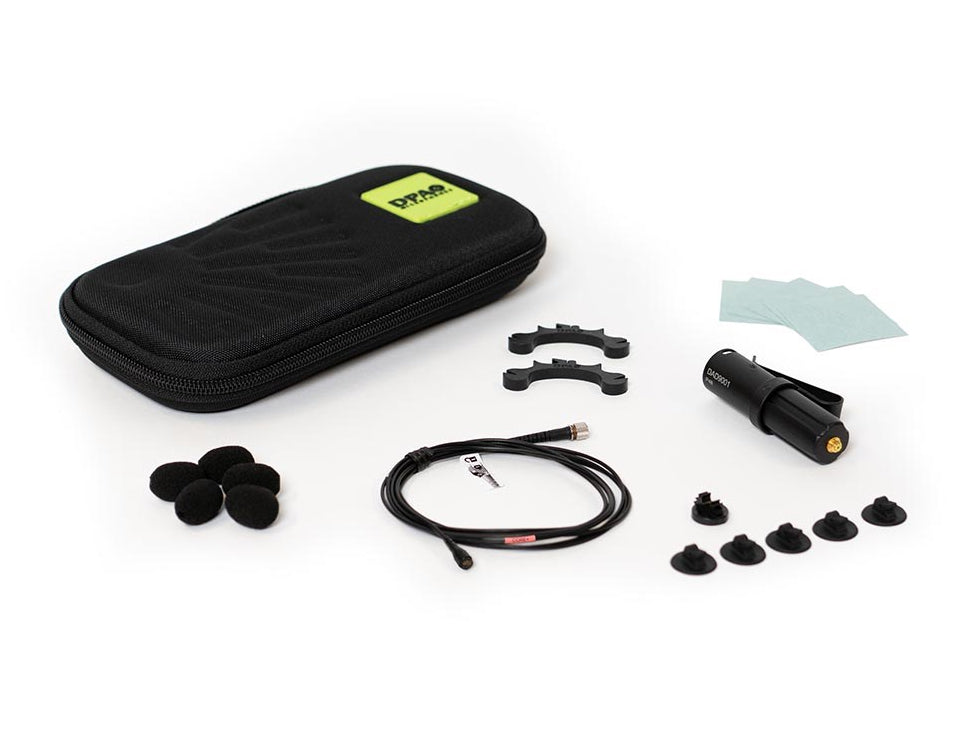

This kit is also perfect for studio use or amplification for live use. There are many accessories included in the kit. It contains holders for strings, universal surface mounts with double-sided tape, a magnet mount and foam windscreens.
FEATURES:
- Extremely rugged and reliable
- Exceptional audio quality
- Low noise and high sensitivity
- Large selection of accessories
- Modular adapter system fits most professional wireless systems
Specifications
- directional pattern: omnidirectional
- principle of operation: pressure
- cartridge type: pre-polarized condenser
- frequency range: 20Hz-20kHz
- frequency range, +/-2dB: soft boost grid (20Hz-20kHz), 3 dB soft boost at 8-20kHz, high boost grid (20Hz-20kHz), 10 dB boost at 12 kHz
- sensitivity, nominal, +/-3dB at 1 kHz: 6 mV/Pa, -44 dB re. 1 V/Pa
- equivalent noise level, A-weighted: typ. 26 dB(A) re. 20 Pa (max. 28 dB(A))
- equivalent noise level, ITU-R BS.468-4: typ. 38 dB (max. 40 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): typ. 68 dB(A)
- total harmonic distortion (THD)-Legacy: <1% THD up to 123dB SPL peak, <1% THD up to 120dB SPL RMS sine
- total harmonic distortion (THD)-CORE: <1% THD up to 137dB SPL peak
- dynamic range-Legacy: typ. 97dB
- dynamic range-CORE: typ. 111 dB
- max. SPL, peak before clipping: 144 dB
- output impedance: 30-40 Ohm
- cable drive capability: up to 300m

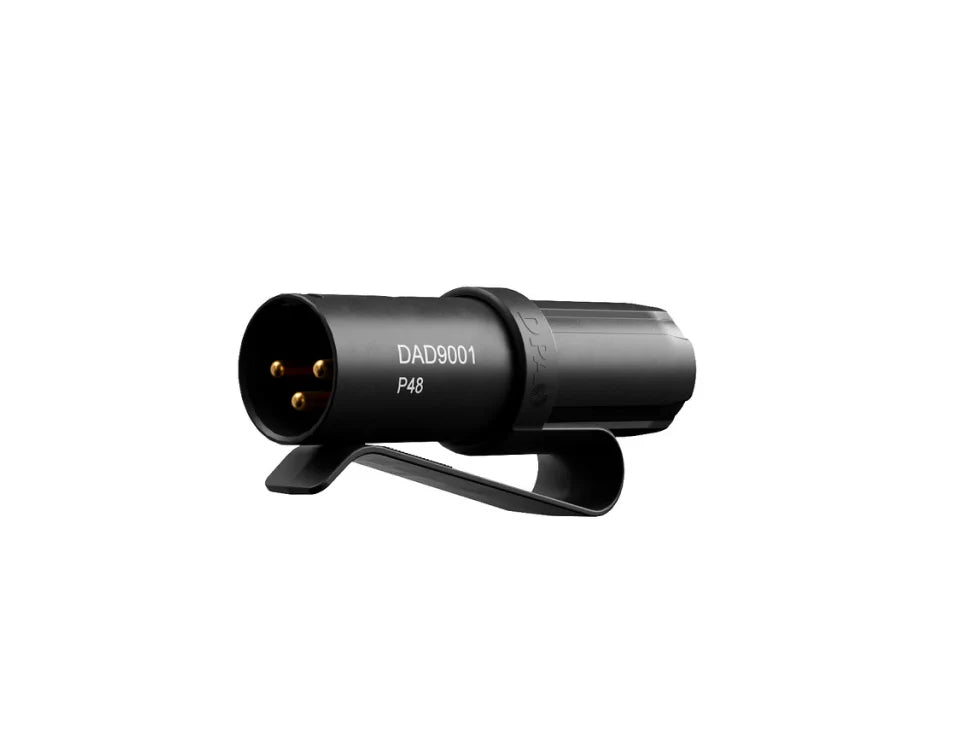

- power supply (for full performance): for wireless systems, min. 5V-max. 50V through DPA adapter. With DAD9001/DAD6024/DAD4099, 48V phantom power +/-4 V for full performance
- connector: MicroLock
- weight: 7.5 g incl. cable and MicroLock connector
- microphone diameter: 5.4 mm
- microphone length: 12.7 mm
- cable length: 1.8 m
- polarity: positively increasing sound pressure produces positive going voltage on MicroLock pin
- temperature range: -40°C to 45°C
- relative humidity (RH): up to 90%
