Name: DPA 4060 CORE+ lavalier kit
Brand: DPA
SKU: d.kit4060oplmk
Price: 519.83 EUR
Availability: InStock

Out of stock >

add to wishlist remove from wishlist

SKU: d.kit4060oplmk

Categories:

DPA, Lavalier, Microphones

Brand:

click to see related products

Description
specifications
in the box
Rental Info
media

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

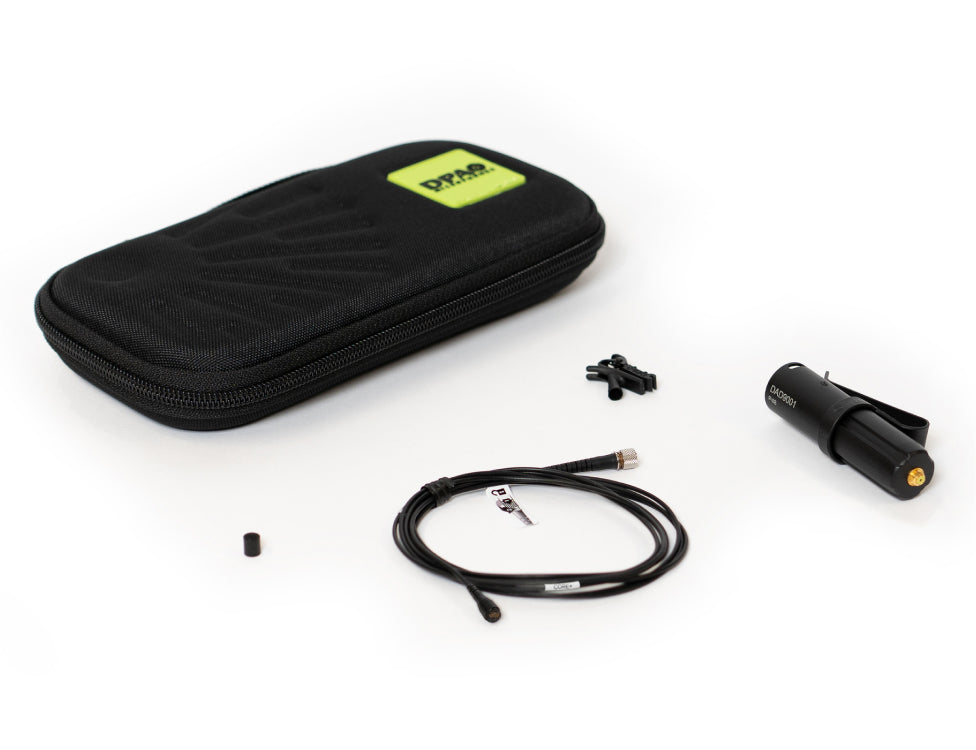

COMPLETE KIT WITH MICS AND ACCESSORIES

4060 Lavalier Microphone Kit

This kit is perfect for broadcasters, TV studios, news anchors and other public speakers.

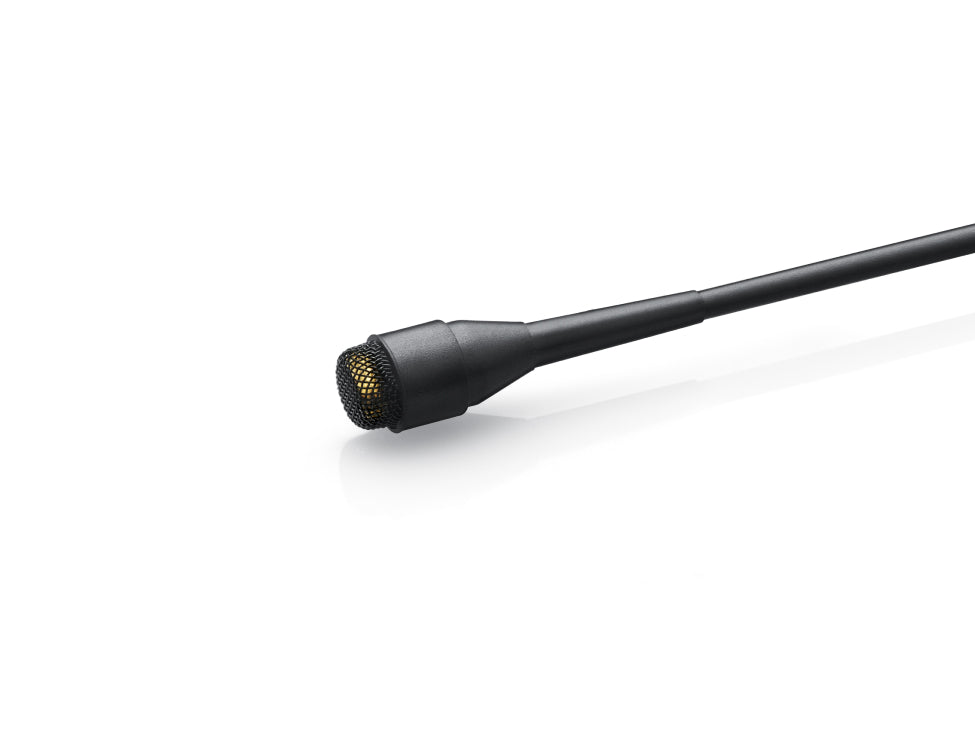

It is a robust and unobtrusive solution; the tiny 4060 Miniature Omnidirectional Microphone, Normal SPL is placed in the smallest holder on the market where it is protected from rough handling.

This mic is very natural sounding, offering great detail and resolution. It has a very low noise floor, impressive sensitivity and can handle high SPL.

directional pattern: omnidirectional
principle of operation: pressure
cartridge type: pre-polarized condenser
frequency range: 20Hz-20kHz

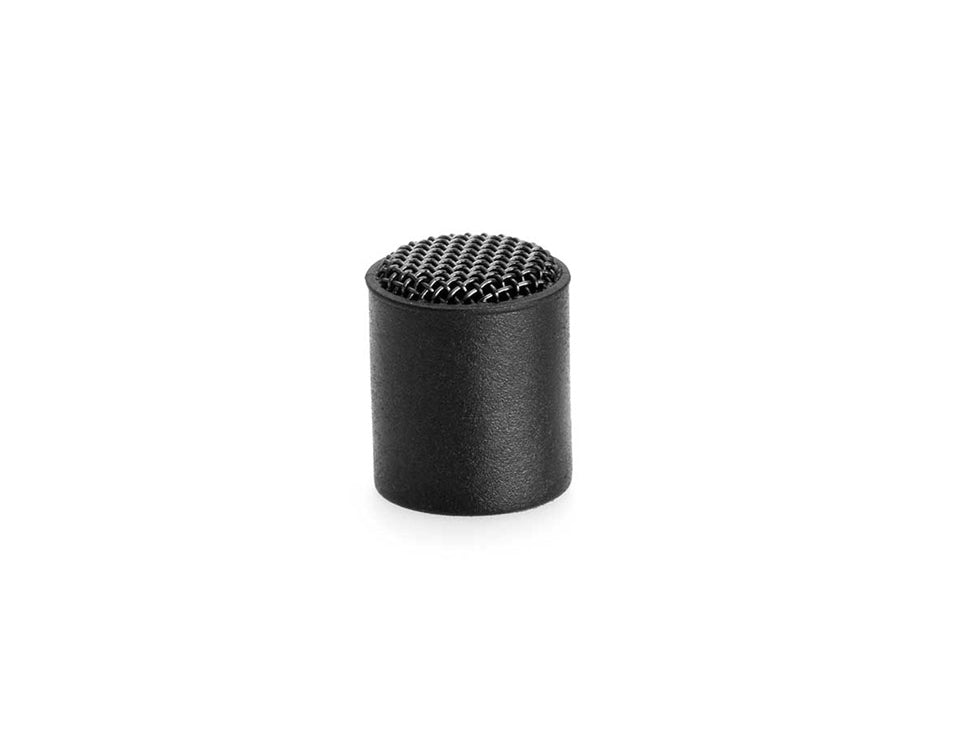

frequency range, +/-2 dB: soft boost grid (20Hz-20kHz), 3dB soft boost at 8-20kHz High boost grid (20Hz-20kHz), 10 dB boost at 12 kHz
sensitivity, nominal, +/-3dB at 1kHz: 20 mV/Pa, -34 dB re.1 V/Pa
equivalent noise level, A-weighted: typ. 23dB(A) re.20 Pa (max. 26 dB(A))
equivalent noise level, ITU-R BS.468-4: typ. 35dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): typ. 71dB(A)
total harmonic distortion (THD)-Legacy: <1% THD up to 123dB SPL peak, <1% THD up to 120dB SPL RMS sine
total harmonic distortion (THD)-CORE: <1% THD up to 129dB SPL peak
dynamic range-Legacy: typ. 100dB
dynamic range-CORE: typ. 106dB
max. SPL, peak before clipping: 134dB
output impedance: 30-40 Ohm
cable drive capability: up to 300m (984ft)
power supply (for full performance): for wireless systems, min. 5V-max. 50V through DPA adapter. With DAD9001/DAD6024/DAD4099, 48V phantom power +/-4V for full performance
connector: MicroLock
weight: 7.5 g incl. cable and MicroLock connector
microphone diameter: 5.4 mm
microphone length: 12.7 mm
cable length: 1.8 m
polarity: positively increasing sound pressure produces positive going voltage on MicroLock pin
temperature range: -40°C to 45°C
relative humidity(RH): up to 90%
