Description

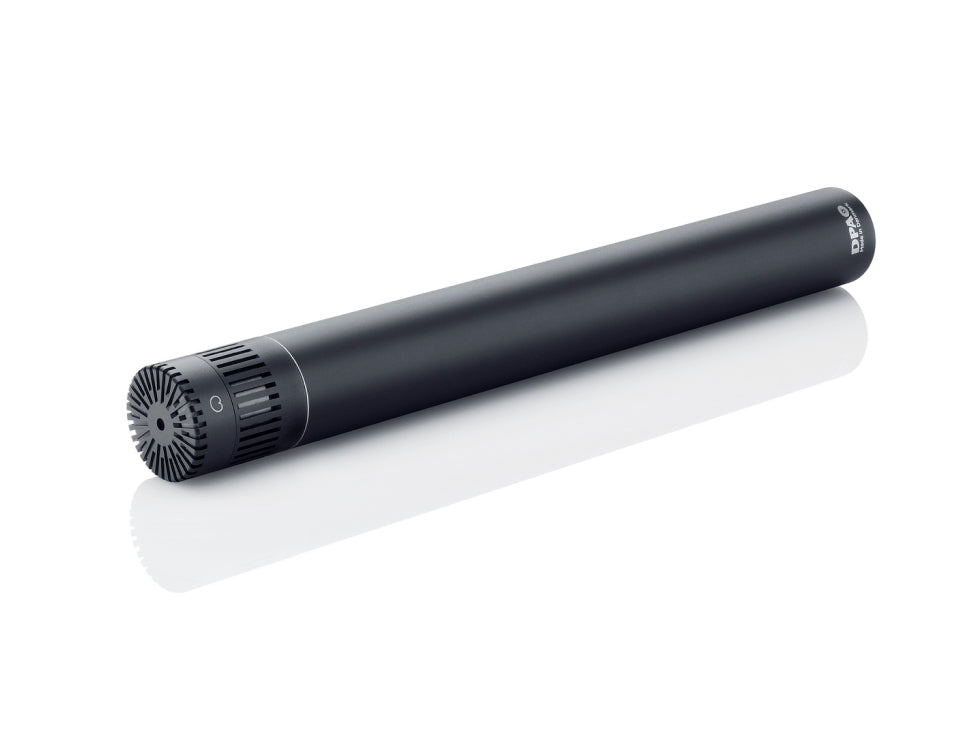

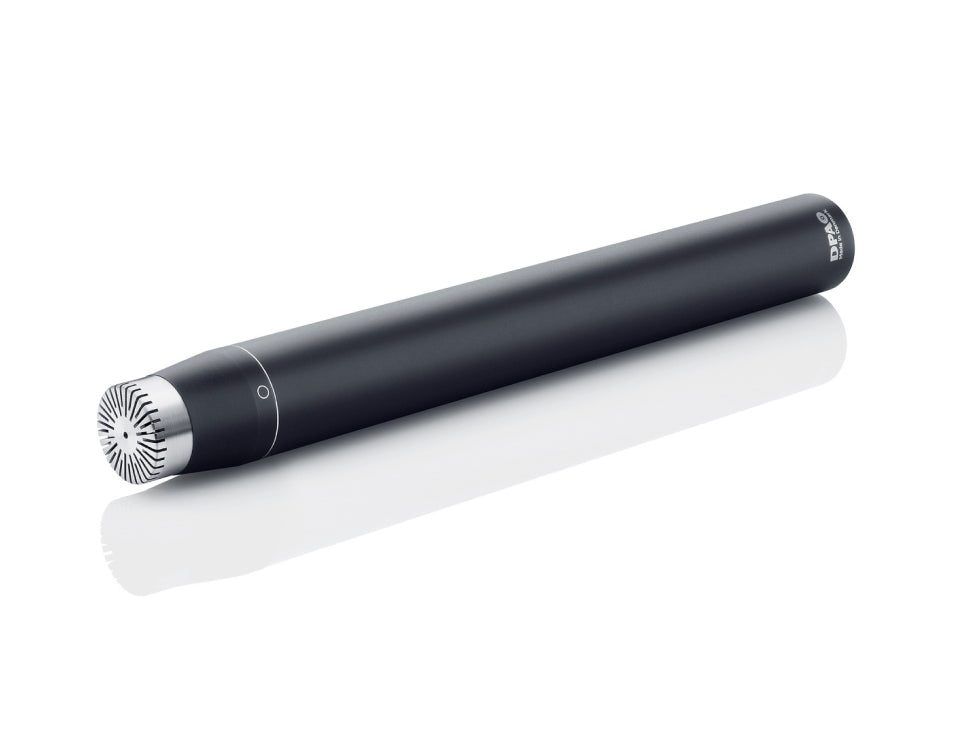

A complete surround kit combining three d:dicate 4006A omnidirectional microphones and two d:dicate 4011A cardioid microphones, carefully factory-matched to achieve full precision.
Even though the standard tolerances on the d:dicate microphone series are extremely low, the surround match is even closer.
The specially-selected d:dicate 4006A omnidirectional microphones are matched within +/-0.5dB on both frequency response and sensitivity. The d:dicate 4011A cardioid microphones are matched within +/-1dB.
The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10Hz to 20kHz (+/-2dB) of the microphones make the d:dicate 4006A omnidirectional microphones the perfect choice for all AB stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of d:dicate 4006A omnidirectional microphones will provide you with a lifetime of satisfying listening.

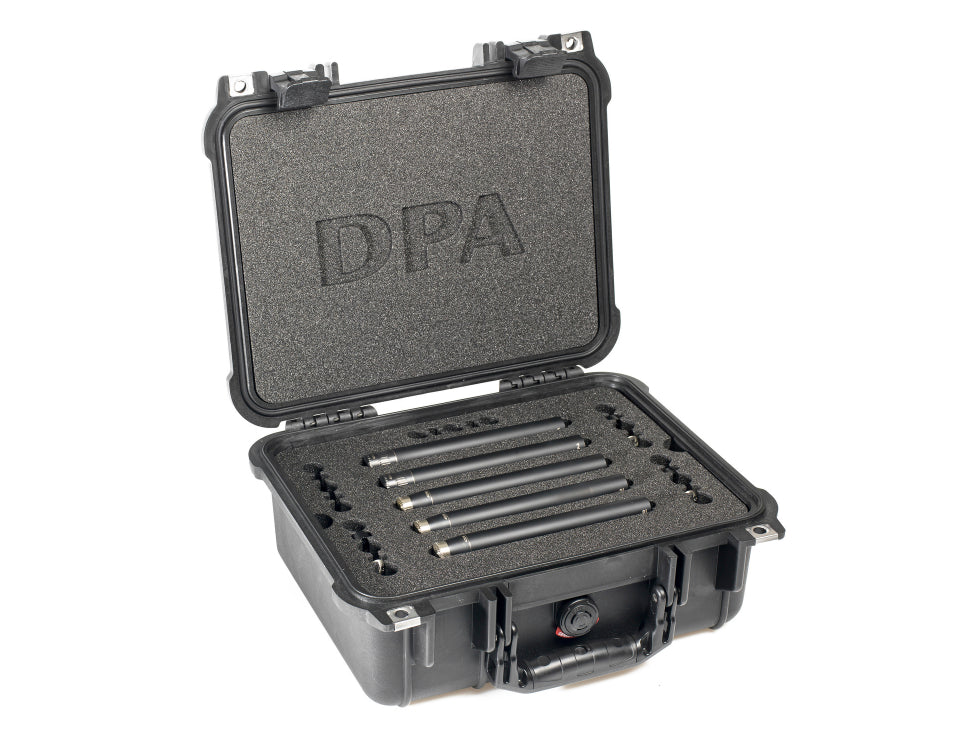

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.
FEATURES:
- Three omni + two cardioid carefully matched microphones
- Decca Tree front + cardioids rear
- Useful as orchestral main pair
- Peli Case transportation and protection
S5 SURROUND/DECCA TREE

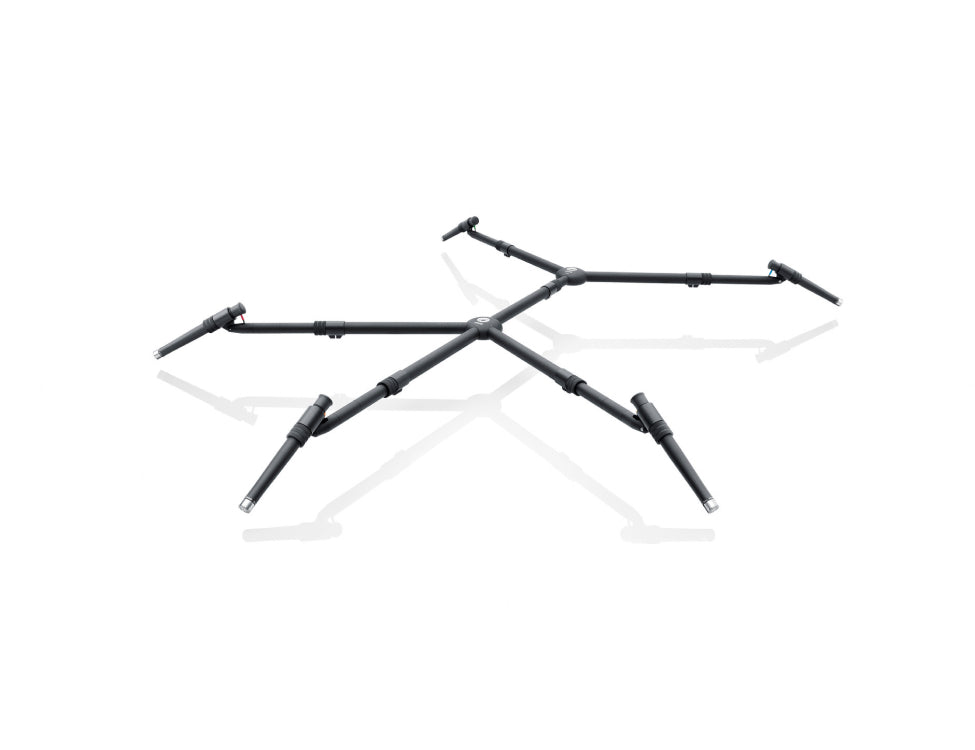

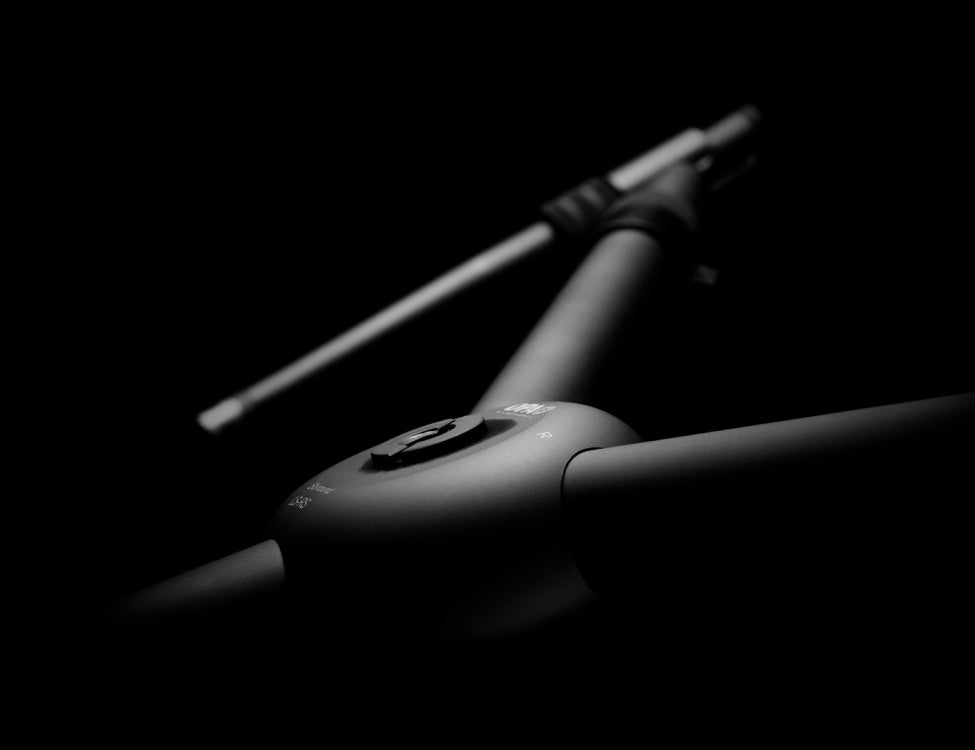

The Surround Mount is a highly versatile and stylish microphone mount. This mount provides extreme flexibility due to its unique building block design. It allows for numerous configurations while providing visual elegance.
Onstage, the mount is hardly visible and completely non-reflective to light. The mount is equally suitable for fixed installations and mobile setups. It can be packed away into the supplied briefcase for easy transportation.
Specifications
- Directional pattern (4006A): omnidirectional
- Directional pattern (4011A): cardioid
- Principle of operation (4006A): pressure
- Principle of operation (4011A): pressure gradient
- Cartridge type (overall): pre-polarized condenser
- Frequency range (overall): 10Hz to 20kHz
- Frequency range, +/-2dB (4006A): 10Hz to 20kHz
- Frequency range, +/-2dB @ 30cm (4011A): 40Hz to 20kHz
- Sensitivity, nominal, +/-2dB at 250Hz (4006A): 40mV/Pa, -28dB re. 1V/Pa
- Sensitivity, nominal, +/-2dB at 1kHz (4011A): 10mV/Pa, -40dB re. 1V/Pa
- Equivalent noise level, A-weighted (4006A): typ. 15dB(A) re. 20uPa (max. 17dB(A))
- Equivalent noise level, A-weighted (4011A): typ. 18dB(A) re. 20uPa (max. 20dB(A))
- Equivalent noise level, ITU-R BS.468-4 (4006A): typ. 27dB (max. 29dB)
- Equivalent noise level, ITU-R BS.468-4 (4011A): typ. 25dB (correct with the attenuator in 0dB or -20dB setting)
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL) (4006A): typ. 79dB(A)
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL) (4011A): typ. 76dB(A)
- Total harmonic distortion (THD) (overall): <1% up to 139dB SPL peak
- Dynamic range (4006A): typ. 124dB
- Dynamic range (4011A): typ. 121dB
- Max. SPL, peak before clipping (4006A): 147dB
- Max. SPL, peak before clipping (4011A): 159dB
- Switchable attenuator, filters etc.: 0dB / -20dB
- Output impedance (overall): <20Ohm
- Minimum load impedance (overall): 2kOhm
- Cable drive capability (overall): 100m
- Output balance principle: impedance balancing with "Active Drive"
- Common mode rejection ratio (CMRR) (overall): >60dB
- Power supply (for full performance): 48V phantom power +/-4V
- Current consumption (overall): 2.8mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: phase
- Color: matte black
- Weight (4006A): 163 g
- Weight (4011A): 158 g
- Microphone diameter (4006A): 16 to 19mm
- Microphone diameter (4011A): 19mm
- Capsule diameter (4006A): 16 mm
- Capsule diameter (4011A): 19mm
- Microphone length (overall): 170mm
- Maximum output voltage, RMS (overall): >5V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range (overall): -40°C to 45°C
- Relative humidity (RH) (overall): up to 90%
- Matching tolerance (frequency response and sensitivity) 4006A: +/-0.5 dB
- Matching tolerance (frequency response and sensitivity) 4011A: +/-1 dB
- Phase deviation for 4006A: <5°
- Phase deviation for 4011A: <10°
