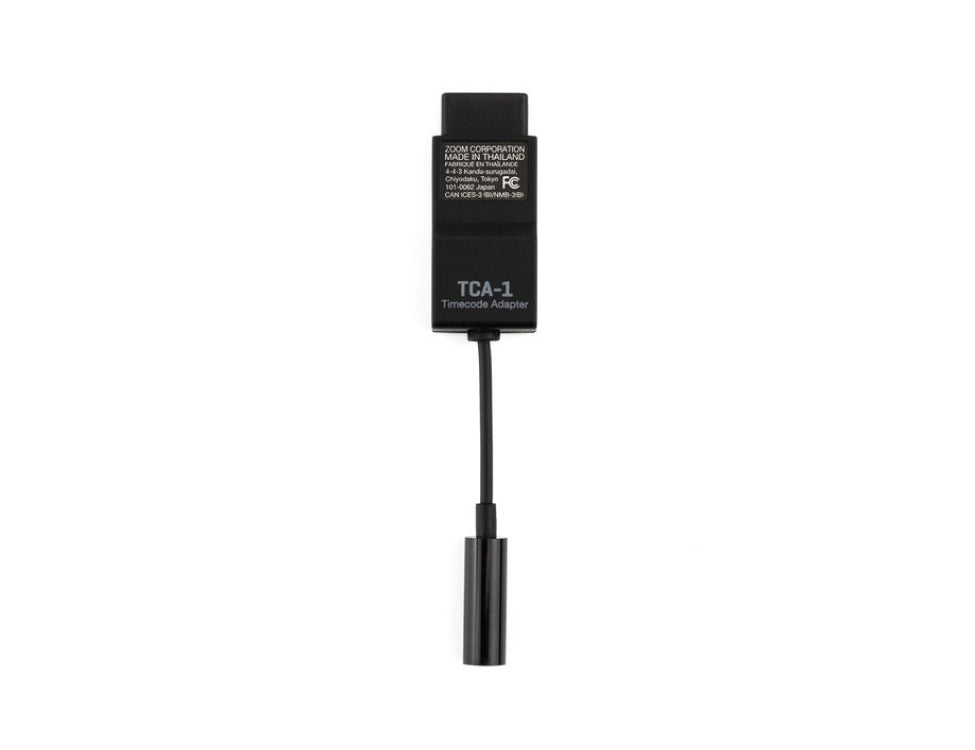

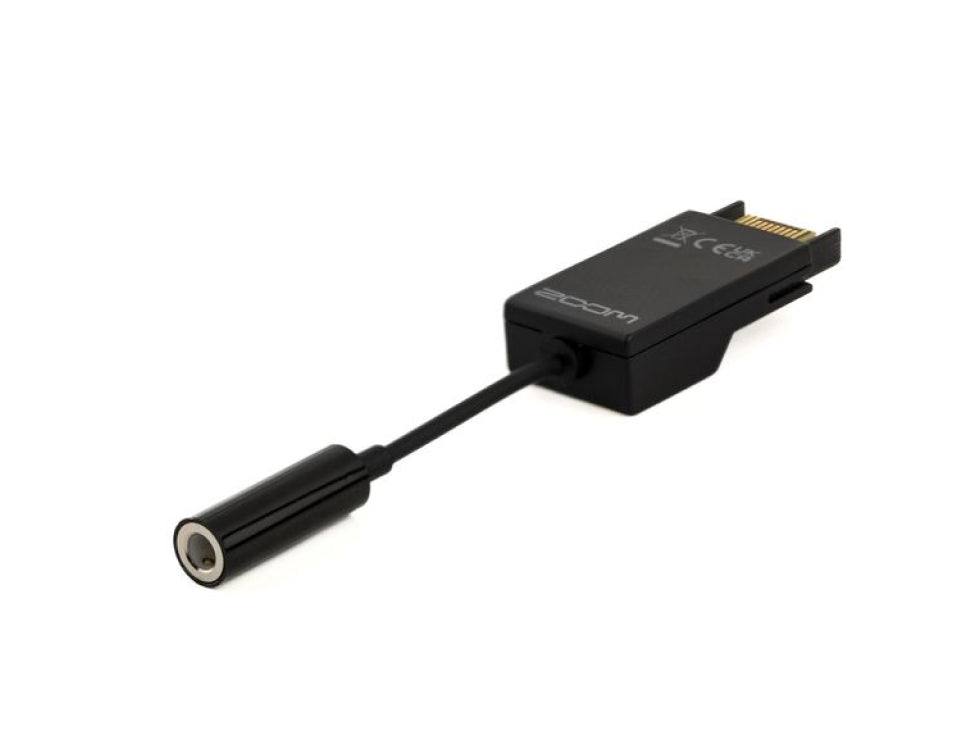

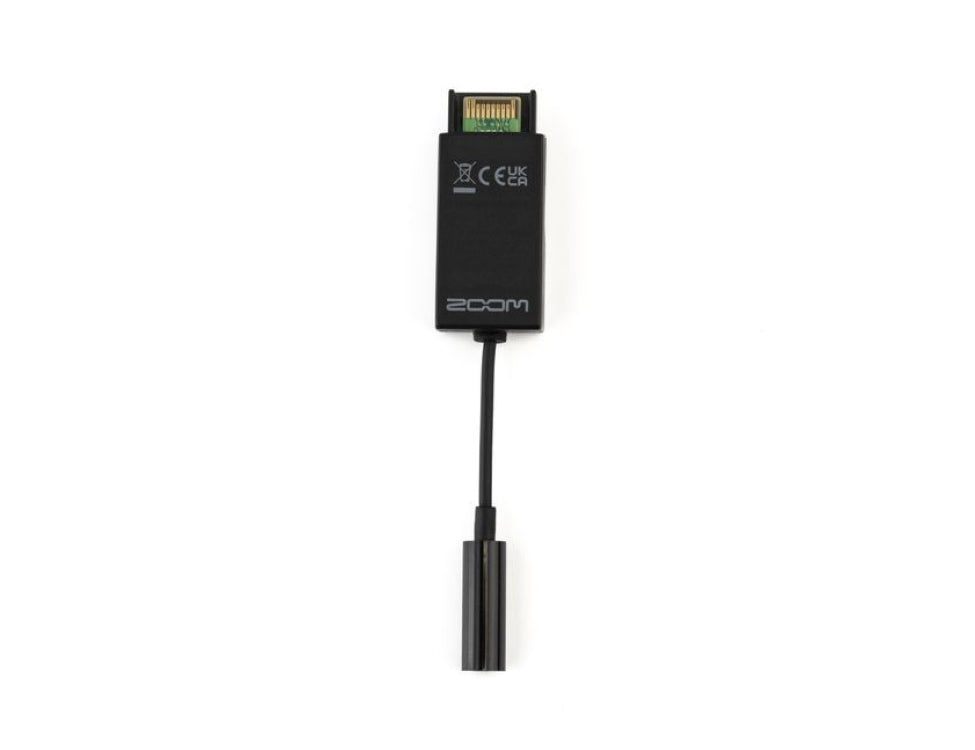

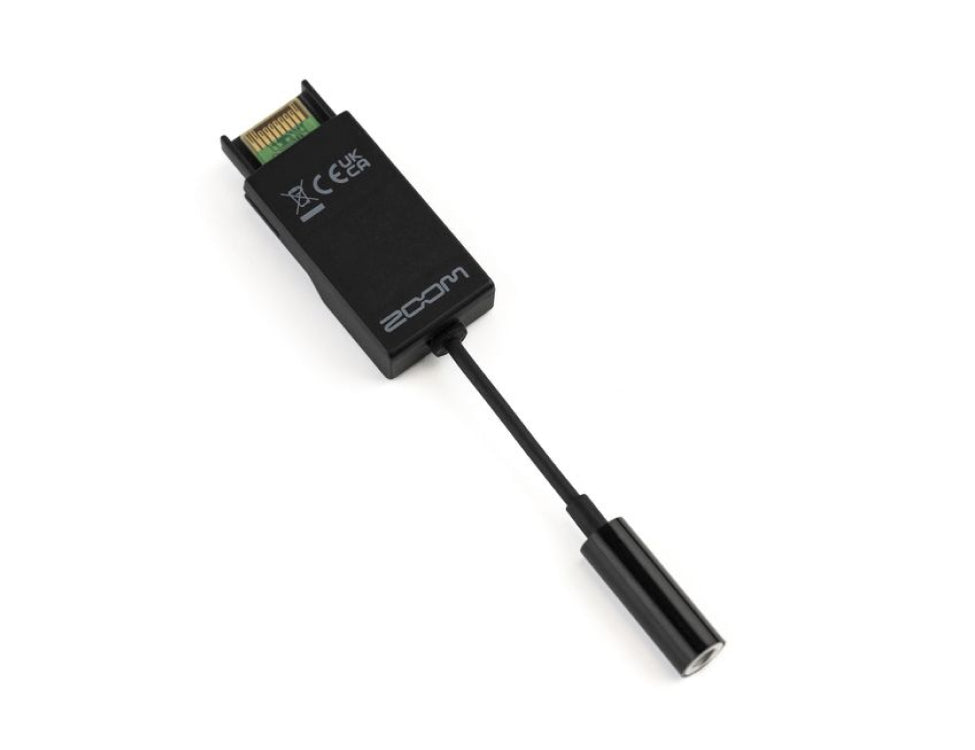

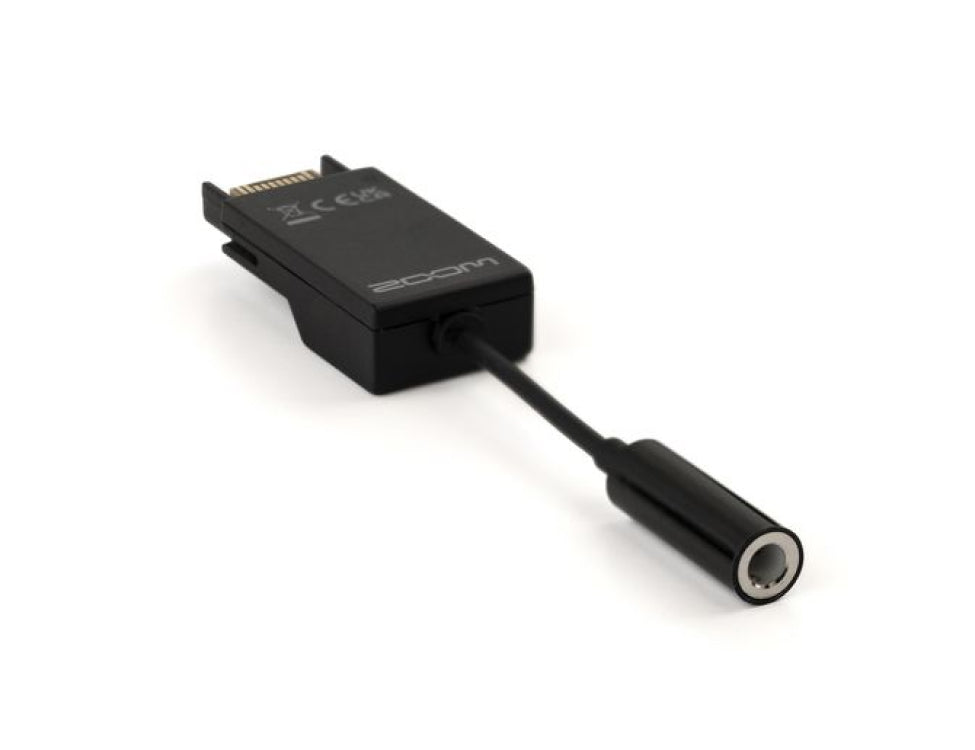

- ZOOM TCA-1
Description
INCREDIBLE TIMECODE ACCURACY
The TCA‑1 is a precision timecode generator engineered for professional audio-video sync.
Its temperature‑compensated crystal oscillator (TCXO) delivers exceptional stability, maintaining accuracy within 0.5 frames over 24 hours. It's that accurate.
FAST, ACCURATE SYNC

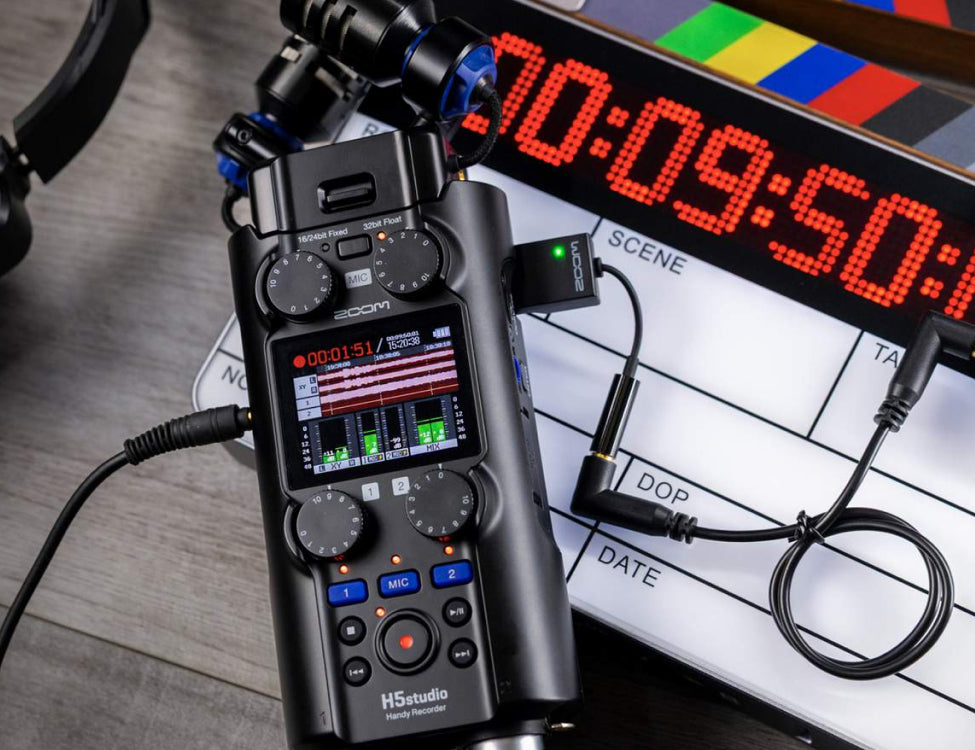

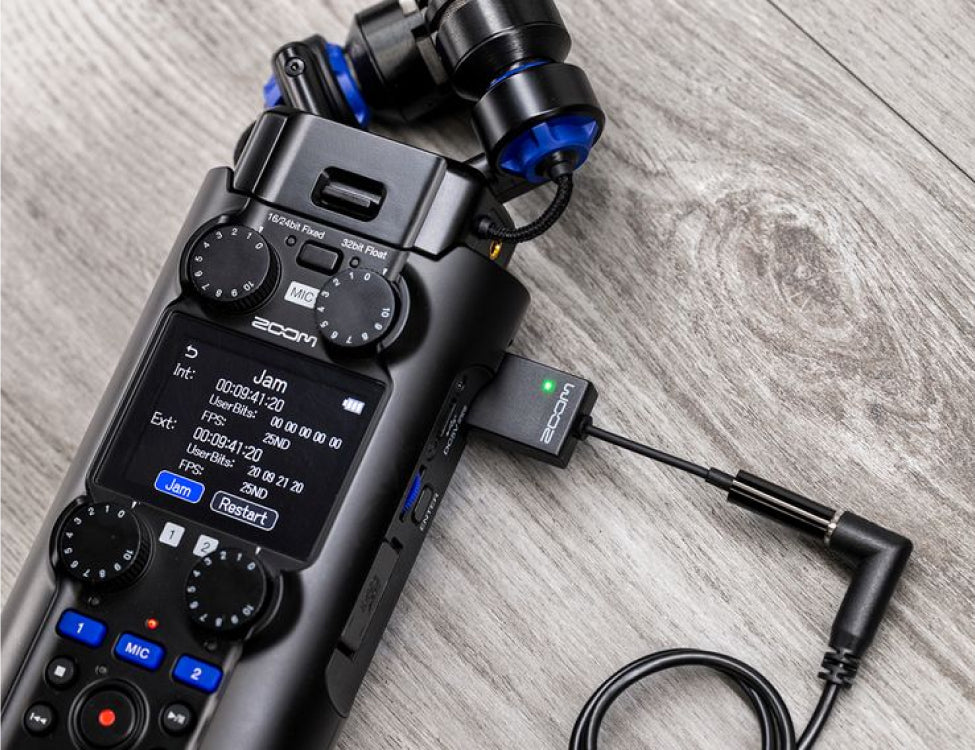

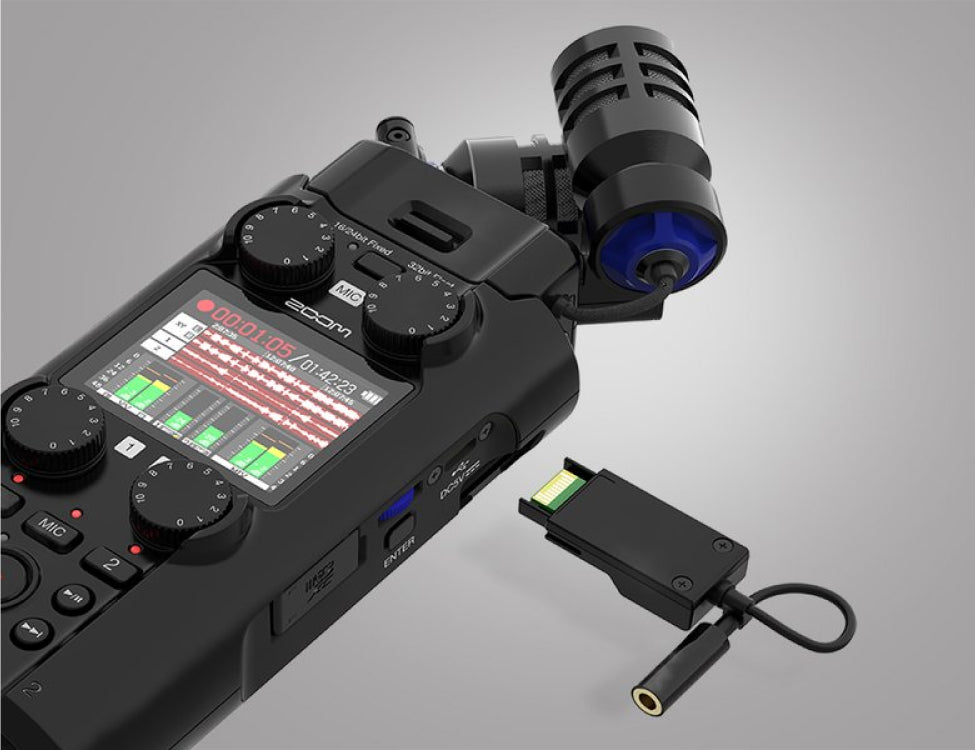

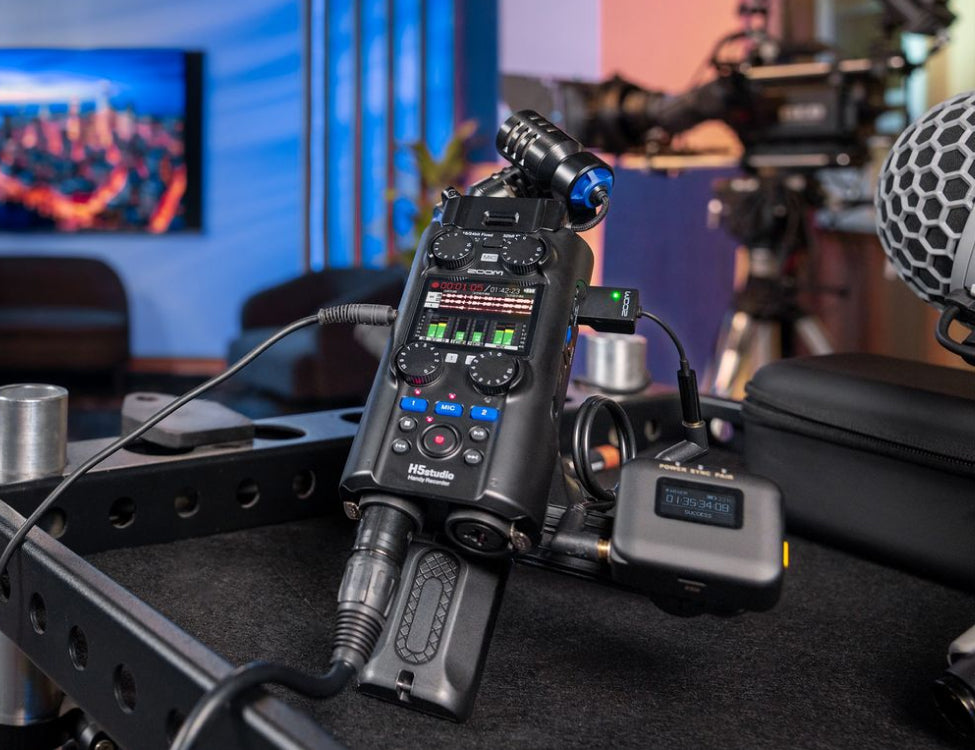

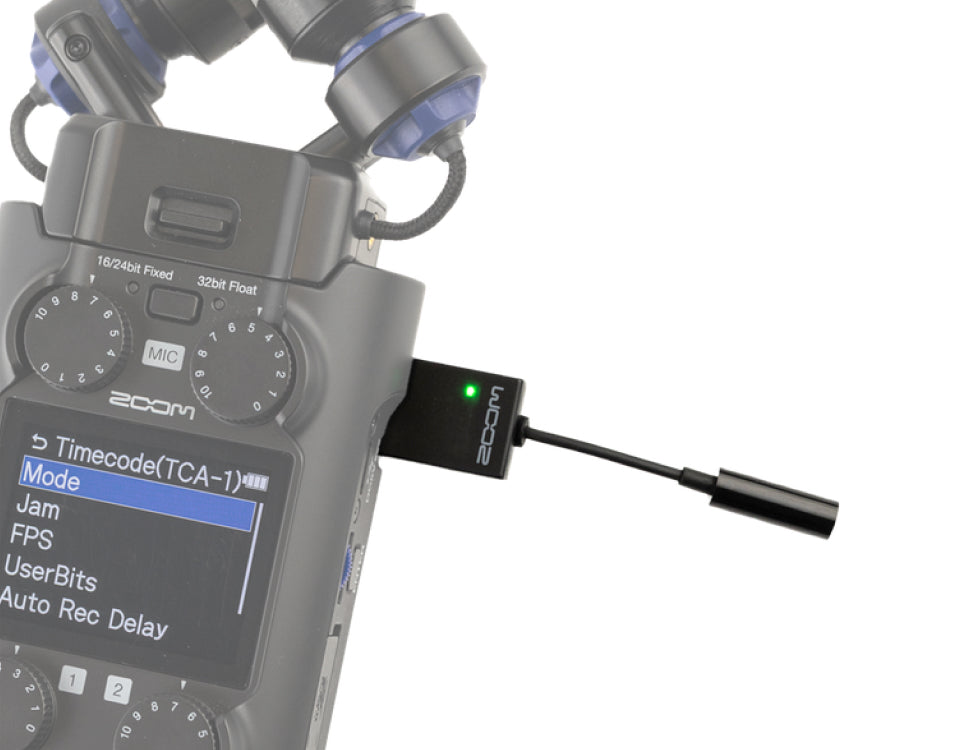

The TCA-1 easily attaches to the Remote connector on compatible Zoom recorders. Its 3.5 mm TRS connection enables timecode input and output for easy syncing with cameras, timecode generators, and slates.
COMPATIBILITY
The TCA-1 is compatible* with the H6studio (v1.50 or later), H5studio (v1.60 or later), H6essential (v3.30 or later), H4essential (v2.30 or later), H2essential (v2.01 or later) and F3 (v2.20 or later) recorders.
*please update the firmware of your compatible device before use.
Specifications
TIMECODE
- Connector: 3.5mm stereo mini
- Modes: Off, Int Free Run, Int Rec Run, Time of Day, Ext, Ext Auto Rec
- Frame Rate: 23.976 NDF, 24 NDF, 25 NDF, 29.97 NDF, 29.97 DF, 30 NDF, 30 DF
- Precision: ±0.2 ppm
- Allowed input level: 0.2 - 5.0 Vpp
- Input Impedance: 4.5 kΩ
- Output Level: 3.3 Vpp
- Output Impedance: 50 Ω or less
- Power Supply: DC 3.3V (Supplied from connected host unit)
- External Dimensions: 17mm (W) × 93.5mm (D) × 9.2mm (H)
- Weight: 5.9 g
