Description
Zaxcom DCiRX defines a new class of professional audio receivers designed for filmmakers, broadcasters, content creators, and live production professionals who cannot afford compromise.
Powered by Zaxcom narrow-band direct conversion design, DCiRX operates in the UHF spectrum 470 to 698 MHz.
DCiRX can receive UHF audio from a single mono or stereo transmitter while simultaneously supporting a direct input for lavalier or 48V phantom powered microphones.
A built-in 4-track recorder captures up to 3 ISO tracks plus 1 mix track with timecode in 32-bit float or 24-bit fixed. A USB-C interface connects to mobile devices, computers, and USB cameras, delivering 4 channels of audio with timecode.
Dedicated outputs include balanced TA-5 for professional cameras, timecode, and headphone monitoring for confidence in the field.

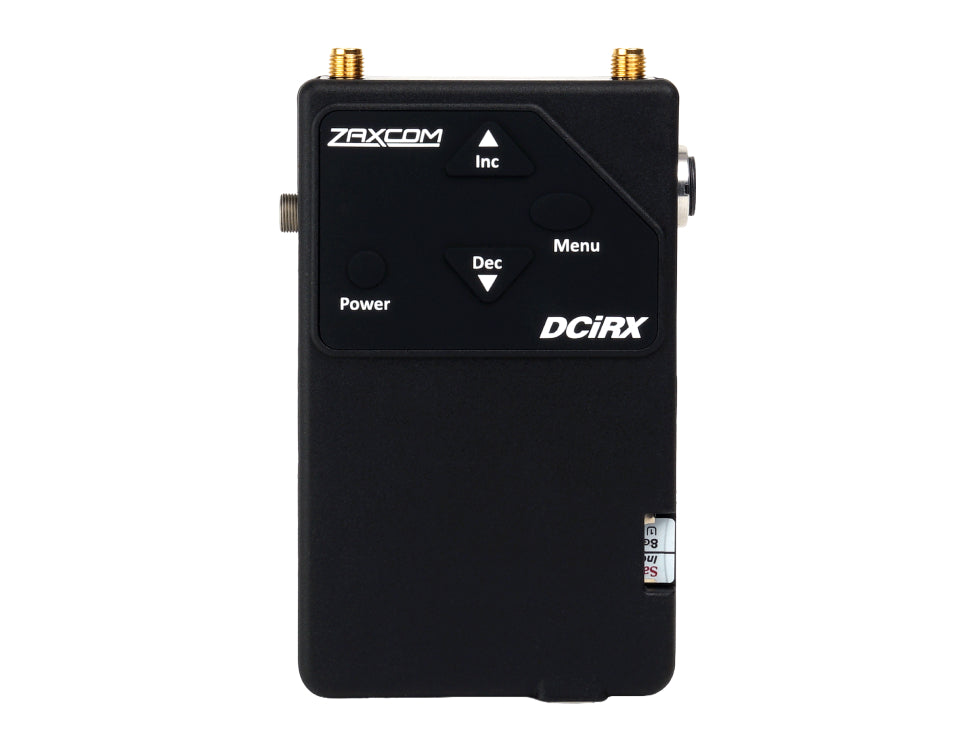

DCiRX combines receiver, recorder, mixer, and USB interface in one compact unit.
*WARNING: Check microphone compatibility before turning on the DCiRX. NEVER apply 48V to standard 5V bias power lavalier microphones. Applying 48V will likely damage the microphone.
INPUT CONNECTIONS

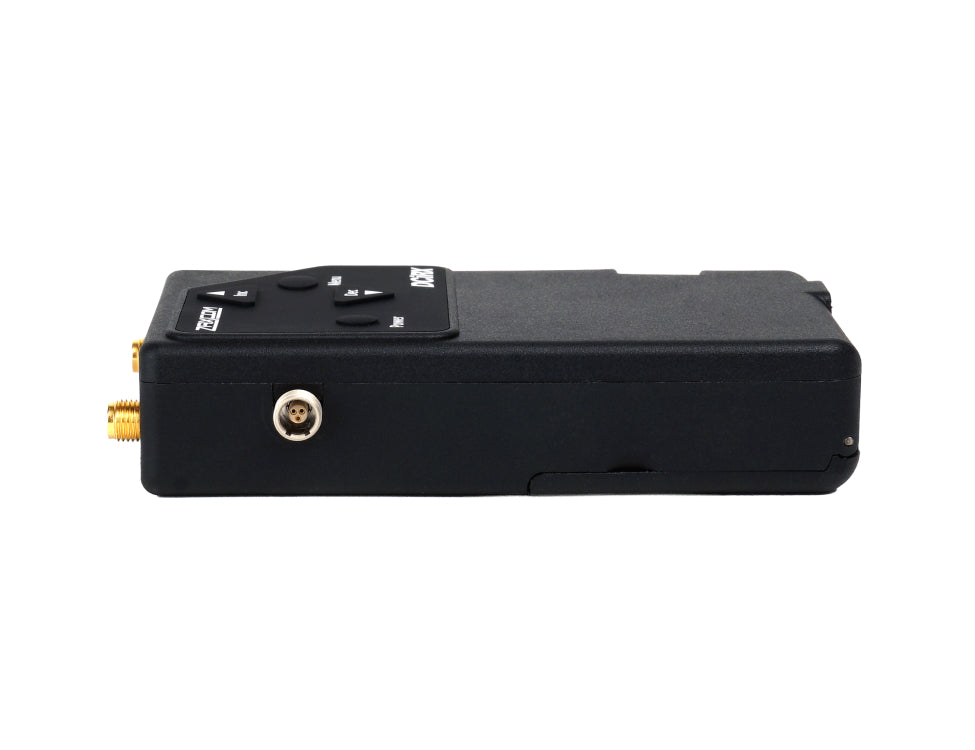

- Mic Input: 3-pin Lemo (5V unbalanced or 48V balanced/dynamic)
- Analog Audio Out: TA-5 (mic or line level)

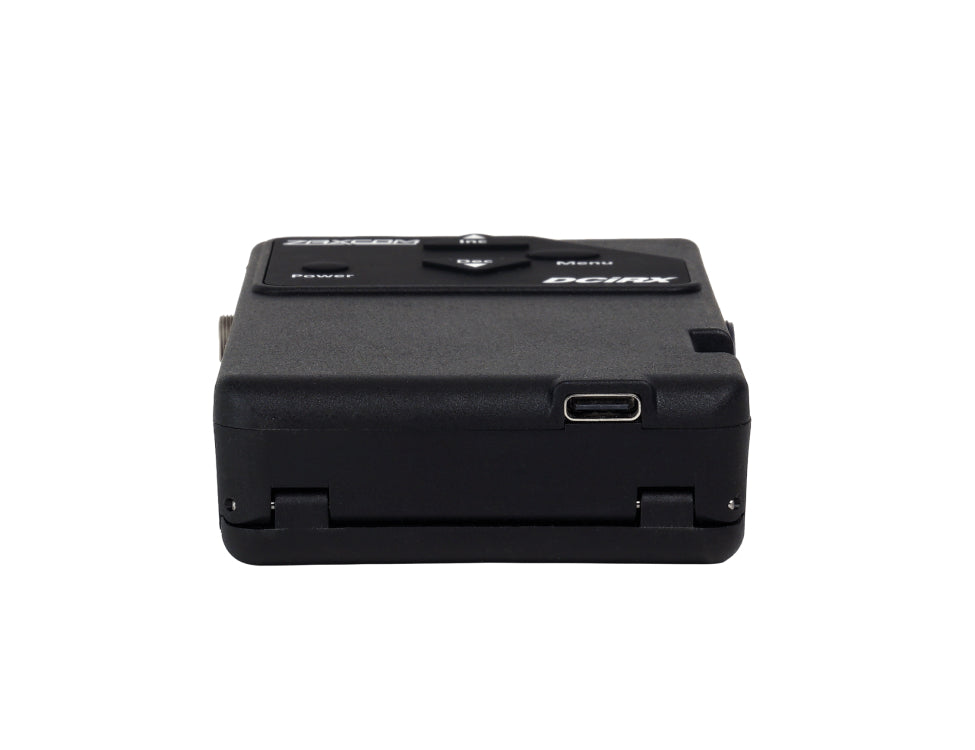

- USB-C: audio interface, power, and firmware updates

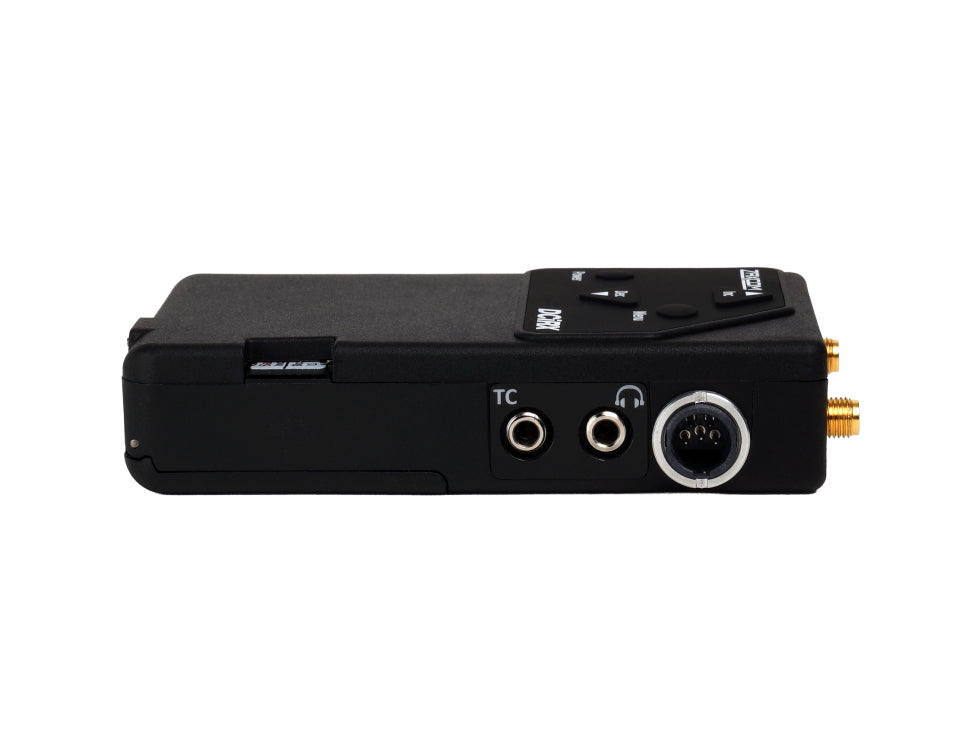

- Headphones: 3.5mm locking connector
- SMPTE Timecode: 3.5mm locking connector

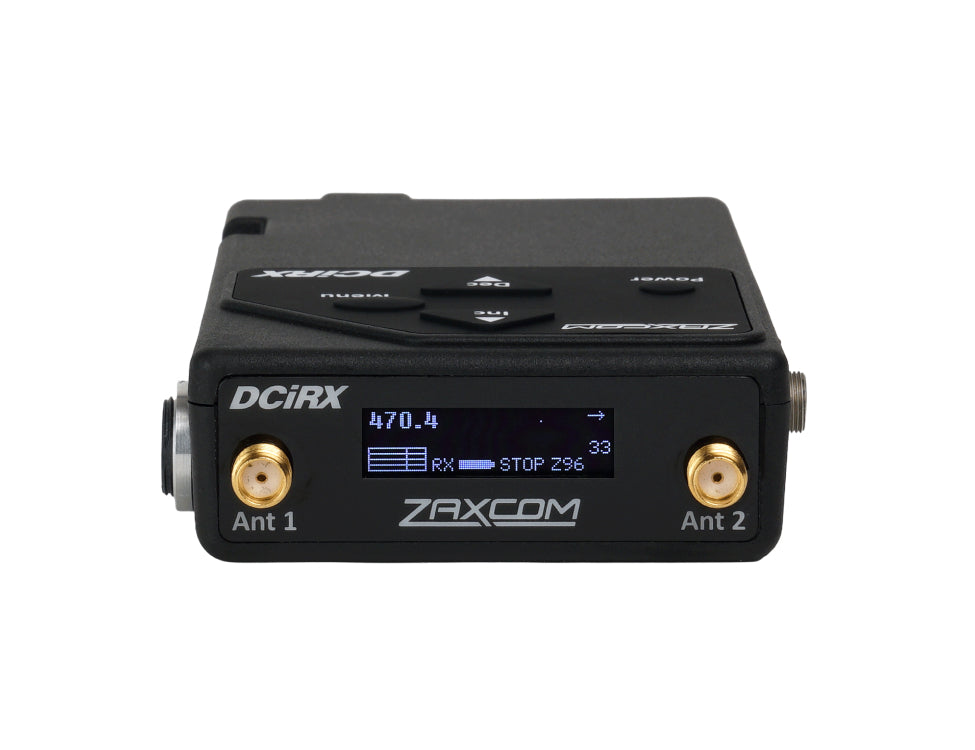

- Dual SMA connectors: antennas
- OLED Display
POWER OPTIONS

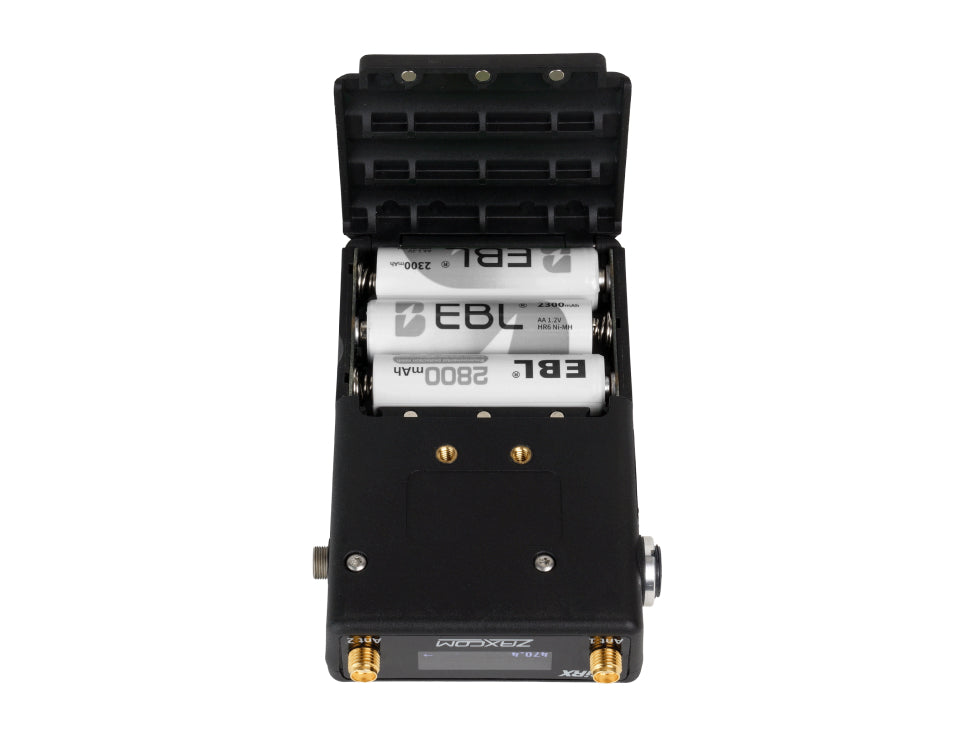

Powered by 3 standard AA batteries
- Li-Ion Battery Life: Up to 7 hours
- NiMH Battery Life: Up to 5 hours
- Alkaline Battery life: Up to 3 hours (not recommended)
USB-C; DCiRX can be powered by the USB-C input
UNIVERSAL MOUNTING

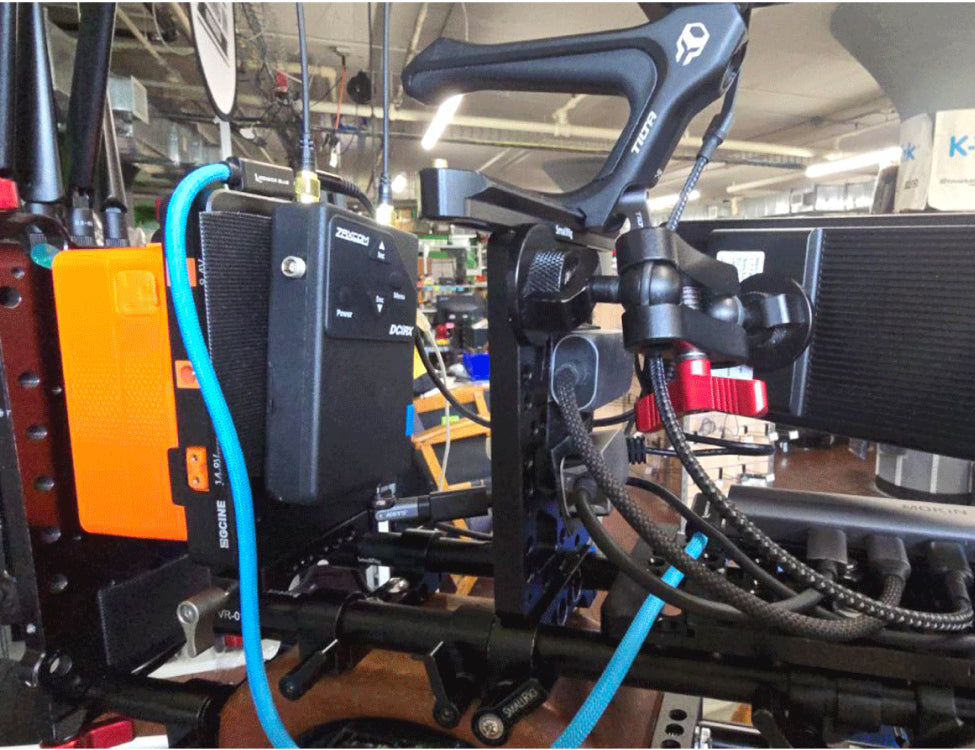

- Designed for all cameras, sound bags, mobile rigs, and discrete placements.
FEATURES:
- Professional Digital Wireless Receiver
- Narrow-band Direct Conversion: a newly designed receiver method
- Operates in the UHF Spectrum 470 to 698 MHz
- Supports a single mono or stereo UHF audio transmitter from Zaxcom bodypacks, plug-ons, camera links, and handhelds
- Simultaneously supports 1 wireless transmission and 1 microphone input for lavalier or 1 external microphone
- Supports 5V unbalanced or 48V balanced/dynamic phantom power*
- A dual balanced 2-channel output supports both mic and line level audio, adjustable up to +12 dBu
- A tunable tracking front-end filter, adjustable in 1 MHz steps

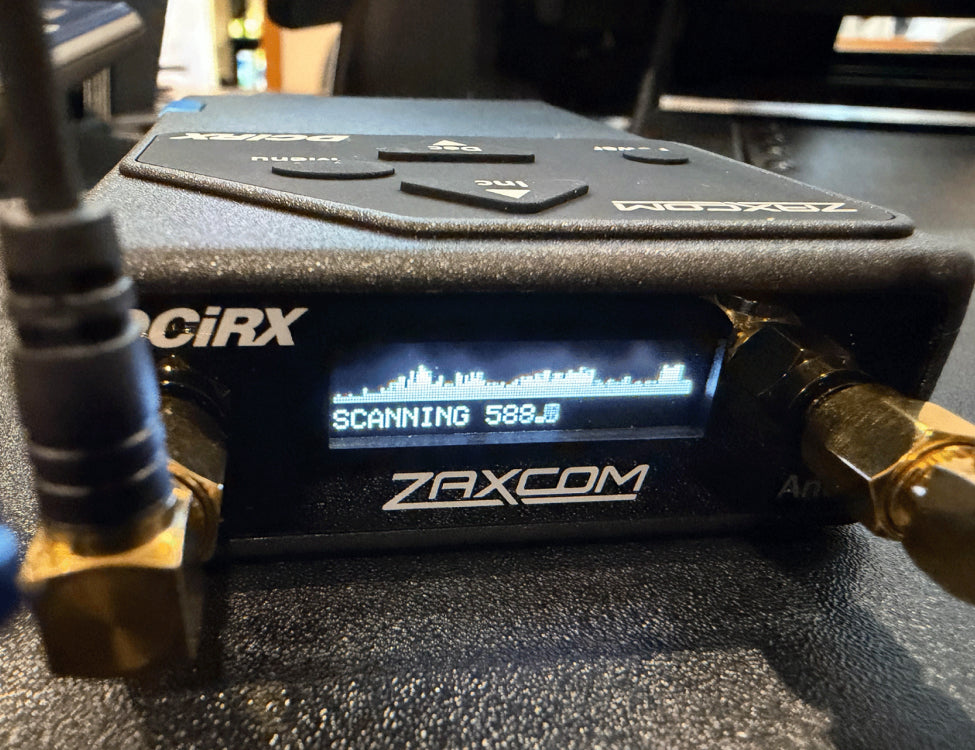

- Automatic RF frequency scans
- ZHD Modulation
- Stand-alone Receiver
- Stereo Link Receiver
- IFB Receiver
- Encrypted audio
- 32-bit float or 24-bit fixed broadcast WAV internal recording
- Simultaneous wireless reception and 32-bit or 24-bit fixed internal recording
- 4-track internal recording; 3 ISO tracks plus 1 mix track (32-bit float or 24-bit)
- USB-C Audio Interface; 4-channel USB-C audio interface for connections to mobile devices, computers, or USB cameras
- Wireless Receiver and Preamp for Computers; record directly into DAW
- Timecode: Internal generator or receives timecode embedded in the wireless transmission; SMPTE TC output
- Compatible with Blackmagic Camera ProDock
