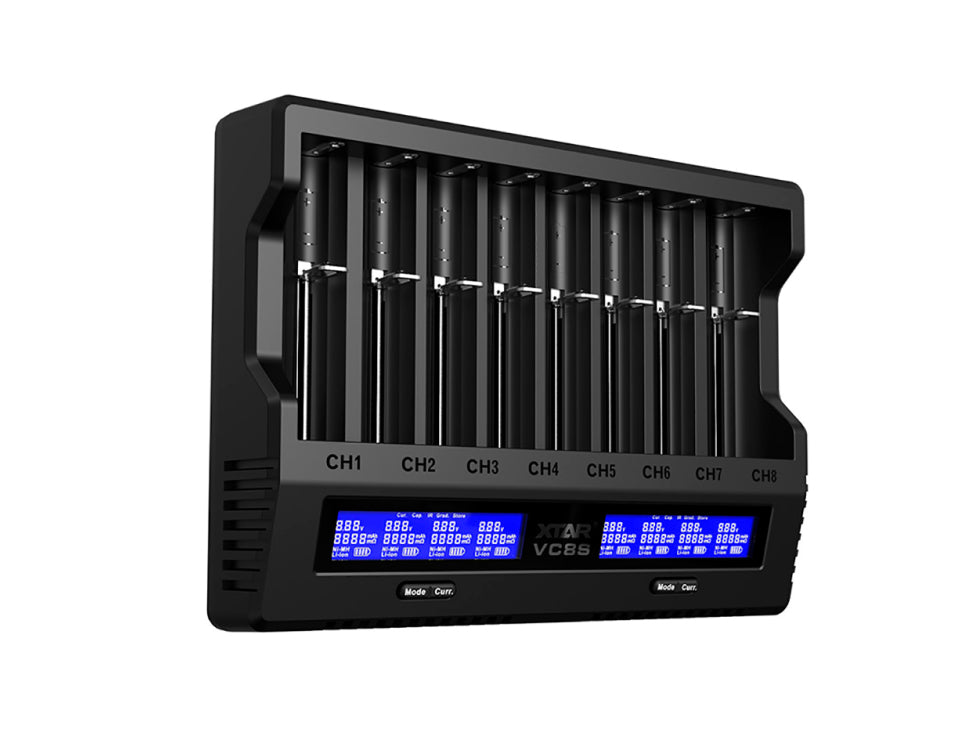

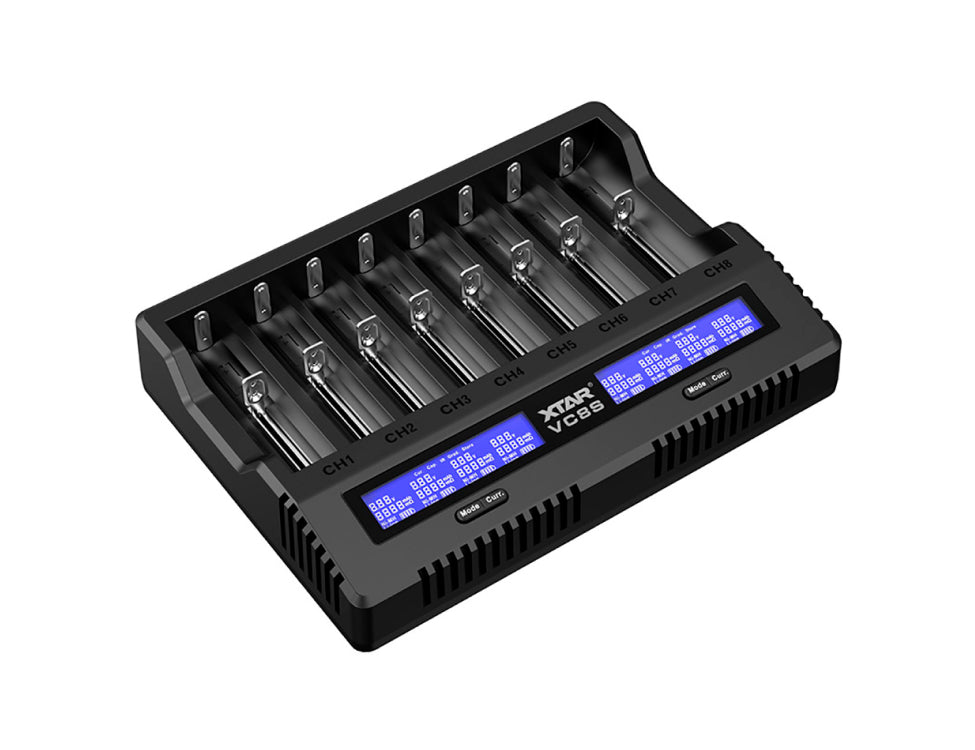

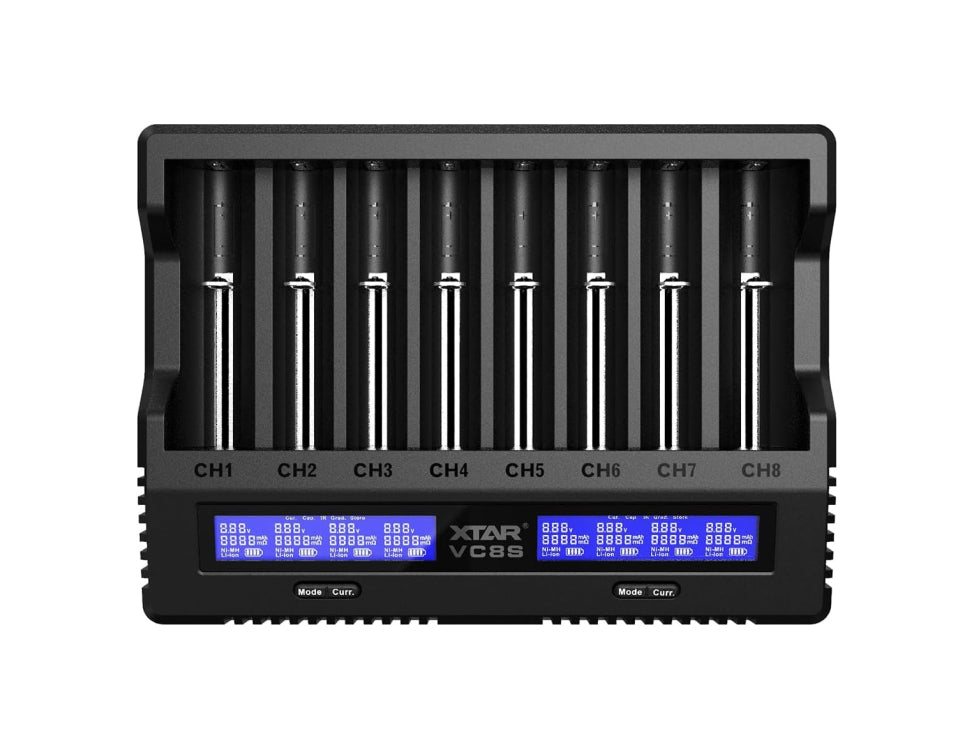

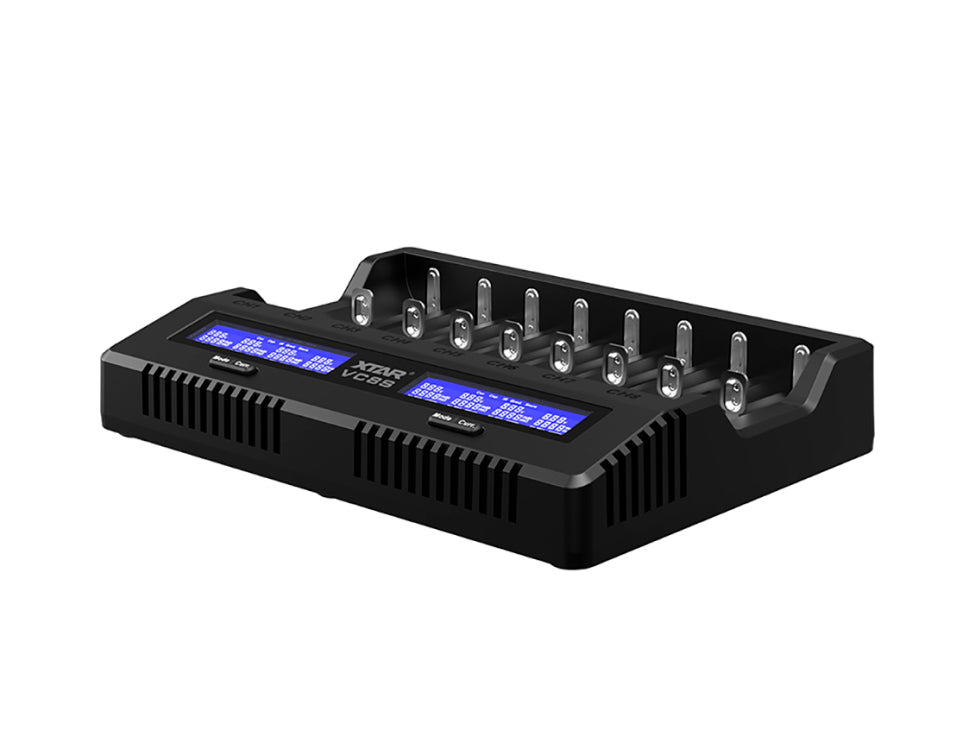

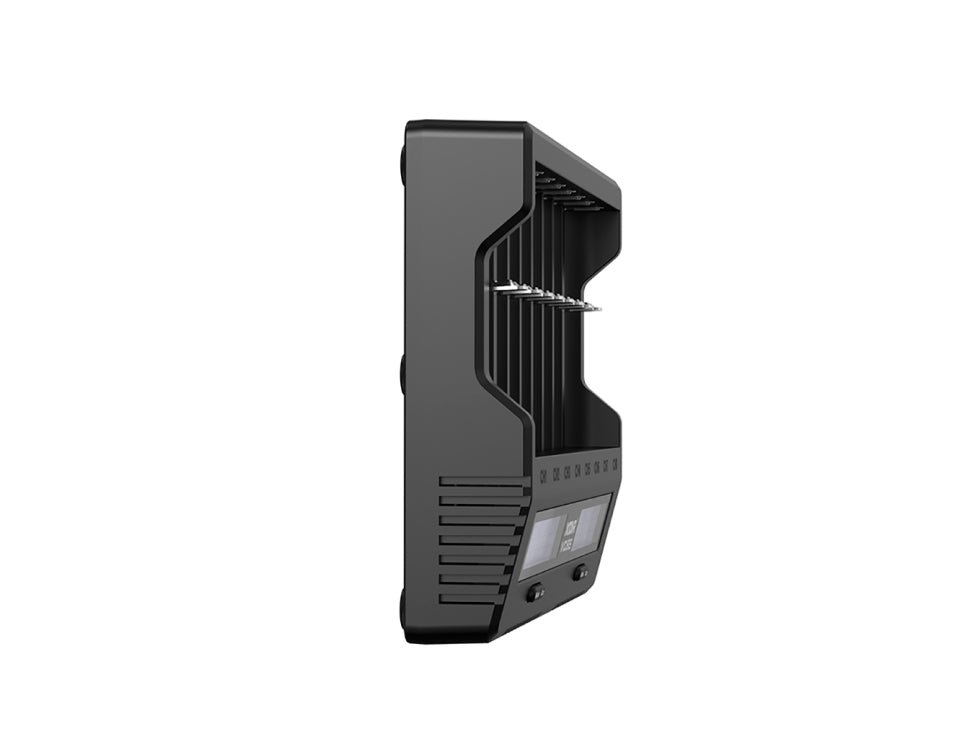

XTAR VC8S

FEATURES:

• Real capacity test to know your battery performance.
• Proper storage voltage to max up battery life.
• Internal resistance test to know if the battery is at its best.
• Smart speedy charging, max 3A x2 & 1A*8 with a PD45W adapter.
• Auto-detect battery IR, quantity & types, intelligent optimal charging strategy matching.
• Support manually control the constant charging current.
• Can charge 8 protected 21700 batteries at the same time.
• Recover over-discharged batteries at higher rates.
• Built-in multiple protections mechanisms for charging safety.
• LCD screen clearly displays the charging status.

TYPE-C POWERED, QC3.0 3A FAST CHARGING

• Applied the most popular Type-C port,
• compatible with most phone adapters on the market, no more need for another.
• Support QC3.0 fast charging, max 3A for a single slot when the battery resistance is low enough.

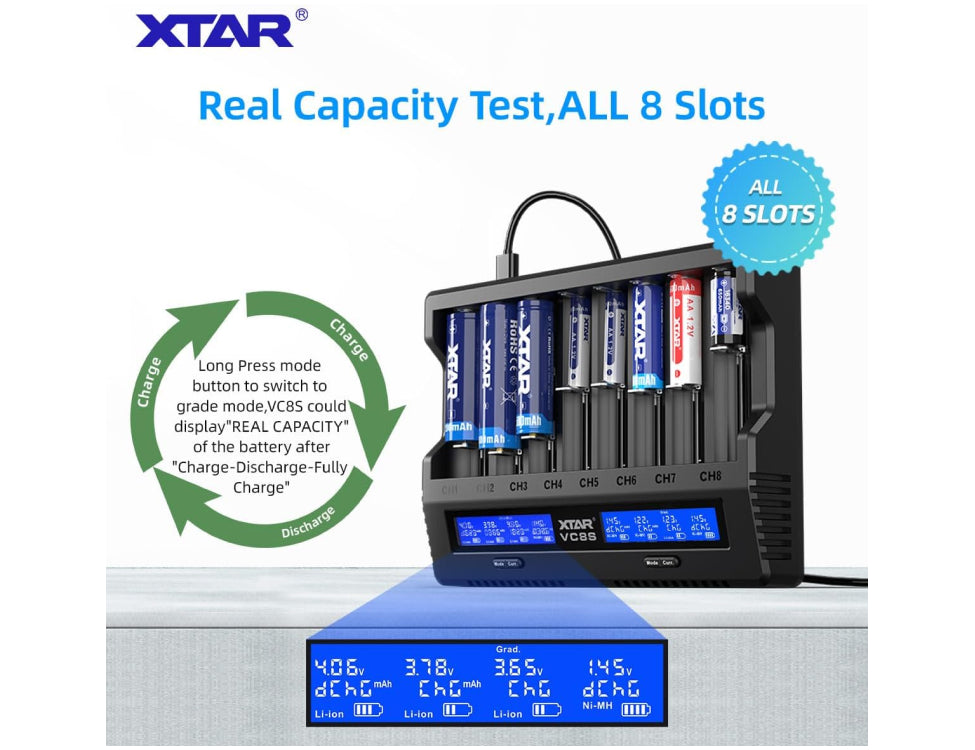

TEST BATTERIES' REAL CAPACITY

In grading mode (for CH1-CH4), the charger tests batteries' real capacity by "charging-discharging-charging" the batteries, so that users can know whether the battery capacity is overstated or not, and also distinguish good-performance batteries with the bad ones.

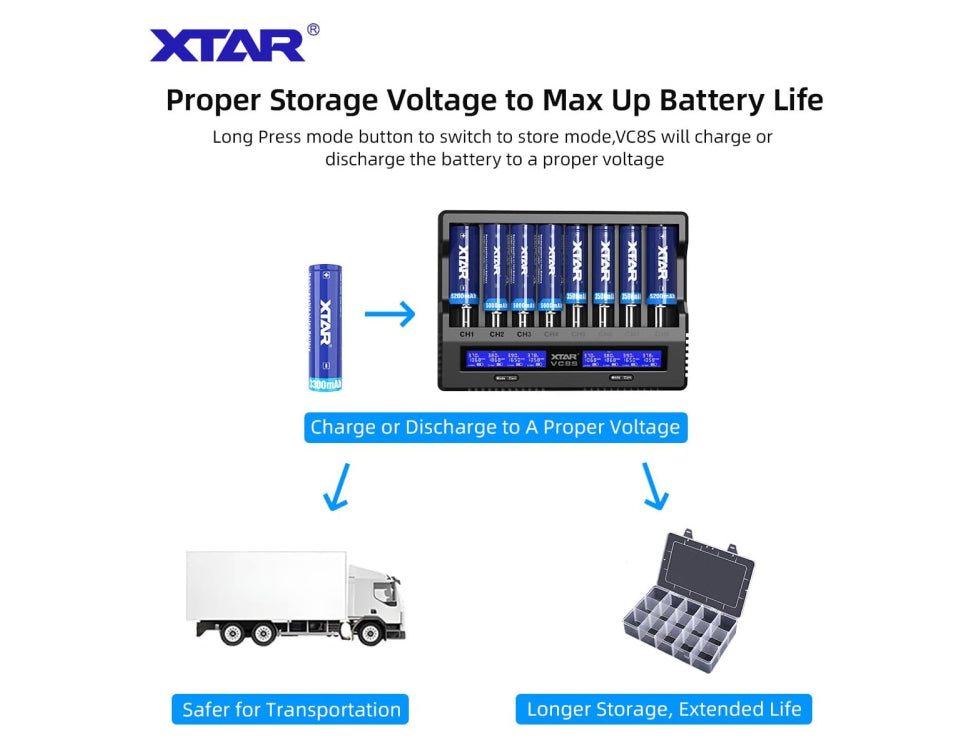

MAXIMIZE BATTERIES' LIFESPAN

The charger can charge or discharge the battery to its rated voltage in storing mode (for CH1-CH4), when the battery is not used for a long time or used for long-distance transportation, so as to maximize the battery lifespan and save energy.

*When the battery voltage is at its rated voltage, its self-discharge rate is the slowest and also most stable.

DETECT THE BATTERY TYPE

Select the Best Charging Strategy After inserting batteries, the charger will automatically identify the battery type, along with battery resistance and input power, to select the most suitable charging method, so that users don't need to select manually.

OAV AND -AV METHOD PRECISELY CONTROL

the Timing for Cease of Charging Ni-MH/Ni-CD Batteries According to the charging features of Ni-MH/Ni-CD batteries, VC8 applies high-precision MCU and controls perfect timing for the cease of charging with 0AV (0 Delta Voltage) and -AV (Minus Delta Voltage) method, to deliver maximum power while maximizing the batteries' lifespan.

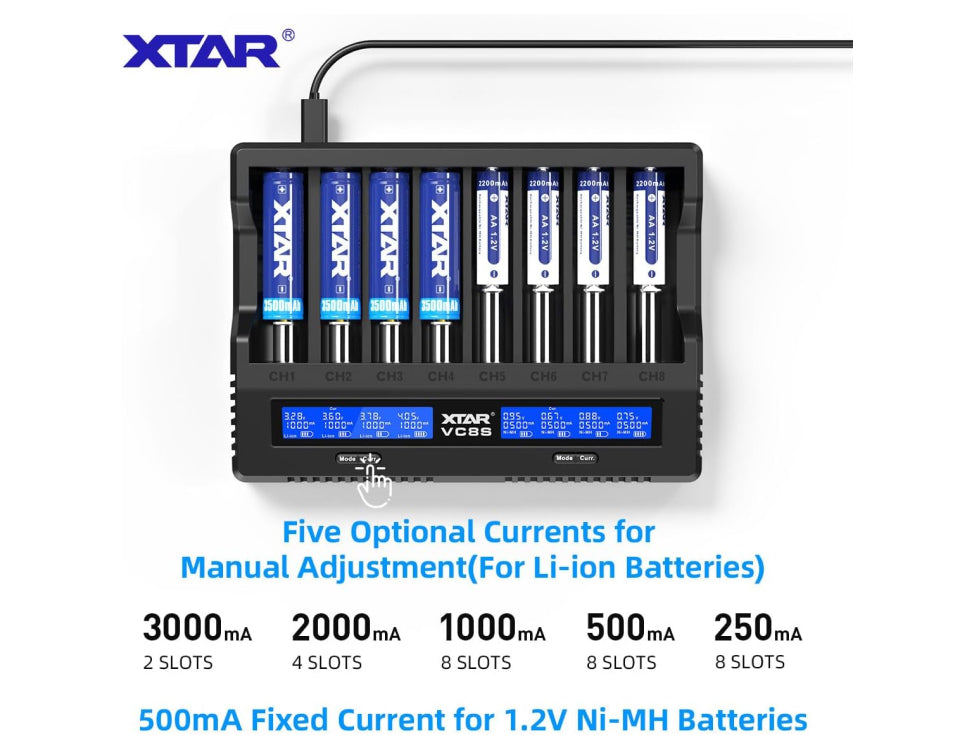

FIVE OPTIONAL CURRENTS FOR MANUAL

Adjustment Besides the intelligent charging, the charger also has 5 optional currents (3A/2A/1A/0.5A/0.25A) for users to choose from according to different needs.

MONITORS AND CHARGES

each of 8 Slots Independently Can charge eight batteries simultaneously, save your time and improve the efficiency.

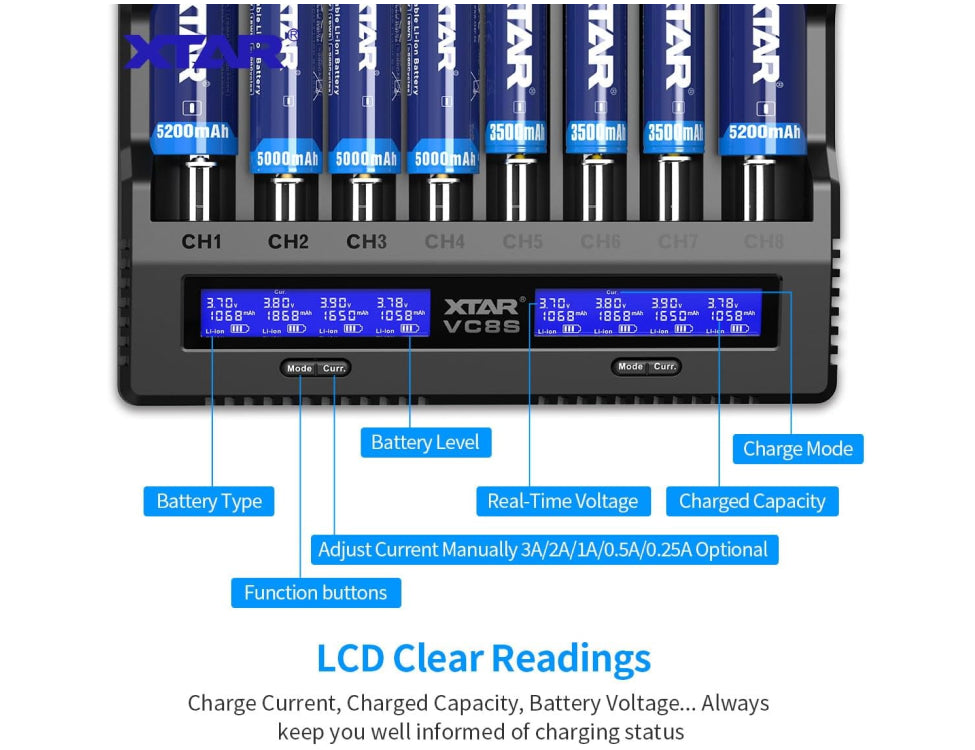

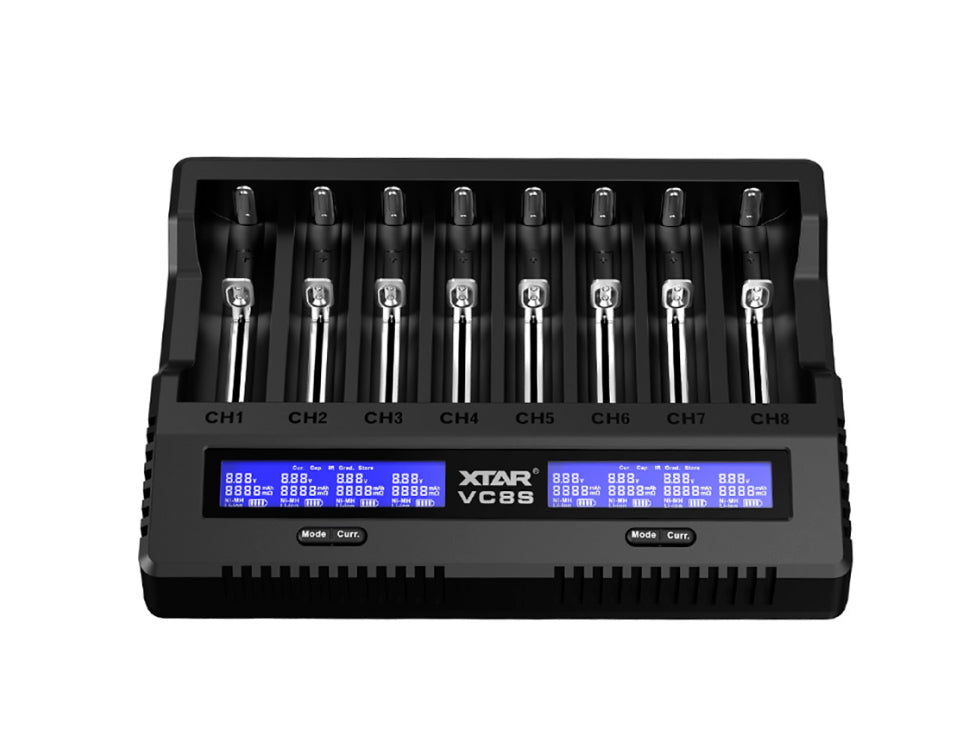

VA LCD SCREEN SHOWS

Real-time Charging Status High-definition VA LCD screen shows batteries' real-time charging status in charging mode, grading and storing mode.

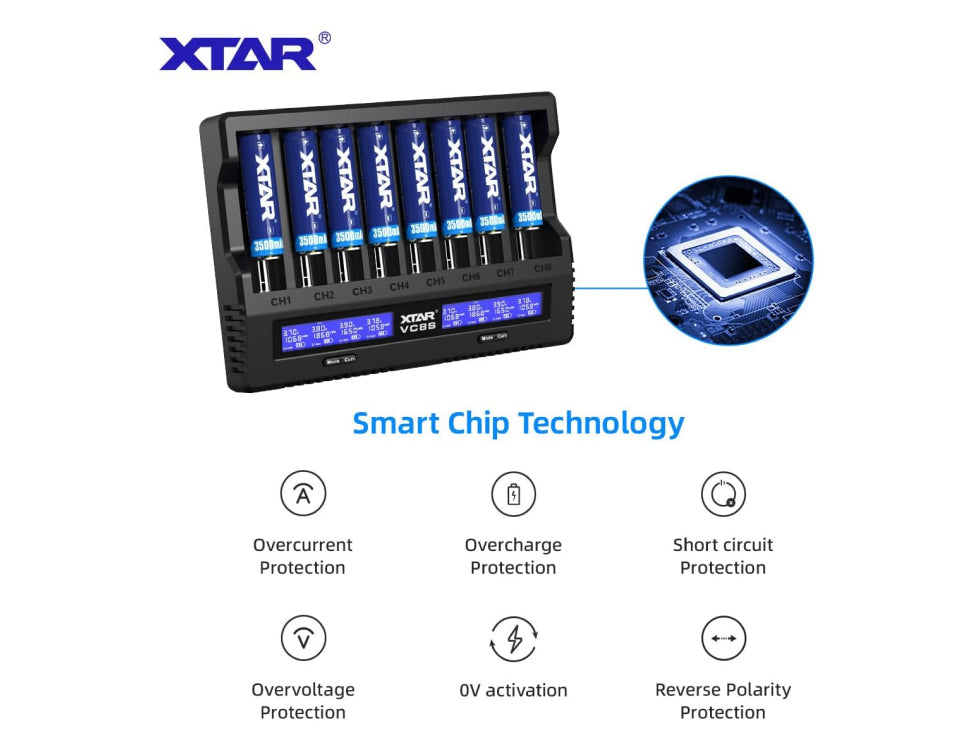

MULTIPLE PROTECTIONS

Ensure Safe Charging Built-in high-precision MCU, over-current, over-charge, over-voltage, and short-circuit protection, combined with XTAR's soft-start function, makes the precision of end-of-charge voltage up to ±1%. The charger will automatically stop charging after fully charged batteries, safe and worry-free.

SAFE MATERIAL

Constructed from flame-retardant and fire-resistant ABS materials to extend the charger's lifespan and ensure safety.

TEMPERATURE MONITORING DESIGN

Built-in real-time temperature control protection system makes the battery charging process more stable.

OV ACTIVATION REVIVES OVER-DISCHARGED BATTERIES

XTAR charger can activate some revivable batteries. Insert the battery and the charger will automatically detect and activate the battery.

THREE-STAGE CHARGING MAKES BATTERIES HEALTHIER

Specially-designed TC-CC-CV charging method safely and efficiently charges your batteries. The charger uses trickle current (TC) to "awake" and protect batteries when the battery voltage is very low. After the voltage becomes normal, the charger starts constant current (CC) charging and the charging speed is guaranteed with a large current. When the battery is almost fully charged, the charger starts constant voltage (CV) charging, to make sure the battery is fully charged and less-damaged.

TIPS:

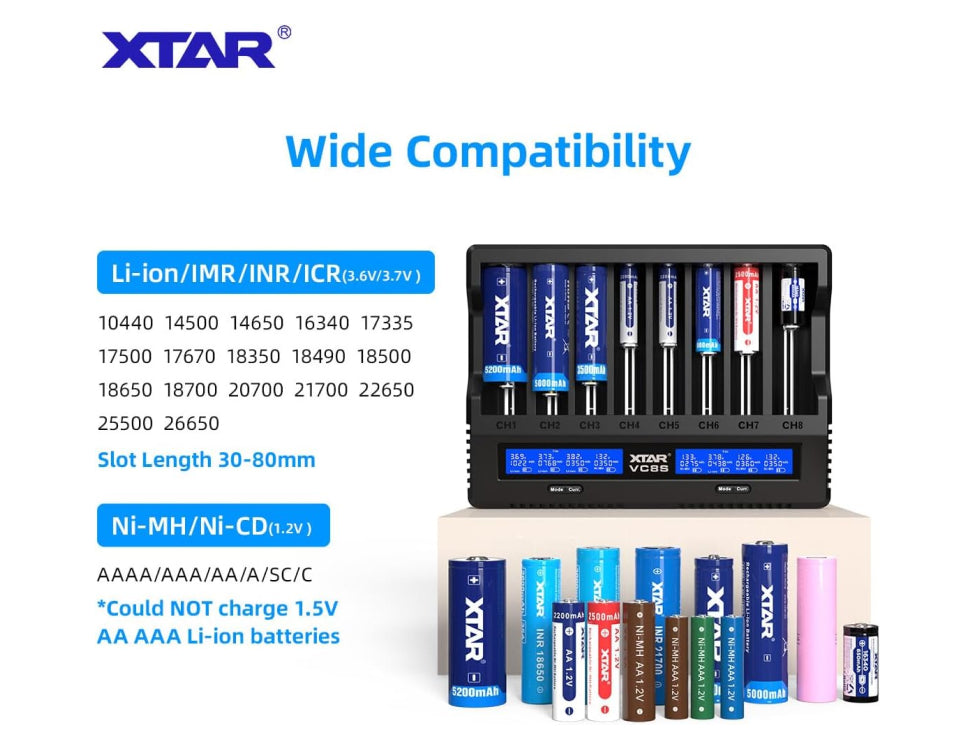

1) Please use only compatible batteries to avoid damaging both the battery and the charger.
2) It is recommended to use 15V 3A PD adapter for better charging experience.
3) Due to the characteristics of Ni-MH batteries, batteries that have been stored for a long time need multiple charge discharge cycles for recovery before testing the capacity. Otherwise, the test results may deviate greatly from the
actual capacity.
4) Due to the characteristics of Ni-MH batteries, when test the internal resistance, they need to be charged and
discharged for recovery, and then test in a fully charged state. Otherwise, the test results will be seriously
inconsistent.
5) When testing the IR of AAA batteries, it is recommended to conduct multiple tests or firmly press the negative
terminal to ensure that the test results closely approximate the actual values.
