Description

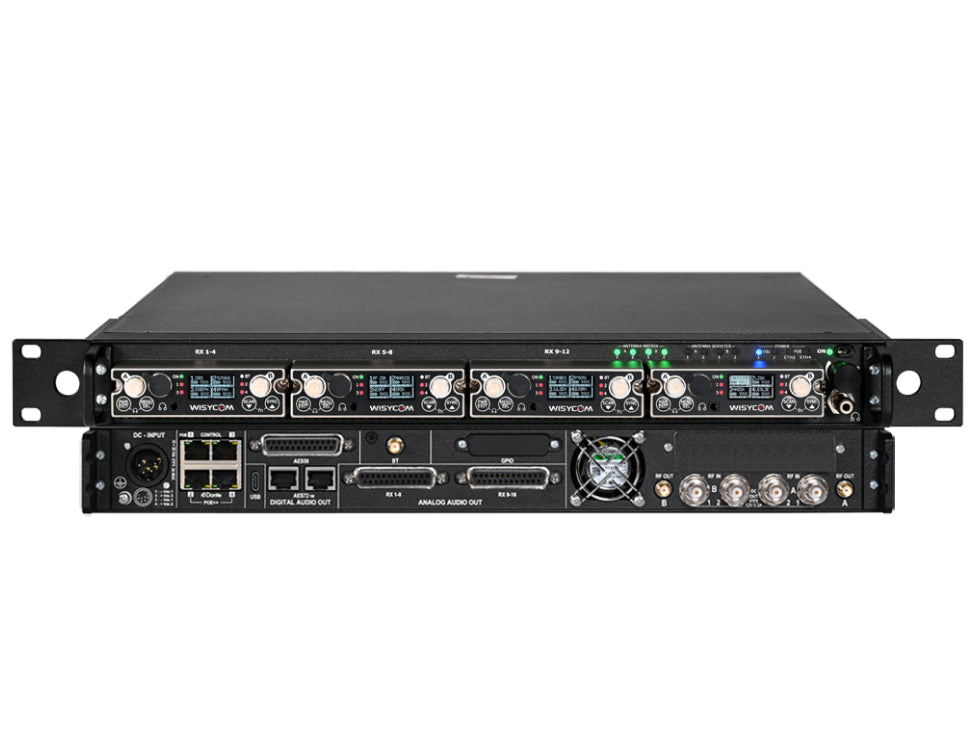

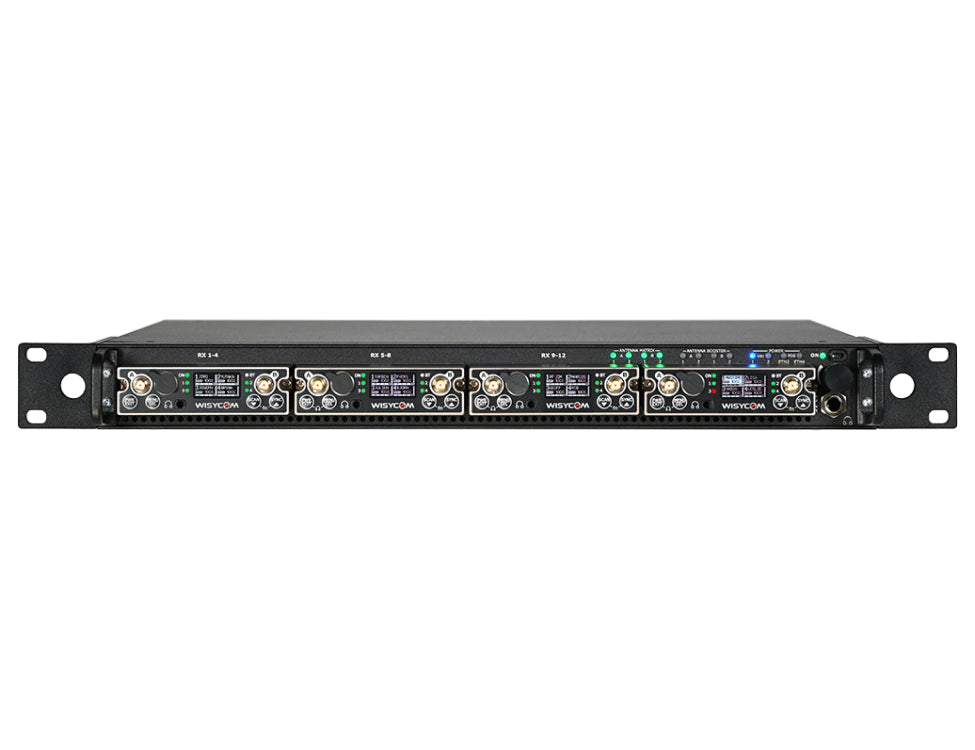

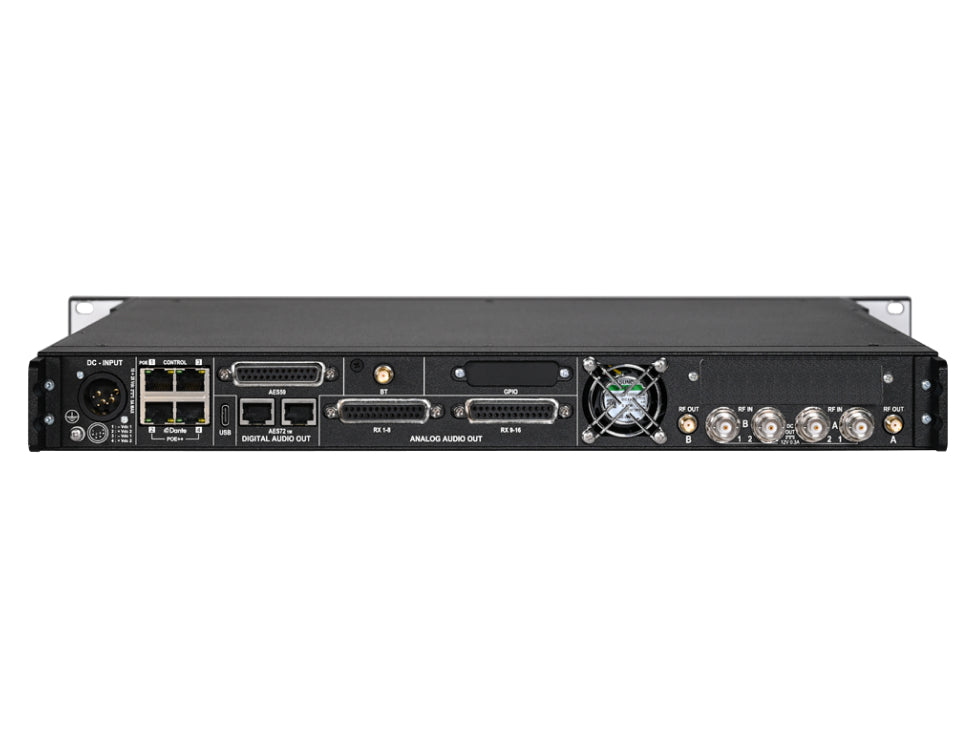

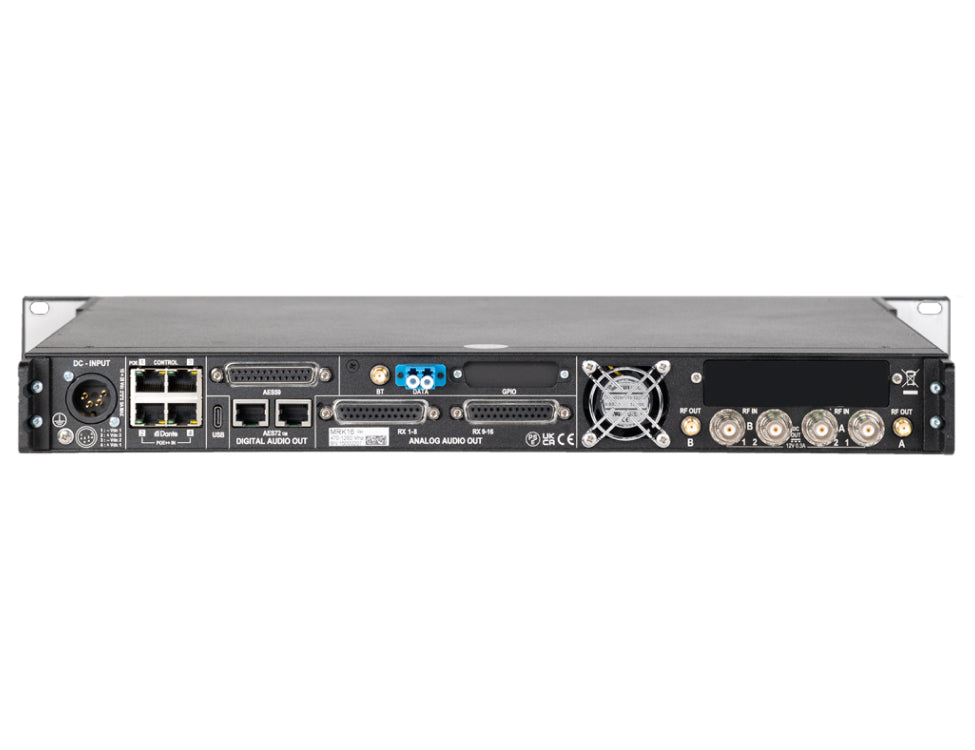

The MRK16 is a modular wireless-microphone receiver system that fits up to 16 channels in a compact 19'' 1RU chassis. It accepts up to 4x MCR54 receivers, providing antenna distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).
FEATURES:
- up to 16 true diversity channels in a compact 19'' 1U rack
- ultra wideband receiver system from 470 to 1260 MHz equipped with 10 automatically selected band-pass filters
- RF Over Fiber for reception without distance limits! The optional fiber module EXP3 allows to replacement of coaxial cable and antennas located miles away
- multiple audio outputs: Digital (AES72&AES59) / Dante (primary & secondary) / Analog (2x DB25 Tascam wiring)
- dual area Matrix to select and combine 2 diversity zones
- antenna booster and remote control of Wisycom LFA/ADFA/BFA
- Bluetooth 5 Long Range: class 1 (100mW) remote control to connect Wisycom devices within a range of hundreds of meters.
- daisy chain up to 4 racks for 64 channels in only 4U
- 5 ports manageable Gigabit Ethernet switch (ETH5 is connected to an internal SFP module for fiber data)
- redundant (dual) power supply on XLR4
- dual power over Ethernet input and PoE output (PE1 optional)
- USB-C connectivity with powering (1.5A)
