FREQUENCY RESPONSE
- 10 Hz to 80 kHz +/0.5 dB (192 kHz sample rate, re 1 kHz)
THD + NOISE
- 0.005% max (mic in, 1 kHz, 22 Hz-22 kHz BW, trim at 20, fader at 0, -10 dBu in)
EQUIVALENT INPUT NOISE
- -131 dBV (-129 dBu) max (mic in, A-weighting, 76 dB gain, 150 Ohm source impedance)
PROCESSING ENGINE
- highly extensible, full FPGA-based audio processing, 3 FPGAs six-way ARM multiprocessor system
- 64-bit audio processing precision
AUDIO OVER ETHERNET
- Dante, AES67 compatible
- 32 channels in, 32 channels out (up to 96 kHz): 16 channels in, 16 channels out (192 kHz)
- 1 Gb/s Ethernet, 2 ports, transformer-balanced
INPUTS
- mic/line inputs: 16 total, all fully featured, 6 on full-size XLR, 2 on TA3, 8 on TA5
- mic-level inputs: (XLR, TA3, TA5) class-A, discrete differential long-tail pair, 4k ohm input impedance
- line-level inputs: (XLR, TA3, TA5) active-balanced, 4k Ohm input impedance
- 48V phantom: full 10 mA to all 16 inputs simultaneously
- AES3 or AES42 available on XLR inputs 1 and 6
- AES42: +10 V, 250 mA available, mode-1, auto-ASRC
- RTN A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k Ohm input impedance
- COM RTN 1,2 (TA3, 3.5mm): balanced, 1-channel, 8k Ohm input impedance
- external slate mic (TA5): balanced, 8k Ohm input impedance, menuselectable 12V phantom
MAXIMUM INPUT LEVEL
- mic: +8 dBu (2.0 Vrms)
- line: +28 dBu (19.5 Vrms)
- rtn A, B, C: +18 dBu (6.2 Vrms)
- com rtn 1, 2: +24 dBu (12.3 Vrms)
- external slate mic: +12 dBu (3.2 Vrms)
HIGH-PASS FILTERS
- adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital
LIMITERS
- limiters available at all channels, buses, headphones, for all sample rates
- analog first stage, all subsequent stages digital
- attack time: 1 ms
- release time: adjustable, 50 ms to 1000 ms
- threshold: adjustable, -2 dBFS to -12 dBFS
- selectable knee: hard or soft
- selectable ratio: inf:1, 20:1
DELAY
- channel adjustable: 0-50 ms
- output adjustable: 0-500 ms
MAXIMUM GAIN
- trim stage (mic input): 76 dB
- trim stage (line input): 50 dB
- fader stage: 16 dB
- bus stage: 16 dB
- headphone stage: 20 dB
- mic-to-line: 108 dB
- mic-to-headphone: 112 dB
- TA5 (along with mic input pins) for single connection to headset + mic
- high output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
- compatible with headphones of any impedance
OUTPUTS
- XLR (L, R) active-balanced, 250/3.2k/120 Ohms (mic/-10/line)
- Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 Ohms (mic/-10/ line)
- TA3 (X1-X6) active-balanced, 250/3.2k/120 Ohms (mic/-10/line) 3.5mm (X7, X8): unbalanced, stereo, 1.8k Ohms
HEADPHONE OUTPUTS
- 3.5 mm
- TA5 (along with mic input pins) for single connection to headset + mic
- high output, 4 Ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
- compatible with headphones of any impedance
MAXIMUM OUTPUT LEVEL (all into 10k load)
- line: +20 dBu (7.8 Vrms)
- '-10': +6 dBu (1.5 Vrms)
- mic: -20 dBu (0.078 Vrms)
- X7/X8 Out: +6 dBu (1.5 Vrms)
- headphone outputs (TA-5, X9/X10): +14 dBu (4.0 Vrms)
A/D CONVERTERS
- 32-bit, 120 dB, A-weighted dynamic range typical
- sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
DIGITAL OUTPUTS
- AES3 transformer-balanced, in pairs: 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)
- 110 Ohm, 2 V p-p, AES and S/PDIF compatible
RECORDING
- internal 256 GB SSD, two removable SD Cards. 10% over-provisioned for optimum performance
- simultaneous recording to internal SSD and the two SD cards
- exFAT formatting
- 36 tracks (32 iso channels, 4 buses)
- broadcast WAV monophonic and polyphonic file format
- 64-bit WAV (RF64) monophonic and polyphonic, support for files > 4 G
USB
- USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD cards.
- USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices
TIMECODE AND SYNC
- modes supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes
- frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
- sample/timecode accuracy: 0.1 ppm (0.25 frames per 24 hours)
- timecode input: 20k Ohm impedance, 0.3 V 3.0 V p-p (-17 dBu -/+3 dBu)
- timecode output: 75 Ohm impedance, 5 V p-p (+12 dBu)
- word clock input: 10k/75 Ohm selectable impedance, 1-5 V p-p input sensitivity
- word clock output: 75 Ohm impedance, 5 V p-p output, at SR
REMOTE CONTROL
- USB MIDI MCU Control, supported 3rd party fader controllers
- SD-Remote Android app
- USB Keyboard
- external timecode record trigger
LCD
- 320x240, transflective, excellent sunlight visibility
- larger touchscreen display available via USB-connected SD-Remote app
POWER
- external: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)

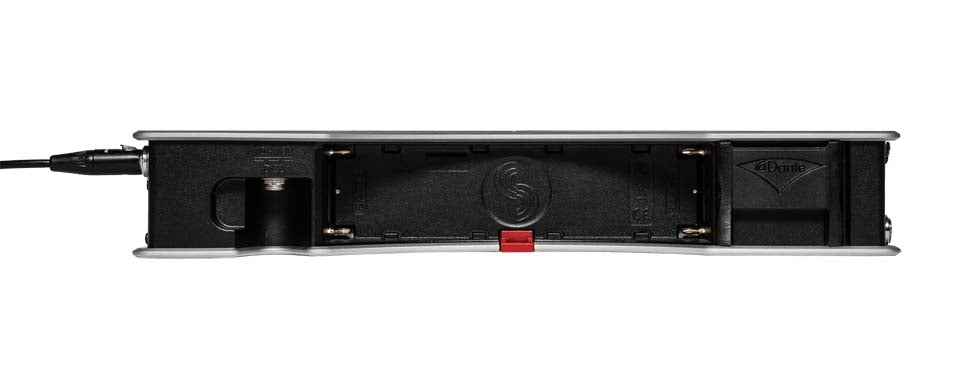

- dual rear-mount Sony-style L-Mount batteries with chargers
- intelligent power-down of unused mic preamps and other internal circuits
- current draw at 12V, no battery charging:
- all mic preamps off: 1.04 A
- all mic preamps on: 1.37 A
- all mic preamps on, 192 kHz sample rate, recording to 2 SD cards: 1.55 A
- all mic preamps on, 192 kHz sample rate, recording to 2 SD Cards, Dante enabled: 1.84 A
ENVIRONMENTAL
- operating: -20°C to 60°C, 0 to 90% relative humidity (non-condensing)
- storage: -40°C to 85°C
DIMENSIONS (H X W X D)
WEIGHT
- 2.63 kg (unpackaged, without batteries)
