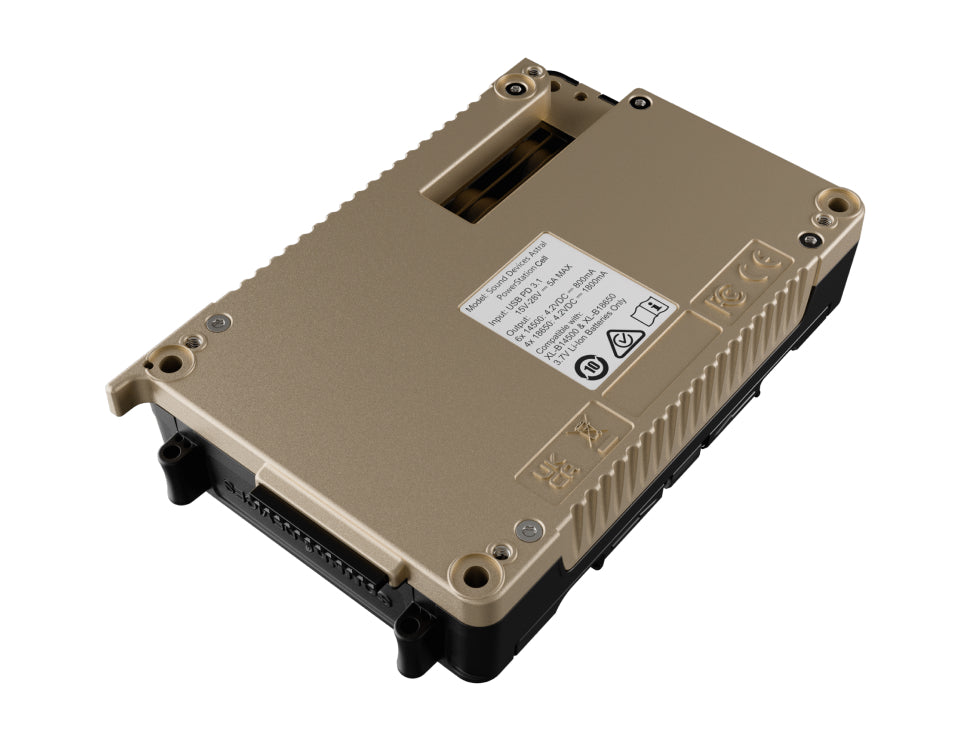

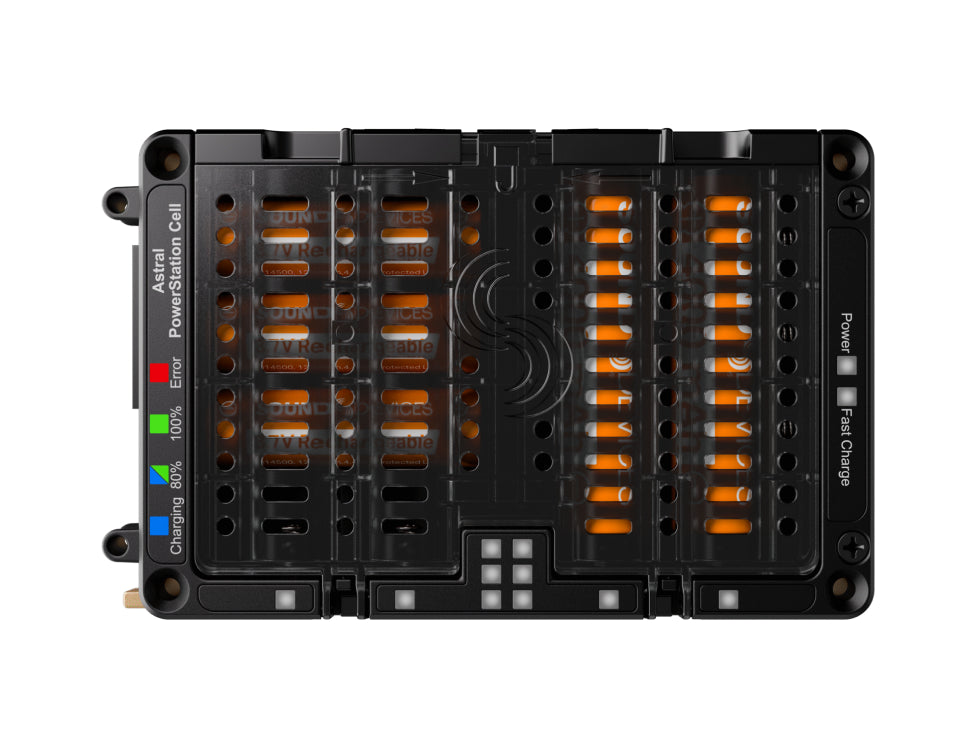

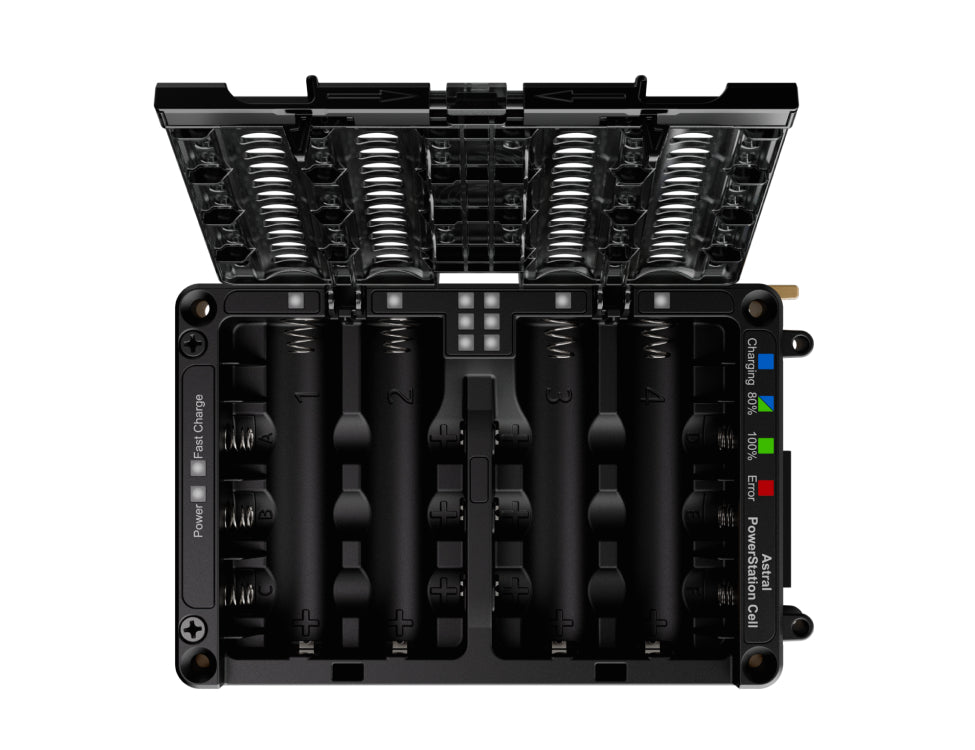

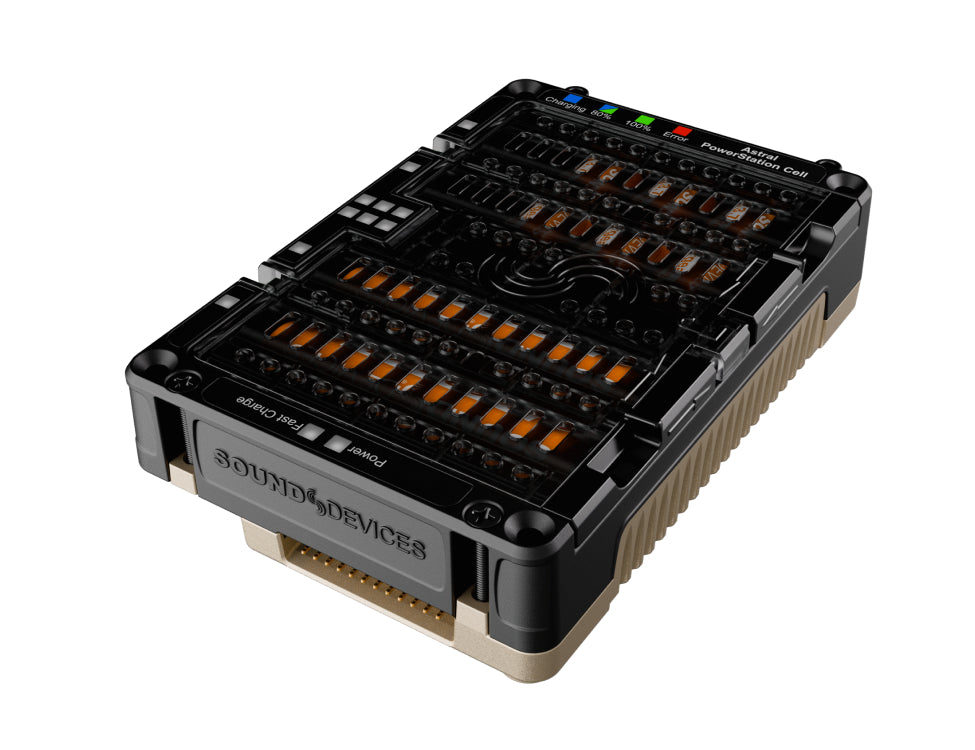

SOUND DEVICES Astral PowerStation Cell

INTELLIGENT FAST CHARGING

Say hello to the fastest, smartest way to charge your Sound Devices batteries. The Astral PowerStation Cell is a compact, multi‑battery fast charger for Astral TX and Astral HH batteries. Charge up to 6× XL‑B14500 or 4× XL‑B18650 batteries at once in a compact, expandable setup.

Can be configured in desktop or rack‑mounted (Astral PowerStation Rack-mount kit required) setups. Connect units together with the simple slot‑in daisy‑chain system to build a clean, powerful multi‑charger layout.

Powered by USB‑C intelligent fast charging, with an optional 140W supply for daisy-chained configurations. LED indicators show power, fast‑charge status, battery progress, and alerts. Includes a removable latching door for keeping batteries secure during transport or rack mounting.

• One Charger Accommodates:

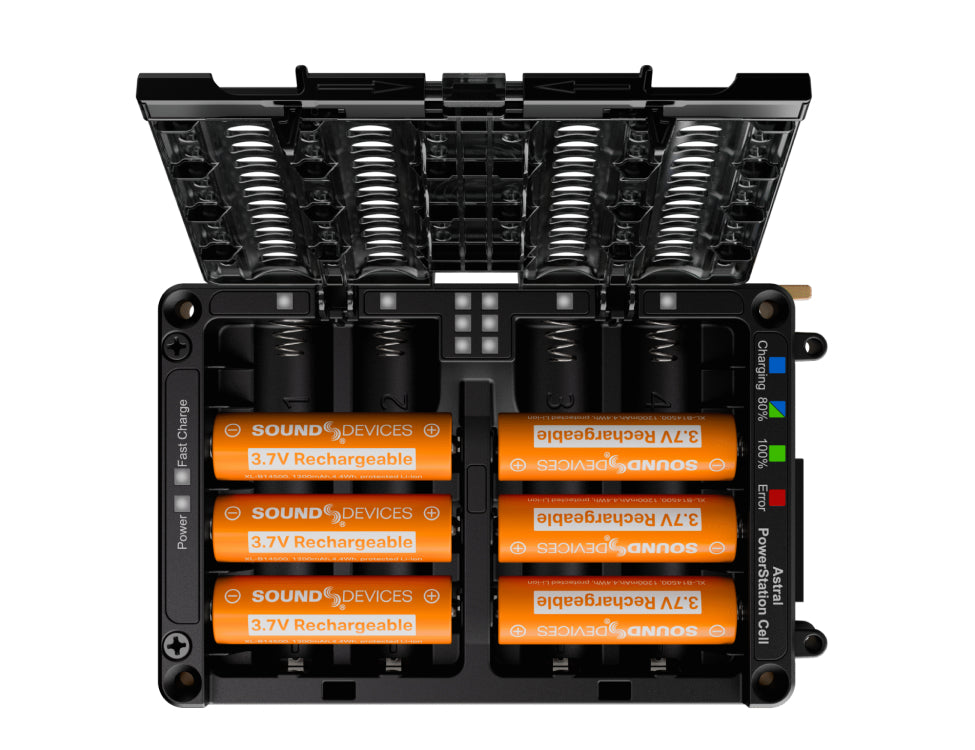

• 6x XL-B14500 (4.4Wh 3.7V Lithium-ion rechargeable) batteries or

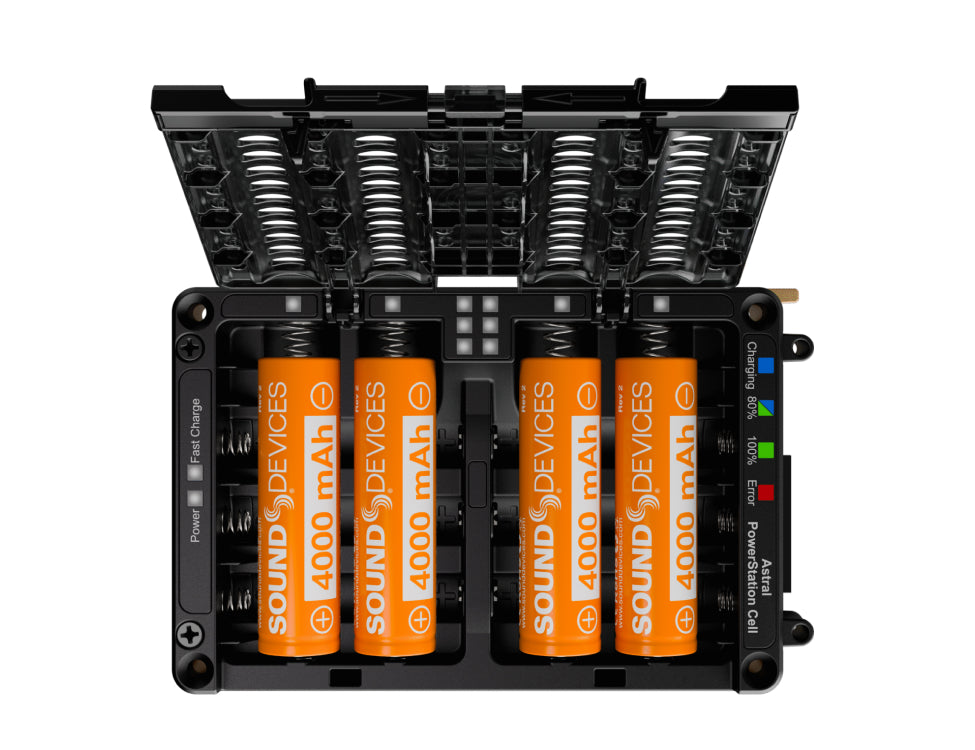

• 4x XL-B18650 (14.8Wh 3.7V Lithium-ion rechargeable) batteries or

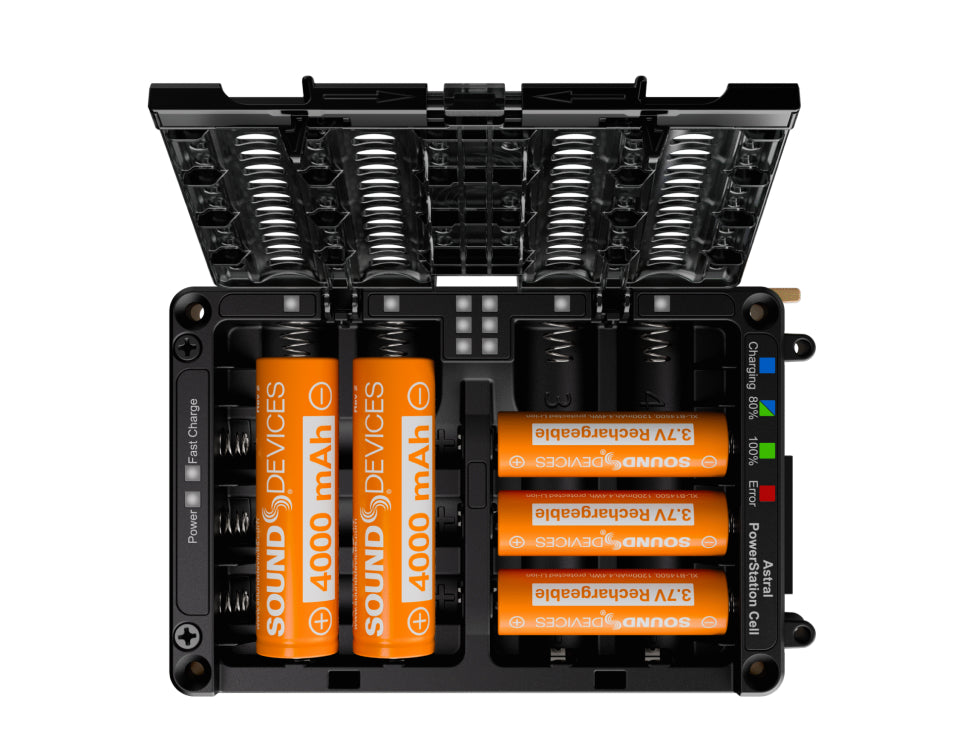

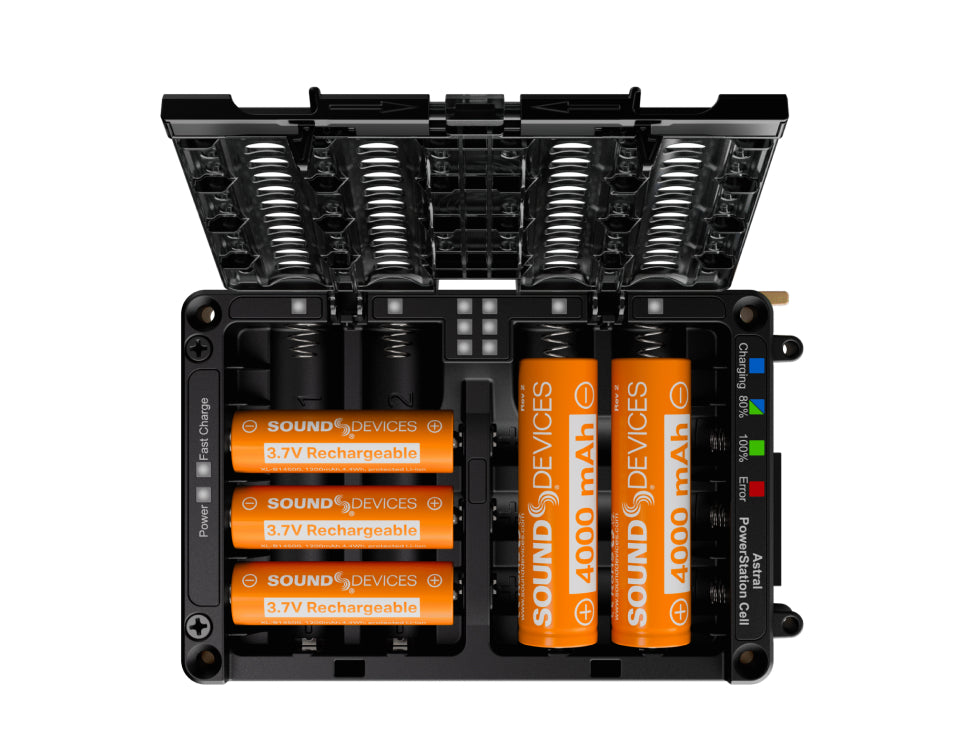

• Combination of 3x XL-B14500 and 2x XL-B18650

• Desktop or Rack-mountable (requires optional rack-mount kit)

• Daisy-chainable with smart power-distribution and charge speed management
• Desktop: up to 4 daisy-chained chargers
• Rackmount: fits up to 3 daisy-chained chargers
• Daisy-chaining via easy, self-locating, slot-in mechanism.
• Screws for securing daisy-chained assembly.

• Powered by USB-C for fast charging
• Optional 45W USB-C charger suitable for 1 fully-loaded charger.
• Optional 140W USB-C charger suitable for 4 fully-loaded daisy-chained chargers.

• Charging Status LED indicators
  • Green = 100% charged
  • Alternating green/blue = 80% charged
  • Blue = charging
  • Flashing Red = Error: unsupported battery chemistry, battery inserted the wrong way, short-circuited battery, dead batteries
• Power LED: Green = On
• Fast Charge LED: Green = Active
• Battery status LED (one per battery):

• Removable folding door
• Prevents batteries falling out when rack-mounted or during transportation

FEATURES:

• accommodates 6x XL-B14500, 4x XL-B18650, or combination of 3x XL-B14500 and 2x XL-B18650 batteries
• desktop or Rack-mountable (requires optional rack-mount kit)
• daisy chain multiple units with smart power-distribution. Desktop: up to 4 daisy-chained chargers. Rack-mount: accommodates up to 3 chargers.
• powered by USB-C for fast charging. Includes a 45W USB-C power supply for one fully-loaded charger. Optional 140W USB-C power supply supports up to four fully-loaded daisy-chained chargers.
• removable latching door keeps batteries secure during transport and rack mounting.

NOTE: PSU, cable and batteries not included.
