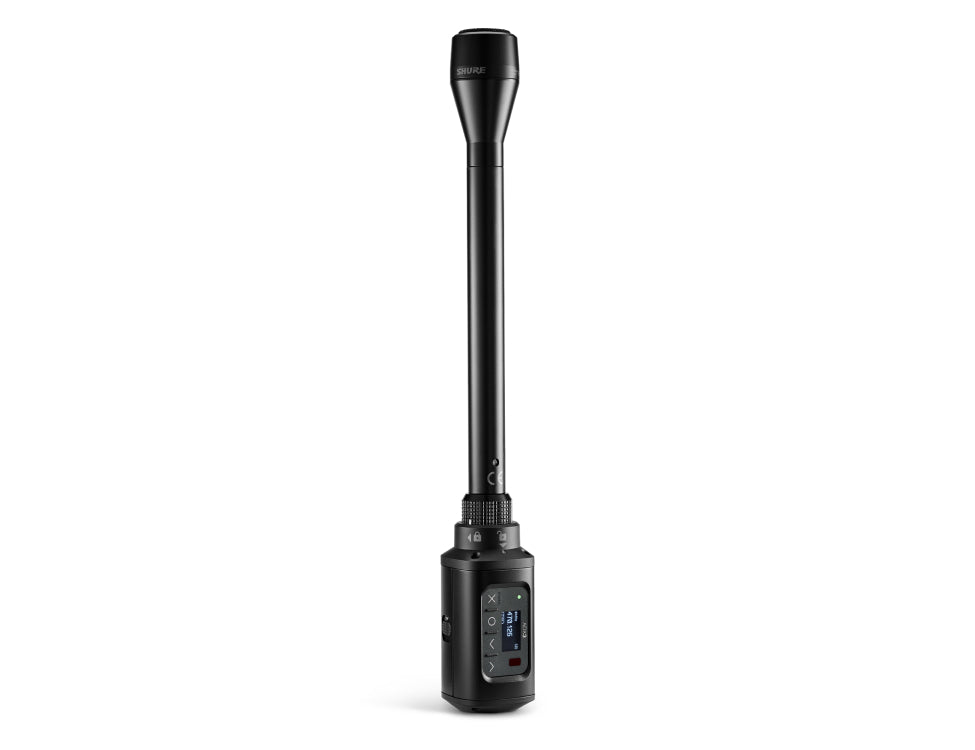

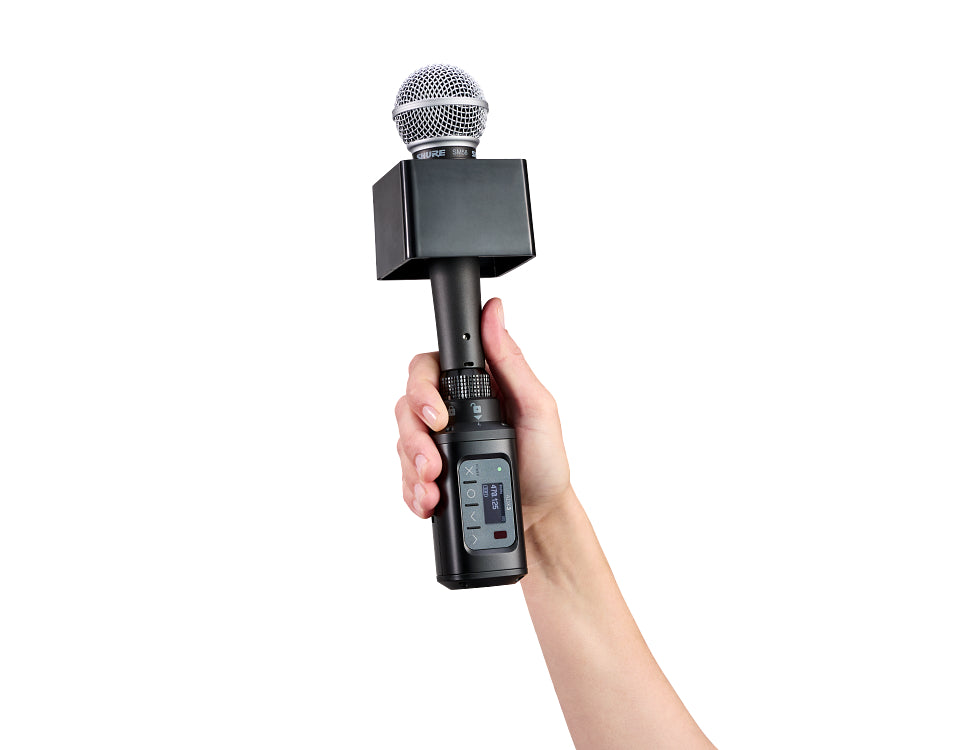

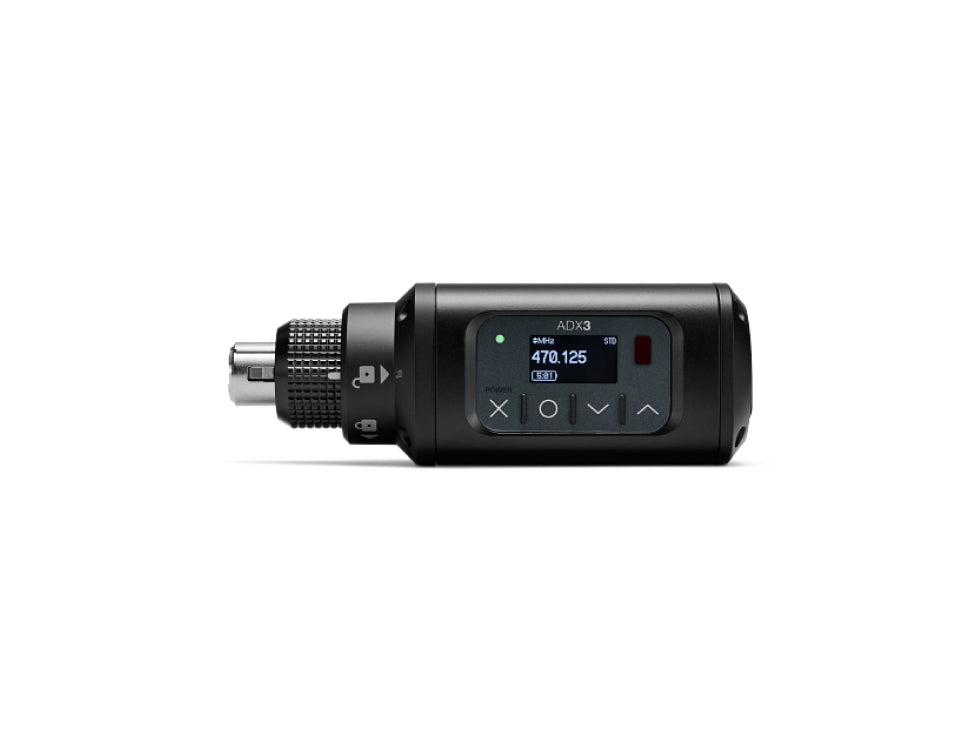

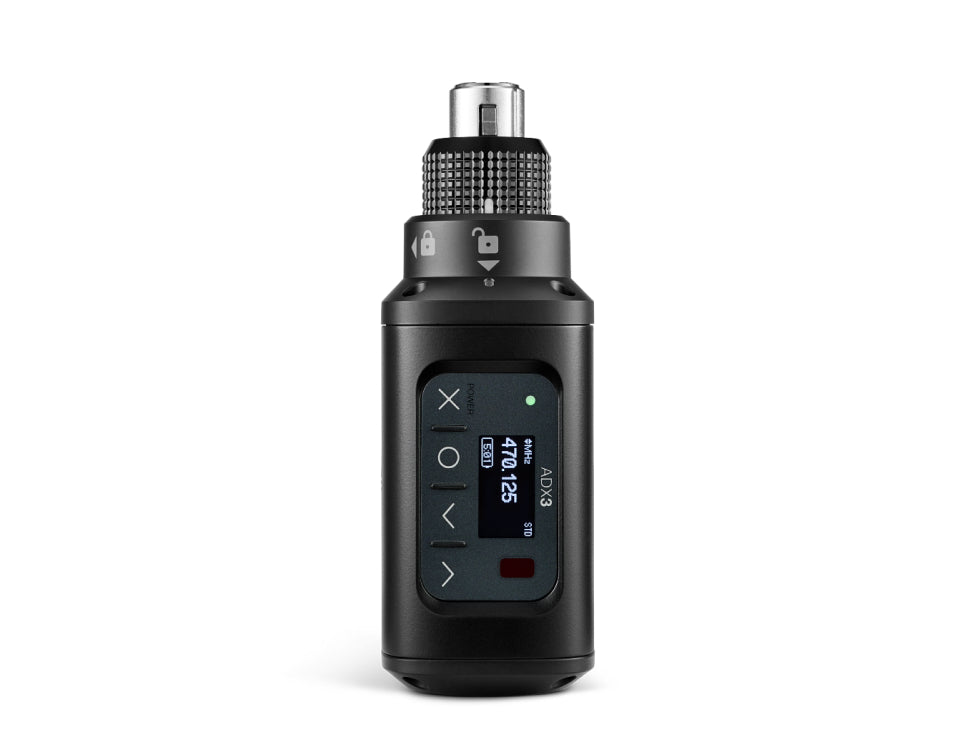

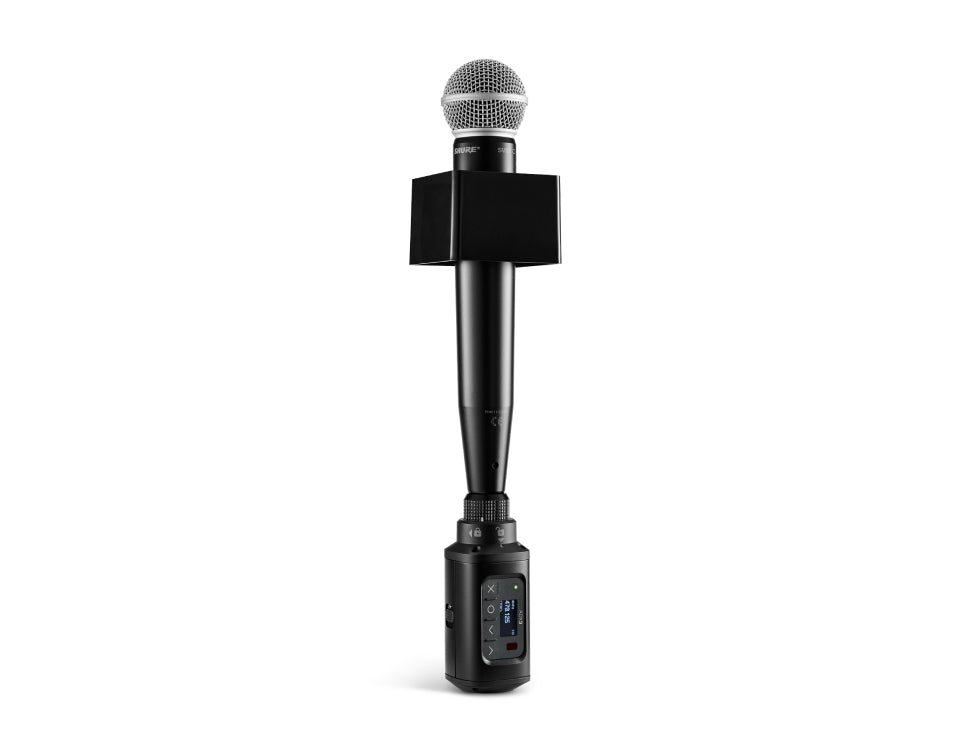

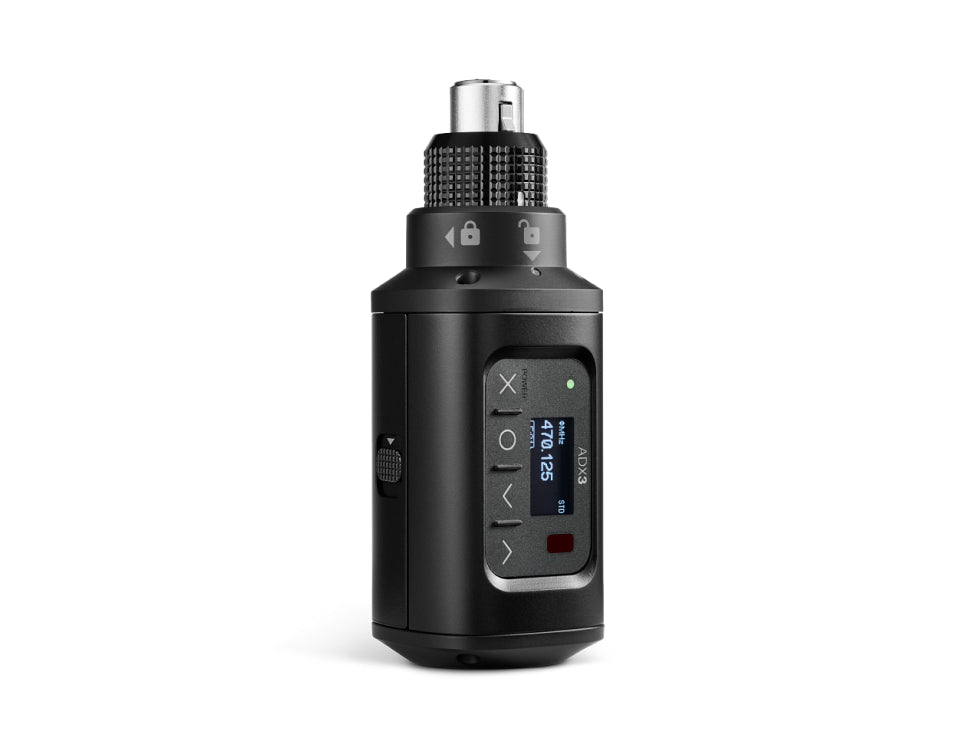

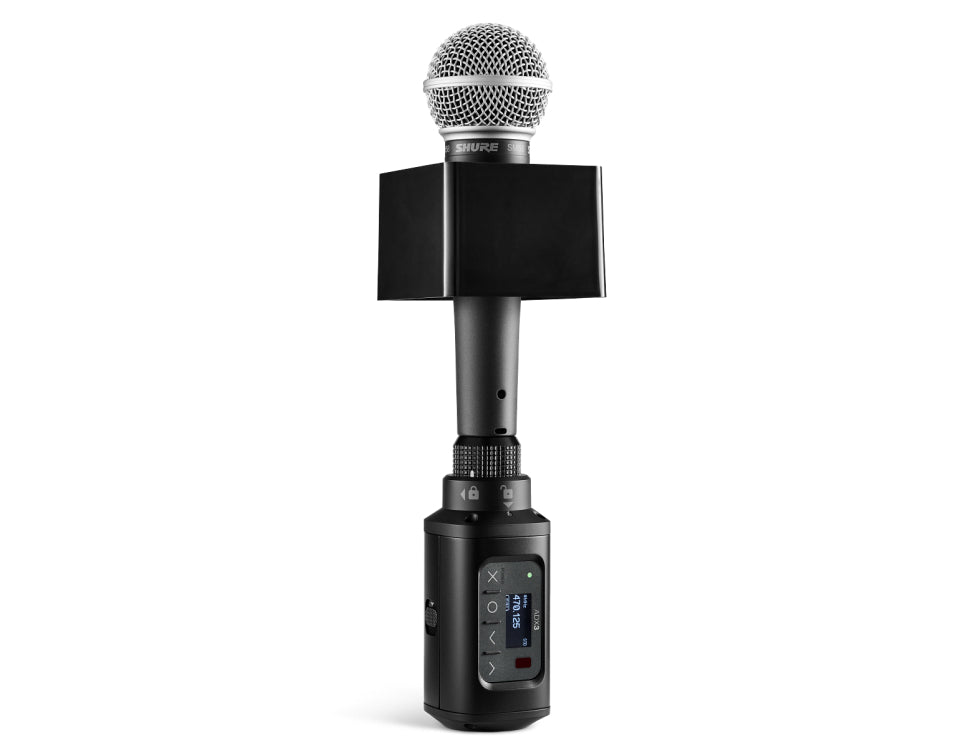

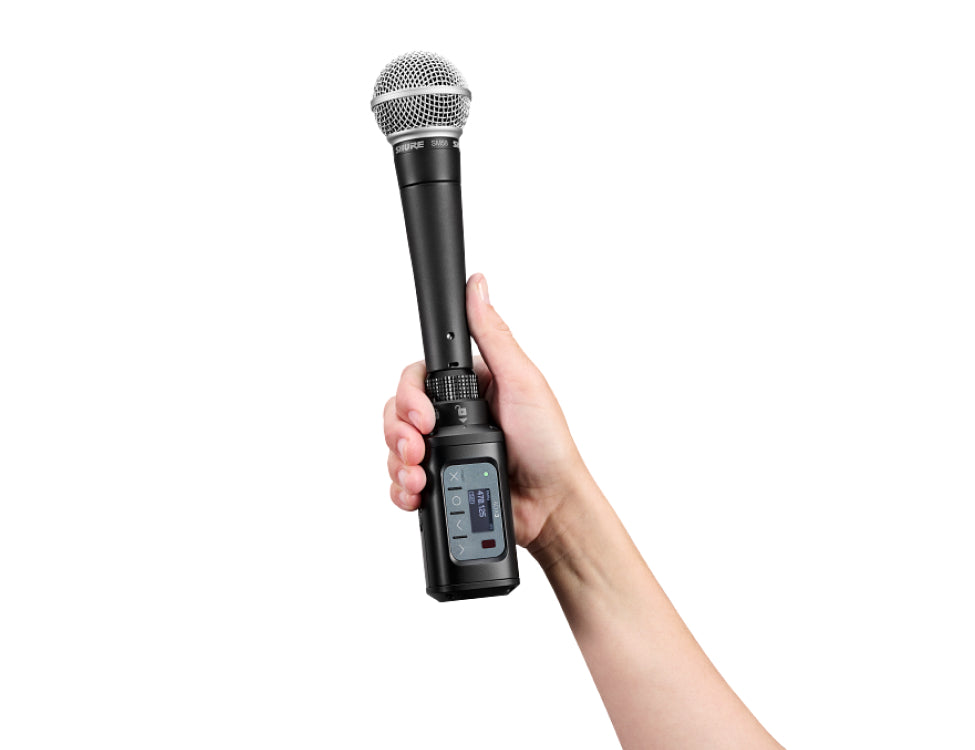

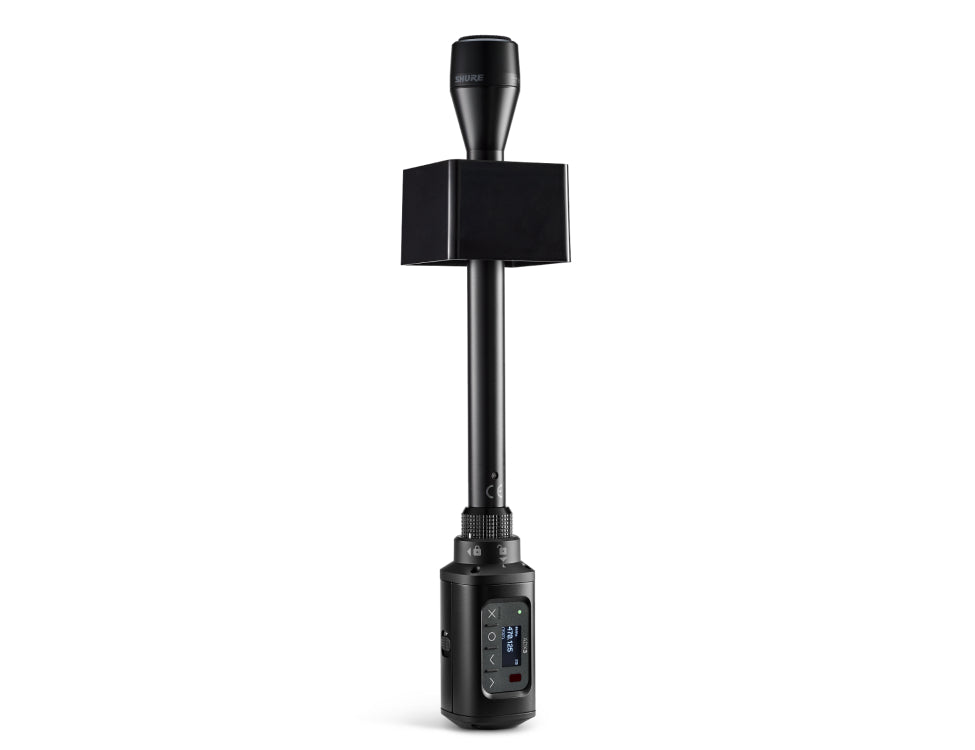

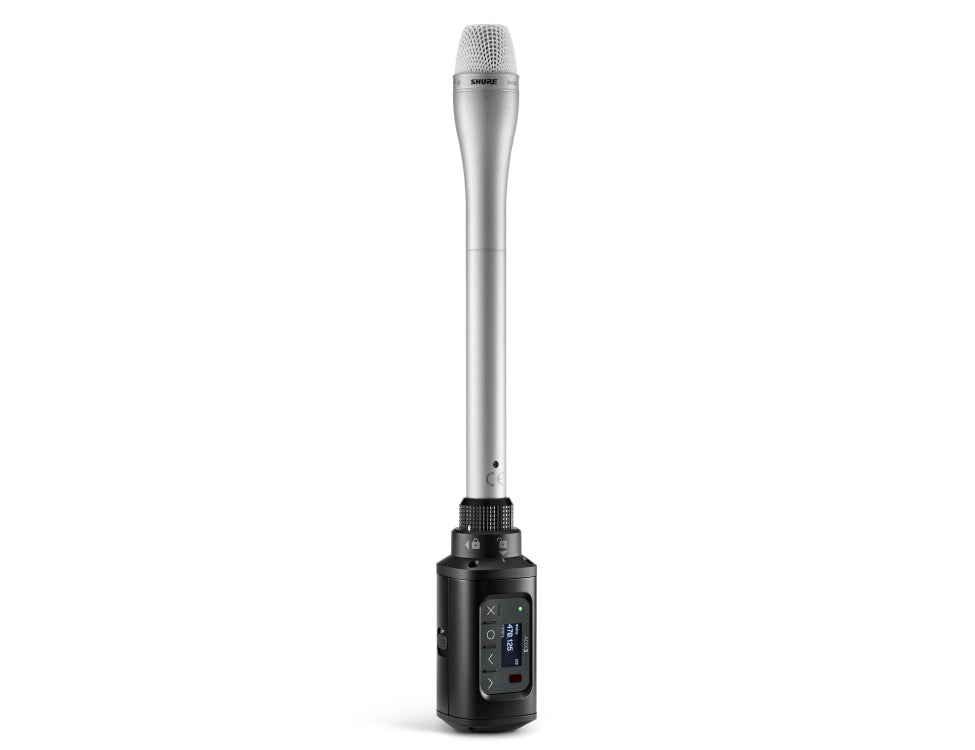

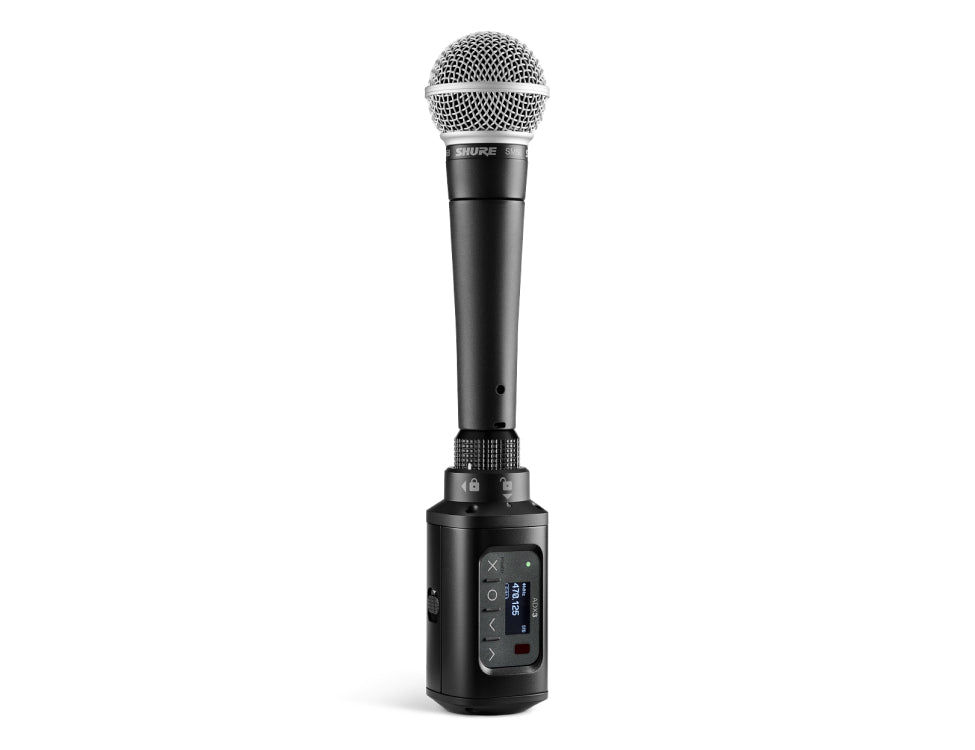

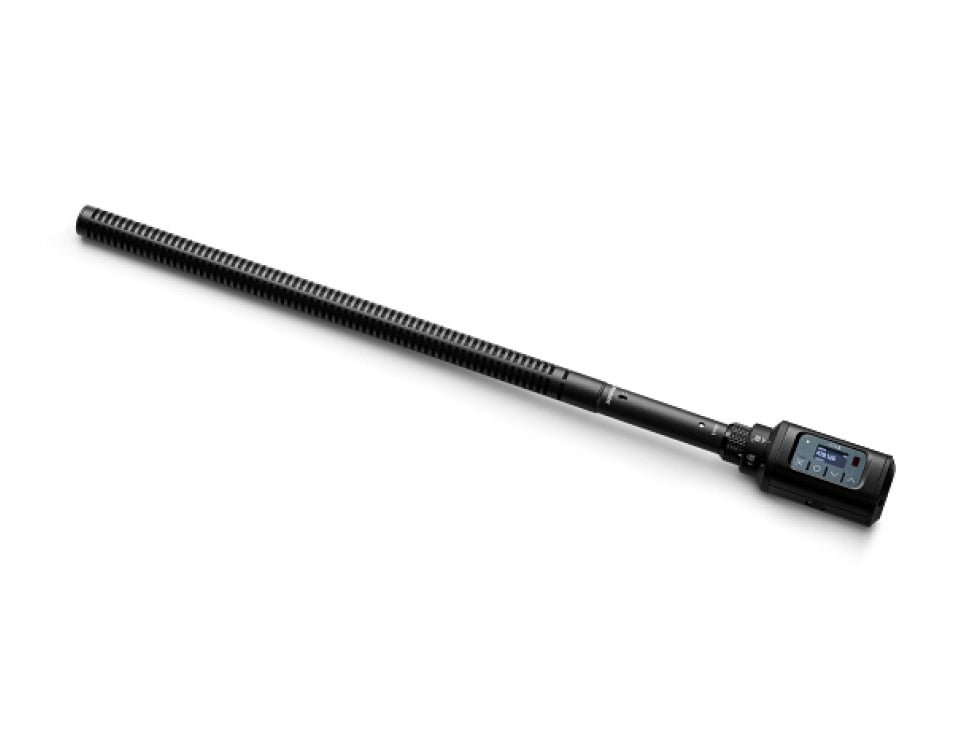

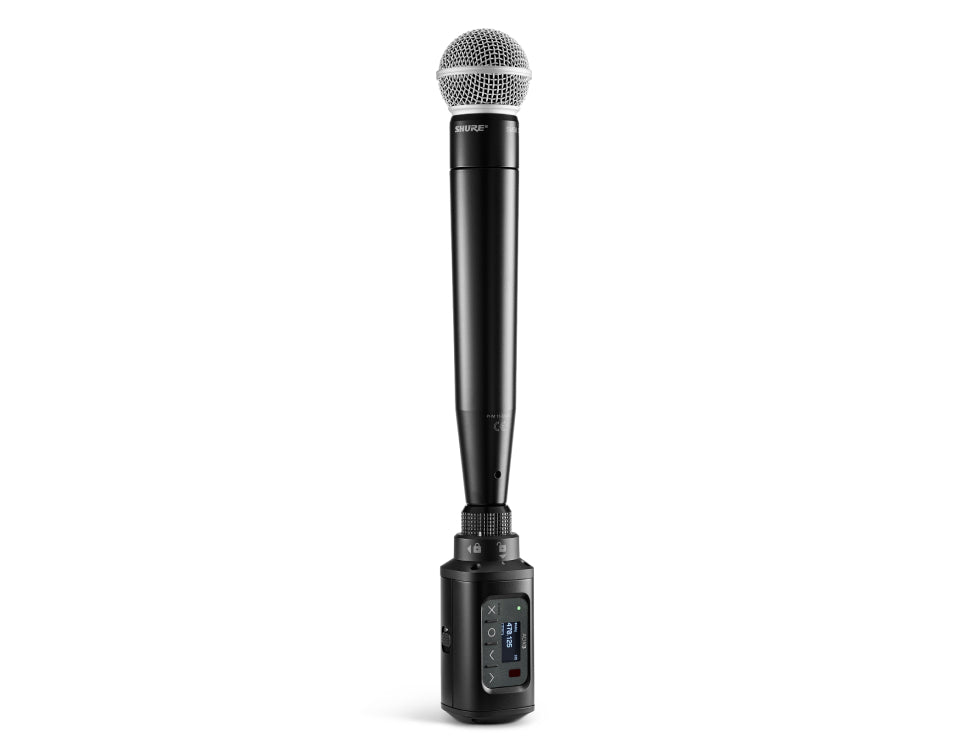

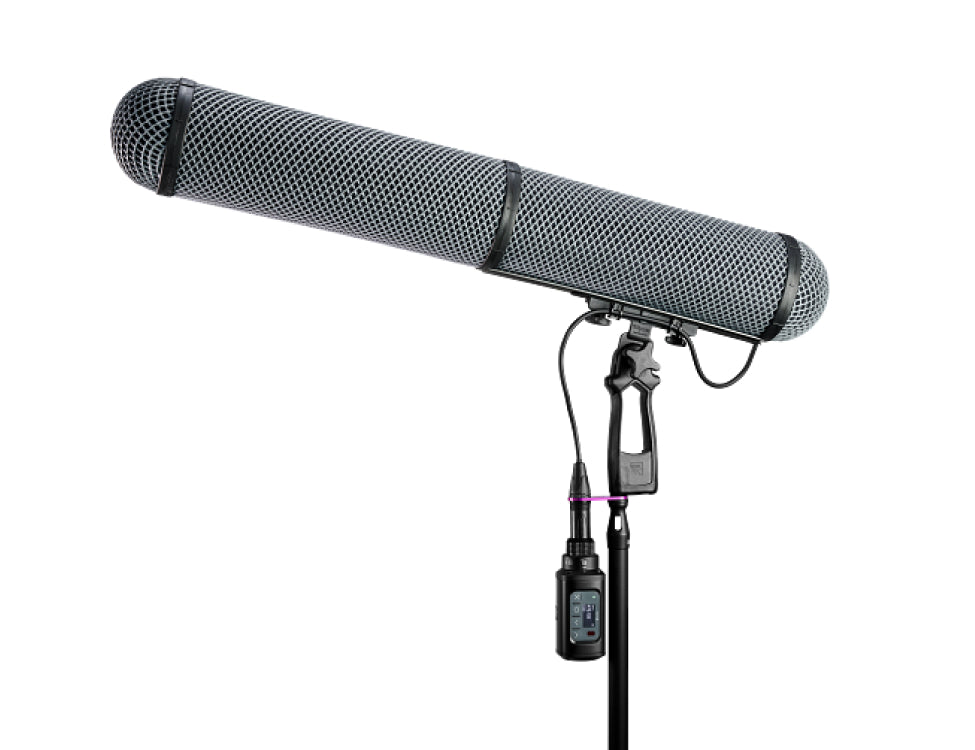

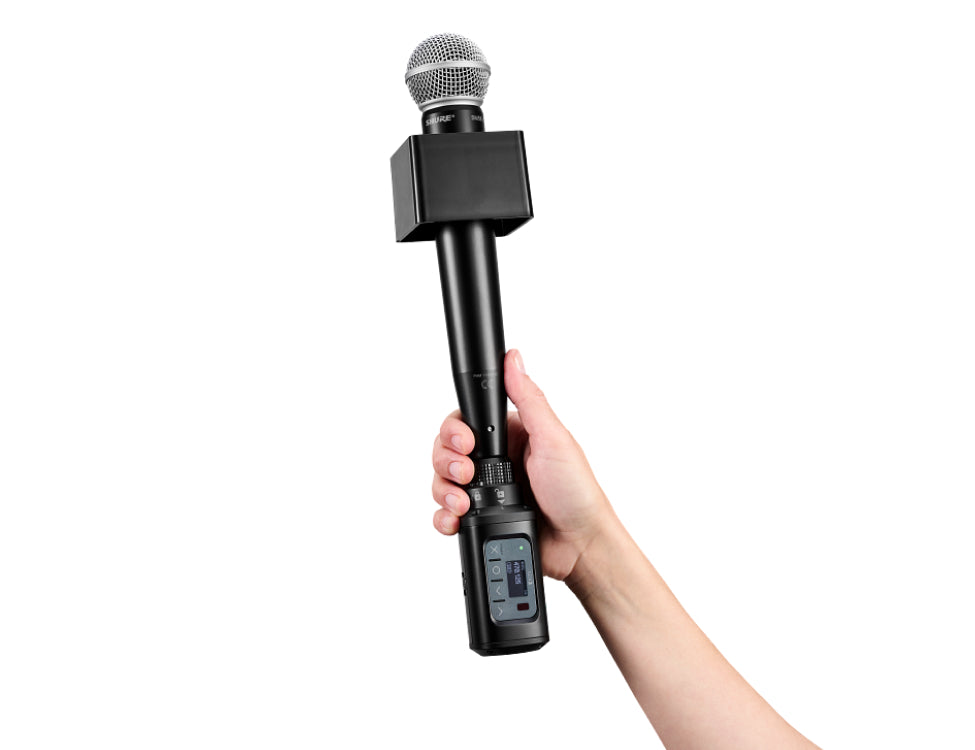

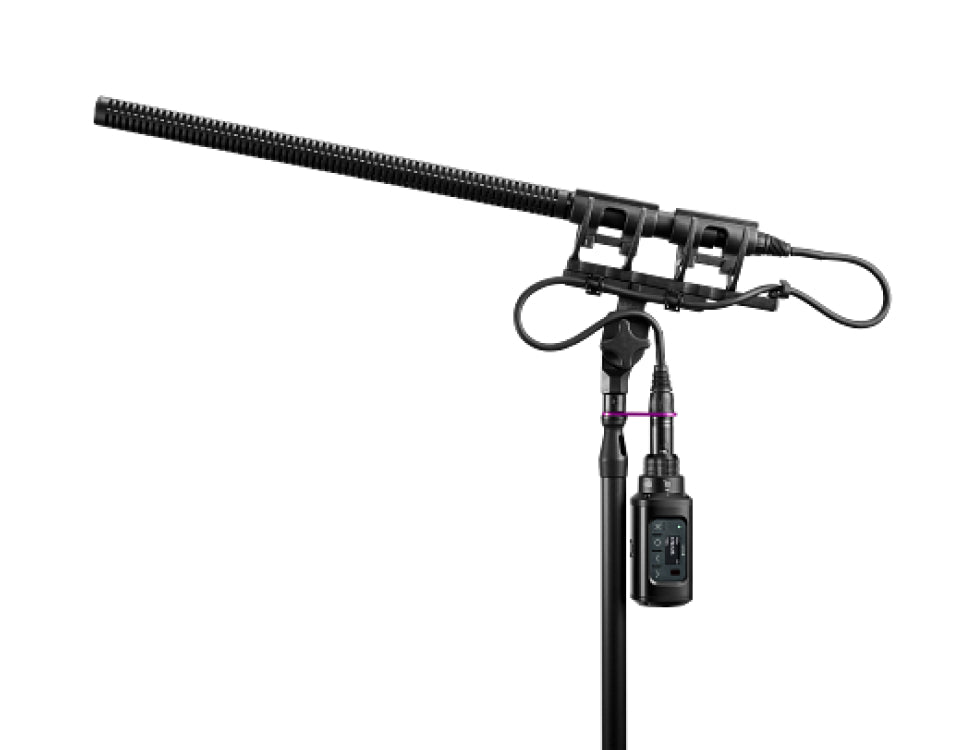

Shure Axient Digital ADX series transmitters deliver impeccable audio quality and RF performance and are equipped with ShowLink remote control for realtime parameter adjustments and interference avoidance. the Shure ADX3 plug-on transmitter transforms any microphone into an advanced, portable Axient Digital ADX series wireless microphone with wide-tuning, high density (HD) mode, encryption, and advanced rechargeability.

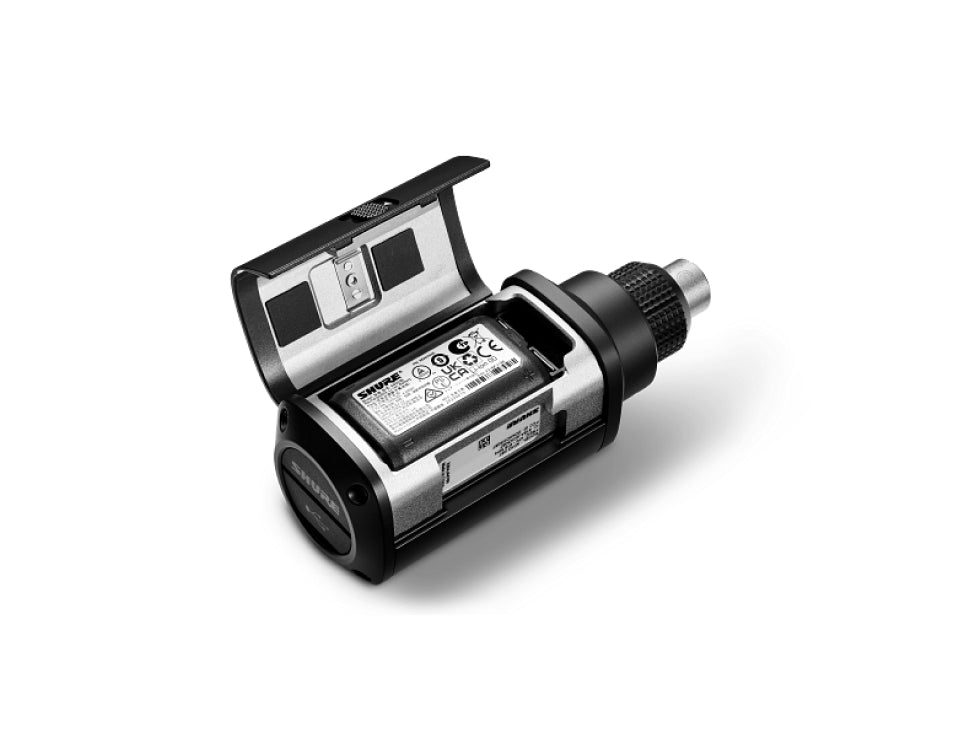

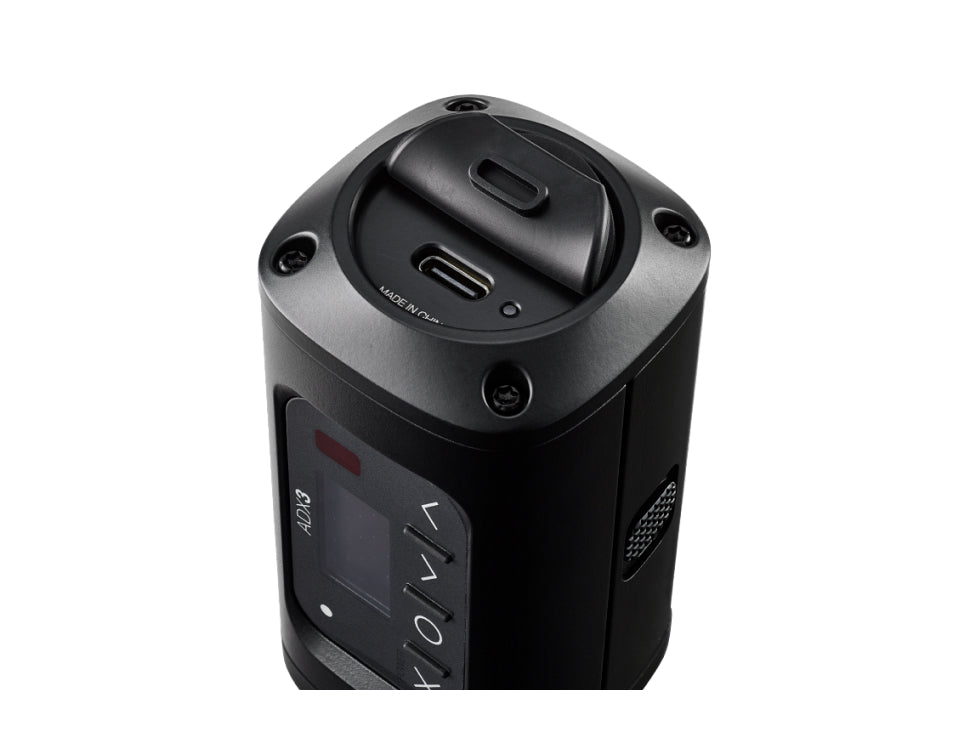

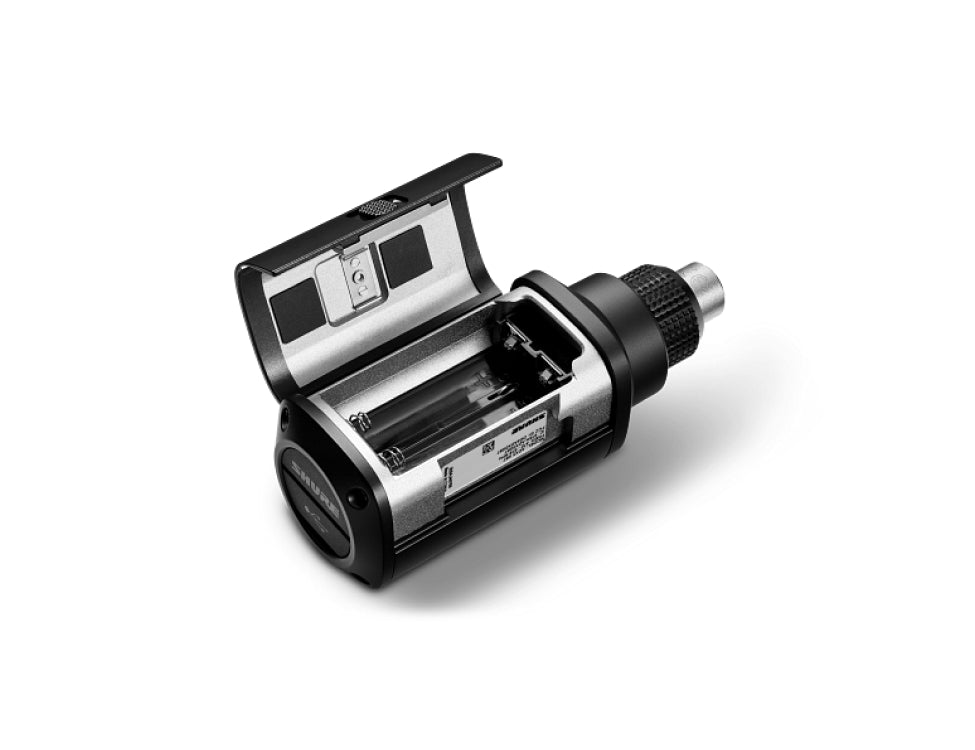

ADX3 features a patented locking mechanism for secure, wobble-free connection and supports both conventional AA and Shure SB900-series rechargeable batteries. the ADX3 is housed in a lightweight, rugged, metal chassis and is designed to resist sweat, moisture, and debris.
FEATURES:

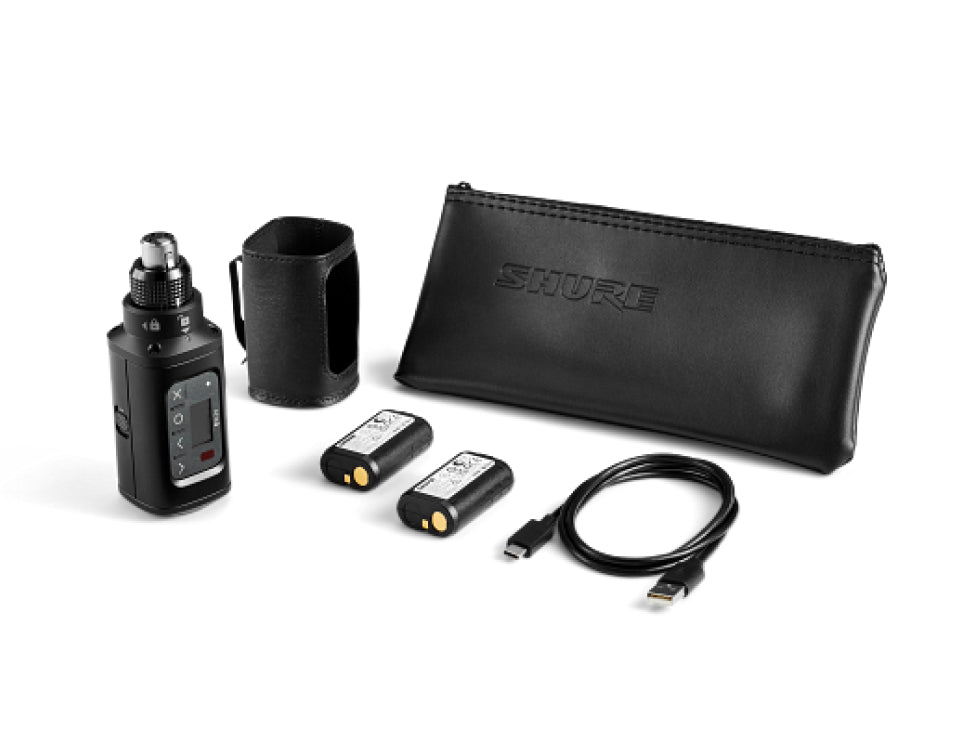

WHAT'S INCLUDED:
Mic Offset Range: -12 to 21 dB (in 1 dB steps) Battery Type: Shure SB900-series rechargeable li-ion or LR6 AA batteries 1.5 V Battery Runtime: Shure SB900B: >6 hours / Alkaline: >5 hours Dimensions: 126 x 44.5 x 44.5 mm Weight: 240 g without batteries / 263 g with AA Batteries / 280 g with SB900B Housing: cast metal Operating Temperature Range: -14 to 122 °F (-10 to 50 °C) / note: battery characteristics may limit this range Storage Temperature Range: -40 to 165 °F (-40 to 74 °C) / note: battery characteristics may limit this range Connector: 3-pin female XLR Configuration: balanced Impedance: Pad (-12 dB): 26.64 kO / 0 dB: 6.64 kO / Boost (12 dB): 6.64 kO Maximum input Level - 1 kHz at 1% THD: Pad (-12 dB): 21 dBV / 0 dB: 9 dBV / Boost (12 dB): -3 dBV Preamplifier Equivalent Input Noise System Gain Setting =+20: -115 dBV A-weighted, typical Phantom Power: +48 V (7 mA maximum) / +12 V (15 mA maximum) High Pass Filter: Two-pole (12 dB per octave), cutoff frequency selectable from 40 to 240 Hz in 20 Hz increments) Antenna Type: Dipole Impedance: 50 omega Occupied Bandwidth: <200 kHz Channel-to-Channel Spacing: Standard Mode: 350 kHz / High Density Mode: 125 kHz Modulation Type: Shure Axient Digital Propietary Power: 2 mW, 10 mW, 35 mW / varies by region. See Frequency Range and Output Power Table. Specific Absorption Rate (SAR): <0.1 W/kg Showlink Network Type: IEEE 802.15.4 Showlink Antenna Type: Dipole Showlink Frequency Range: 2.4000 to 2.4835 GHz (16 Channels) Showlink RF output Power: 10 dBm (ERP) - varies by region
