- RF VENUE 4ZONE-Network
Description

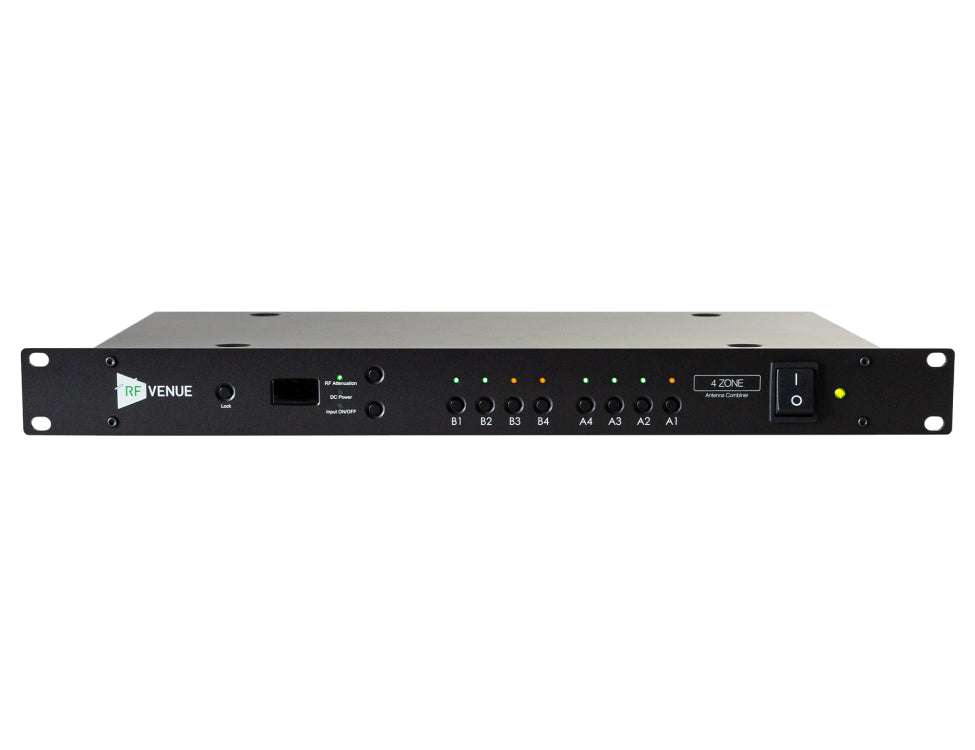

The 4 Zone-Network combiner takes the complexity out of multi-zone wireless microphone projects. 4 Zone-Network combines together up to four separate pairs of diversity antenna connections for multi-purpose rooms, indooroutdoor configurations, or main stages with secondary breakout rooms.

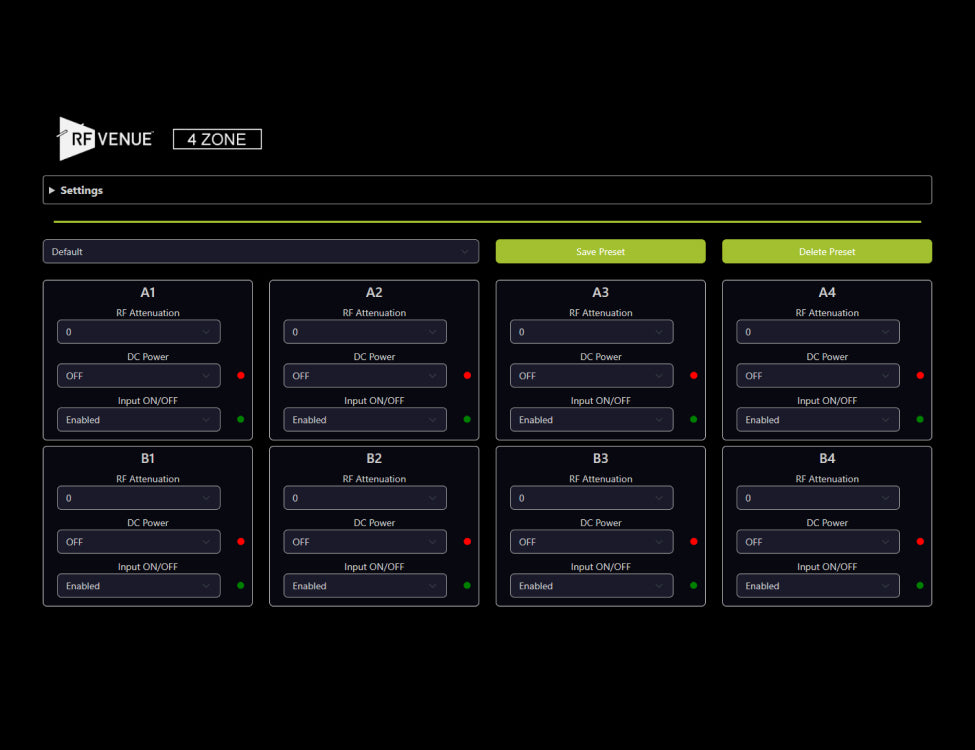

Users are able to adjust the parameters (Input ON/OFF, DC Power, RF Attenuation) using the interface on the front of the unit or by connecting the device to a network and remotely accessing the user interface on a computer or tablet.
For fine tuning RF levels in each coverage area, 4 ZoneNetwork provides individual channel RF signal attenuation control down to -31dB in 1 dB steps. And for active antennas or in-line amplifiers, it features selectable 12V DC power to accommodate long cable runs.
With selectable ON/OFF inputs, 4 Zone-Network also allows for quick control of coverage zones for roaming microphone transmitters, so you can choose which zones are active as a live event or location sound project progresses, saving setup and breakdown time on site.
KEY FEATURES:
- single rack space: a
- keeps you covered: s
- configured as needed:
Specifications
- Carrier Frequency Range: 470 – 960 MHz
- Full System Gain: 3 dB (±3 dB)
- Input/Output Impedance: 50 Ω
- A/B Antenna Input: 4 + 4 OIP3: −35 dBm (typ.) @ 2-tone Pi −15 dBm/tone
- RF Input Attenuation: −31 to 0 dB (step: 1 dB)
- DC Over Coax (to external antenna): 12 V / 200 mA ×8
- Power Supply: 100–240 VAC; max. 2 A; 50/60 Hz

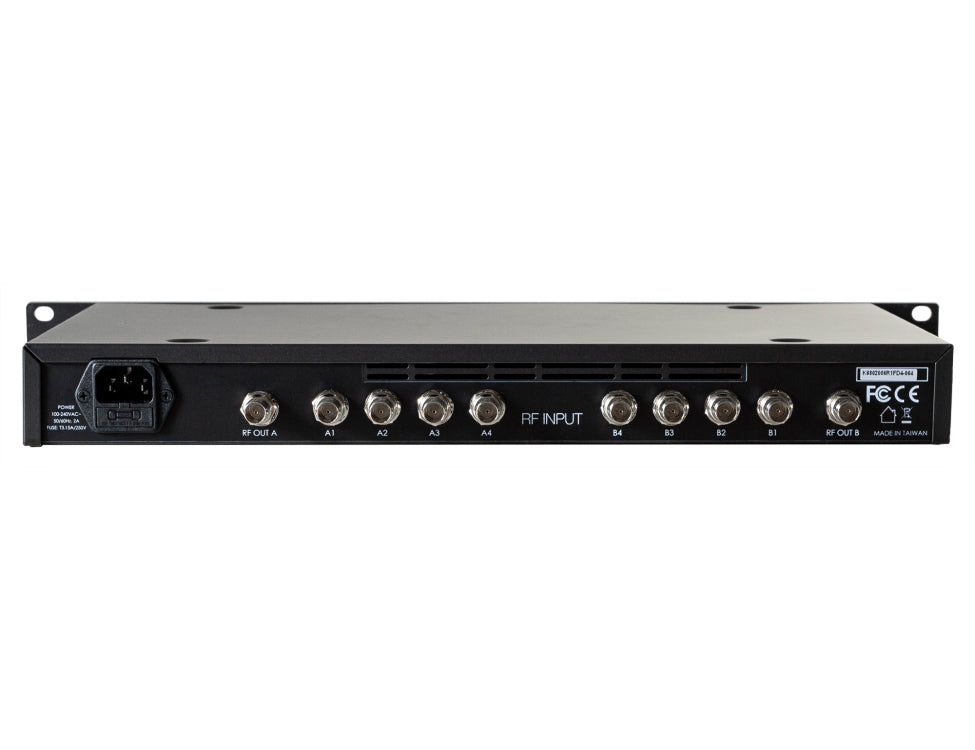

- Input/Output Connectors: BNC (F)
- Inputs: 8×
- Outputs: 2×

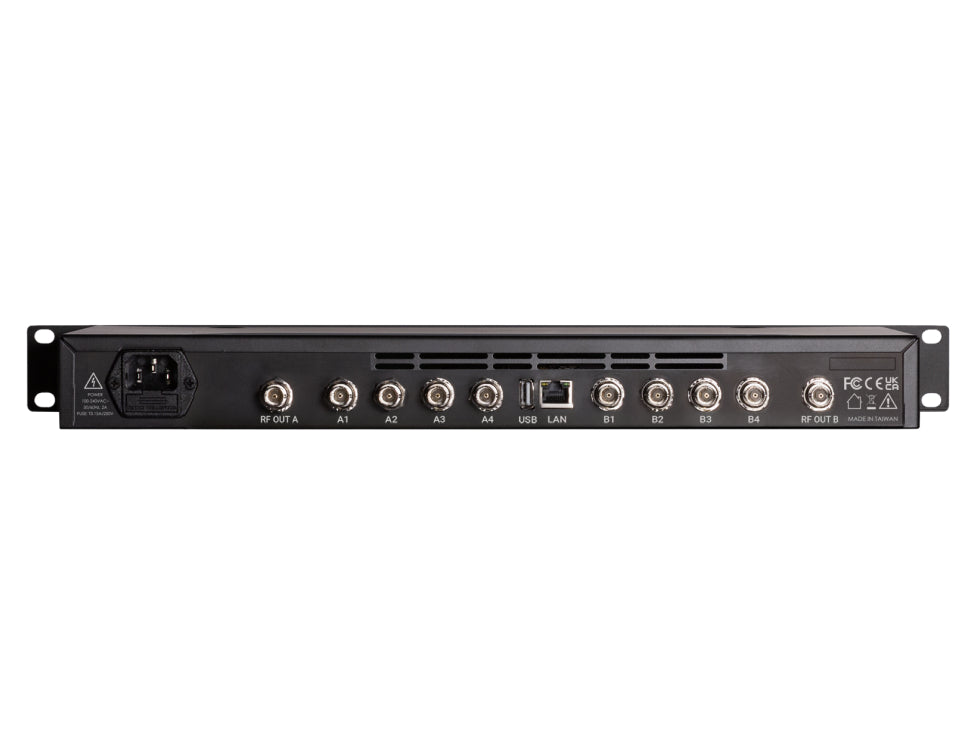

- Network Connector: RJ45
- Functions: DC Power (for in-line amplifier) ON/OFF / RF Input Attenuation Control / RF Input Signal ON/OFF
- Dimensions: 480× 45 × 250 mm
- Weight: 2.5 kg
In the Box
- 1x 4Zone-Network Antenna Combiner
- 2x BNC jumpers
- 1x AC power cord
