Description

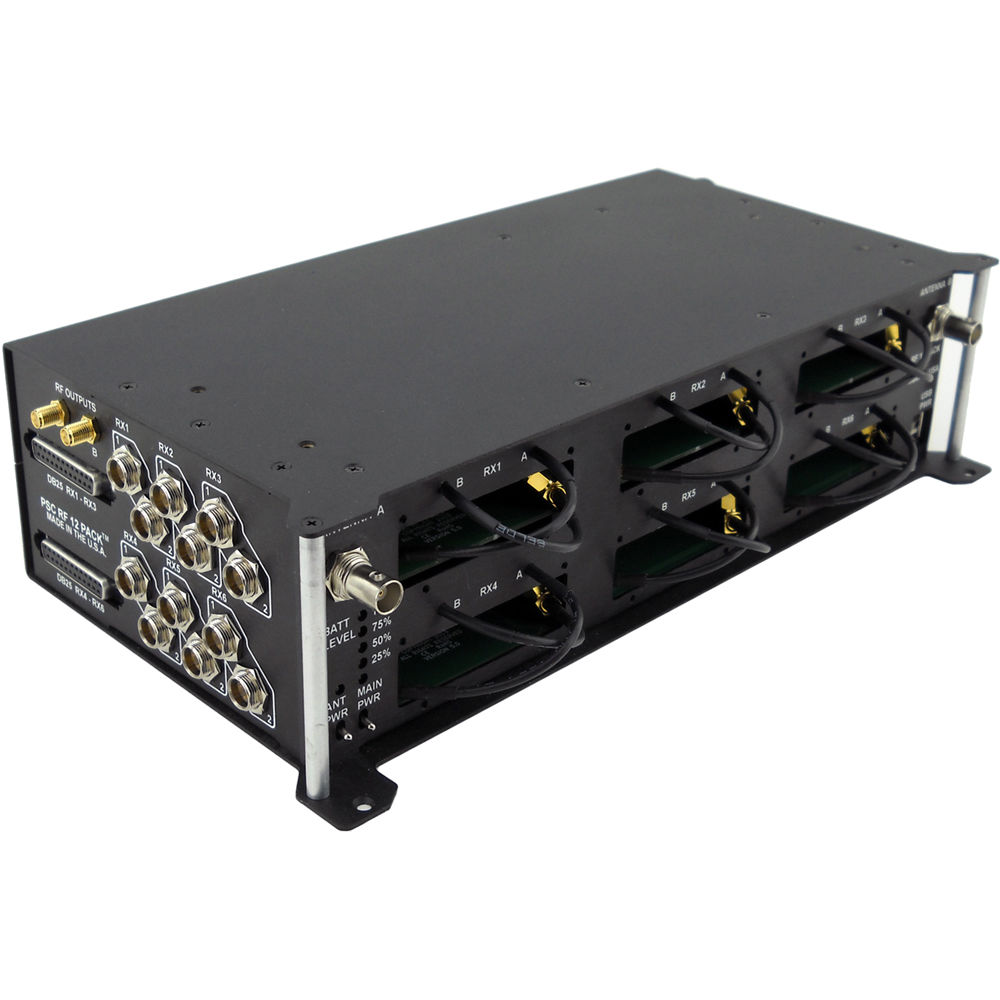

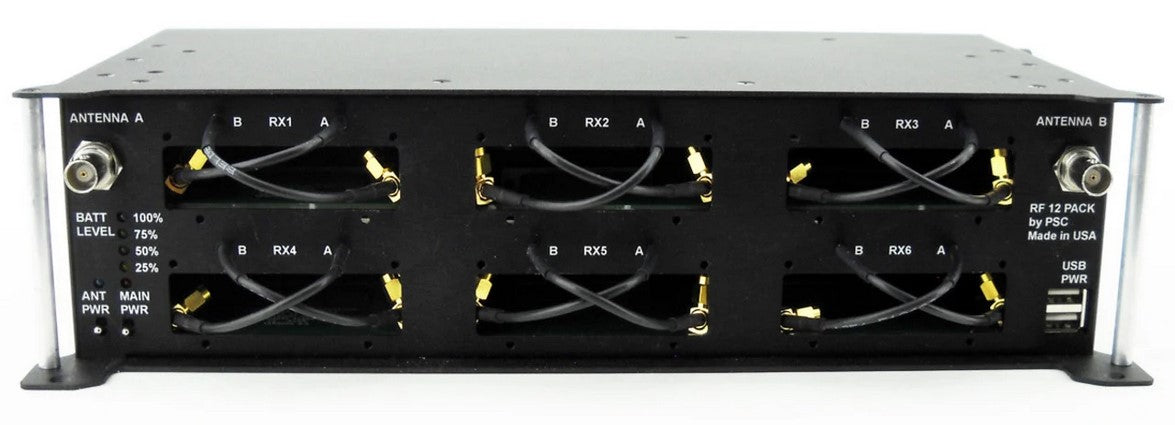

The PSC RF Twelve Pack provides a convenient and compact way of providing power and diversity RF distribution for six slot-compatible receivers, including the Lectrosonics SR series, Wisycom MCR42S, and Sennheiser EK 6042. It's designed to be used either as a stand-alone unit with other ENG-style mixers or by cart based sound recordists.
It provides built-in low noise RF distribution and has a operating bandpass filters from 470 to 700 MHz.
The Twelve Pack provides bandwidth limited, super low noise RF distribution with two BNC antenna inputs and switchable antenna powering for use with powered antennas and remote amplifiers. The RF signal is input level limited, amplified to prevent signal loss though the unit, band-pass filtered and then split to the six receivers. RF outputs are delivered to the receivers via six right-angle, cable-mounted SMA connectors.
The state-of-the-art RF amplifier features a very low noise figure for exceptional performance in the field. It can be powered via the built-in smart battery slot or the XLR4M power connection. Special power management electronics allow the Smart battery to operate the unit, be recharged within the unit and provide regulated DC power distribution to power your other gear. A multi-colored LED "fuel gauge" is provided to monitor the smart battery charge level. In addition, RF "flow through" is provided for adding additional RF gear.
The RF Twelve Pack offers two USB power ports, twelve individual mini XLR audio outputs, and two DB-25 audio outputs.
The unit is housed in a robust, aircraft aluminum housing which has been anodized and texture powder coated.
FEATURES:
- supports up to 6 slot receivers
- provides RF distribution
- provides remote antenna power
- smart battery slot for rechargeable operation
- built in power management/charging circuitry
- built in regulated dc power distribution
- RF "flow through" outputs
- multi-colored led smart battery fuel gauge
- multiple threaded mounting points
