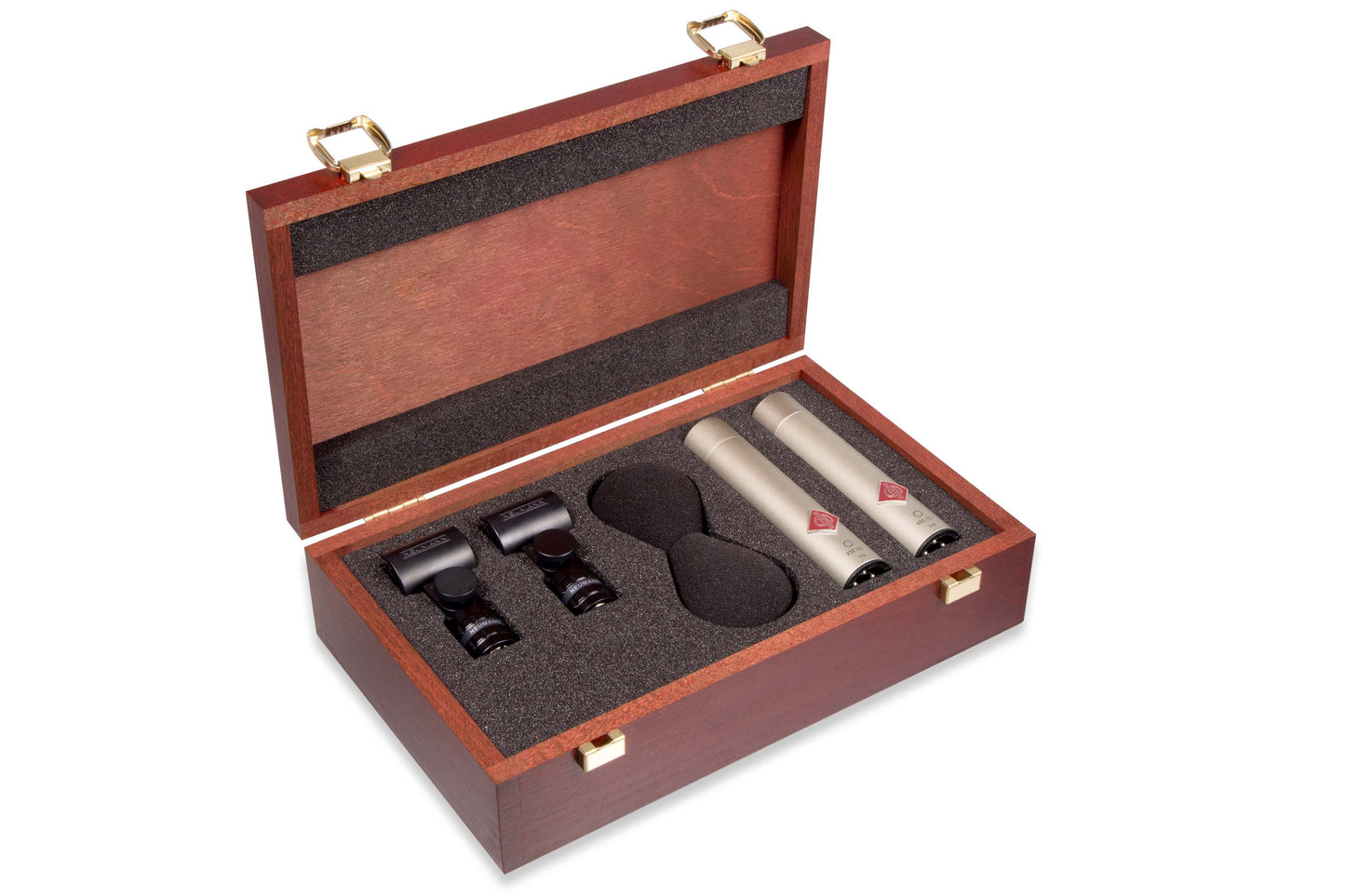

- NEUMANN KM 183 nickel, stereo set (180 series)
Description
The KM 183 is a state-of-the-art small diaphragm condenser microphone with a frequency-independent omni-directional polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 183 a worldwide studio standard for many applications ranging from classical piano to heavy metal drums.
FEATURES:
- omni-directional polar pattern with excellent off-axis behavior
- diffuse-field equalized
- pressure transducer with unlimited bass response
- very low self-noise (13 dB-A)
- transformerless circuitry
- compact size, visually unobtrusive
Specifications
- acoustical operating principle: pressure
- directional pattern: omni-directional
- frequency range: 20Hz to 20kHz
- sensitivity at 1 kHz into 1 kOhm: 12mV/Pa
- rated impedance: 50 Ohms
- rated load impedance: 1 kOhms
- equivalent noise level, CCIR: 24dB
- equivalent noise level, A-weighted: 13dB-A
- signal-to-noise ratio, CCIR (rel. 94 dB SPL): 70dB
- signal-to-noise ratio, A-weighted (rel. 94 dB SPL): 81dB
- maximum SPL for THD 0.5%: 140dB
- maximum output voltage: 10dBu
- supply voltage (P48, IEC 61938): 48V (+/-4V)
- current consumption (P48, IEC 61938): 3.2mA
- matching connectors: XLR 3F
- weight: approx. 80g
- diameter: 22mm
- length: 107mm
