Description

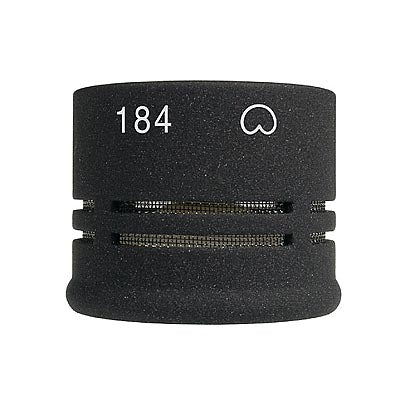

The KK 184 is a pressure gradient transducer with cardioid characteristic. The frequency curves are very even and parallel to 0° sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.
The combination of the capsule KK 184 with the analog output stage KM A is only one of the numerous options within the modular Neumann KM A/D small diaphragm microphone system. Eight different small diaphragm capsules (KK 120 up to KK 185) may be combined with either an analog output stage (KM A) or a digital AES 42 output stage (KM D). A comprehensive range of accessories ensures adaptability to the most diverse fields of application.
FEATURES:
- directional characteristic: cardioid
- part of the modular microphone system KM A/D
- comprehensive range of accessories
Specifications
- acoustic operating principle: pressure gradient transducer
- directional pattern: cardioid
- frequency range: 20Hz to 20kHz
- sensitivity: 15mV/Pa
- rated impedance: 50Ohms
- rated load impedance: 1000Ohms
- equivalent noise level, CCIR: 22dB
- equivalent noise level, A-weighted: 13dB-A
- signal-to-noise ratio CCIR: 70dB
- signal-to-noise ratio A-weighted: 81dB
- max SPL (THD<0.5%): 138dB
- max SPL (THD<0.5%) with preattenuation: 148dB
- supply voltage (P48, IEC 61938): 48V
- current consumption (P48, IEC 61938): max. 3.5mA
- matching connector: XLR 3 M
- weight output stage: 70g
- weight capsule: 15g
- diameter: 22mm
- length: 188mm
