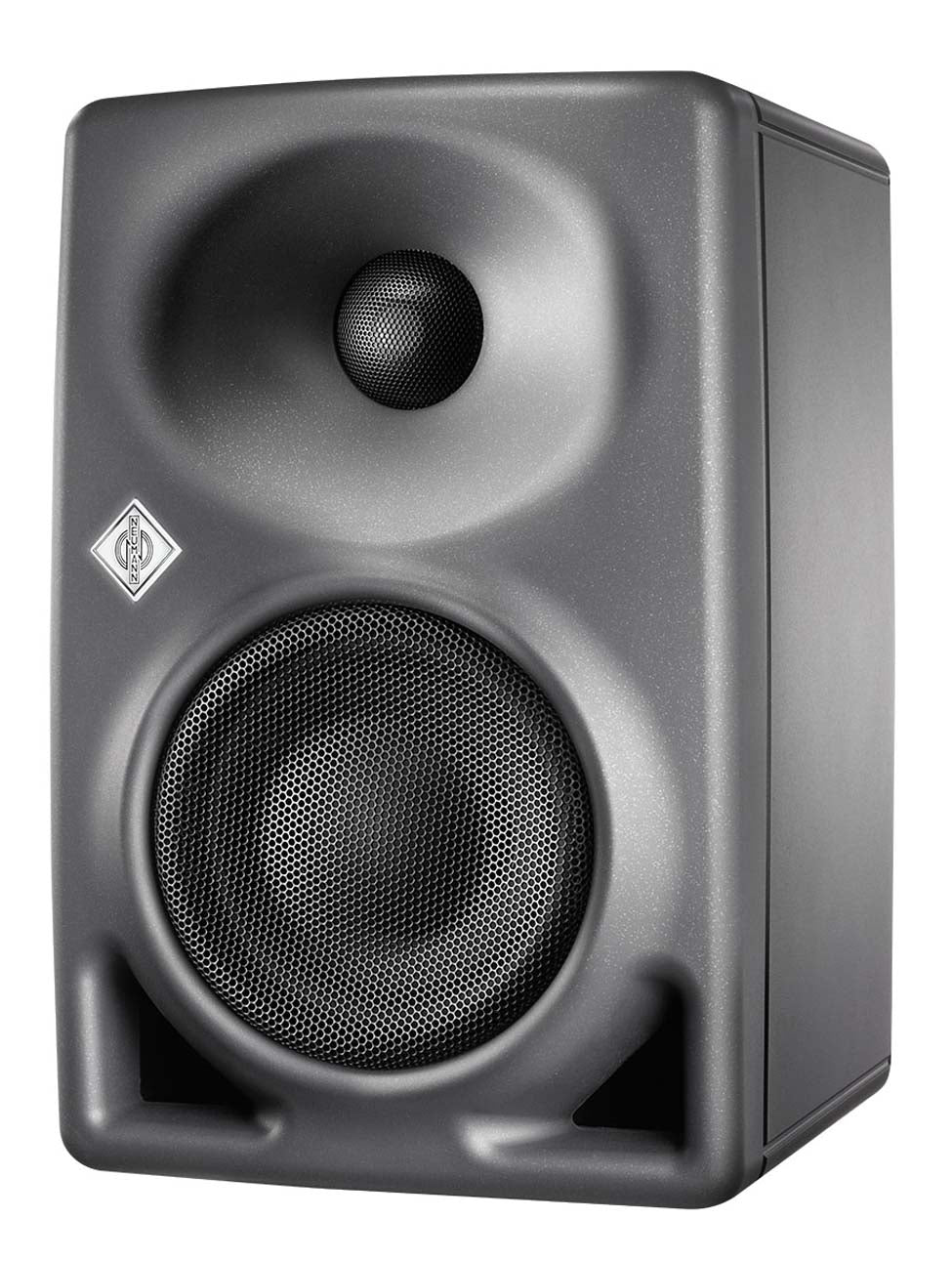

The KH80 DSP is an ultra-compact, DSP-controlled bi-amplified near-field monitor with exceptional power reserves. With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment.

Even with its compact design, it has extraordinary reserve capacity as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.

FEATURES:

DSP engine optimizes output to achieve reference class sound
ready for fully-automatic room alignment and precise adjustment using the Neumann control-app
mathematically optimized dispersion to deliver excellent detail in any surroundings
available in anthracite and white
powerfull alloy fabric dome
elliptical mathematically modelled dispersion waveguide
two colour and dimmable Neumann logo displays operation status
long-throw composite sandwich cone bass driver for damping
robust metal grill
large front panel ports reduce bass compression
wide horizontal but narrow vertical dispersion
powerful highly efficient amplifiers with large headroom
separate limiters for woofer and tweeter

PERFORMANCE:

free field frequency response +/6 dB: 53 Hz up to 21 kHz
free field frequency response +/3 dB: 57 Hz up to 21 kHz
free field frequency linearity deviation between 100 Hz and 10 kHz: +/-0.7 dB
reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced: +/0.26, +/0.23, +/0.17 dB
self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
sine wave output with a THD < 0.5 % at 1 m in half space: 90 dB SPL (>200 Hz)
max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 108.8 dB SPL
max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 102.8 dB SPL
bass capability: max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 92.1 dB SPL
max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 104 dB(C) SPL
max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range): 93 dB(C) SPL
max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer): 100 dB(C) SPL
max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range): 88 / 93 dB(C) SPL
max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer): 91 / 96 dB(C) SPL
analog input(s): XLR / 6.3 mm Jack: analog electronically balanced
analog input impedance: 14k Ohms
max. input level: +24 dBu for 94 dB SPL setting, +18 dBu for 100 dB SPL setting, +10 dBu for 108 dB SPL setting, +4 dBu for 114 dB SPL setting
common mode rejection ratio (CMRR): >56 dB @ 15 kHz
volume control: via Neumann.Control software
volume control range, resolution: 0 up to -8 dB, 0.1 dB

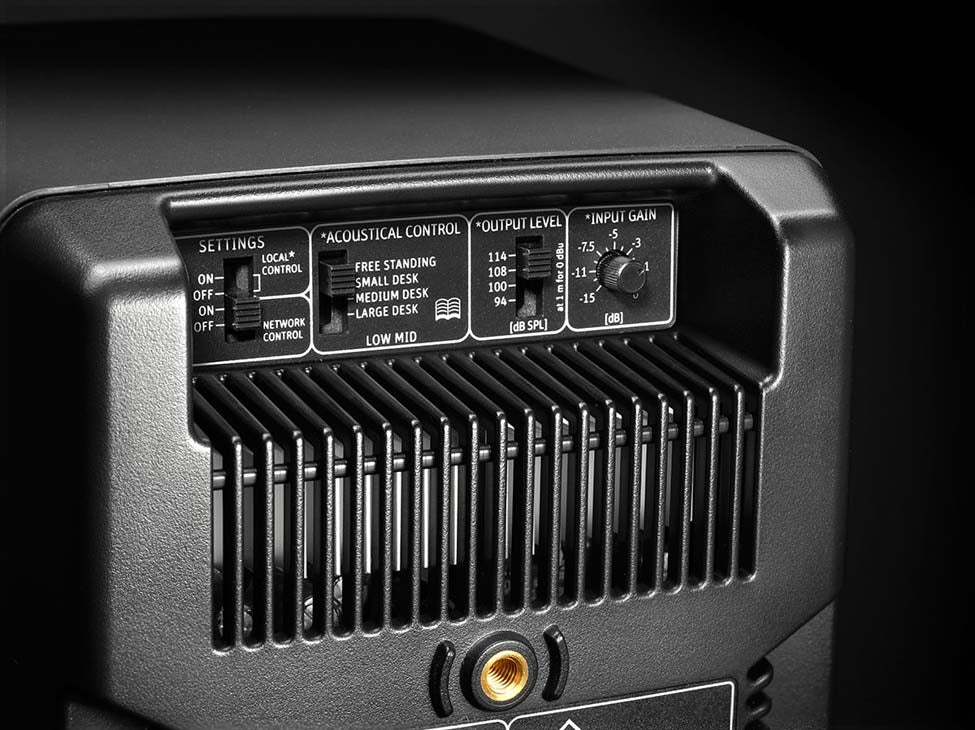

input gain control (sensitivity): 0 dB up to -15 dB

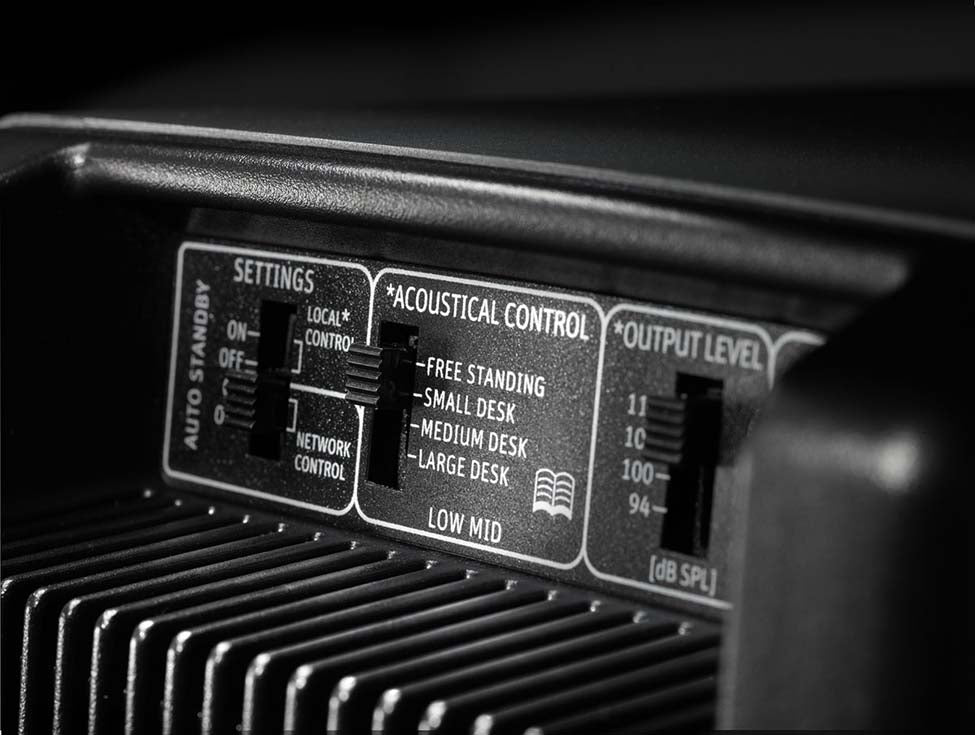

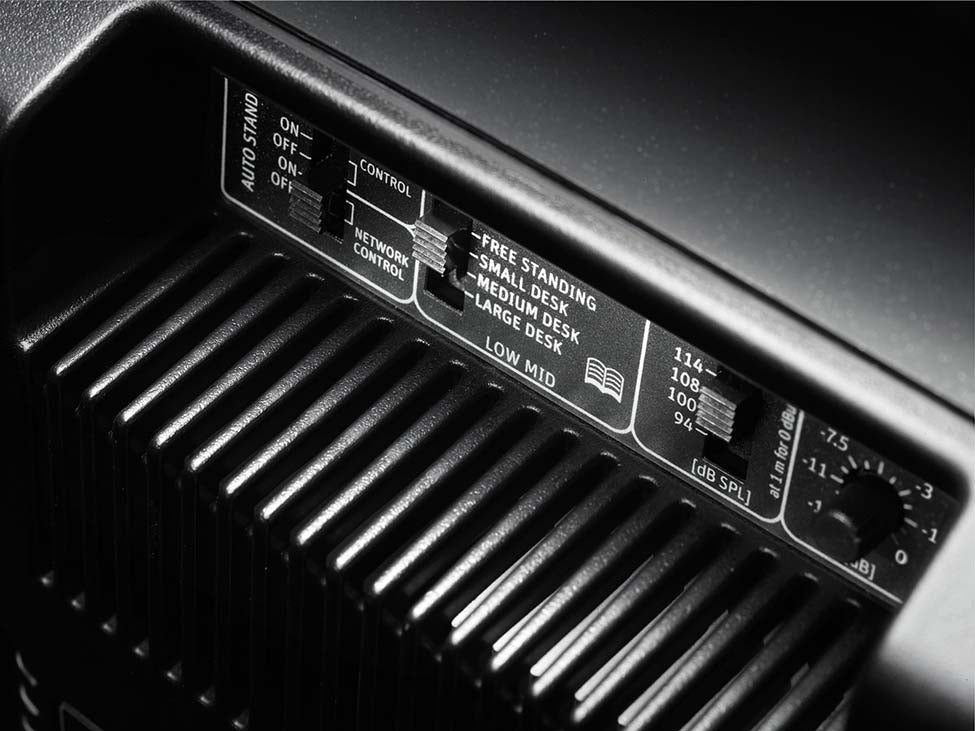

output level control (output level in 1 m based on 0 dBu input level): 94, 100, 108, 114 dB SPL
digital converter, sampling rate: 48 kHz
digital internal sampling rate: 48 kHz
dynamic range A-D: 114 dB(A)
dynamic range A-D-A: 111 dB(A) woofer, 112 dB(A) tweeter
dynamic range D-A: 114 dB(A) woofer, 117 dB(A) tweeter
latency: 2 ms (A-D-A linear phase)
delay, user adjustable delay range: 0 up to 70 ms
delay and resolution, time and distance: 0.1 ms, 3.44 cm
delay: max. frames audio-video synchronisation (lip sync): 1.75 (40 ms frames), 2.1 (33 ms frames)
delay: time-of-flight maximum distance: 24 m
controller design: digital, active

CROSSOVER:

crossover frequency: 1.8 kHz
crossover slope: 48 dB/oct, 8th order with phase correction

POWER:

output power woofer amplifier (THD+N with limiter deactivated: 10%): 120 W
output power tweeter amplifier (THD+N with limiter deactivated: 10%): 70 W
output power woofer amplifier (THD+N with limiter deactivated: 0.1%): 90 W
output power tweeter amplifier (THD+N with limiter deactivated: 0.1%): 50 W
mains power supply: input voltage, frequency: 100-240 V, 50/60 Hz
power consumption (230 V / 100 V), standby: <330 / <50 mW
power consumption (230 V / 100 V), idle: 9 / 8 W
power consumption (230 V / 100 V), full output: 180 W
in-rush current (peak): 20 A
standby: disabled, 90 mins (default), user defined in software

GENERAL:

cabinet material: composite polycarbonate
cabinet surface finish, color (front / back): painted, metallic anthracite (RAL 7021) / black (RAL 9005)
operating conditions: +10° C to +40° C, <75% RH, non-condensing
transport/storage conditions: -25° C to +60° C, <90% RH, non-condensing

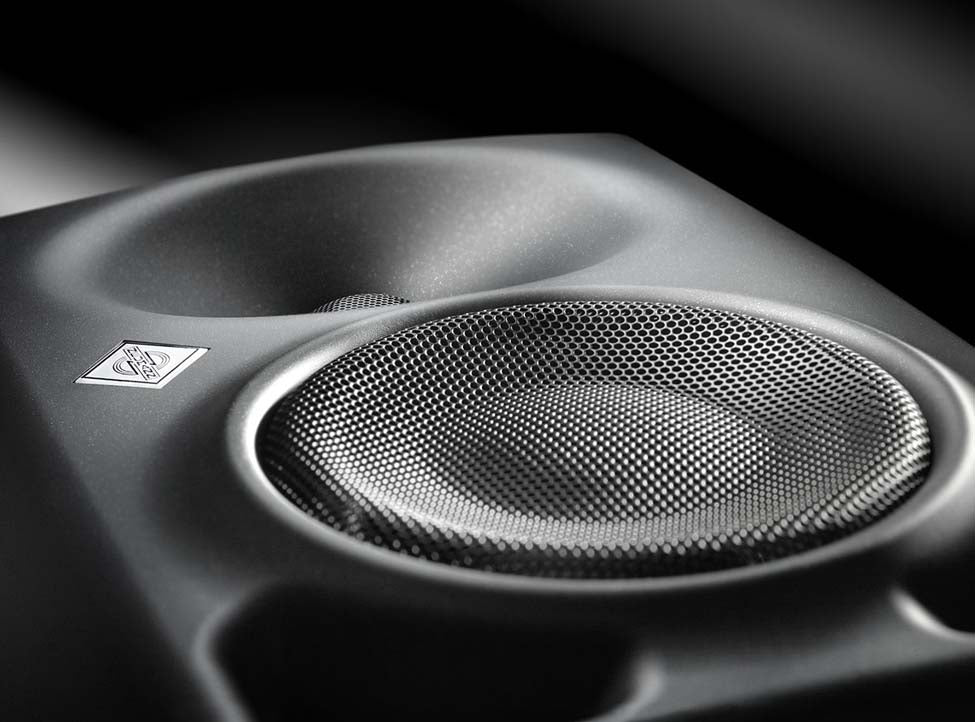

woofer: 100 mm with protecting black metal grille

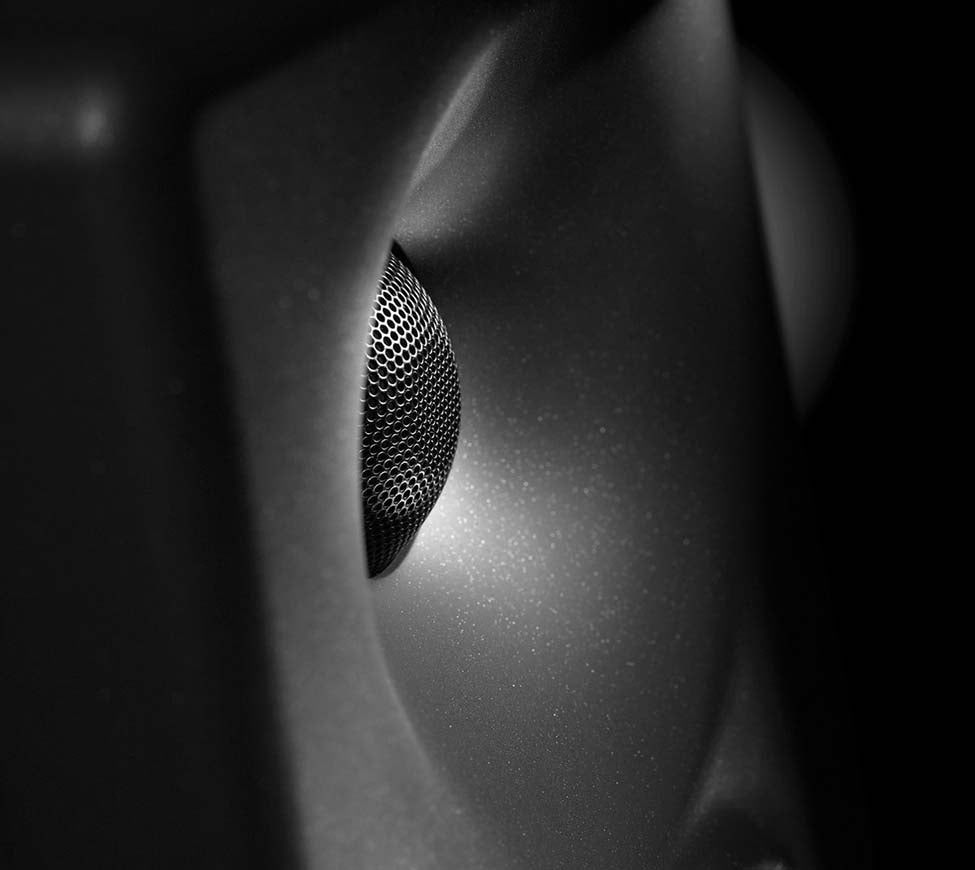

tweeter: 25 mm with protecting black metal grille
mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel, thread depth 15 mm
product dimensions (height x width x depth): 233 x 154 x 194 mm
external net volume: 6.7 liters
product weight: 3.5 kg

PACKAGING:

packed dimensions (height x width x depth), mm: 345 x 277 x 243 mm
packed weight: 4.1 kg
packed cube: 0.023 mn
