Description

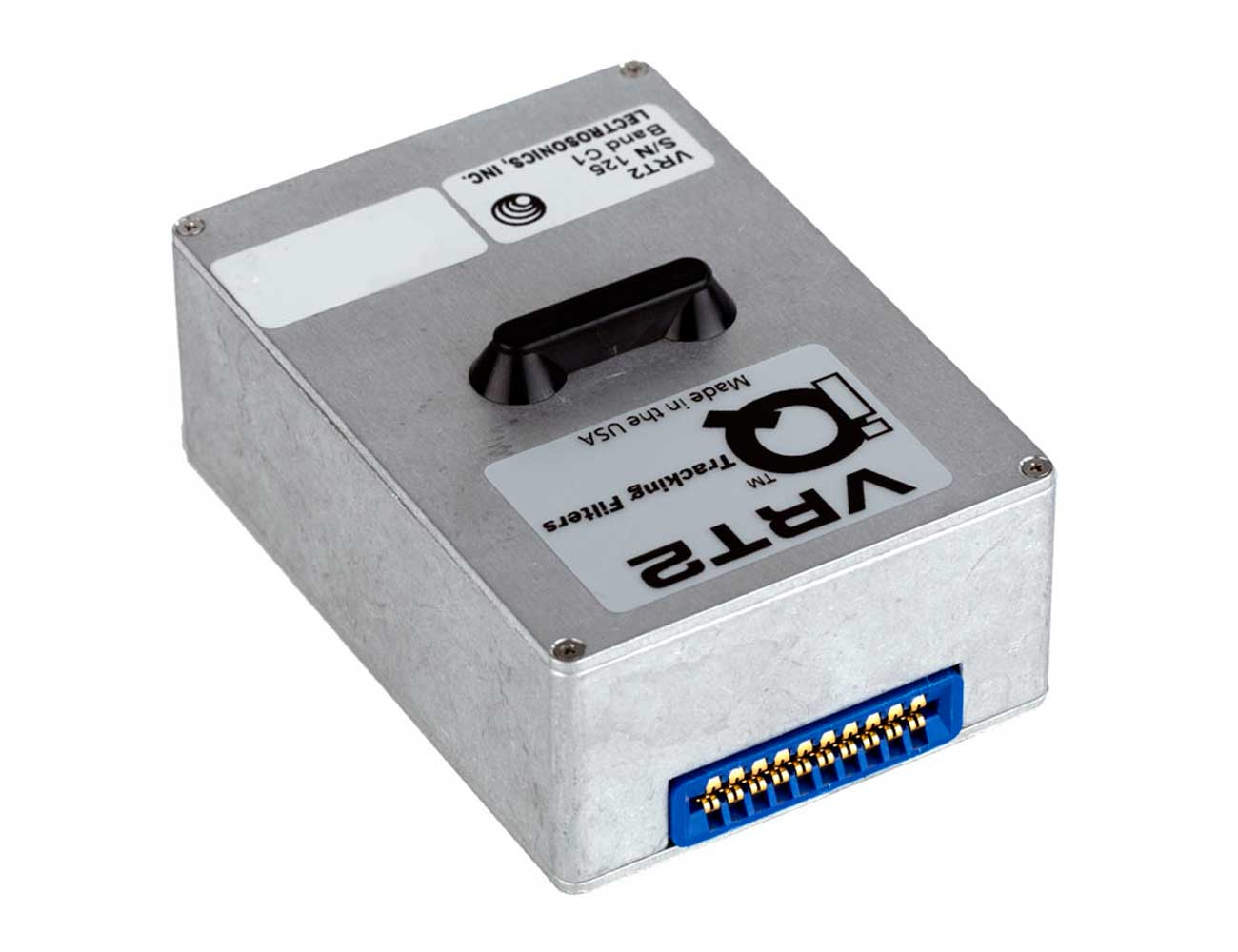

Up to six VRT2 modules may be installed per each 1RU Venue 2 receiver frame. Each module supports up to 3072 tunable frequencies across a 75 MHz range (three standard Lectrosonics blocks), matching the tuning ranges of SSM, LT, LMb, SMWB, SMDWB, HMa and HHa "large bandwidth" transmitters.
VRT2 modules incorporate Lectrosonics' new IQ dynamic tracking filters, which accommodate a wide range of transmitter RF power levels while also enabling extremely tight channel spacing-critical features as the available RF spectrum continues to shrink.
The receiver modules can be operated independently, each with switched diversity reception for a total of six audio channels, or operated in pairs for more robust diversity reception with one audio channel per module pair. Combinations can be mixed and matched within one frame.

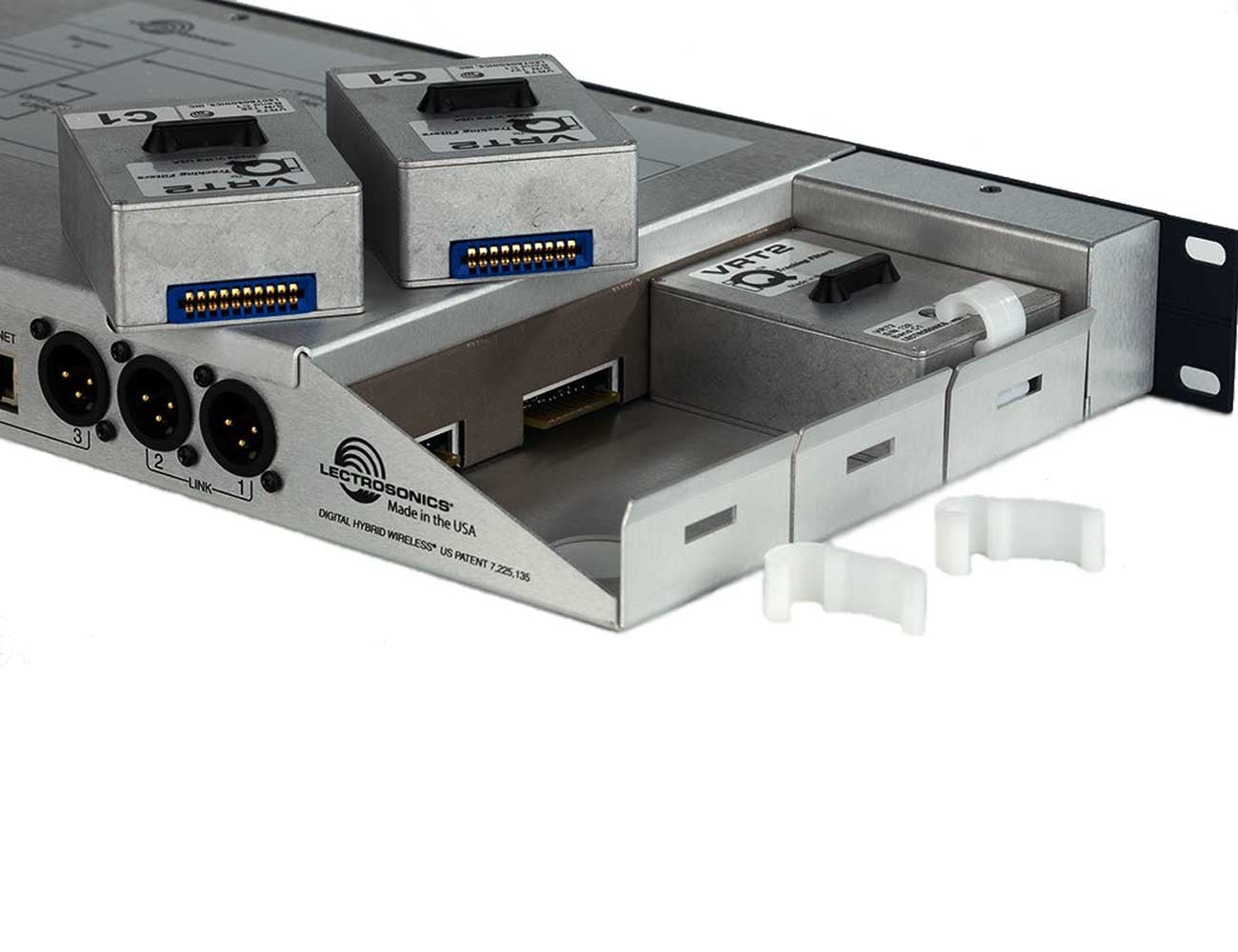

Receiver modules are easy to change, with no tools required, and may be installed in any position, except when paired for ratio diversity reception.
The VRT2 modules are offered in four different frequency ranges for worldwide use:
- A1, covering blocks 470, 19 and 20 (470.100 to 537.575 MHz)
- B1, covering blocks 21, 22 and 23, (537.600 to 614.375 MHz)
- B2, covering blocks 22, 23 and 24, (563.200 to 639.975 MHz)
- C1, covering blocks 24, 25 and 26 (614.400 to 691.175 MHz)
- C2, covering blocks 25, 26 and 27 (640.000 to 716.700 MHz)
- D1, covering blocks 27, 28 and 29 (691.200 to 767.975 MHz)
FEATURES:
- the master rack mount host assembly
- up to six VRT2 receiver modules
- built-in antenna multicoupler with loop-thru output
- software for setup and control
