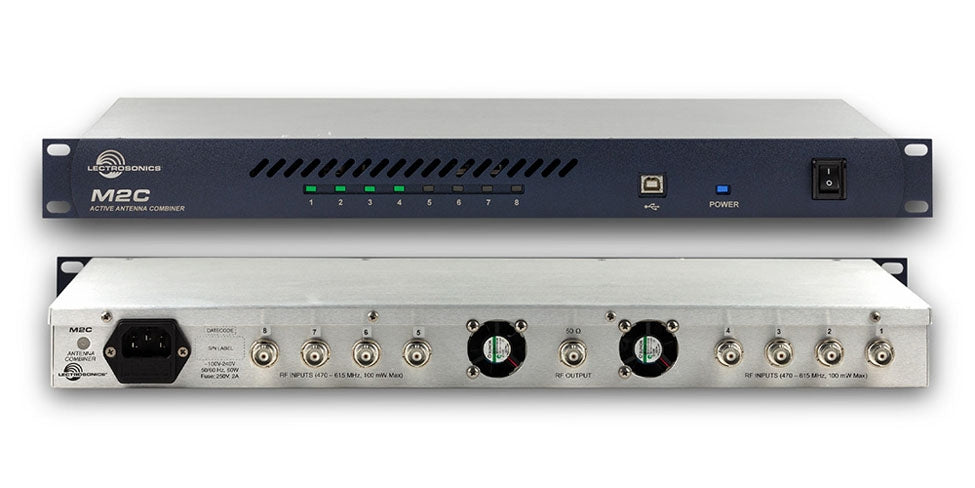

LECTROSONICS Duet M2C-L

The M2C-L active antenna combiner is designed as an ideal matching component to Lectrosonics digital transmitters. Up to eight transmitters can feed a single antenna to minimize cabling in multi-channel systems. The inputs are isolated to minimize crosstalk and IM (intermodulation) between RF channels.

The overall architecture of the design provides excel- lent performance with low power consumption and heat buildup. Front panel indicators display active status of RF inputs. A USB port on the front panel is provided for firmware updates.

FEATURES:

• combines up to eight transmitter RF output signals to feed a single antenna
• frequency range 470 to 692 MHz
• high overload components miminize intermodulation products
• up to 100mW input on each port
• efficient architecture for low power consumption
• USB port for firmware updates
• front panel LEDs indicate active channel
