- JK AUDIO CellTap 4C
Description
Capture Both Sides of the Conversation

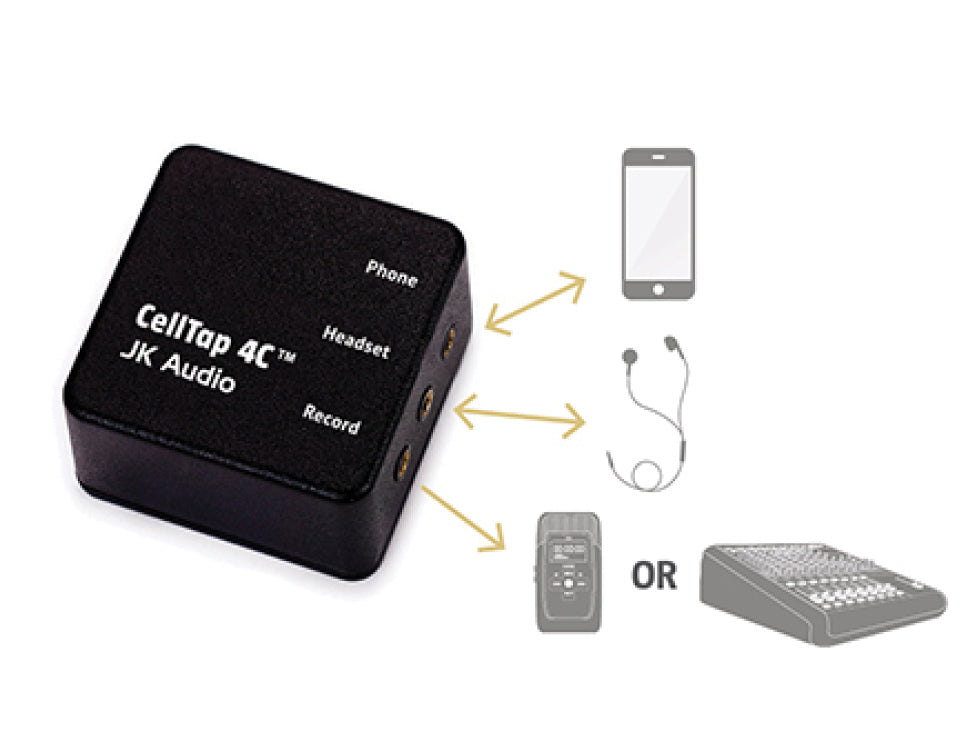

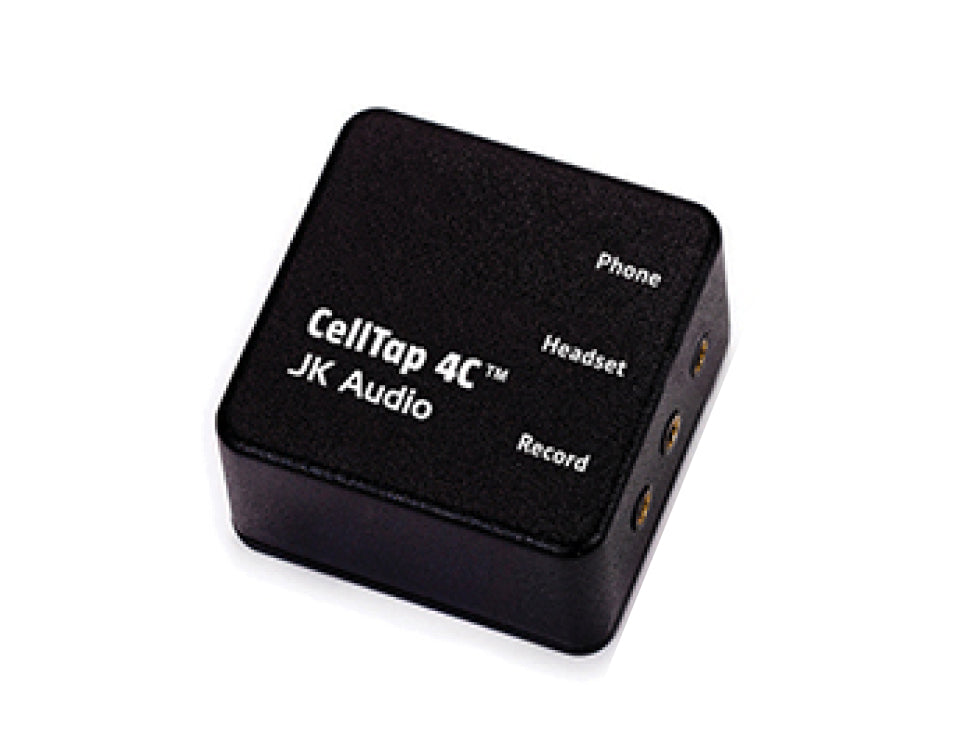

CellTap 4C™ is an interview-recording adapter that connects between the headset and cell phone, providing stereo output to a recorder or mixer. CellTap 4C™ is compatible with most smart phones, tablets, and notebooks that use the 3.5 mm 4-conductor TRRS headset jack. Simply connect CellTap 4C between your existing ear-bud headset and phone, and then connect the stereo output to a mic level input on your recorder or mixer.
Audio Quality
The transformer coupled stereo output provides the local mic on the left channel and the caller on the right channel. Local audio is a full bandwidth connection, meaning your voice will sound considerably better than the caller. Of course, audio quality is limited by the quality and placement of the microphone on the ear-bud style headset.
Wired Headset Required
CellTap 4C™ will not interfere with headset button controls on most devices. A headset is required for operation, as the phone will not recognize CellTap 4C without a headset connected.
FEATURES:
- HD Voice Compatible (7 kHz Wide-Band Speech)
- Bluetooth Wireless Technology
- 4-conductor 3.5 mm Headset Interface
- Switch Selects Between Popular TRRS Configurations
- 3.5 mm Stereo Input
- 3.5 mm Stereo Output
- 3-pin XLR Input/Output
- 1/4" Input/Output
- 3.5 mm TRRS Headset Jack
- Screwdriver Caller Level adjustment
- Passive Design (No Battery or AC Required)
- > 18 Hours on one 9-volt Alkaline Battery
- Made in America
Specifications
Record Output
- Connector: 1/8" (3.5 mm) stereo
- Impedance: 600 Ω
- Output level: 2.4 mV RMS (–50 dBu nominal)
Physical Specifications
- Dimensions: 5.1 × 5.1 × 3.3 cm
