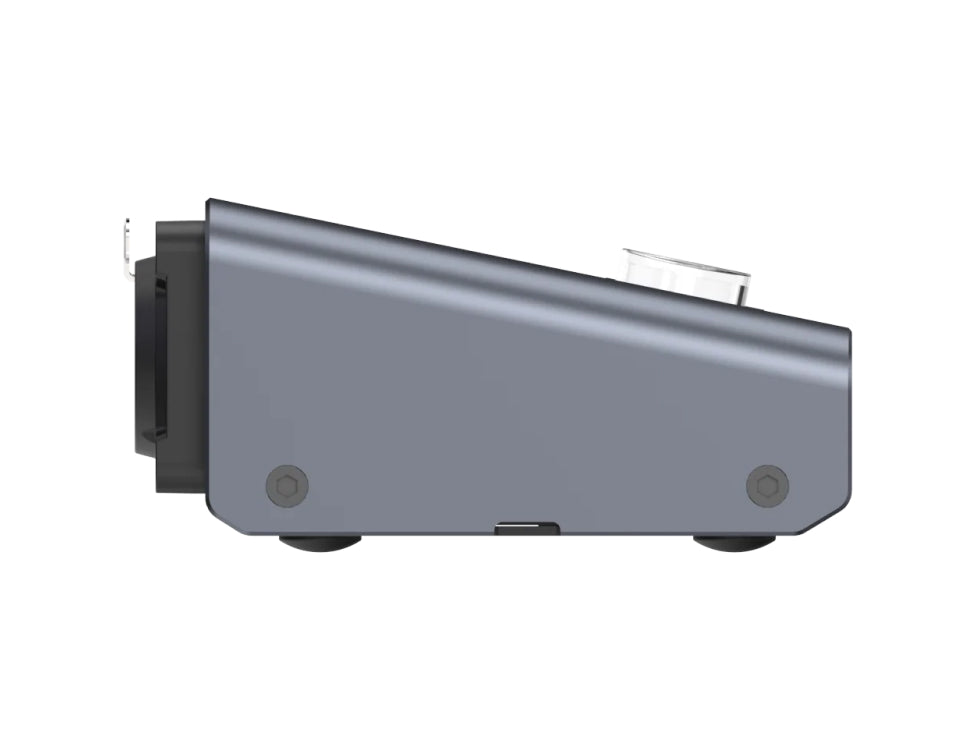

- HOLLYLAND Walkie-Talkie Converter kit 8C
Description
Hollyland Walkie-Talkie Converter-8C includes CB01 converter box, power adapter and 8-core walkie-talkie connection cable
COMPATIBILITY:
- Compatible with all devices with 4W interface
- Walkie-Talkie Converter
Specifications

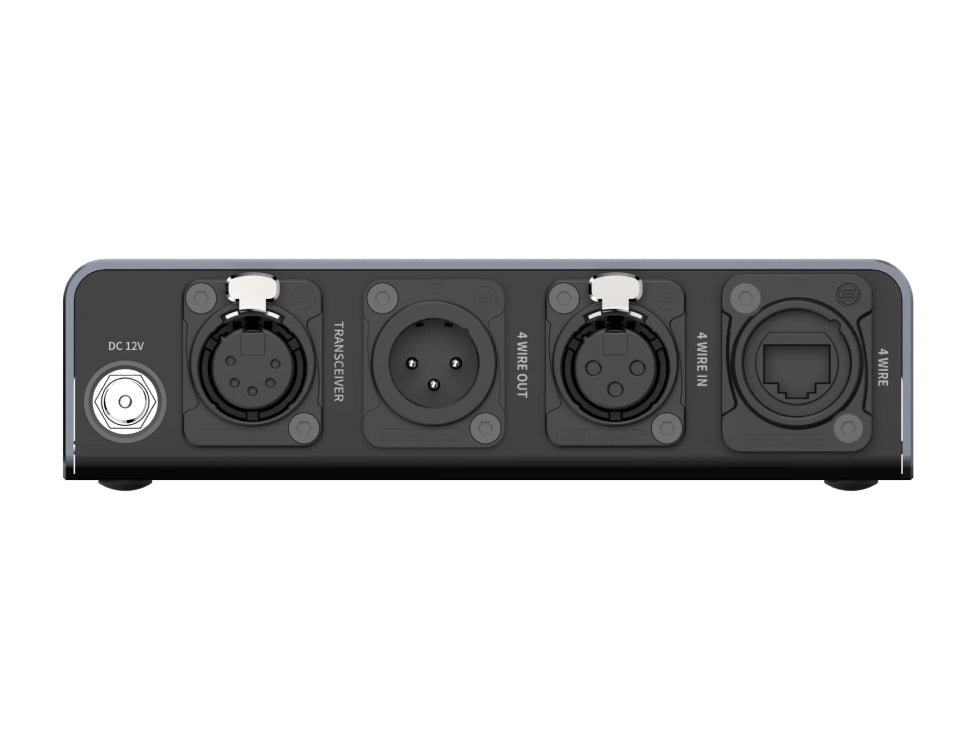

- Interface：Power interface (DC interface)、Transceiver interface (Walkie-talkie connection) 、4-wire audio OUT interface (XLR)、4–wire audio IN interface (XLR)、4-wire audio interface (RJ45)
- Power supply：DC (12V)
- Power consumption：<1W (VOX switch set to ON)
- VOX threshold：>–23dBu
- Signal-to-noise ratio：>55dB
- Frequency range：100 Hz–20 kHz
- Max input level：18dBu
- Gain from the 4-wire interface to the walkie-talkie：–40dB
- Gain from the walkie-talkie to the 4-wire interface：4dB
- Distortion：<1%
- Dimensions：(L x W x H): 144.8mm x 75.5mm x 36.5mm
- Net weight：Approx. 349.5g
- Temperature range0℃ to 45℃ (working condition)
- box size: 190 x 140 x 100 mm
- box weight: 1 kg

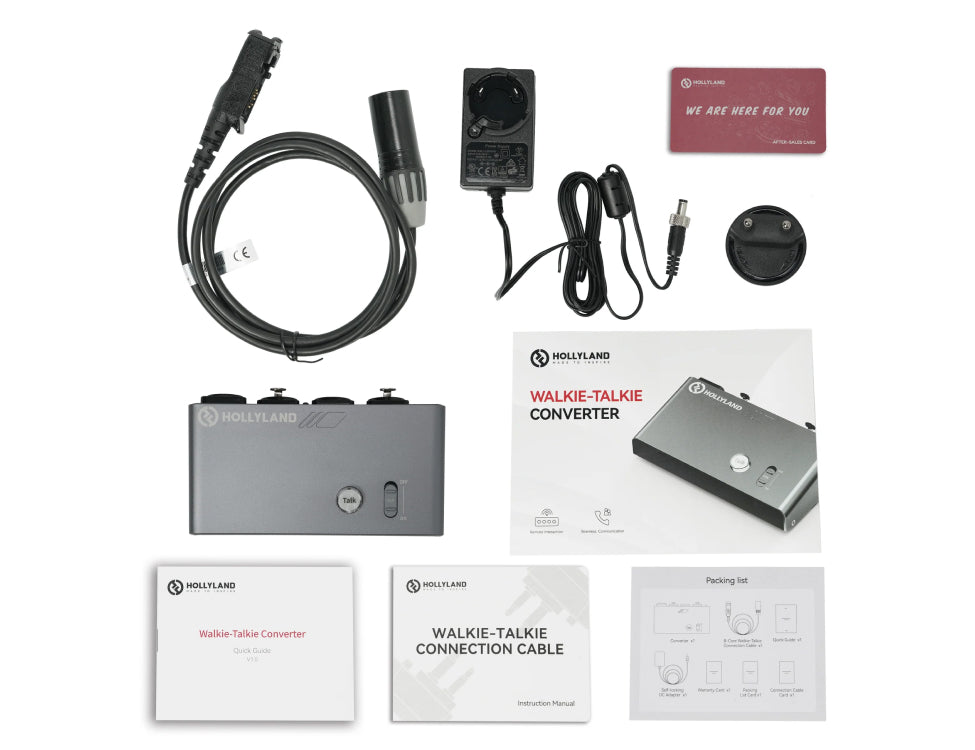

In the Box

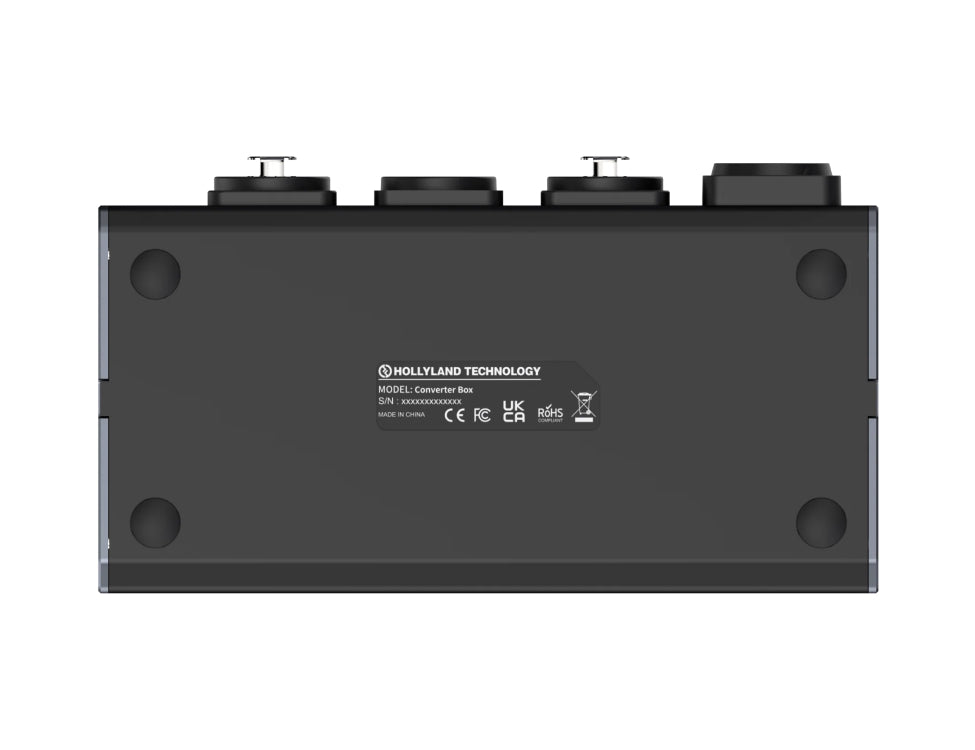

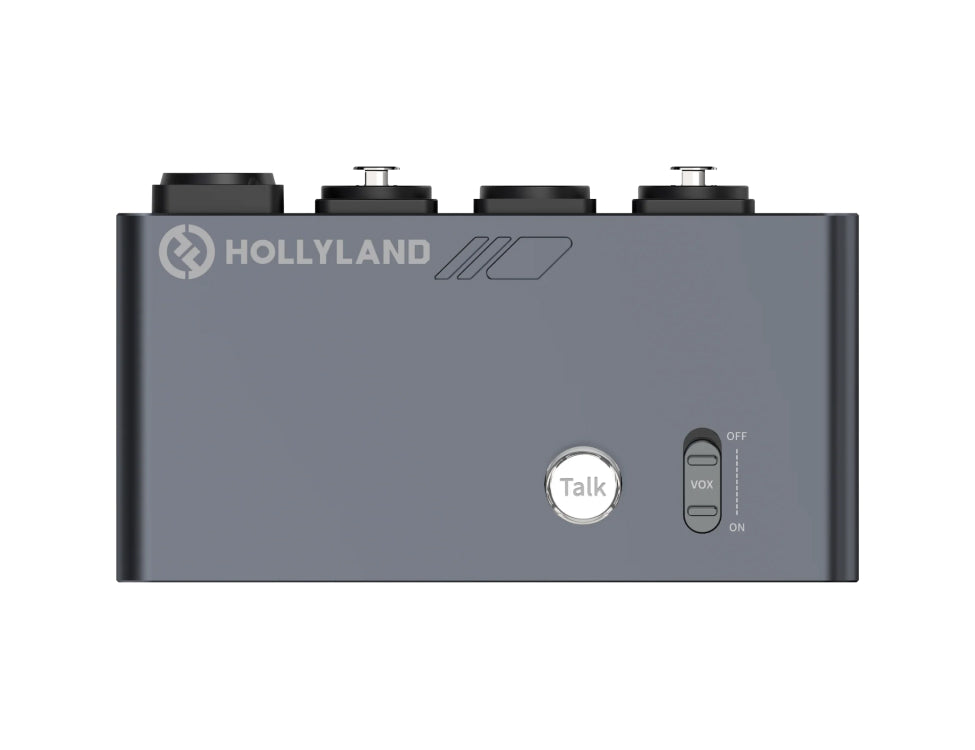

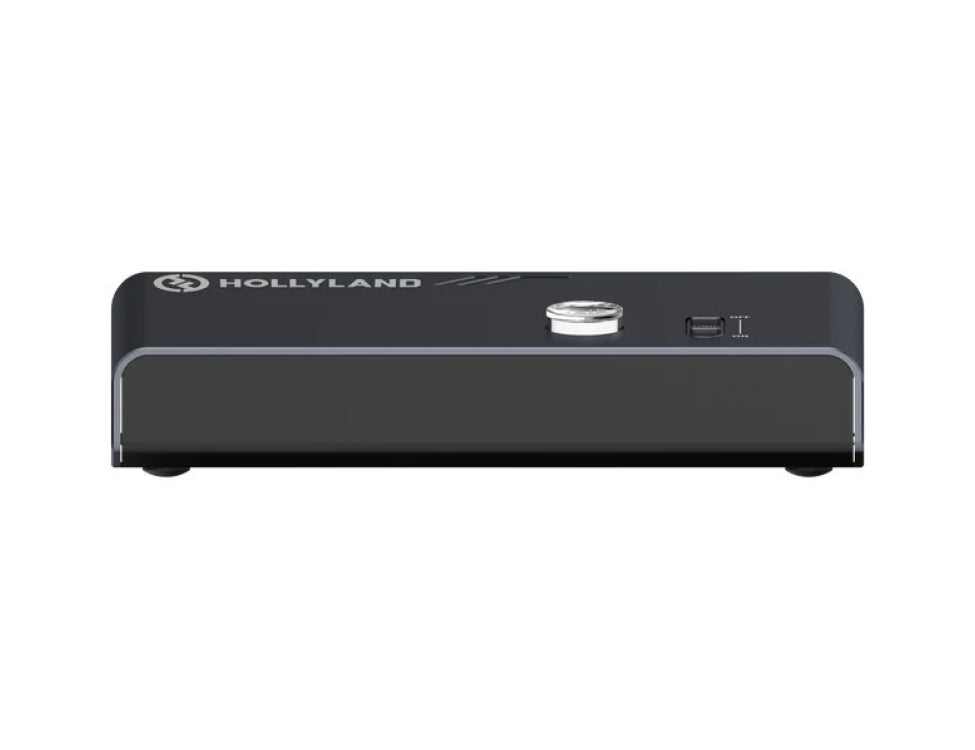

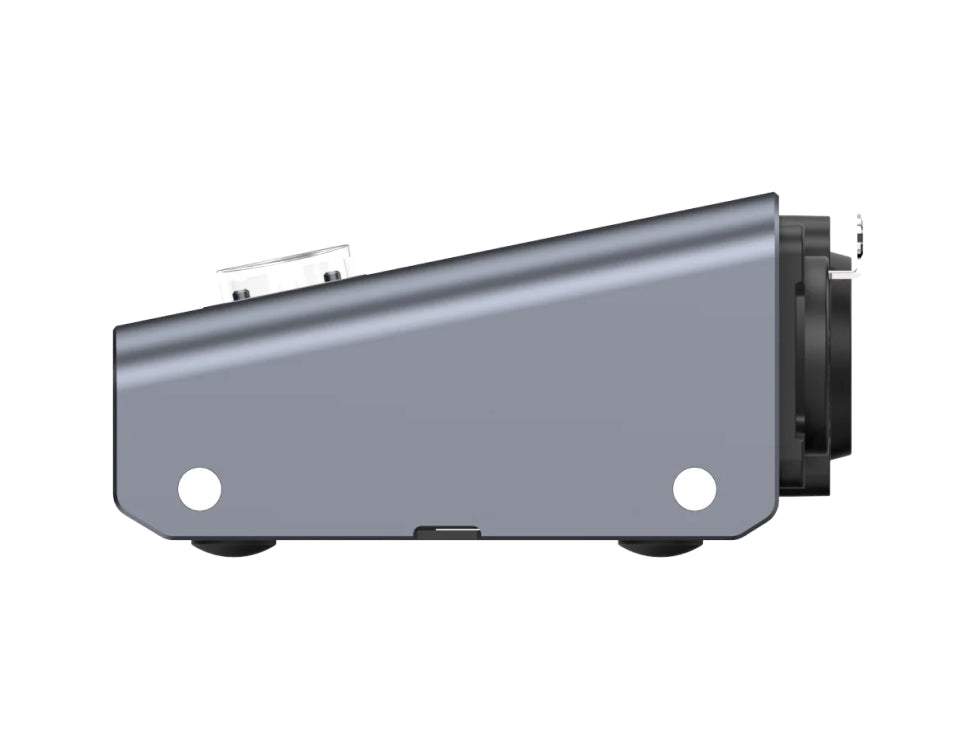

- 1x Walkie-Talkie Converter-Box

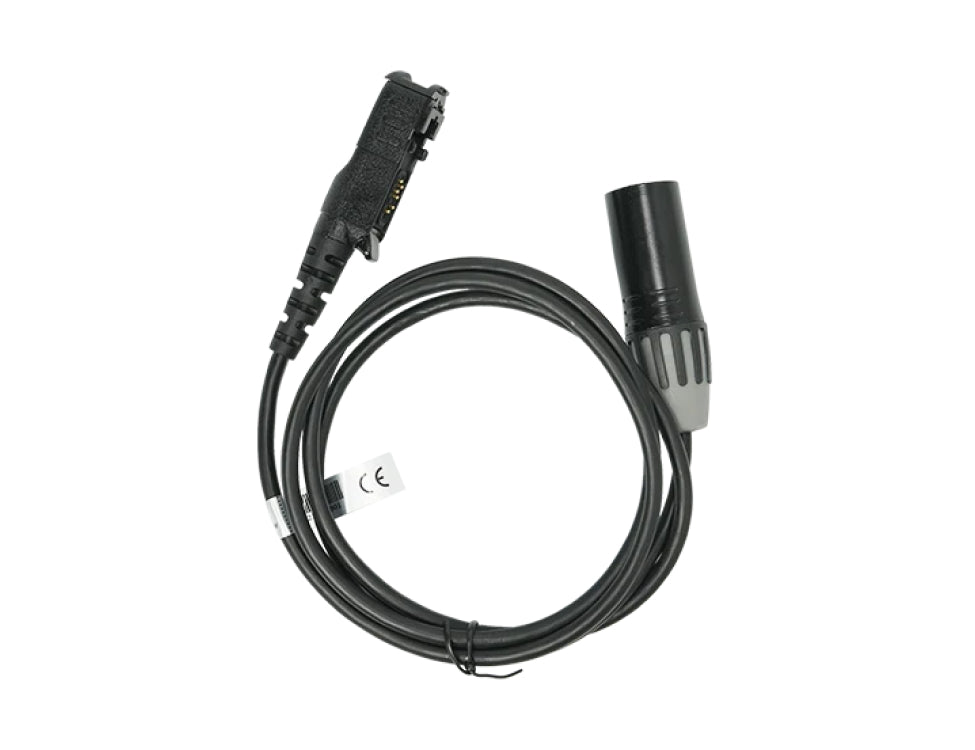

- 1x 8-Core Walkie-Talkie Connection Cable

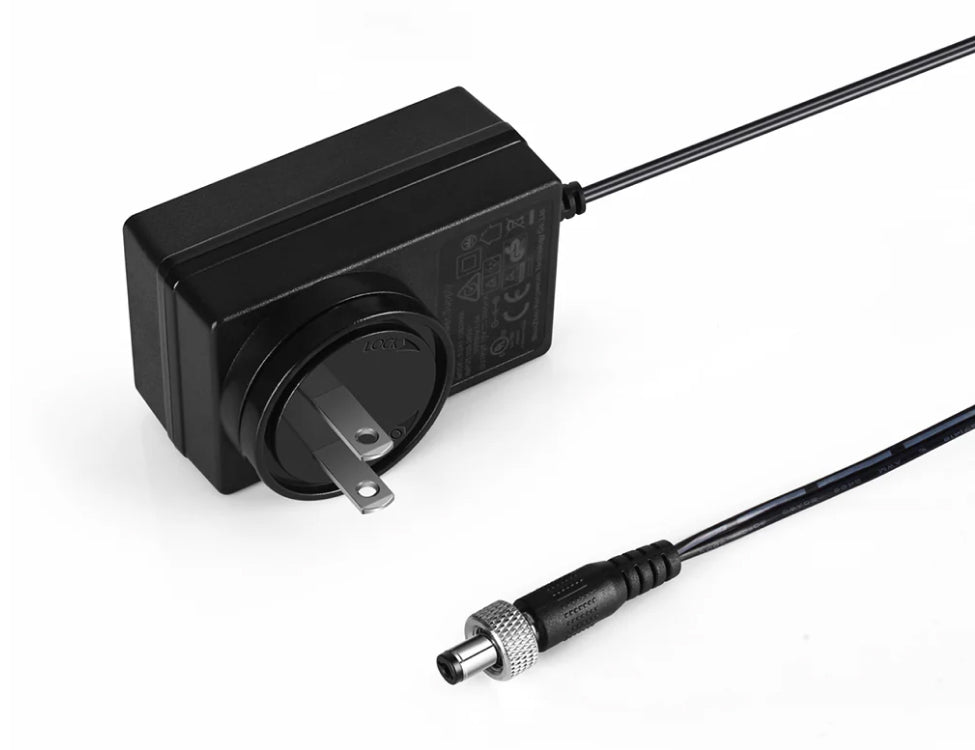

- 1x 12V/2A DC2.1 Power Adapter
- 1x User Manual
- 1x Warranty Card
- 1x Connection Cable Card
