- FOSTEX RM-3 DT
Description

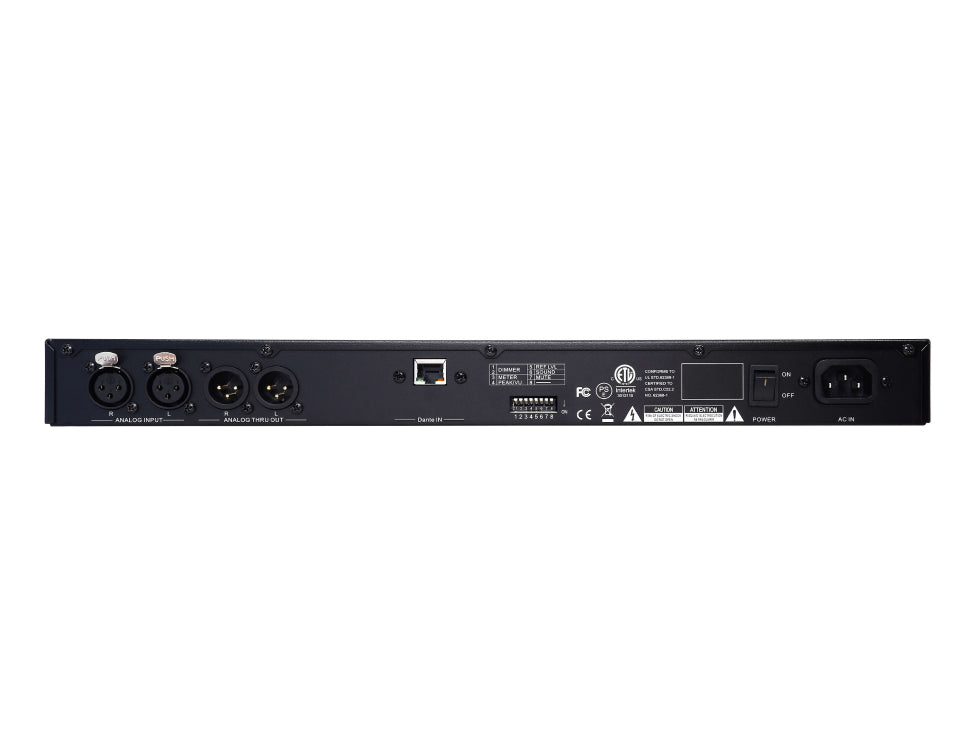

The RM-3 is a rack stereo powered monitor speaker system. Features include a THRU OUT, brightness adjustment of LED, and auto memory of input / output status etc. via DIP switch on the rear panel.
The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, mobile and stationary control rooms, theme park applications where audio monitoring is needed in a compact environment.
The RM-3DT offers the uncompressed digital audio signal transfer developed by Audinate.
FEATURES:
- accepts balanced analog input and Dante input
- power saving design by the digital amplifier and switching power supply
- 26-dot LED meter indicates either of VU, VU+PEAK, VU+PEAK HOLD, PEAK+PEAK HOLD
- the display brightness can be adjusted in four levels
- outputs either or both of any 2-channel digital signals extracted from Dante & reg, network signals
- supported sampling frequencies: 44.1/48/88.2/96 kHz
Specifications
SPEAKER SECTION
- Unit: 110 x 40mm rectangle cone type
- Impedance: 8 ohm
- Sound Pressure Level: 84dB / W (1m)
- Frequency response: 200 Hz 20k Hz
AMPLIFIER SECTION
- Rated output: 2x 10W
- Residual Noise: -50dBV or less (DIN AUDIO)
- Distortion (T.H.D.): less than 0.1%
INPUTS
- Connector: Dante Input (RJ45), XLR3 (balanced)
- Analog Input Level: +4/0 dBu (balanced)
- Analog Input Impedance: 10k ohm or more
- THROUGH OUT
- Connector: XLR3 (balanced)
PHONES
- Connector: 6.35mm stereo phone
- Input Impedance: 16 ohm or higher
- Maximum Output Level: 20mW + 20mW (32 ohm, 1kHz)
- LEVEL METER
- Display: 26 dot LED x 2
- Reference Level: XLR: +4/0 dBu (analogue)
GENERAL
- Dimensions: 482 (H) x 44 (W) x 284 (D) mm (including protruding parts)
- Weight: approx. 3.5 kgs
- Power Requirement: AC 100V to 240V 50/60Hz
- Power Consumption: 10 W (0.5W or less in standby mode)
