- DPA 4061 CORE+ stereo kit
Description

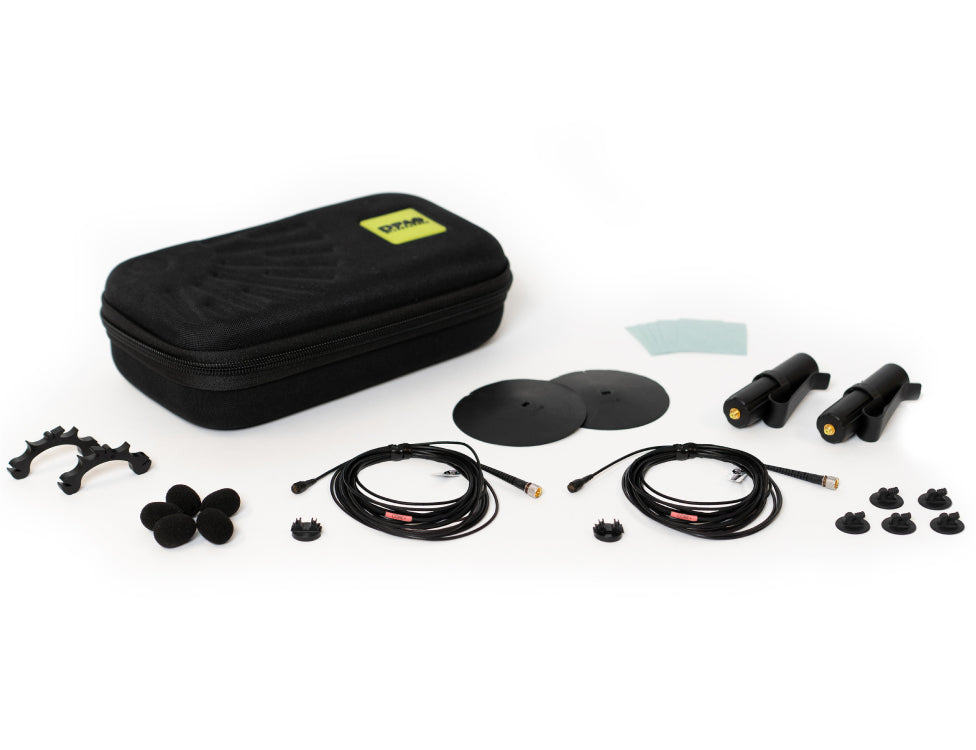

COMPLETE KIT WITH MICS AND ACCESSORIES
Used with the vast array of complimentary accessories, DPA miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.
4060 Instrument Microphone Kit

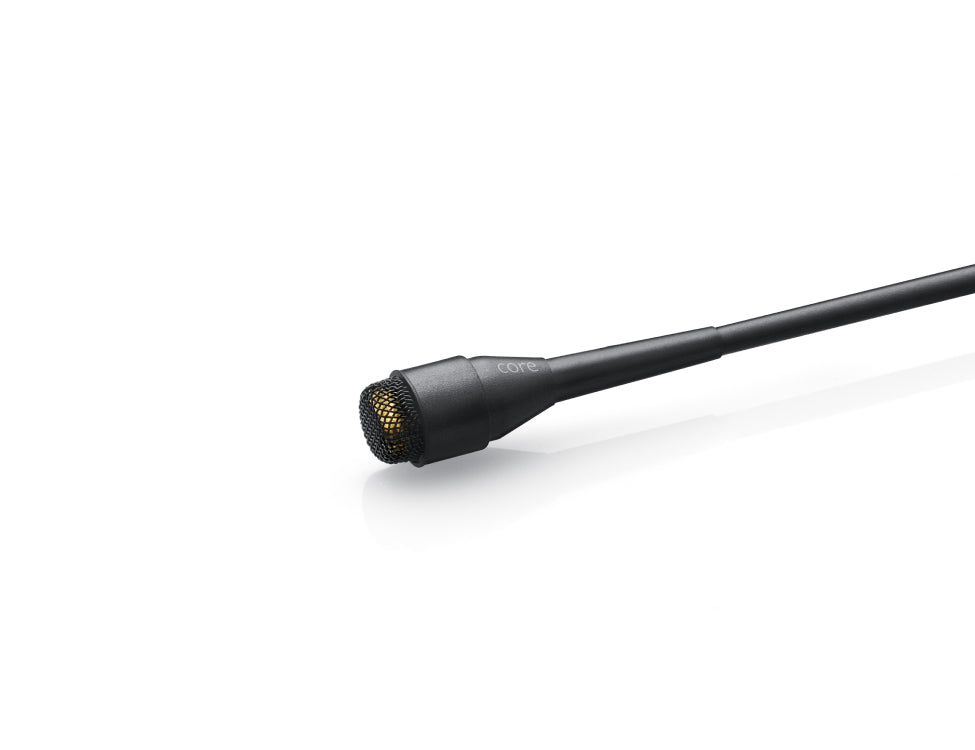

This kit contains a 4060 Miniature Omnidirectional Microphone, Normal SPL with DPA reinforced cable relief and a XLR Adapter DAD6001-BC and a selection of DPA unique mounting accessories. The kit is designed to use as a close-miking solution for a wide variety of musical instruments.
This mic offers a very clean, detailed and natural sound quality. This leaves it up to the user to decide on the correct placement to achieve the desired timbre.
Specifications
- directional pattern: omnidirectional
- principle of operation: pressure
- cartridge type: pre-polarized condenser
- frequency range: 20Hz-20kHz
- frequency range, +/-2dB: soft boost grid (20Hz-20kHz), 3 dB soft boost at 8-20kHz, high boost grid (20Hz-20kHz), 10 dB boost at 12 kHz
- sensitivity, nominal, +/-3dB at 1 kHz: 6 mV/Pa, -44 dB re. 1 V/Pa
- equivalent noise level, A-weighted: typ. 26 dB(A) re. 20 Pa (max. 28 dB(A))
- equivalent noise level, ITU-R BS.468-4: typ. 38 dB (max. 40 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): typ. 68 dB(A)
- total harmonic distortion (THD)-Legacy: <1% THD up to 123dB SPL peak, <1% THD up to 120dB SPL RMS sine
- total harmonic distortion (THD)-CORE: <1% THD up to 137dB SPL peak
- dynamic range-Legacy: typ. 97dB
- dynamic range-CORE: typ. 111 dB
- max. SPL, peak before clipping: 144 dB
- output impedance: 30-40 Ohm
- cable drive capability: up to 300m
- power supply (for full performance): for wireless systems, min. 5V-max. 50V through DPA adapter. With DAD9001/DAD6024/DAD4099, 48V phantom power +/-4 V for full performance
- connector: MicroLock
- weight: 7.5 g incl. cable and MicroLock connector
- microphone diameter: 5.4 mm
- microphone length: 12.7 mm
- cable length: 1.8 m
- polarity: positively increasing sound pressure produces positive going voltage on MicroLock pin
- temperature range: -40°C to 45°C
- relative humidity (RH): up to 90%
