Description
DPA 3511ES is a complete stereo kit with two compact d:dicate™ 4011ES Cardioid Microphones, with active side cables. The mics are carefully factory-matched within ±1 dB on frequency response and sensitivity in the microphone’s entire frequency bandwidth.
The kit includes mics, case, holder, suspension, gooseneck mounts and windscreens.

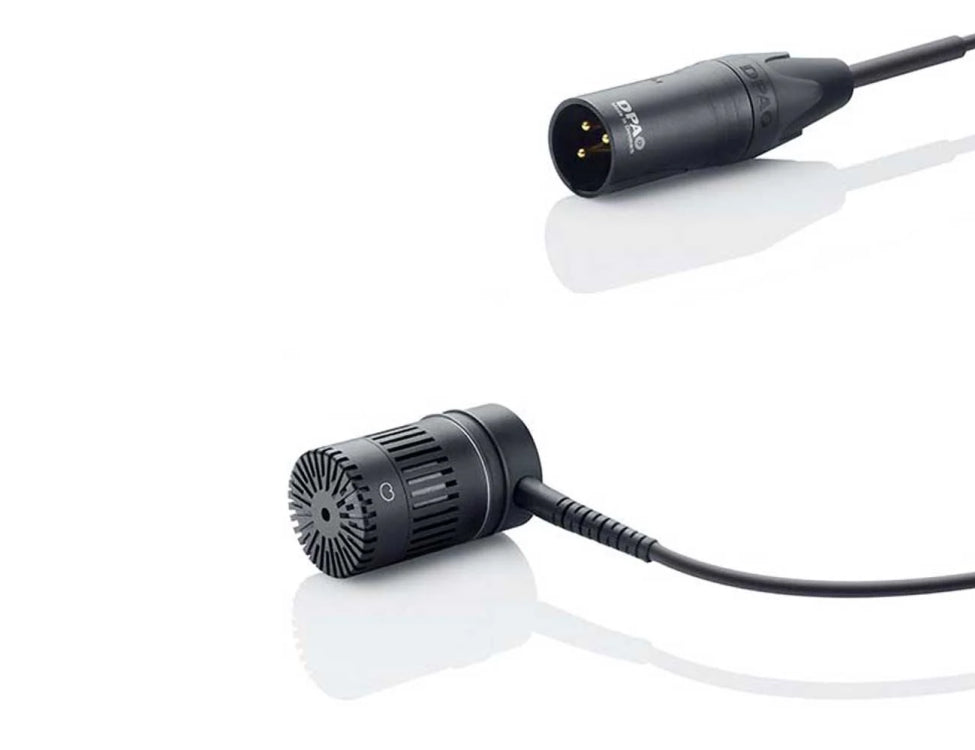

Ideal for unobtrusive spot miking, such as hanging or table use, the d:dicate™ 4011ES Cardioid Microphone, Active Cable is an ultra-compact cardioid microphone from the modular d:dicate™ Microphones Series. The mic has a length of only 3.5 cm and a low-key appearance.
Specifications
- Directional characteristics: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ± 2 dB, at 30 cm: 40 Hz - 20 kHz
- Sensitivity, nominal +/- 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
- Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
- Dynamic range: Typ. 121 dB
- Max. SPL, peak before clipping: 144 dB
- Output impedance: 100 Ω
- Minimum load impedance: 2 kΩ
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing
- Common Mode Rejection Ratio (CMRR): > 40 dB
- Power supply: 48 V Phantom power (± 4 V)
- Current consumption: 3.5 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Microphone diameter: 19 mm
- Capsule diameter: 19 mm
- Microphone length: 35 mm
- Output voltage, RMS: 2.2 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40 °C to 45 °C
- Relative Humidity (RH): Up to 90%
- Matching tolerance (frequency response and sensitivity): ± 1 dB
- Phase deviation for kit: < 10°
In the Box
- 2x 4011ES (MMP-ES + MMC4011)

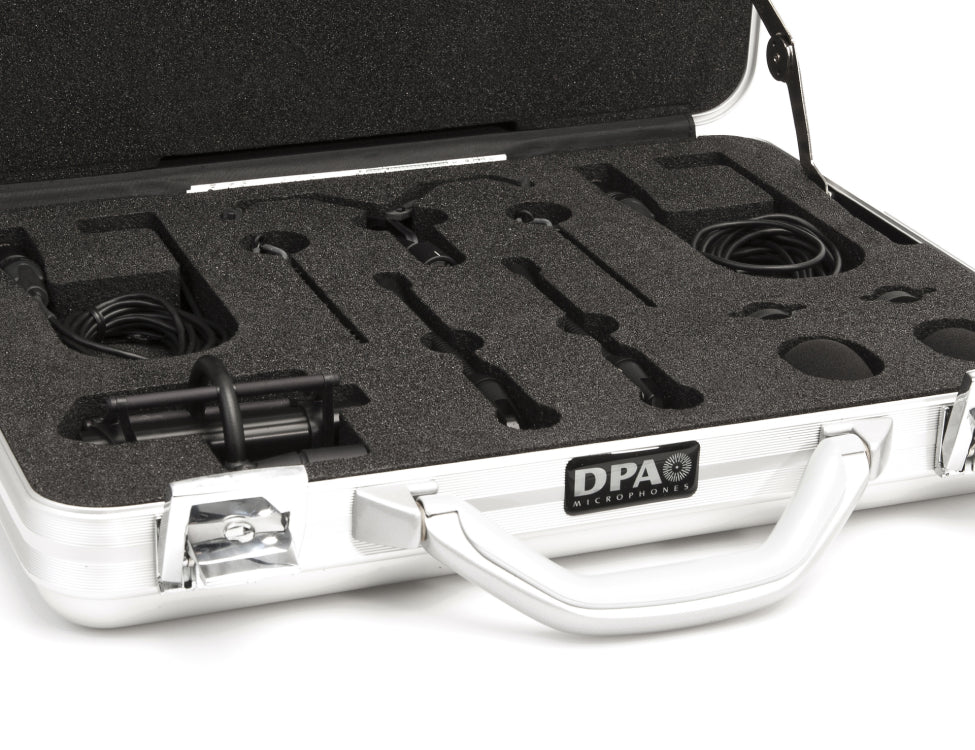

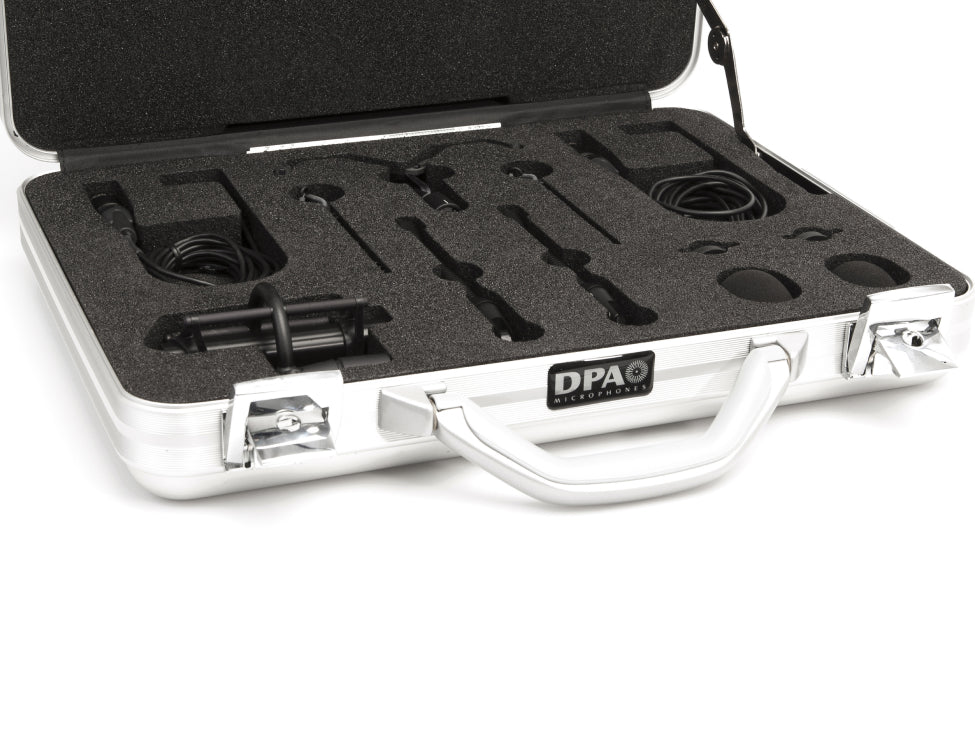

- case

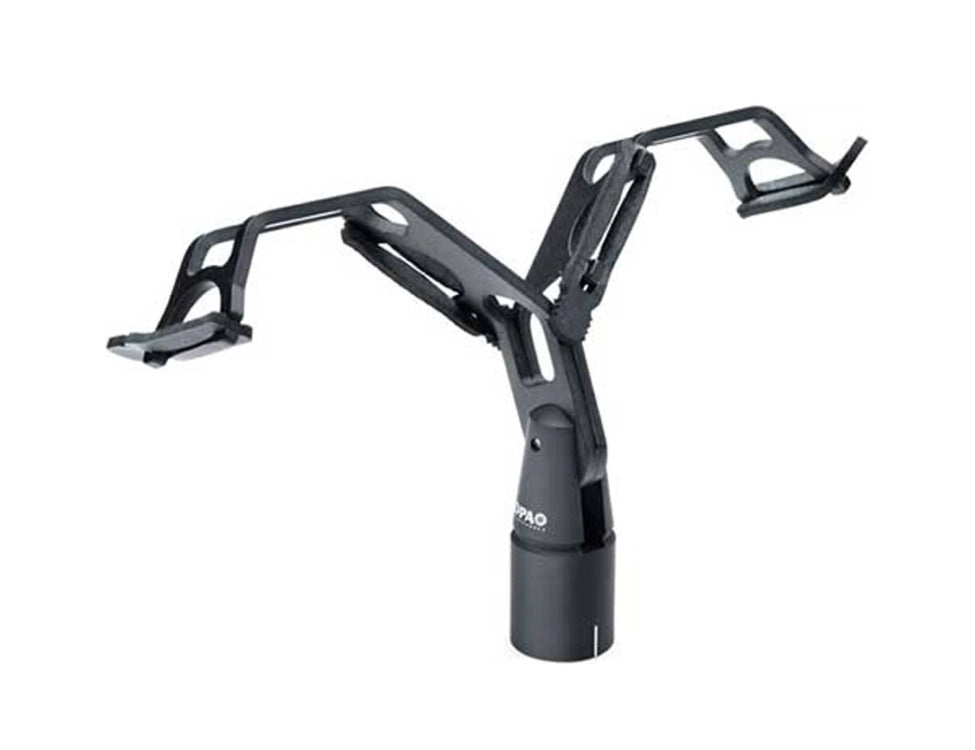

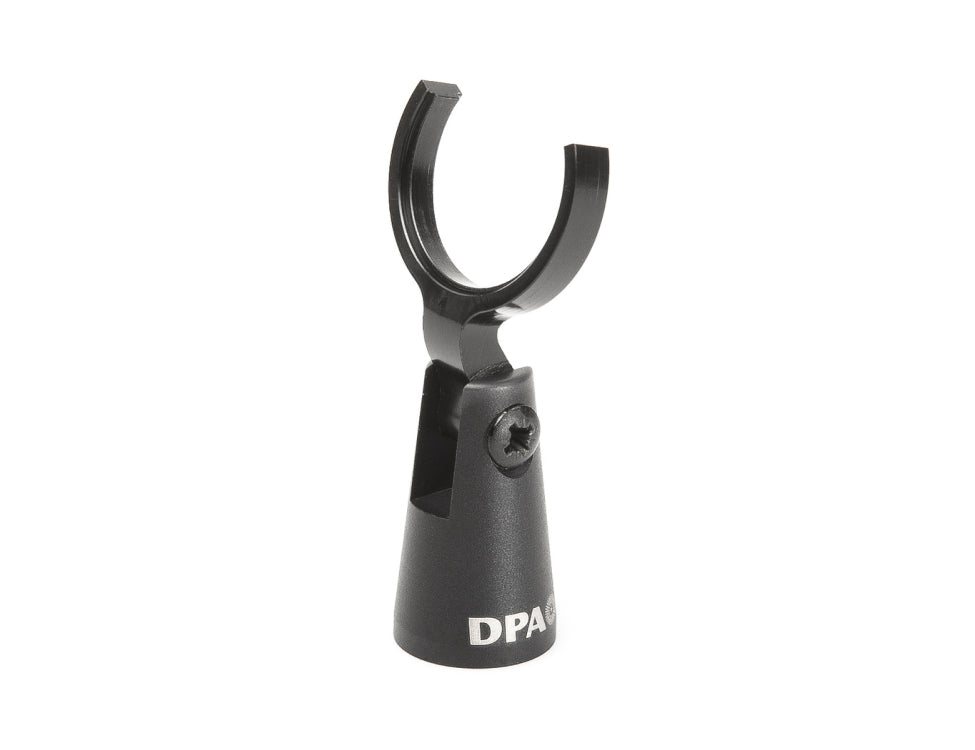

- holder
- suspension

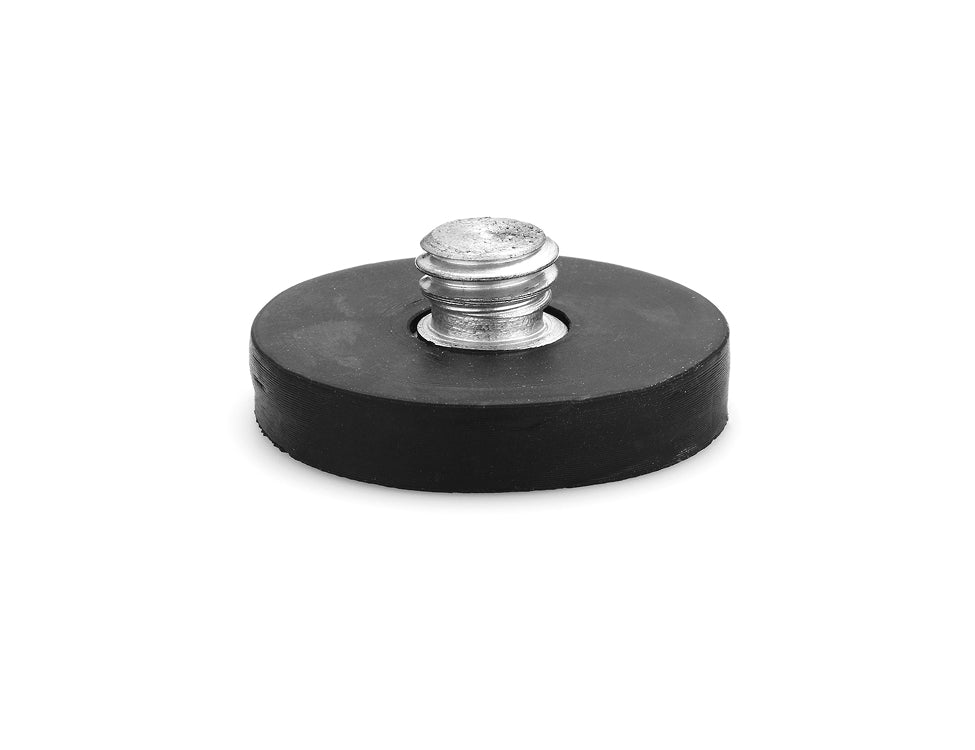

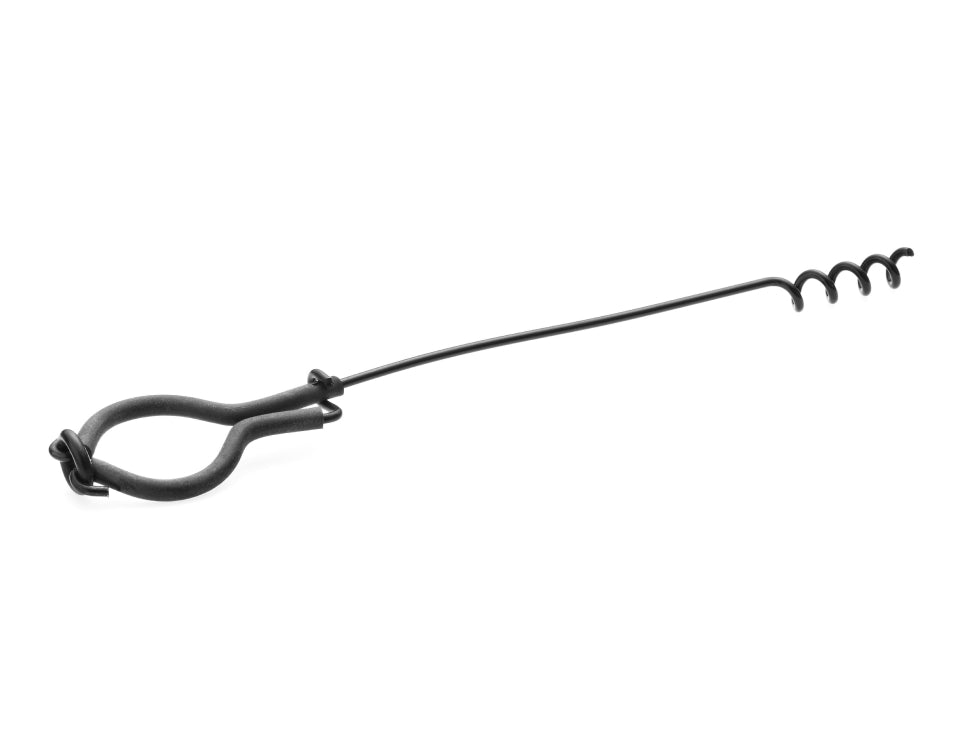

- gooseneck mounts
- windscreens
