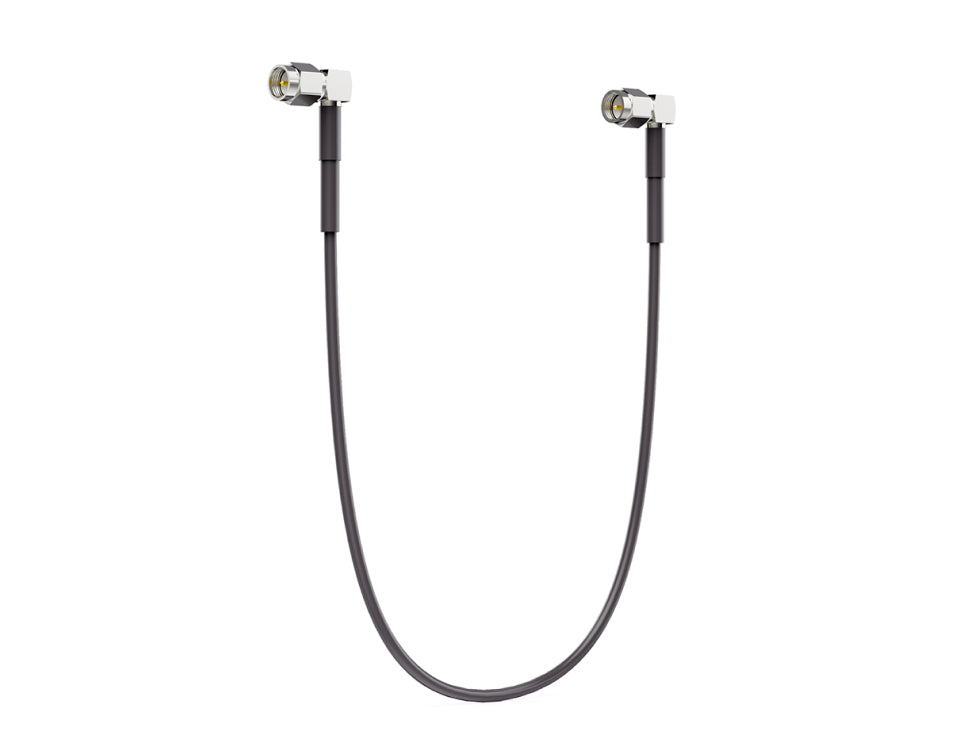

- DEITY antenna cable, SMA 90° / SMA 90°, 45cm
Description
- coaxial antenna cable, SMA 90° / SMA 90°
- 50 Ohm, RG174 cable
- length: 45cm
Specifications
- connector: SMA male right angle to SMA male right angle
- length: 45 cm
- frequency range: 0-3GHz
- impedance: 50 Ohm
- voltage standing Wave Ratio (VSWR): = 1.2 (Max)
- conduction impedance: 0.5 Ohm
- insulation resistance: = 5000 MOhm
- maximum power: 10 W
- operating voltage: 335 V (Max, RMS)
- mechanical durability: 500 cycles
- withstand voltage: 1000 Vrms (at sea level)
- operating temperature: -35°C to +8°C
- radio guide: RG174
