AUDIO WIRELESS LPDA-A-DT-V2

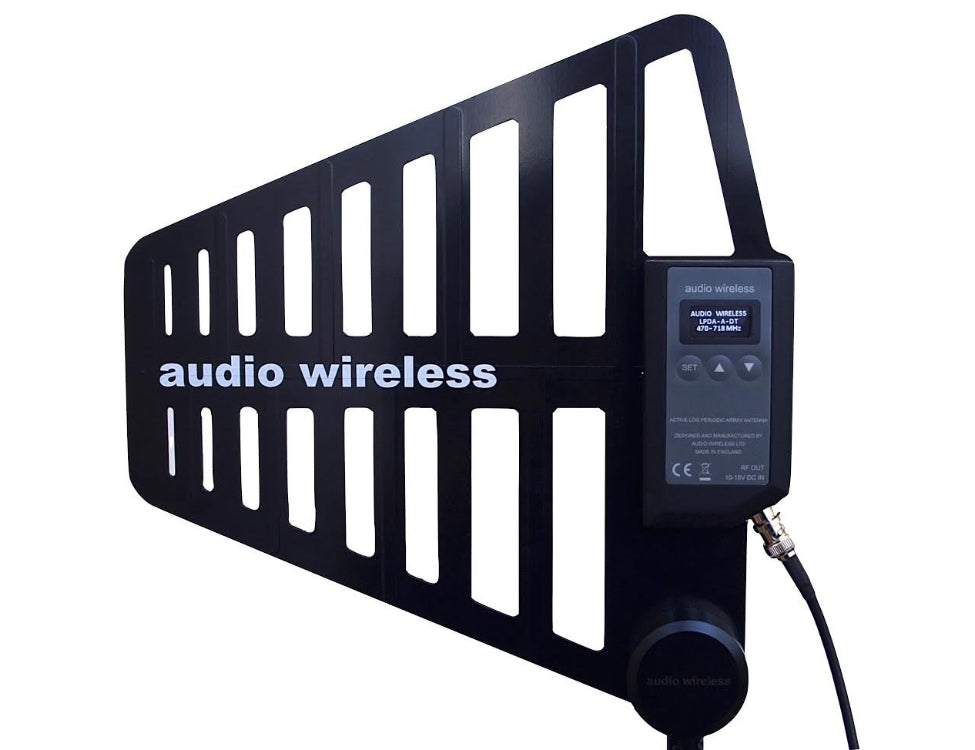

The LPDA-A-DT V2 (log periodic dipole array - active - digitally tuned) antenna is designed to operate over the 470-710 MHz tuning range and it consists of two components: the LPDA-P passive antenna section with in-built band-pass filtering and an active antenna booster.

The LPDA-A-DT V2 may be used in active or passive mode to suit individual applications:

• Narrow-Band Digitally Tuned (DT) mode: Tunable in the 470-702 MHz range with a nominal 24 MHz bandwidth, adjustable in 8 MHz increments. A user-adjustable gain of 20dB is available. An optional version with 48 MHz bandwidth, tuneable in 12 MHz steps, extends the operating frequency range to 470-710 MHz.
• Fixed Bandwidth - WB Mode: Operates within the 470-702 MHz (or 470-710 MHz) range and provides user-adjustable gain of 14dB.

• When DC power is absent, the LPDA-A-DT V2 functions as a High Gain Passive Antenna for receive or transmit operations, with integrated filtering in the 470-710 MHz range and passive gain of 5dB.

In the digitally tuned mode (DT) the band-pass filter is tuned to 24 MHz (or 48 MHz) frequency window to reject all outer frequencies providing an excellent protection to the receiving system, the digitally tuned band pass filter is user tunable in 8 MHz (or 12 MHz) steps via the OLED menu from 470-702 MHz (or 470-710 MHz).

In the semi broadband mode (WB), a very low loss Band-pass filter is employed with fixed bandwidth between 470-702 MHz (or 470-710 MHz). The booster section: the input design uses a digitally adjustable RF-Attenuator before the RF Amplifier against RF overload and similarly the booster gain adjust is used after the RF amplifier to compensate long antenna extension cable losses, both are user adjustable. The booster section employs a very high dynamic range low noise RF amplifier offering a linear gain within the tuning range.

The LPDA-A-DT V2's unique design offers flexibility as well as additional front-end protection against interfering dirty RF, in DT-Mode the booster offers 20dB user adjustable gain to compensate long antenna extension cable losses hence increased distance between the transmitter and the receivers, LPDA-A-DT V2 finds its application in film making, documentaries, fixed installations as in studios, theatres. Compatible with any UHF wireless receiving systems (digital or analogue) providing a directional coverage pattern.

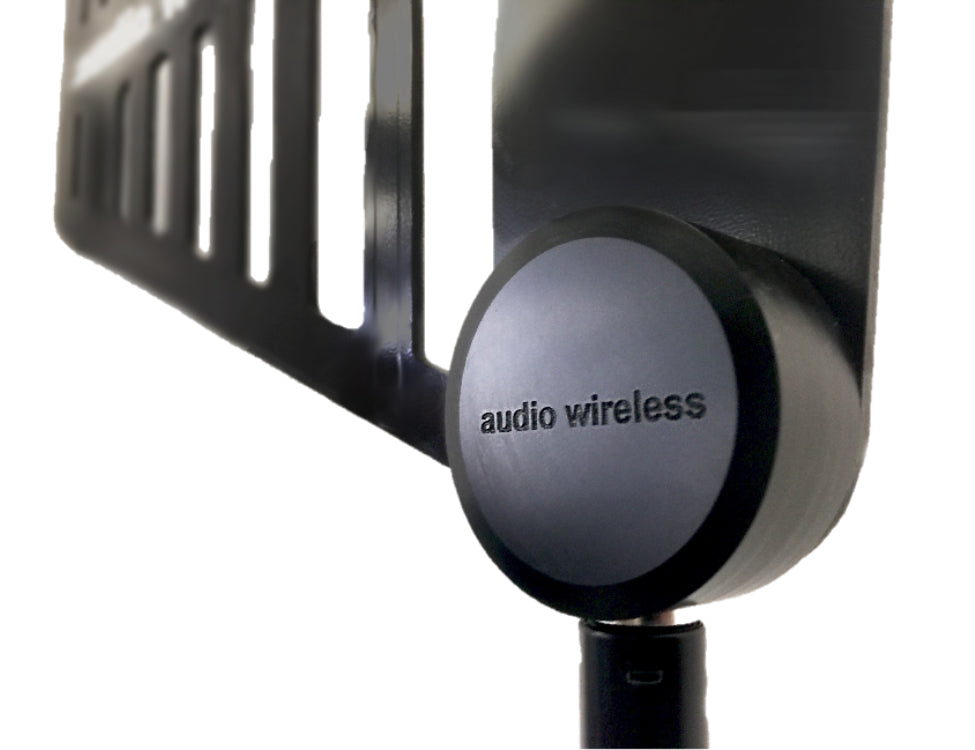

The antennae are constructed using advanced multi-layer PCB designs technique with copper-clad epoxy fiberglass to withstand heavy duty use in harsh environments, providing long life and consistent performance under difficult operating conditions. The booster box is a custom-design machined aluminum, black anodized with water resistant O-ring mounting. Mounting is made easy with integrated thread that directly mounts on to a tripod or with the supplied adaptor it can be mount directly on to a microphone stand. Powering is through coaxial cable power source of 10 up to 18Vdc.

FEATURES:

• digitally tuned filtering in DT mode
• semi-broadband filtering in WB mode no dc passive mode with in-built band-pass filtering
• very high dynamic range RF amplifier
• tuning range 470-702 MHz or 470-710 MHz
• user adjustable tuning in 8 MHz or 12 MHz steps
• tuning window 24 MHz or 48 MHz
• independently user adjustable input attenuator and booster gain
• intuitive OLED display menu
• powered through coax cable
• integrated mount adaptor
• CNC machined custom design
