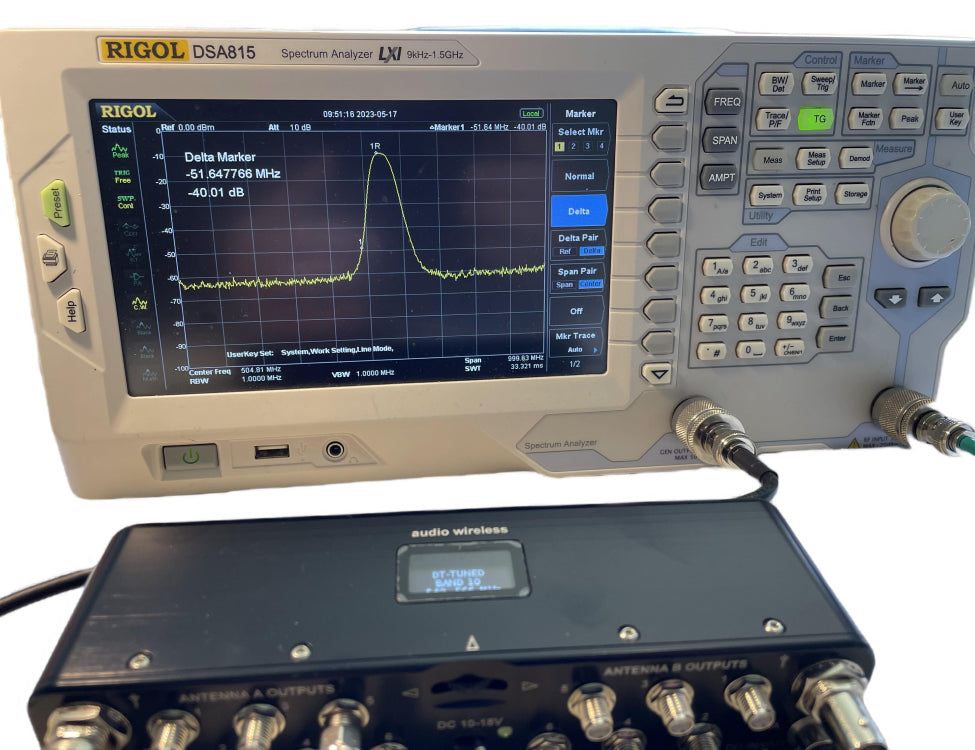

AUDIO WIRELESS DADM226-DT-MKII

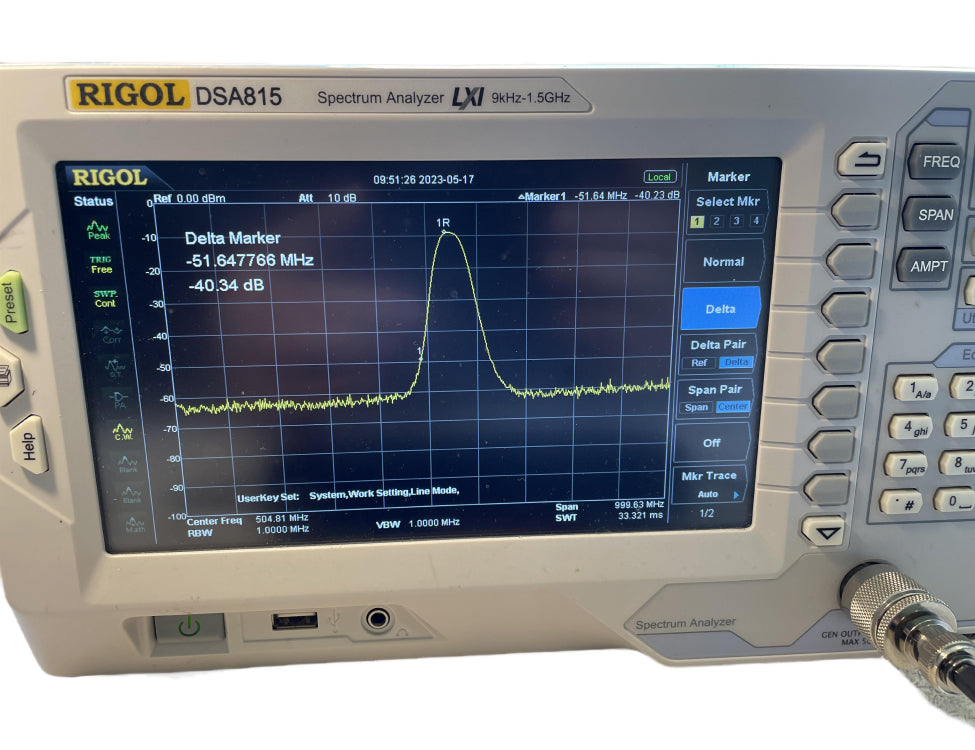

The DADM226-DT-MK2 is an active antenna distribution system with user-selectable narrow-bandwidth band-pass filtering. It eliminates multiple receiver antennas and provides a tidy solution for sound bags, carts, and trolleys with improved RF performance. The DADM226-DT-MK2 offers custom tuned "Narrow-Band" RF filtering for crowded spectrum and provides utmost protection against interfering signals maintaining robust RF integrity. The DADM226-DT-MK2 has an extremely high input signal handling capacity with extremely low noise figure and offers an outstanding inter-modulation performance when compared to other low power devices available.

The DADM-226-MKII covers the frequency range of 470-702 MHz that can be digitally tuned to 24 MHz wide blocks in user selectable 8 MHz steps, with adjustable gain between +10dB to -10dB, user adjustable in 1dB steps.

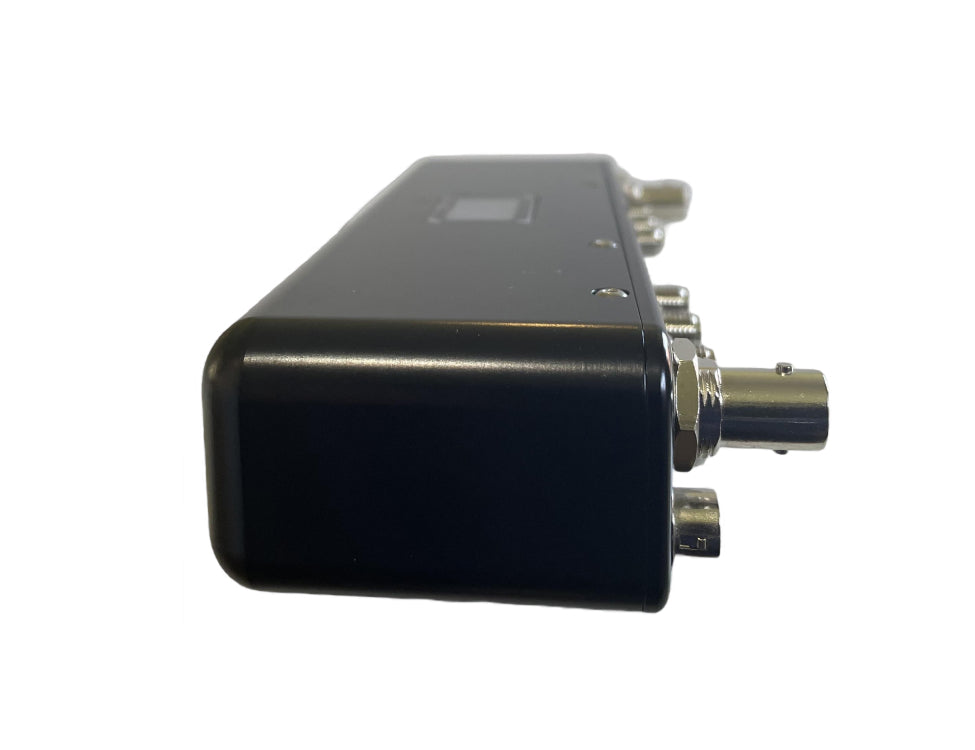

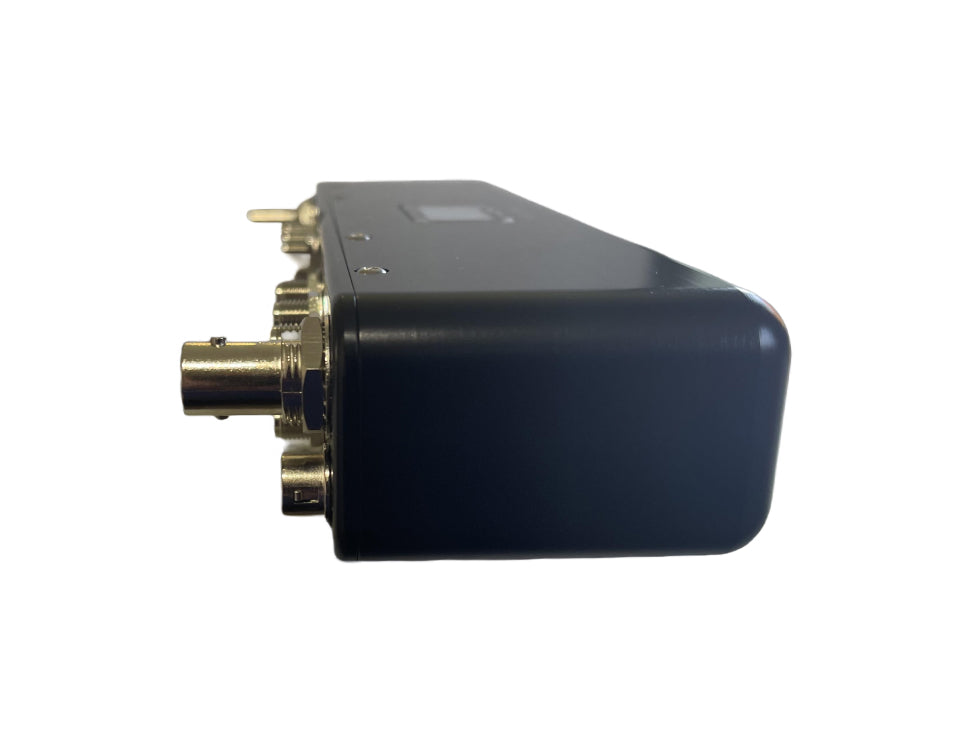

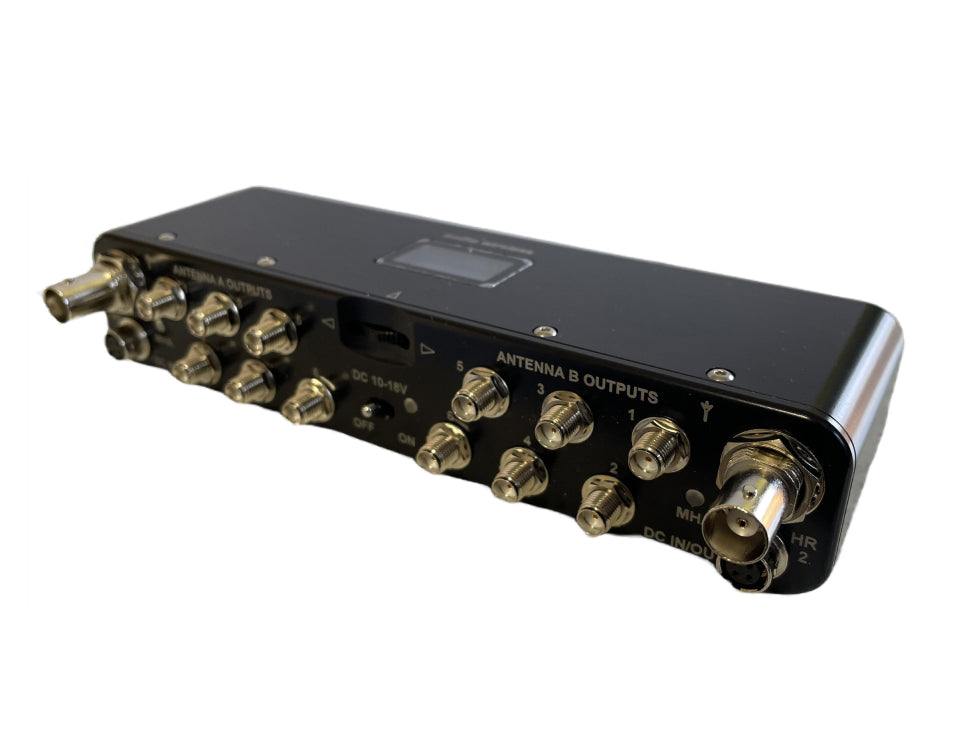

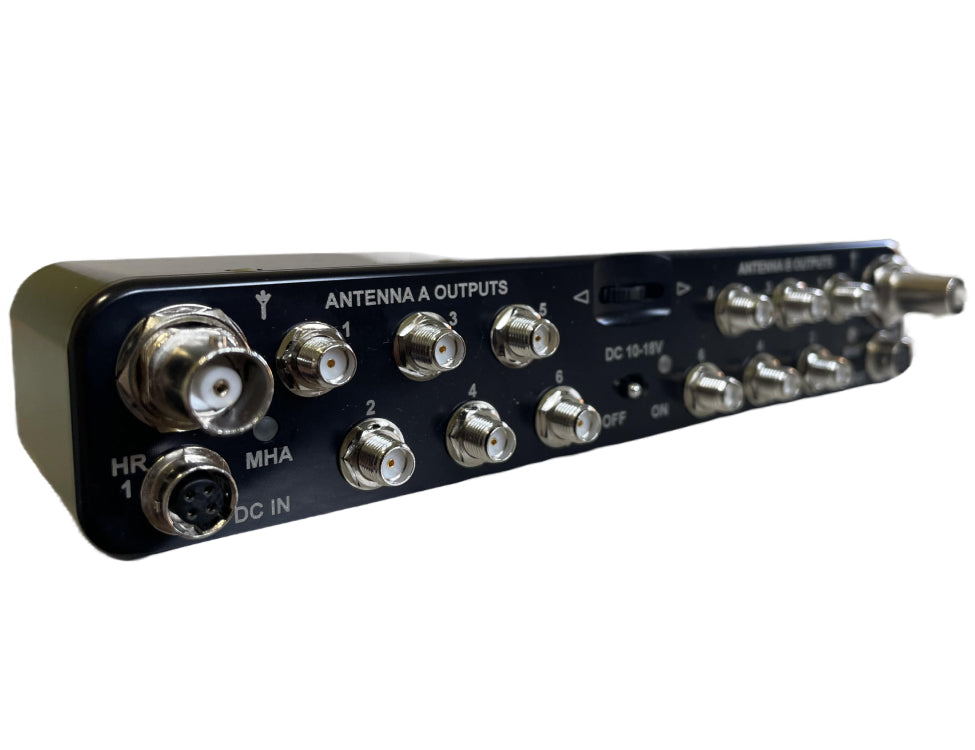

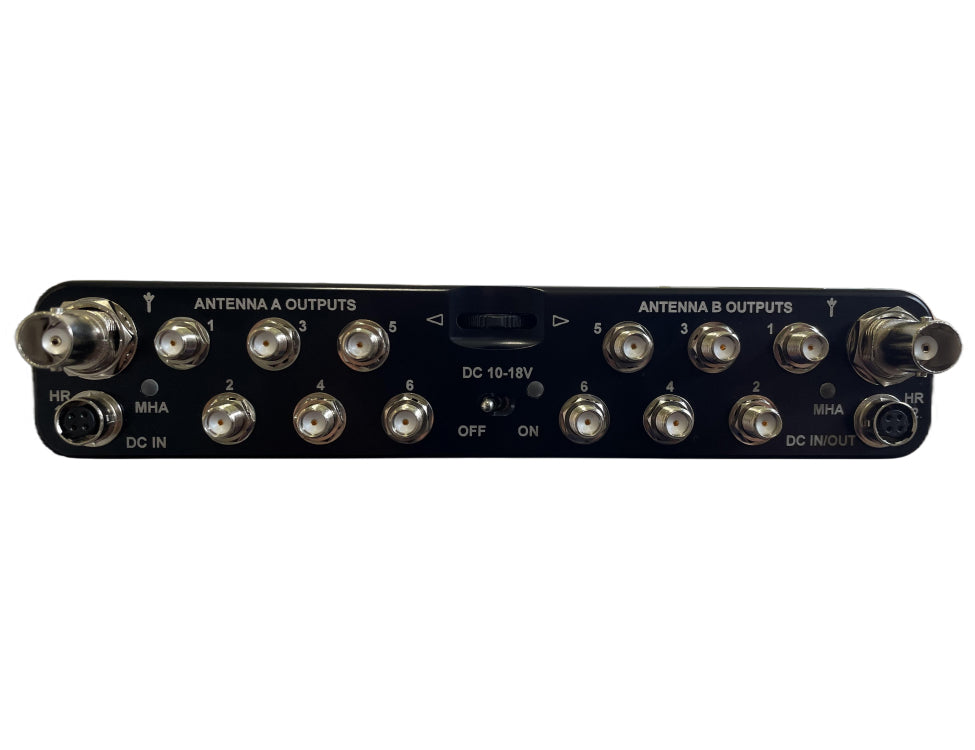

There are two industry standard BNC connectors for antenna inputs and 2x 6 SMA connectors for feeding the diversity receivers. In applications requiring remote antenna powering, the DADM offers switchable active antenna powering.

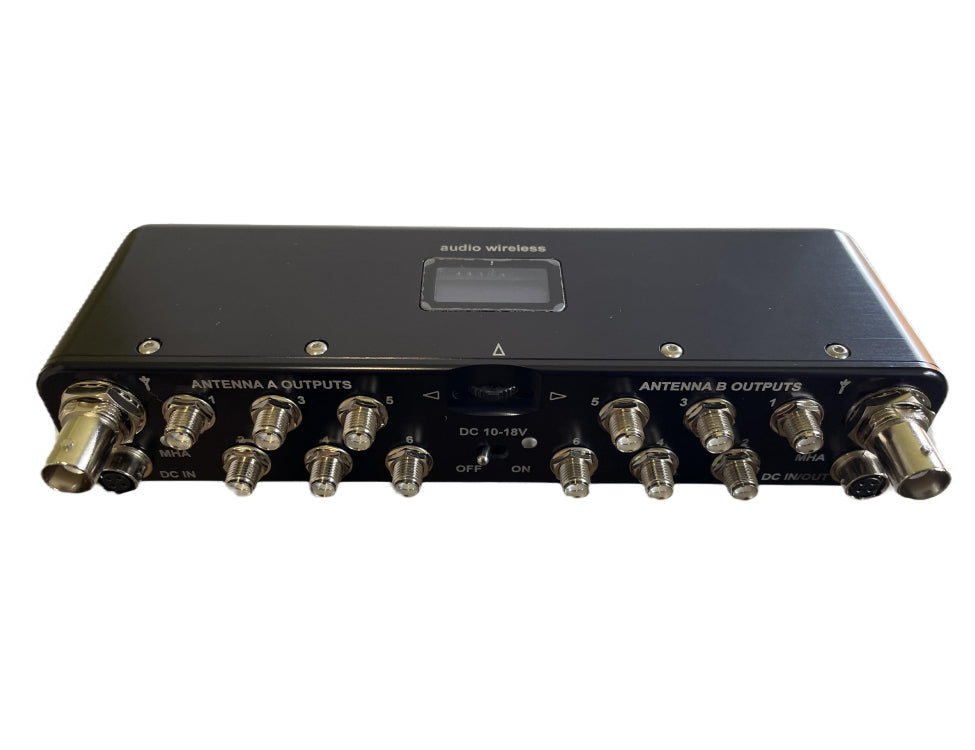

DC powering is through standard 4-pin Hirose type connector (HR1), an additional Hirose DC connector (HR2) can be user configurable as DC IN or DC OUT through the OLED menu. A green LED indicates power-on status of the system box, the OLED continuously displays the DC input voltage.

Audio Wireless Diversity Combiner/Distribution systems are now the first choice among freelance sound engineers, hiring companies as well as major broadcasters for all wireless microphone applications.
