Description

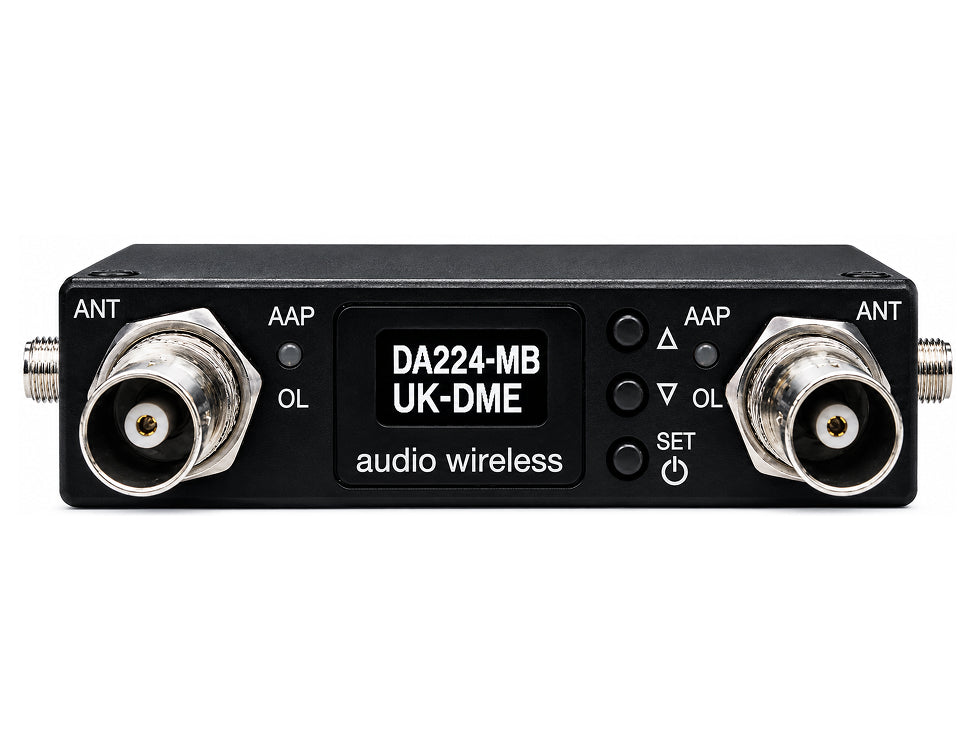

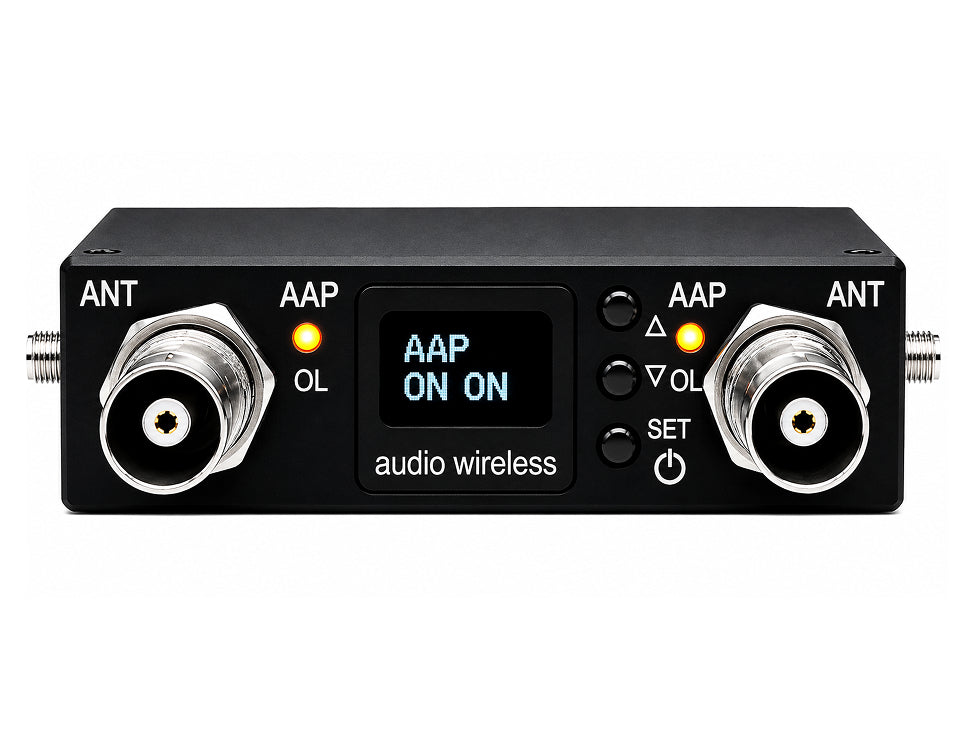

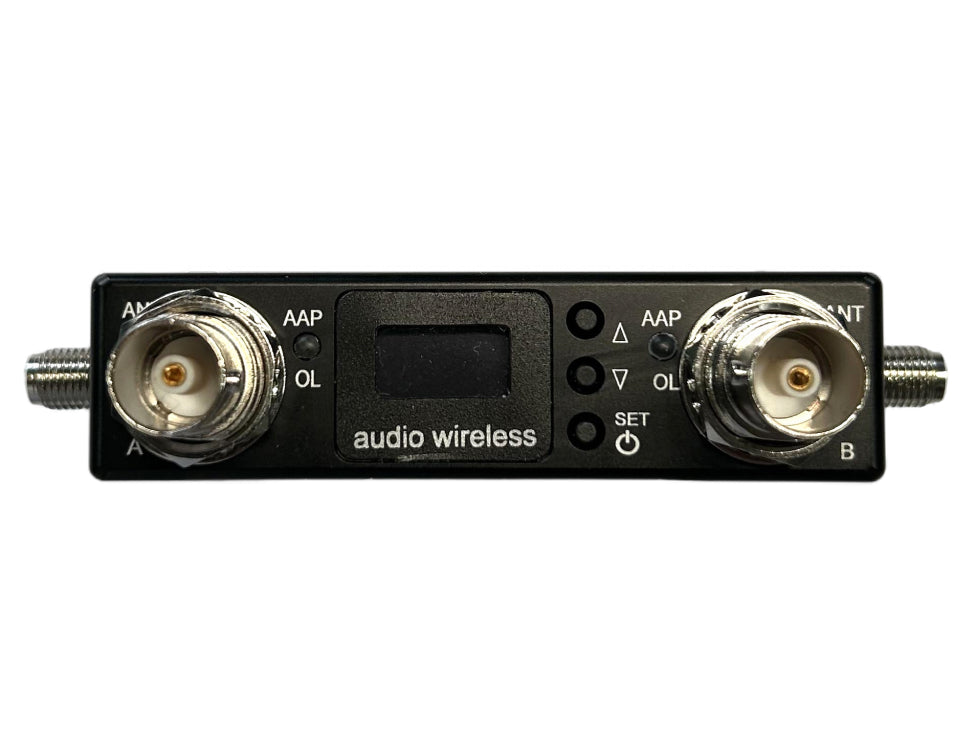

The Audio Wireless DA224-MB is a compact, digitally tuned active true-diversity antenna distribution system designed for portable sound-bag, location sound, broadcast and professional wireless microphone applications.

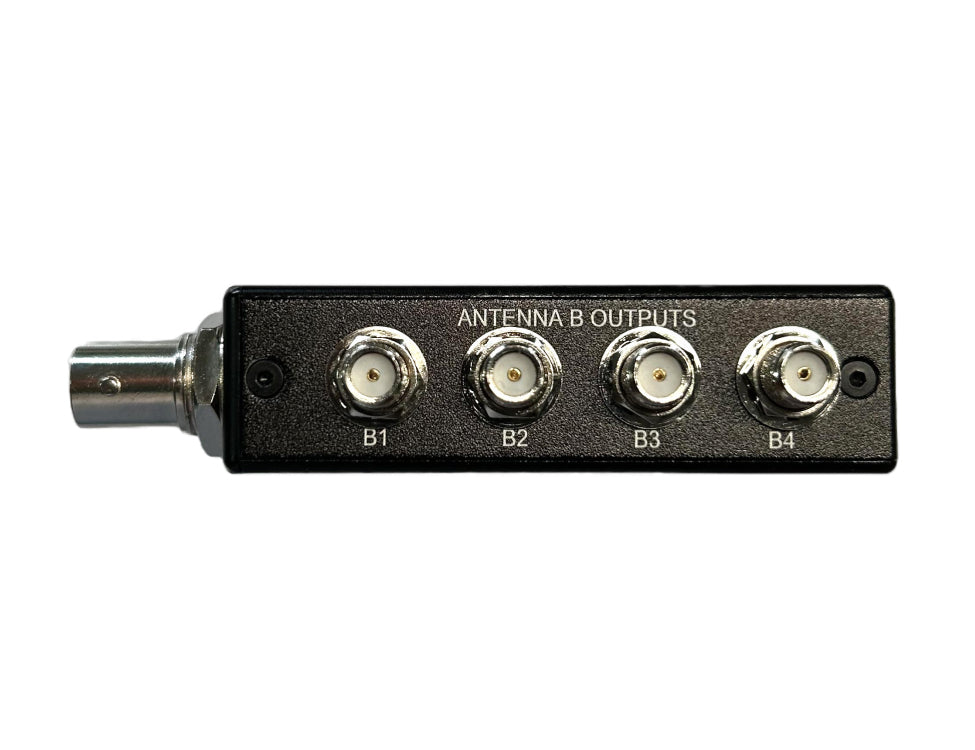

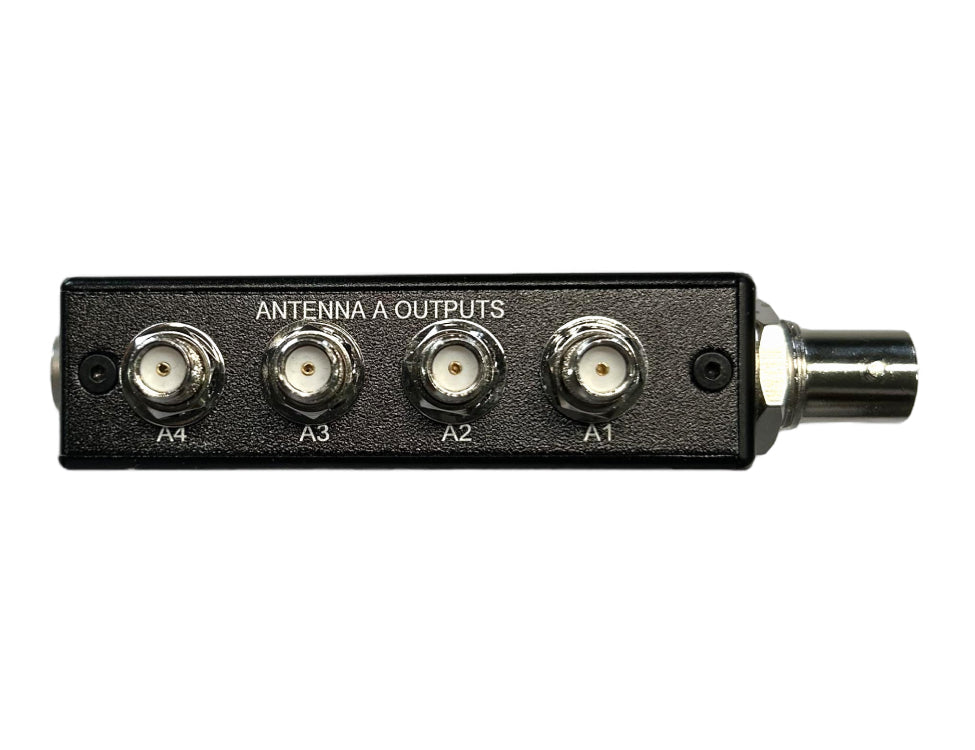

True-diversity distribution: Two independent 50-ohm BNC antenna inputs, ANT A and ANT B, are distributed to four matched diversity output pairs. Antenna A feeds outputs A1-A4 and Antenna B feeds outputs B1-B4, allowing up to four diversity receivers to share one pair of antennas while maintaining separate A and B RF paths.
Digitally tuned filtering: A key feature of the DA224-MB is its user-selectable digitally tuned band-pass filtering. 28 pre-programmed filter selections are provided. Bands 1-24 are common to the three models; Bands 25-28 vary between GLOBAL, UK/DME and JAPAN versions.
Why band-pass filtering is used: Selecting a suitable band-pass filter reduces unwanted out-of-band RF energy presented to connected receivers and can improve operation in congested RF environments.
KEY FEATURES:
- User-selectable Multi-Band Digitally Tuned Band-Pass Filtered Design: The system offers flexibility with a choice of pre-programmed bands tailored for different applications and geographic locations.

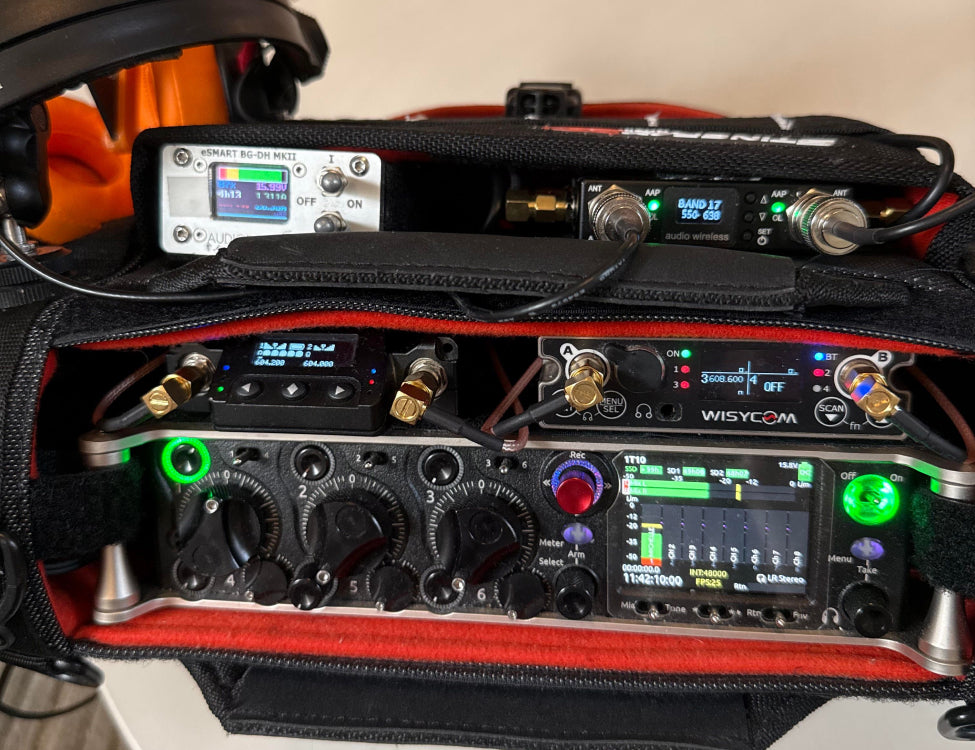

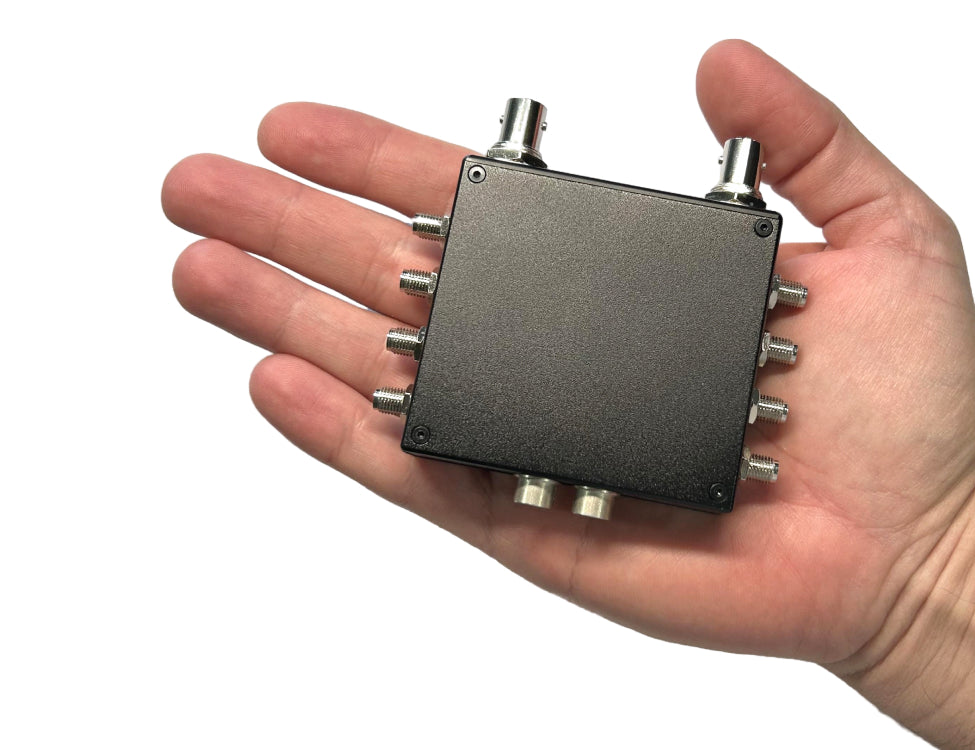

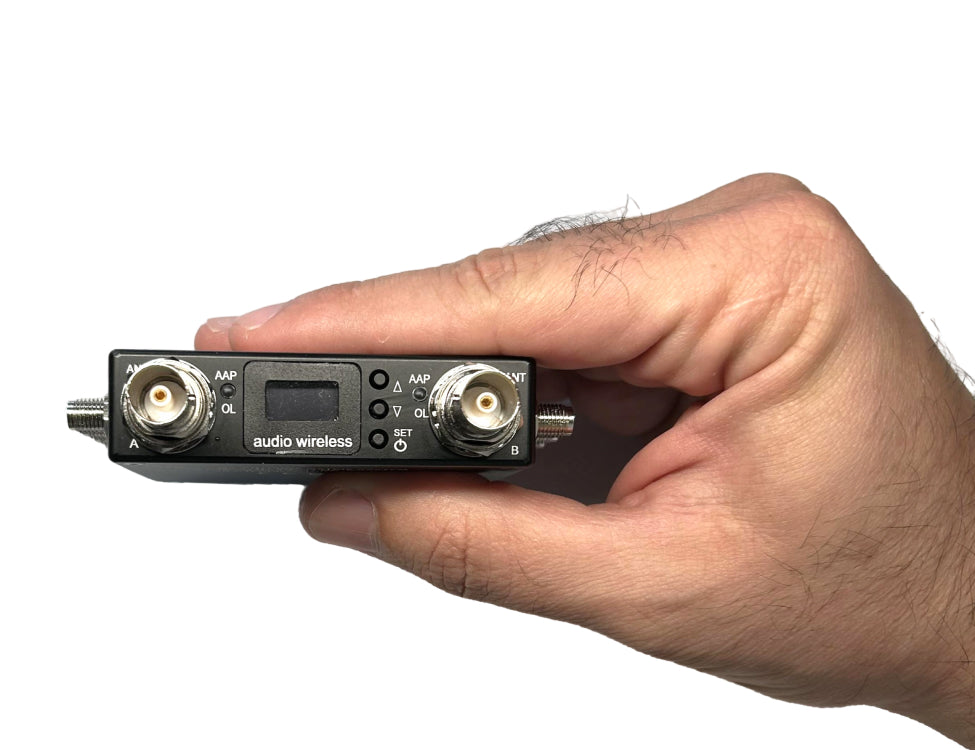

- Lightweight Construction: The DA224-MB boasts a compact and lightweight CNC-machined aluminium chassis, making it ideal for use in portable sound bag setups.
- True Antenna Diversity: Supports 4-way true diversity antenna operation, ensuring robust RF signal integrity.
- Advanced RF Filtering: Covers the 470-1260 MHz spectrum with advanced filtering to protect signal quality.

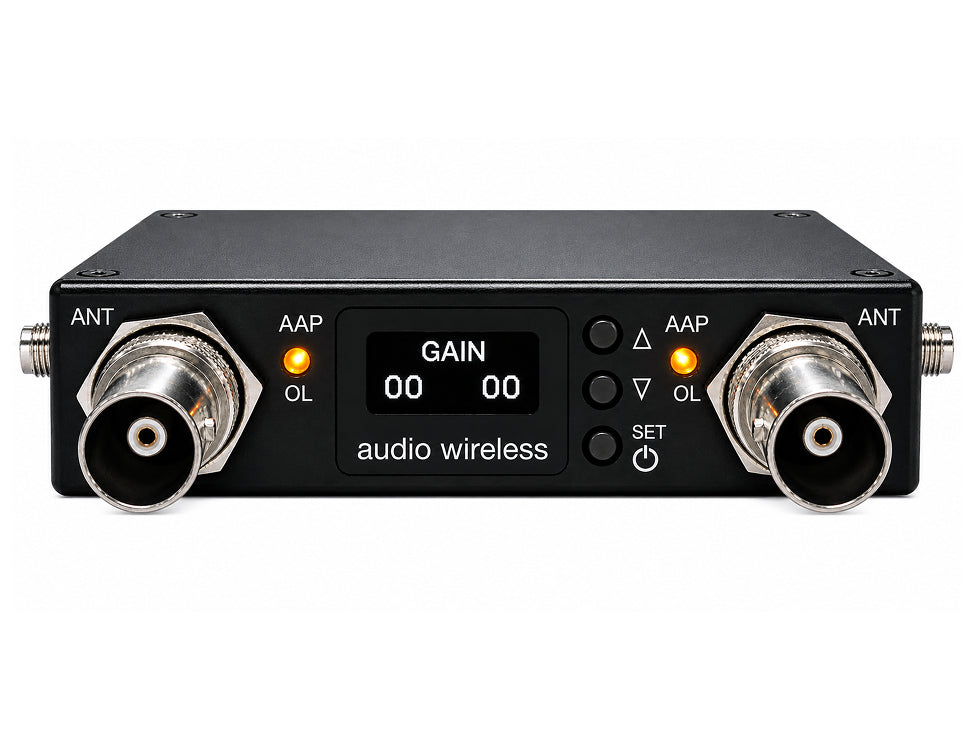

- Gain Control: System gain is user-adjustable in 1dB increments between +6dB* and -21dB, with 0dB set as unity gain. (* band dependent)
- Active Antenna Powering (AAP): User-switchable powering for remote antennas, with orange (red and green lit) LED indicators denoting ON/OFF status via the OLED display menu.
- Monitoring and Indicators Features Include:
- User Interface: Navigation and adjustments are through tactile switches (UP, DOWN, SET), with the SET button doubling as the ON/OFF switch.
- Active Antenna Powering Orange (both Red and Green lit) LED
- Received Signal Strength Indicator (RSSI), Green LED

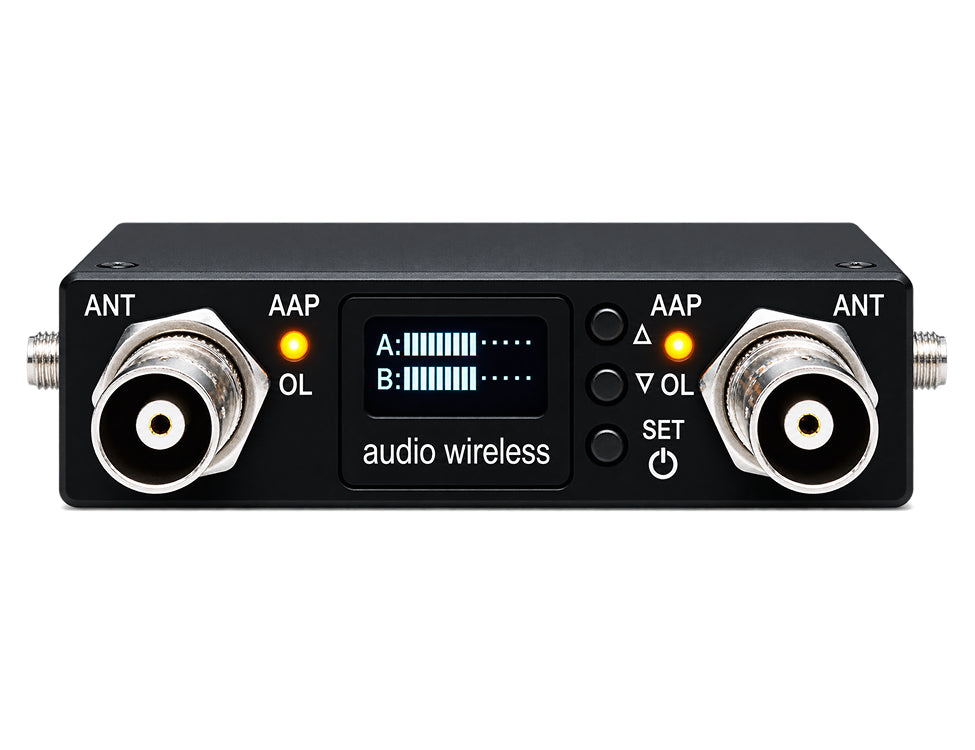

- 50dB RSSI gauge metering - RSSI Bars for A and B antennas
- Signal overload (OL) RED LED

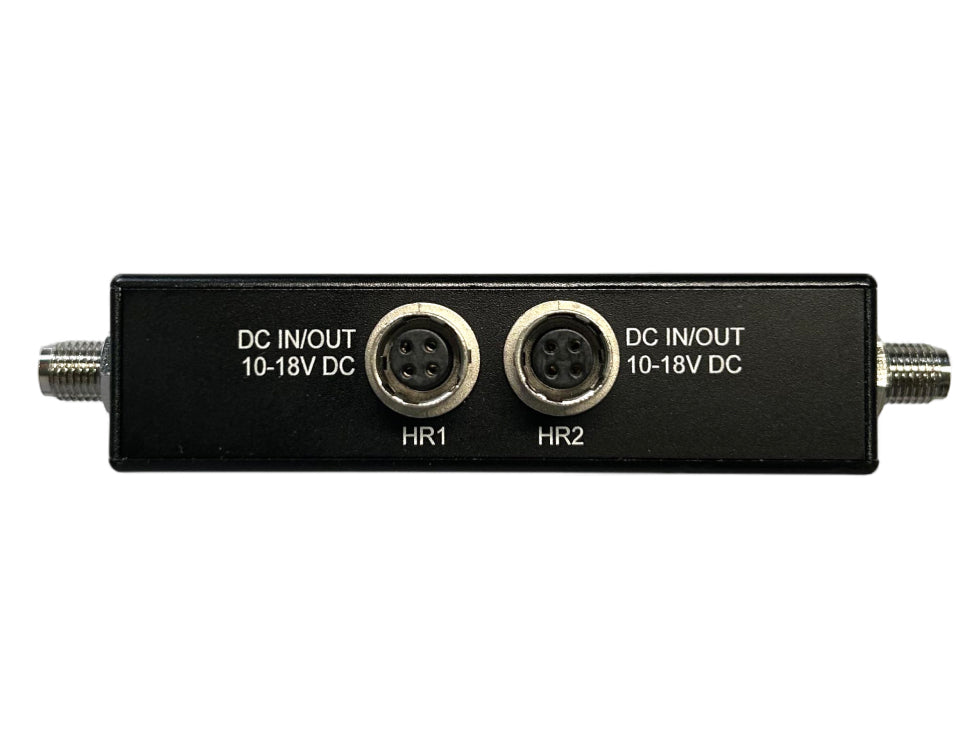

- Continuous system dc voltage monitoring via OLED display menu setting
PRE-PROGRAMMED FREQUENCY BANDS
The DA224-MB offers a wide selection of pre-programmed frequency bands, covering 470–1260MHz.

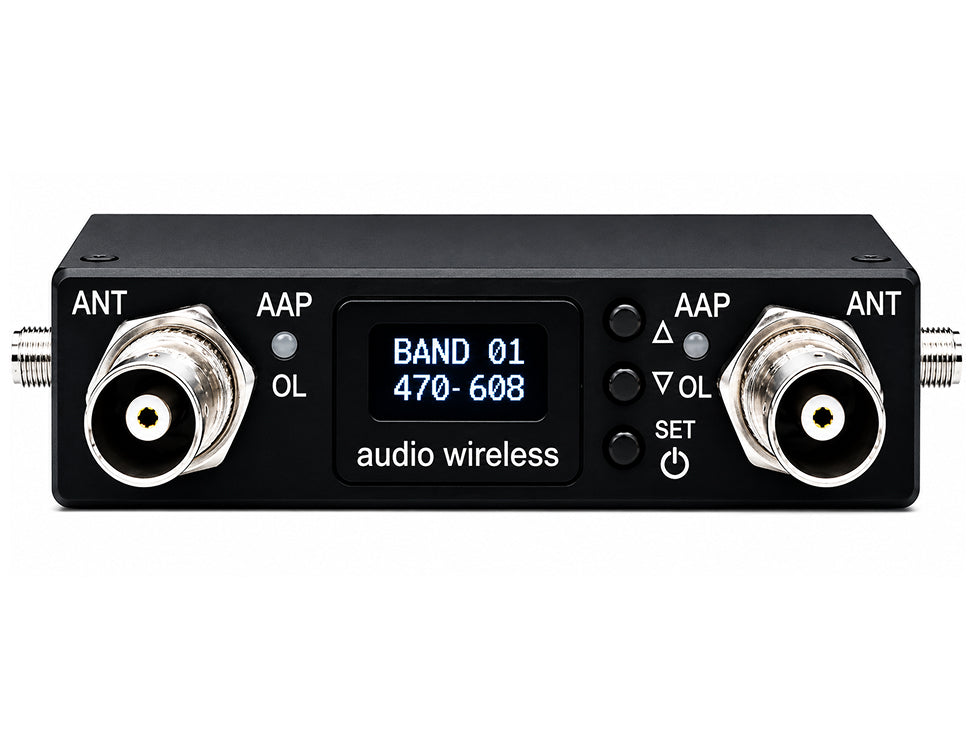

| Band1: 470-608 MHz | Band8: 510-663 MHz | Band15: 520-714 MHz | Band22: 570-663 MHz |
| Band2: 470-638 MHz | Band9: 510-700 MHz | Band16: 550-608 MHz | Band23: 570-700 MHz |
| Band3: 470-663 MHz | Band10: 510-714 MHz | Band17: 550-638 MHz | Band24: 570-714 MHz |
| Band4: 470-700 MHz | Band11: 520-608 MHz | Band18: 550-663 MHz | |
| Band5: 470-714 MHz | Band12: 520-638 MHz | Band19: 550-700 MHz | |
| Band6: 510-608 MHz | Band13: 520-663 MHz | Band20: 550-714 MHz | |
| Band7: 510-638 MHz | Band14: 520-694 MHz | Band21: 570-608 MHz |
There are 3 models of the DA224-MB available and they only vary between Band 25 to Band28:
MODEL 1: DA224-MB GLOBAL:
| Band25: 806-810 MHz | Band26: 823-832 MHz | Band27: 940-960 MHz | Band28: 960-992 MHz |

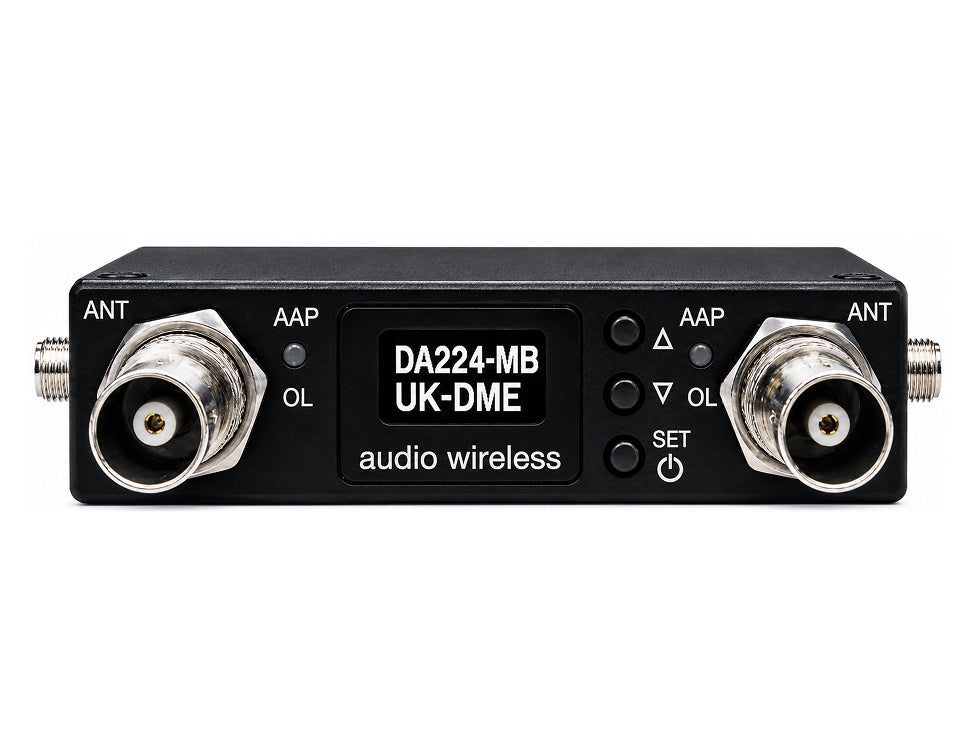

MODEL 2: DA224-MB UK/DME:
| Band25: 823-832 MHz | Band26: 960-992 MHz | Band27: 1045-1075 MHz | Band28: 594-640 MHz |
MODEL 3: DA224-MB JAPAN:
| Band25: 806-810 MHz | Band26: 1240-1260 MHz | Band27: WB-1260 MHz | Band28: NO FILTER |
