WISYCOM MCR54 receiver bundle with 4x MTP60 transmitters

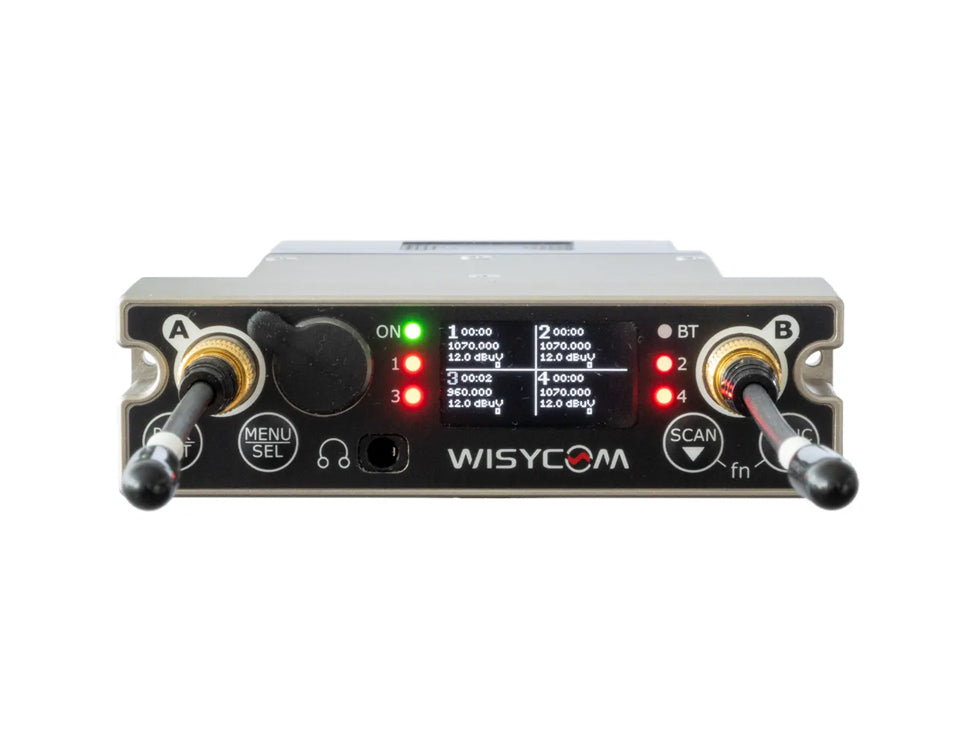

MCR54 is a quadruple true diversity wireless microphone receiver system in a modular stand-alone or slot-in configuration. It's compatible with most camera's slots and multi-slot mixer accessories.

MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.

MCR54-B12 FEATURES:

• four channel true diversity receiver (8 receiver boards)
• exceptional compactness and high robustness
• DSP analogue & digital audio output (AES3)
• multiband front-end filtering, high Q electronically tunable filter in 470-800 MHz, 1st narrowband filter 823-832 MHz, 2nd narrowband filter 925-937.5 MHz, 3rd narrowband filter 941-960 MHz
• sofware selectable wideband and narrowband DSP-FM operation
• narrowband allows more 50% band efficiency
• narrowband allows about 3dB extra sensitivity and noise immunity
• extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• high contrast OLED display
• automatic scan & transmitter programming through infrared and Bluetooth 5 long range
• DSP based for extreme flexibility and multi-companding operations
• monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
• rear audio and power adapter

MTP60-EU_BT1 / MTP60-EUX_BT1 FEATURES:

• wideband tuning range from 470 to 832 MHz
• monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
• dedicated hardware allows accurate real time position monitoring with advanced user interface
• advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
• embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
• enhanced robustness against self-interferences and antenna performances thru a proprietary “intermodulation cancellation” circuit
• an integrated haptic engine that gives tactile feedback with different vibration patterns
• FPGA based signal processing allows easy switching between wide and narrow band operation
• miniature design with flexible PCB (no connectors) for extended reliability
• the ENS compander for a totally clear sound
• powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP lithium battery (5.55 Wh)
• bluetooth interface and mobile app allows full control from mobile or tablet
• integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
• bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
• front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
• bluetooth interface and mobile app allows full control from mobile or tablet
• max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
• 48V phantom power to use wired mic thru the PHA60 accessory
