SHURE UL4

Name: SHURE UL4
Brand: Shure
SKU: shu.ul4bcmtqga
Price: 266.88 EUR
Availability: InStock

€ 305,00

list price (excl. VAT)

€ 266,88

our price (excl. VAT)

€ 322,92

incl. VAT

Color: black

Connector: Shure (mini-XLR TA4F)

Shure (mini-XLR TA4F)

Sennheiser / Wisycom / Lectrosonics / Audio Ltd (Lemo 3p)

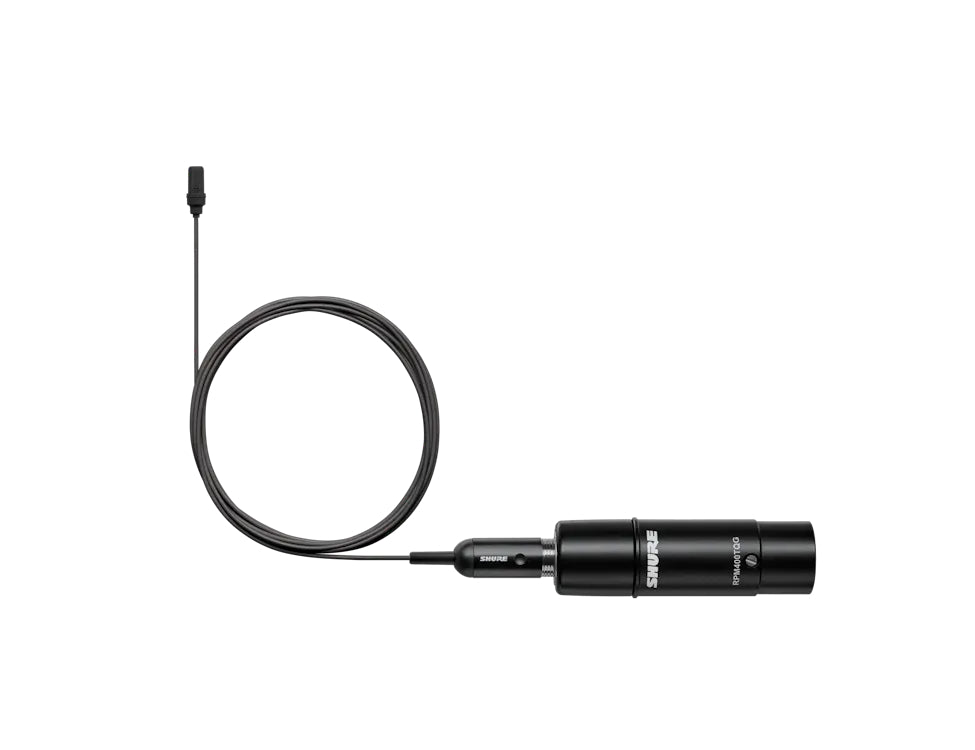

hardwired XLR3M for P48V

Out of stock >

ADD TO WISHLIST REMOVE FROM WISHLIST

SKU: shu.ul4bcmtqga

Brand: Shure

Categories:

Lavalier, Microphones

Description
Specifications
In the Box

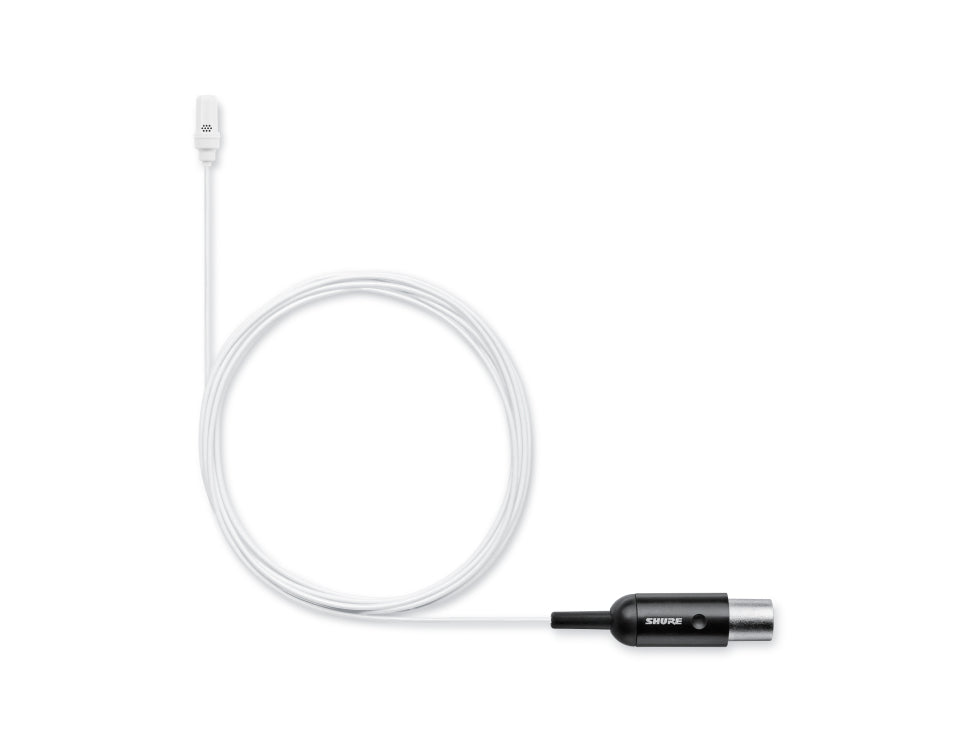

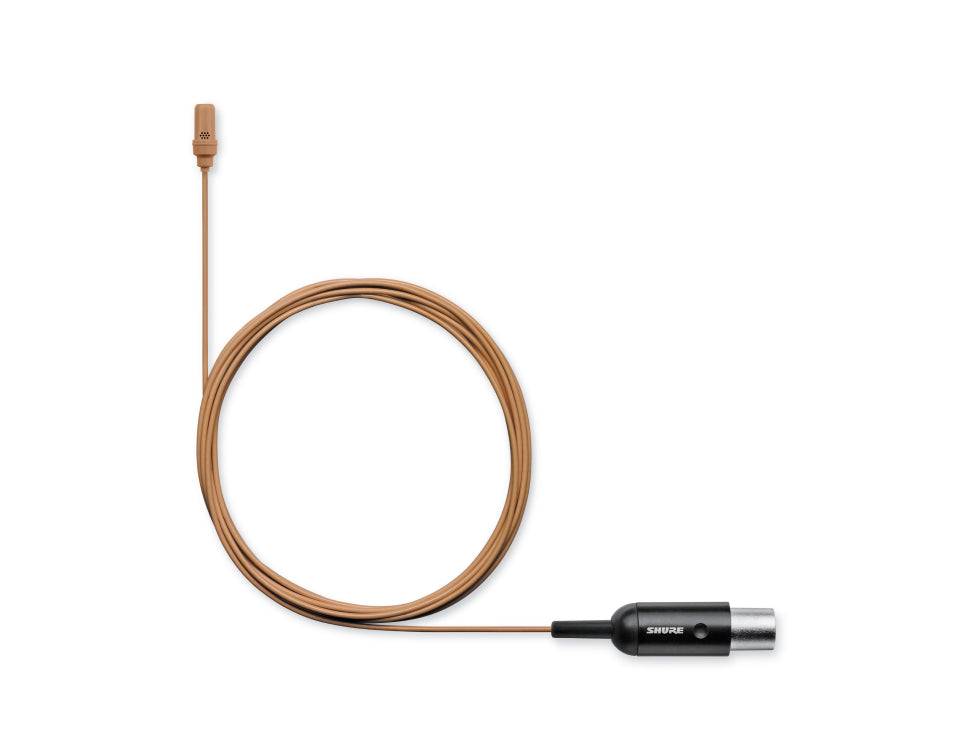

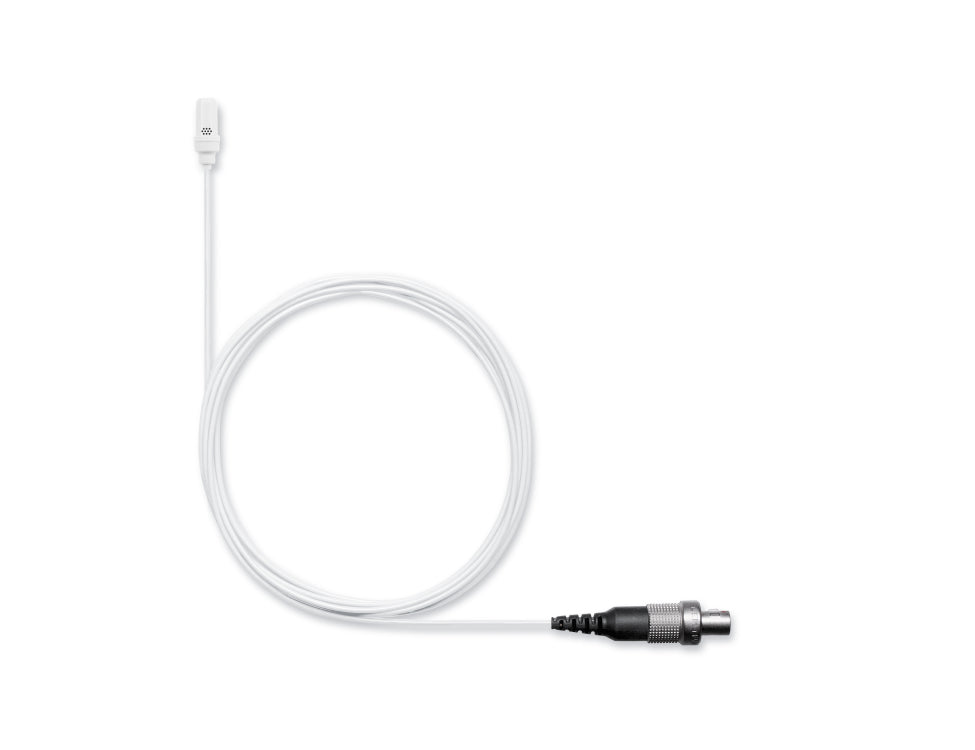

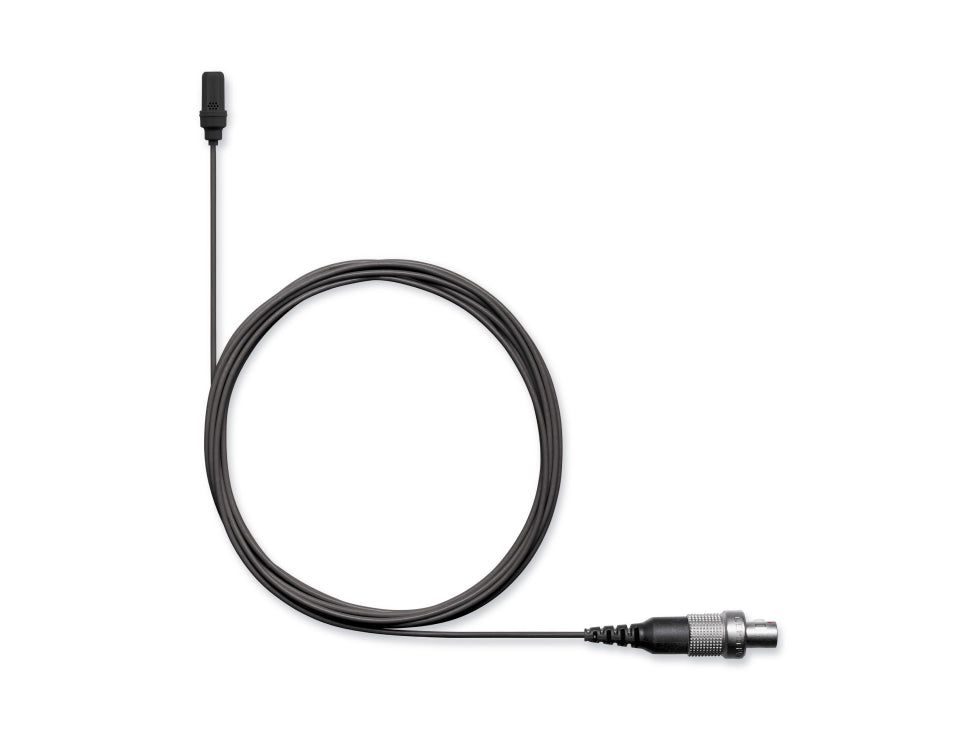

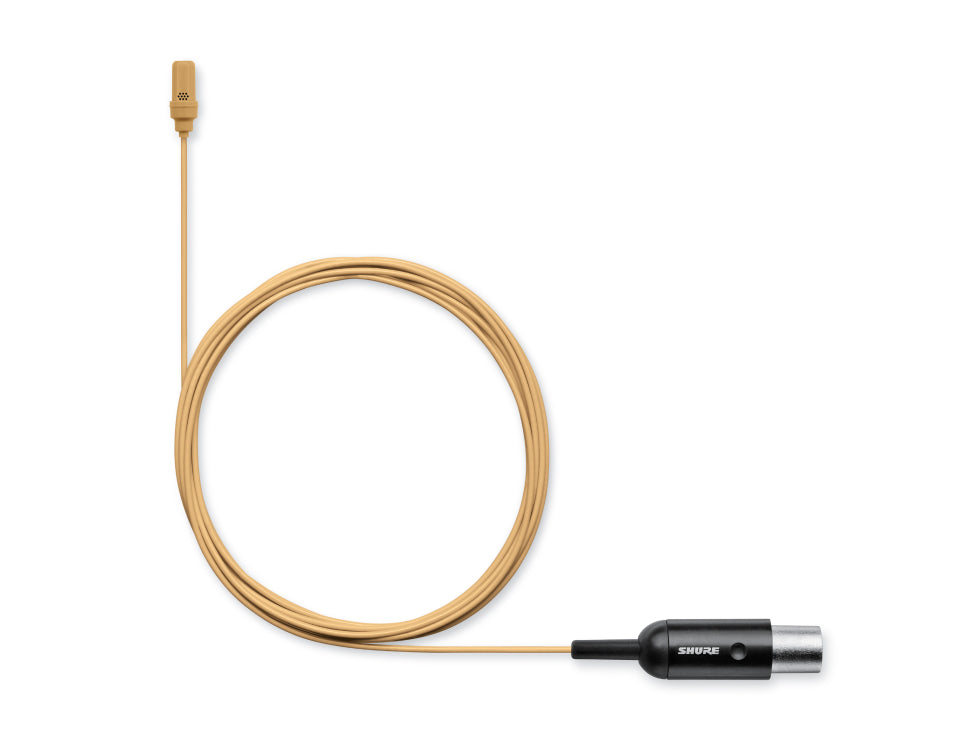

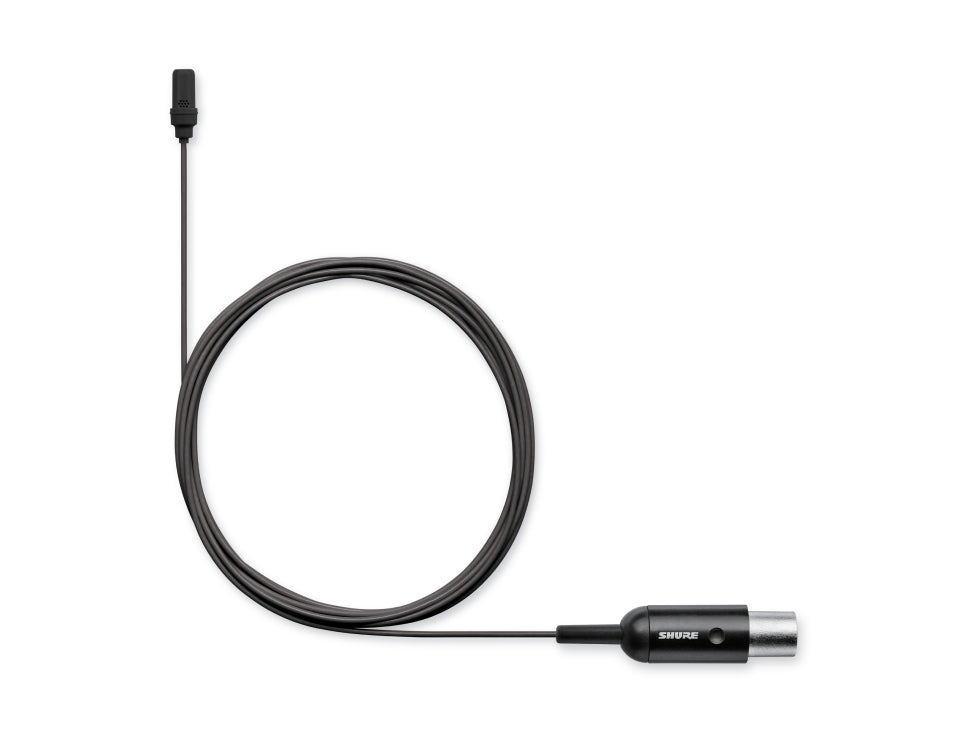

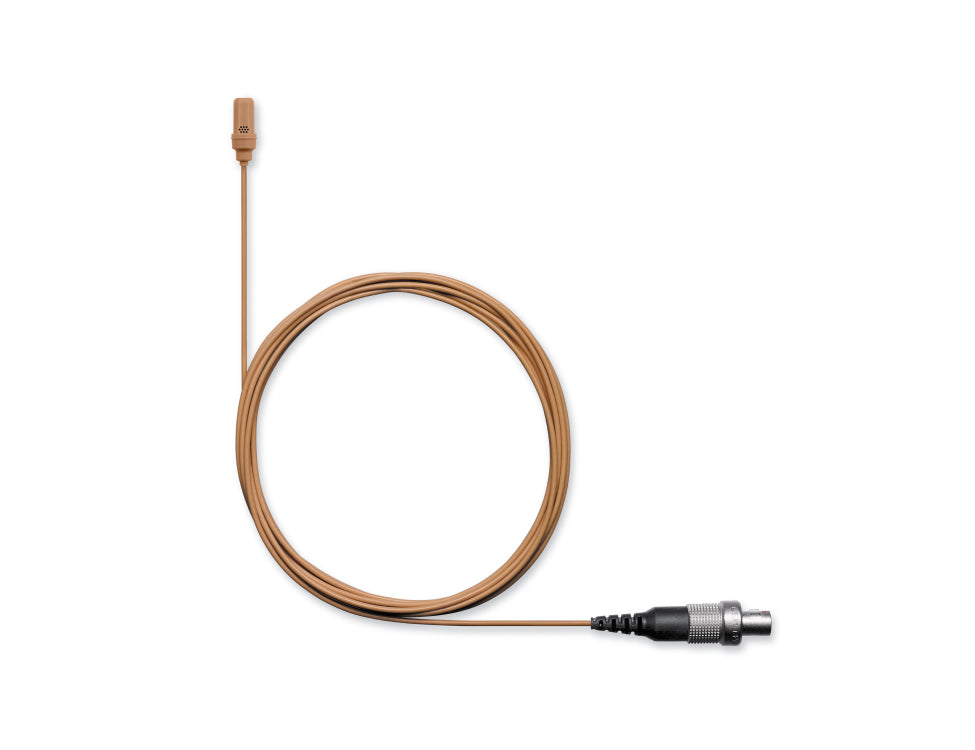

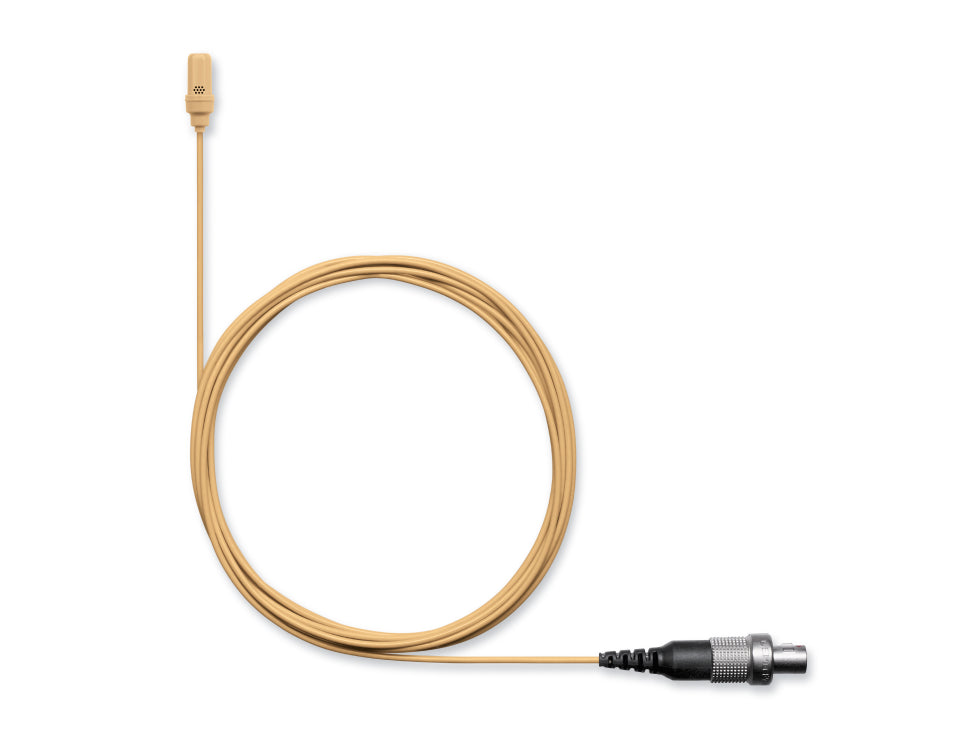

The Shure UniPlex UL4 is a professional MEMS lavalier microphone that is ideal for speech and performance applications in broadcast, corporate, and conference environments. The subminiature design and custom cardioid element provide robust audio performance. Each microphone is supplied with a storage pouch, single tie clip, and snap fit windscreen.

The advanced 1.6 mm Shure Plex cable, first introduced with the award winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero "memory effect," won't kink, and is fully paintable.

FEATURES:

5 mm cardioid subminiature design for discrete placement and improved gain-before-feedback professional sound quality for speech and presentation applications advanced 1.6 mm Shure Plex cable: dual redundant ground in cable serves as secondary shield for unprecedented longevity / immune to memory effect and kinks / fully paintable with typical theater paints, pens, and polishes

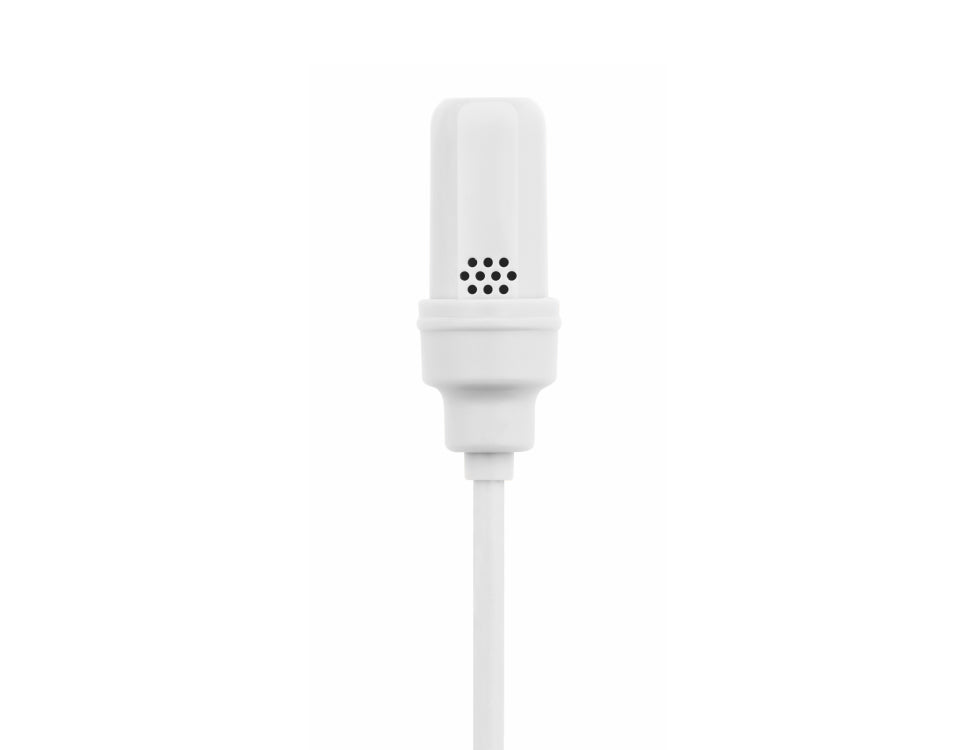

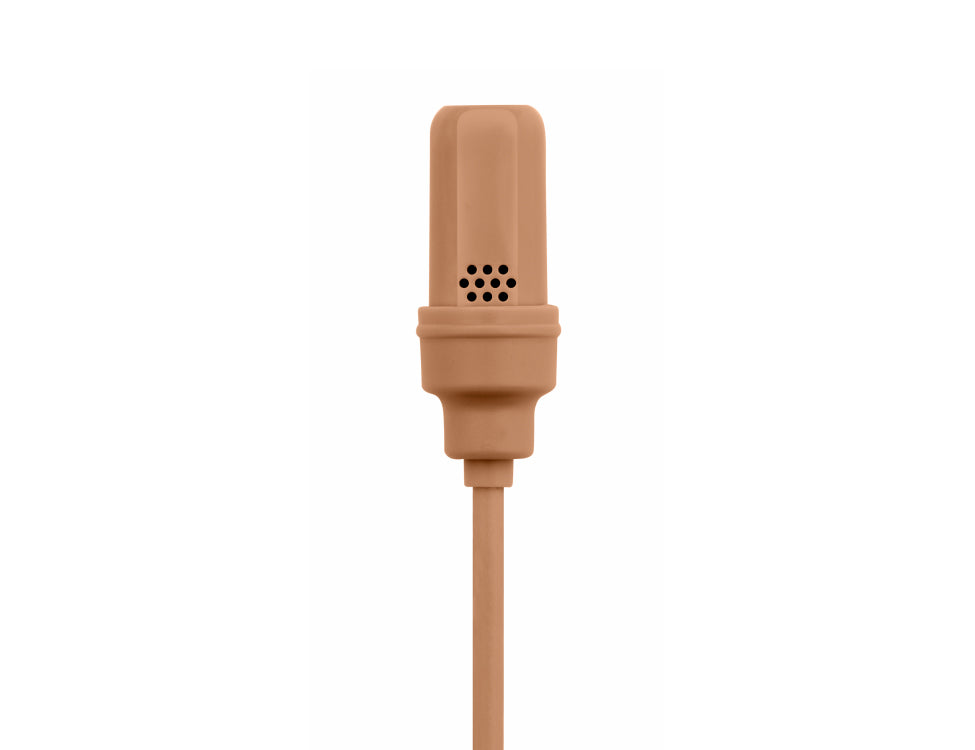

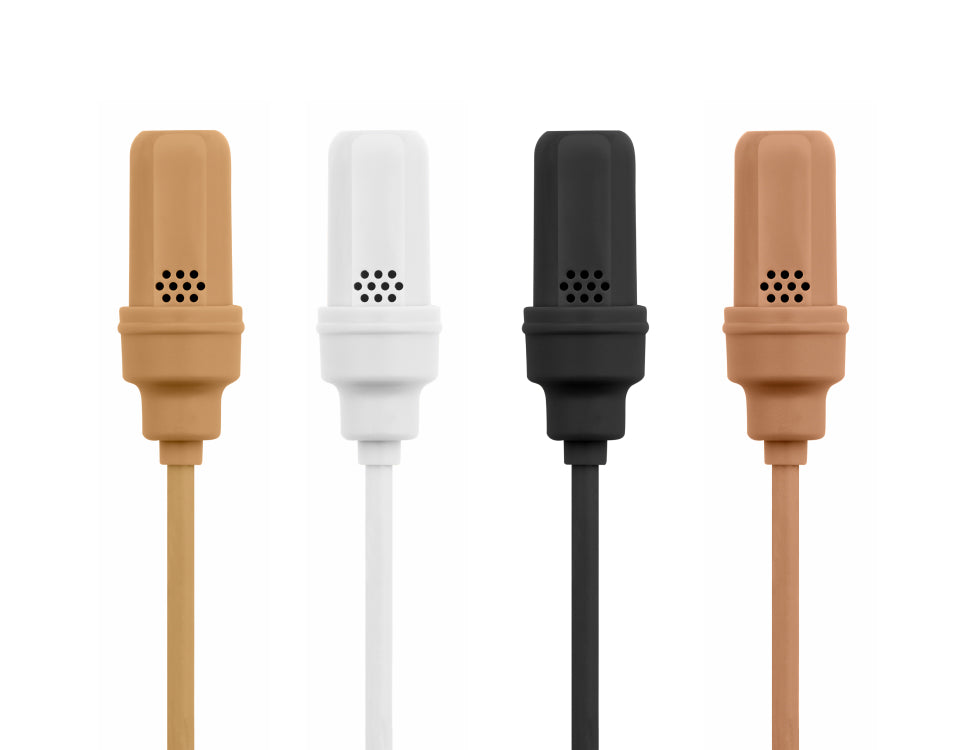

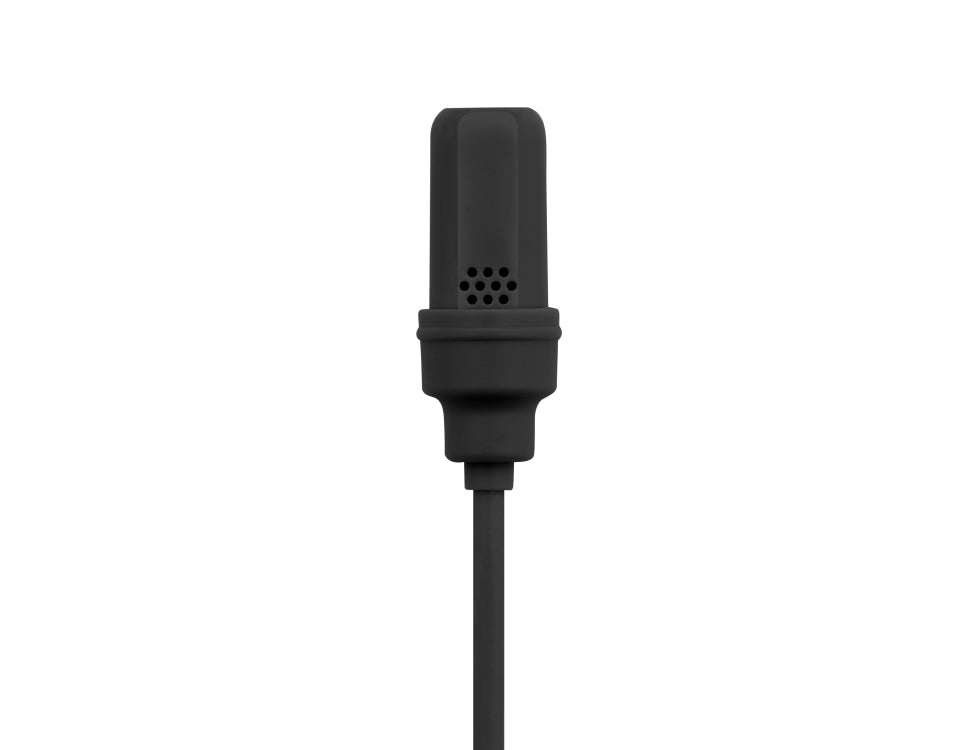

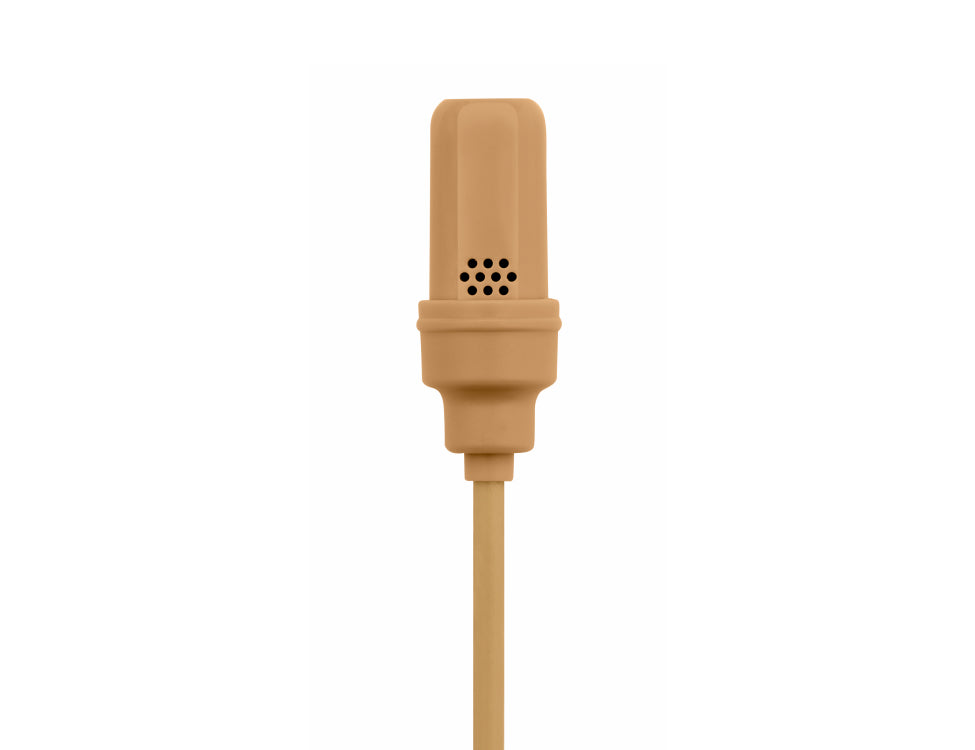

available in four colors: black, cocoa, Tan, white
available in three connector types: TA4F (mTQG), LEMO and XLR

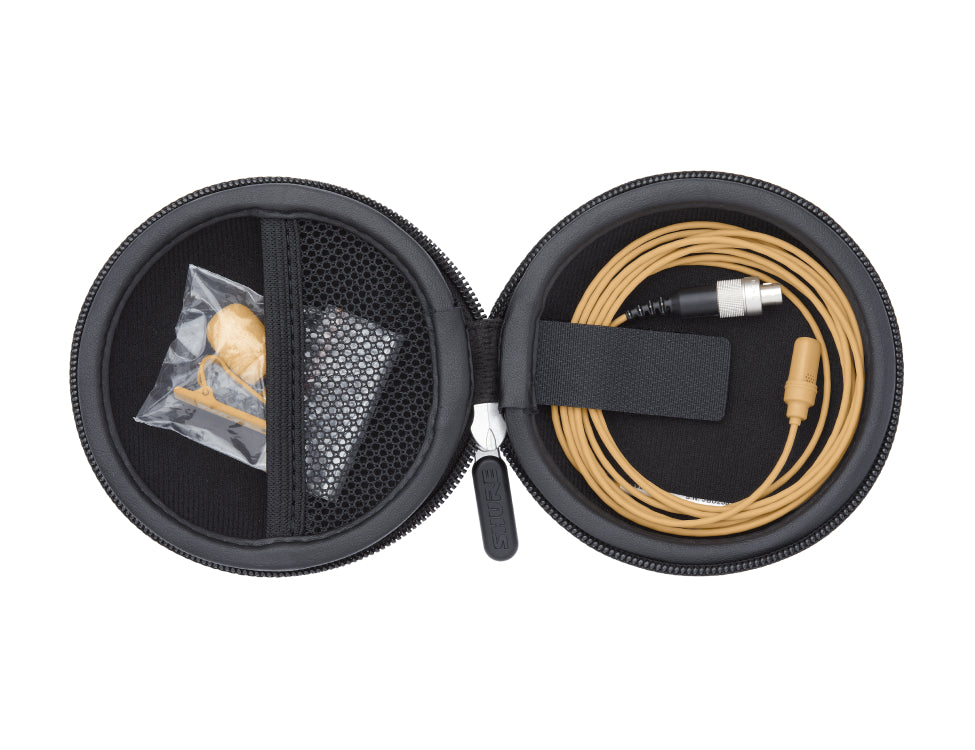

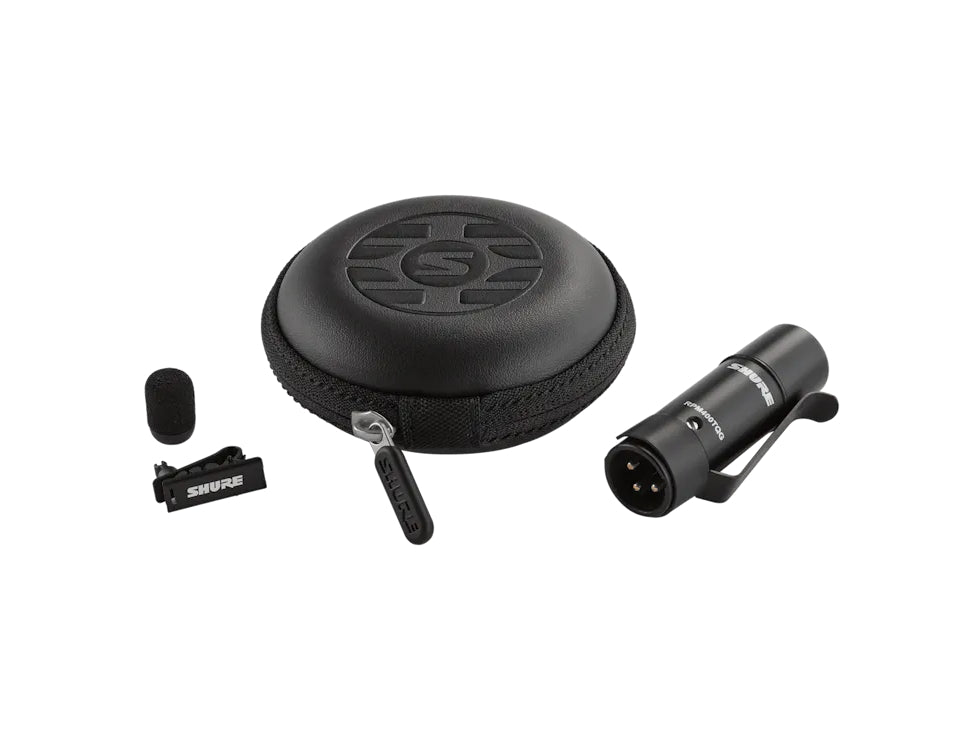

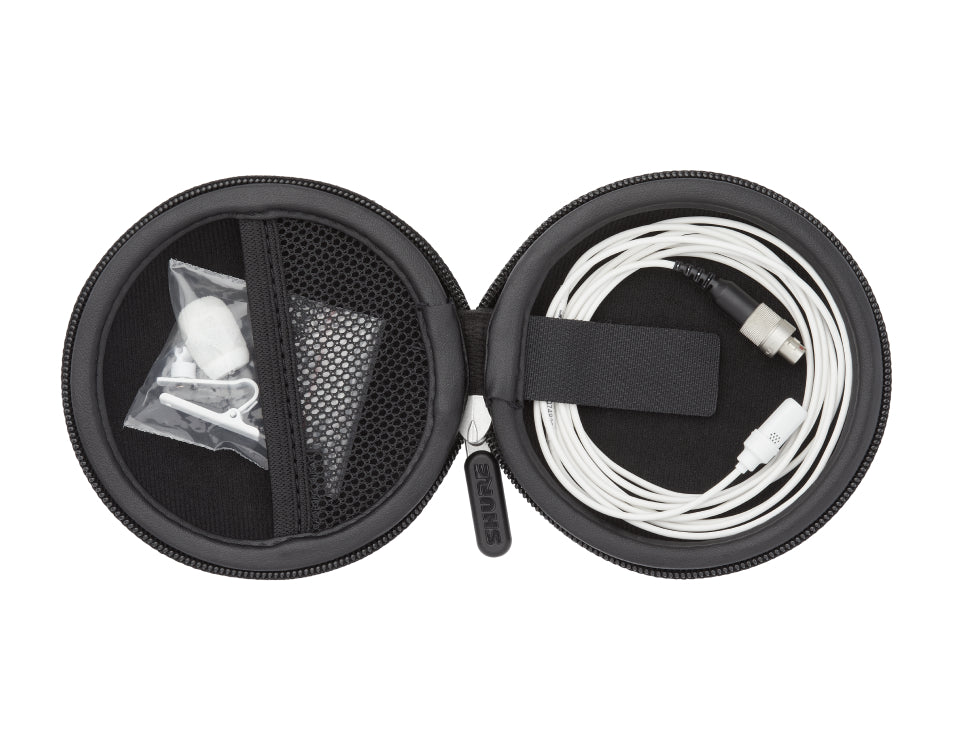

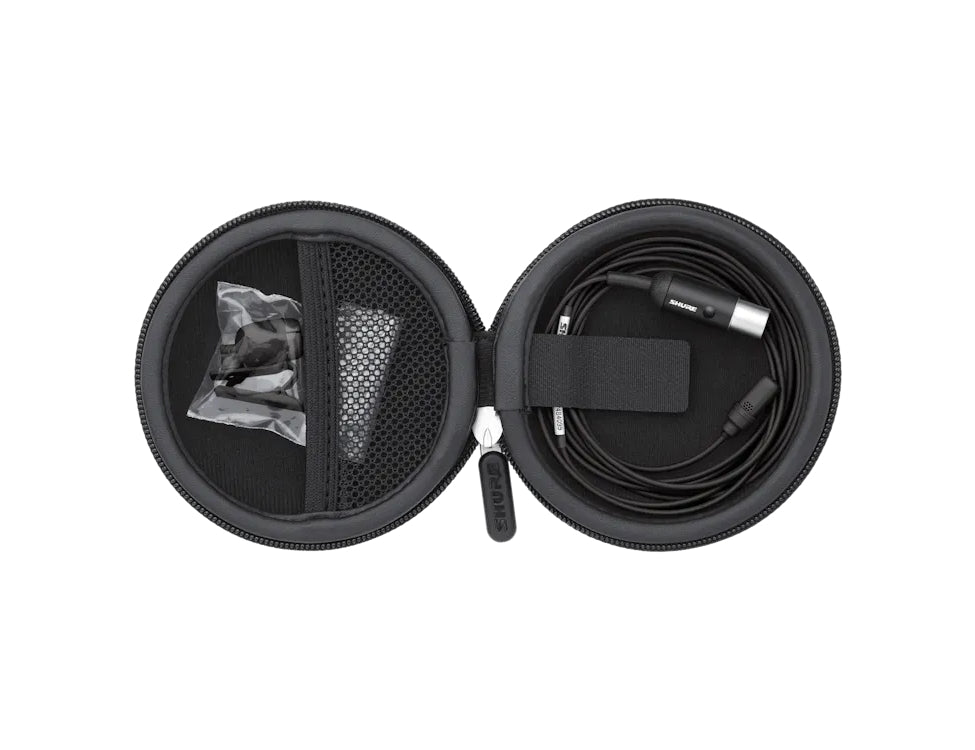

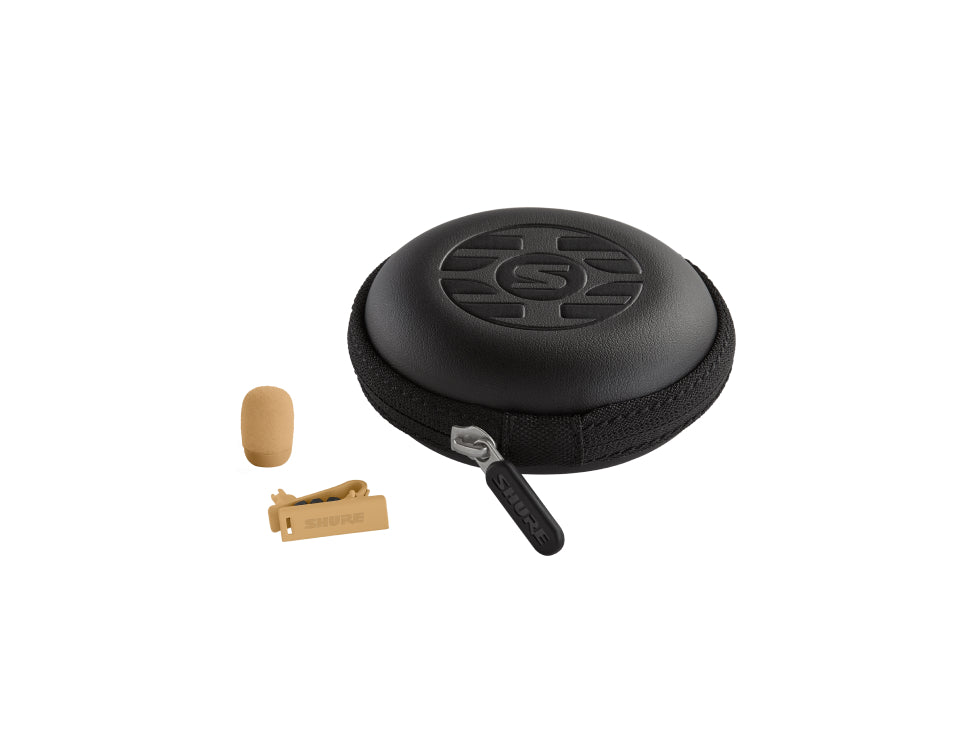

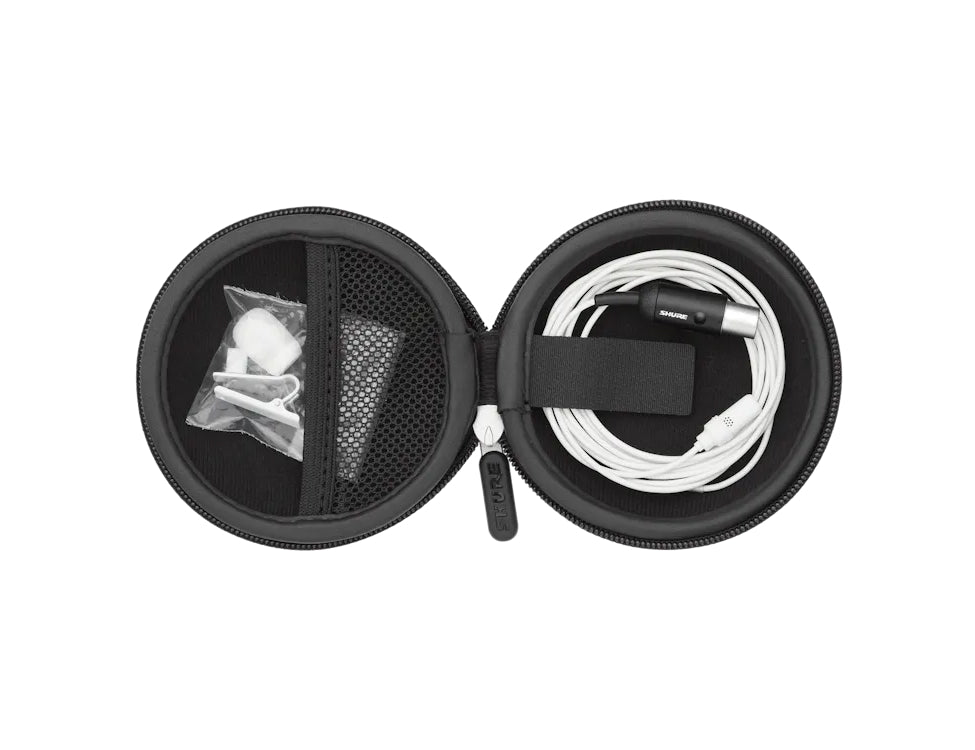

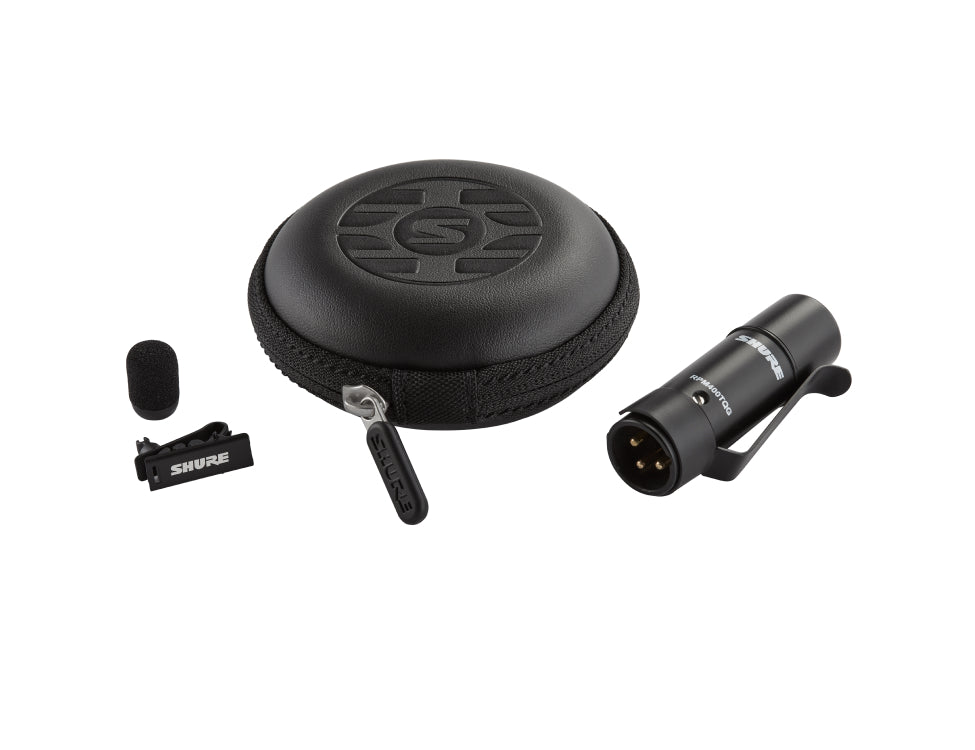

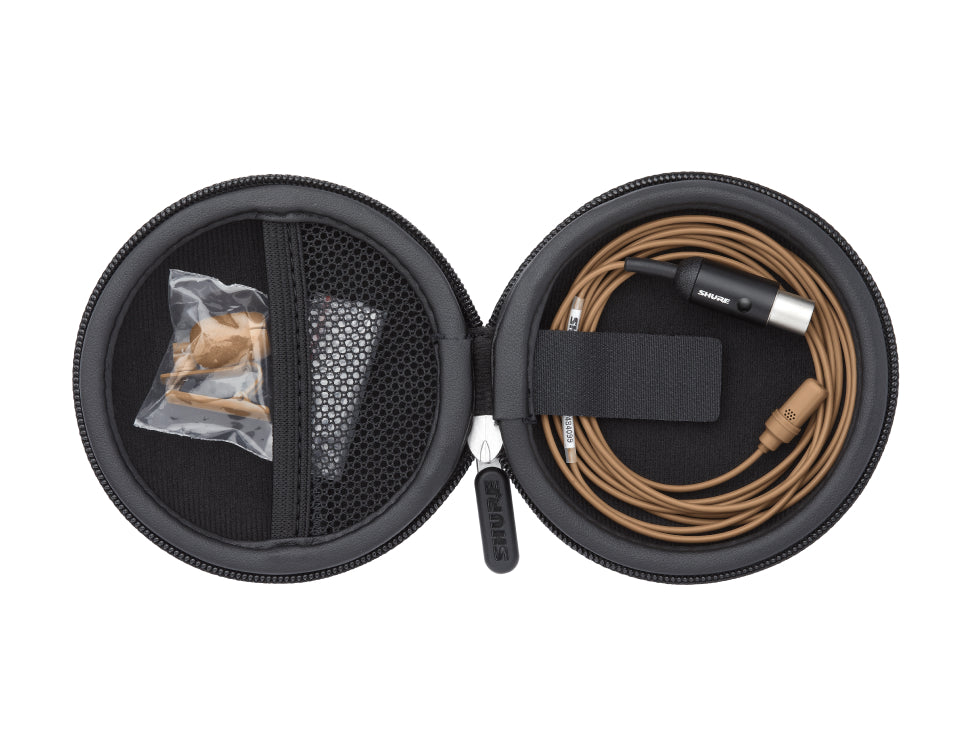

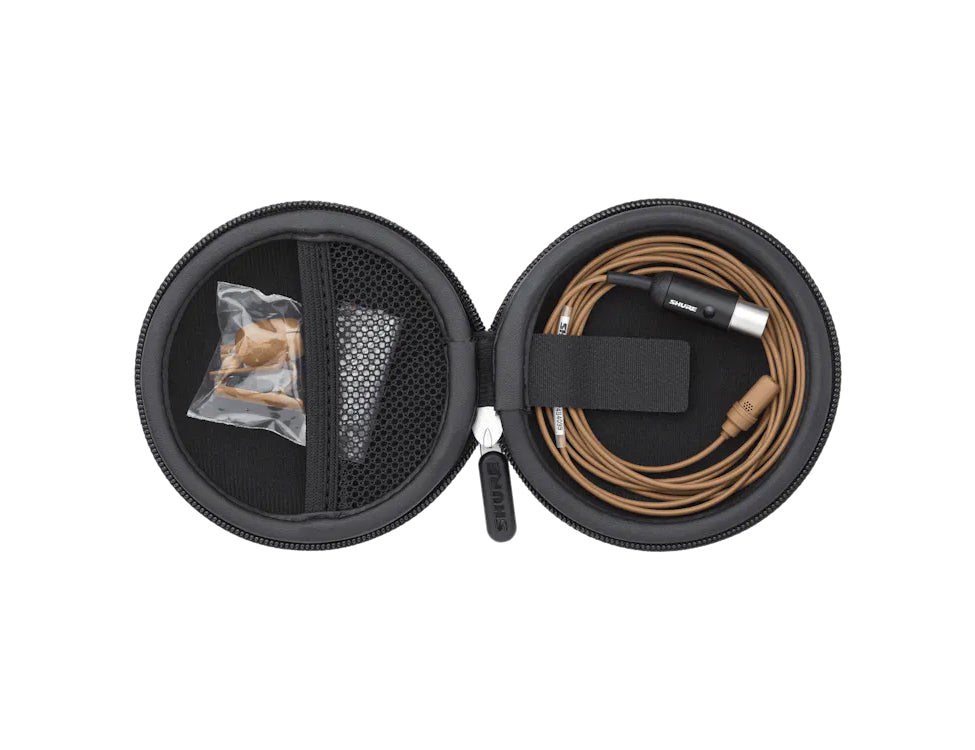

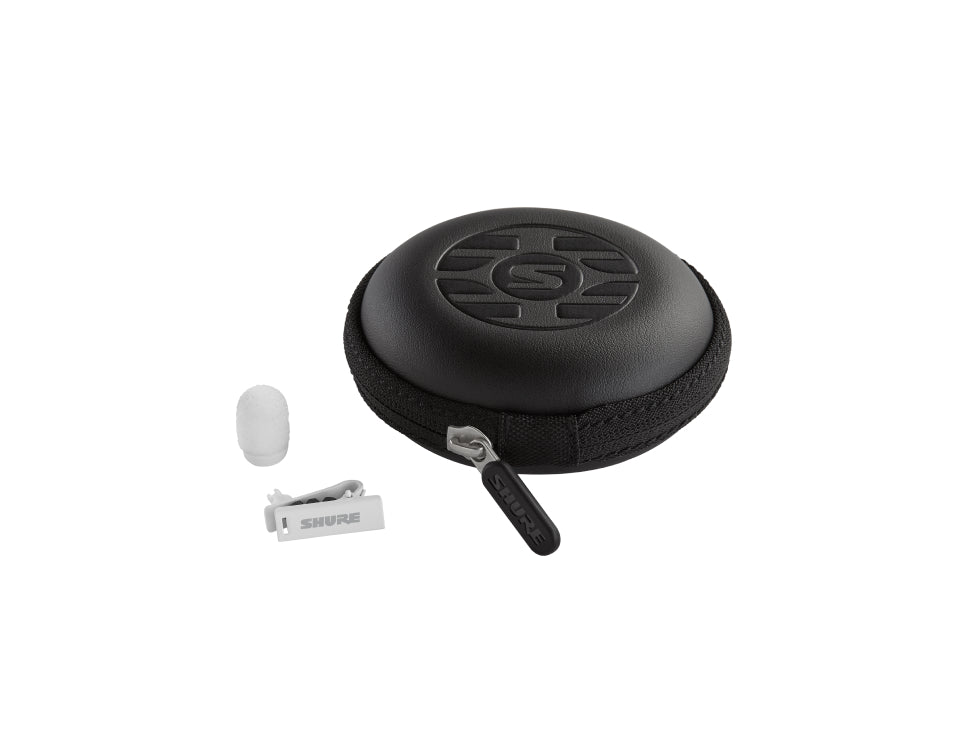

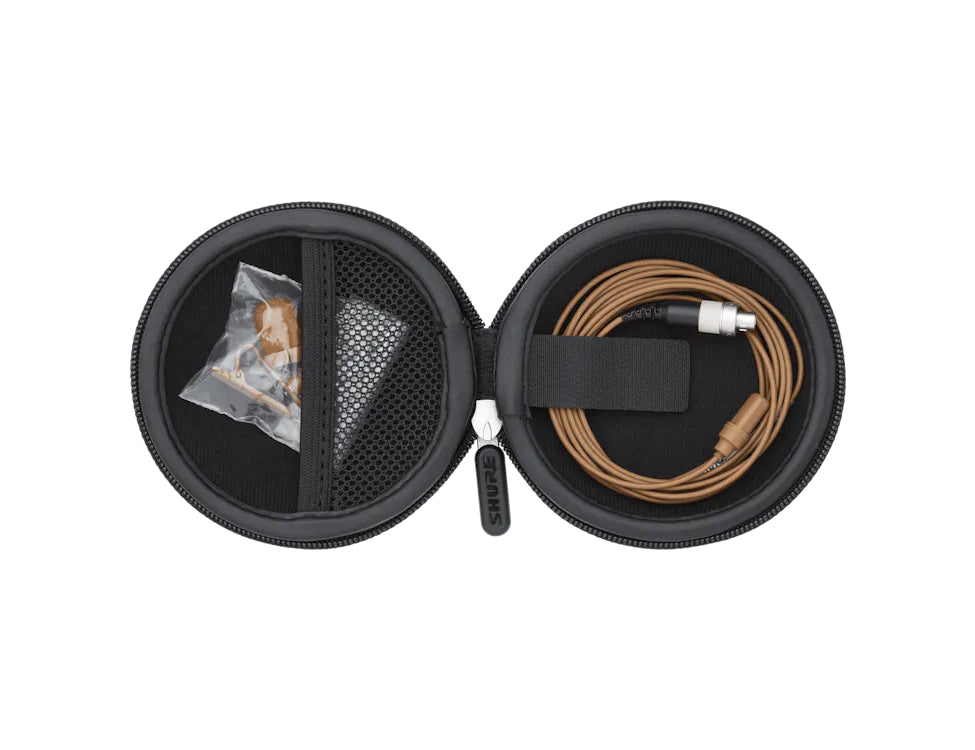

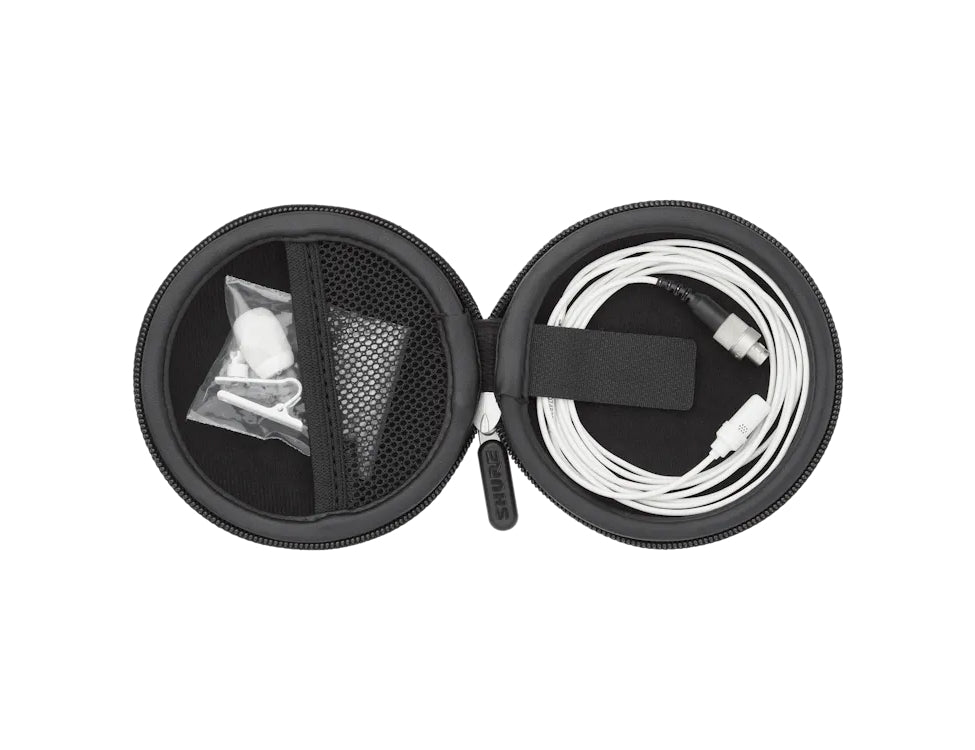

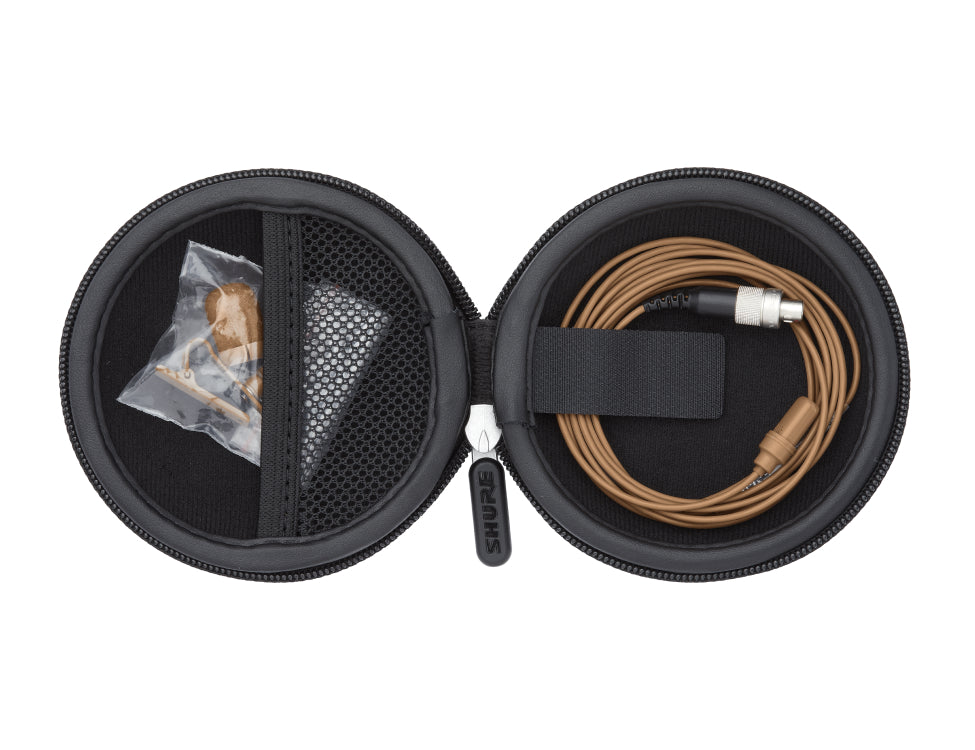

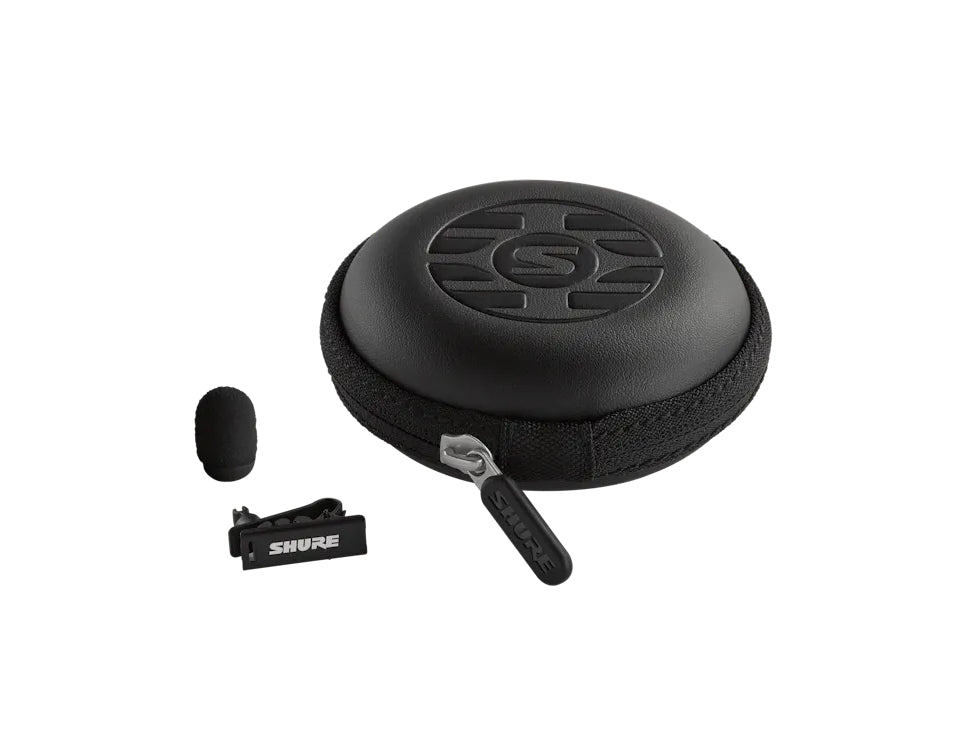

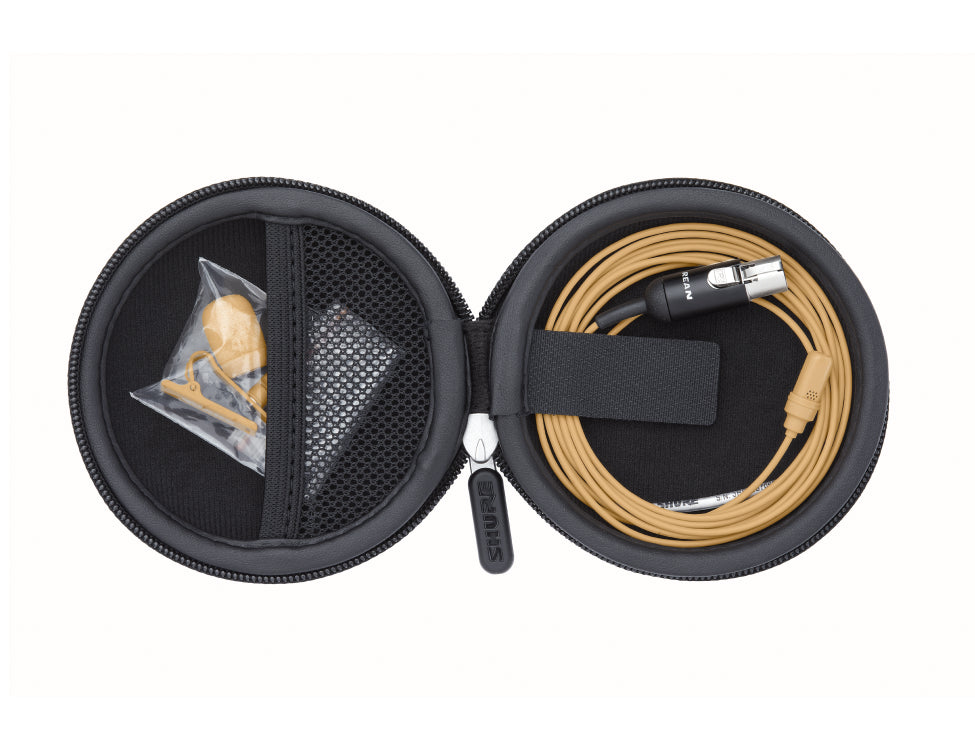

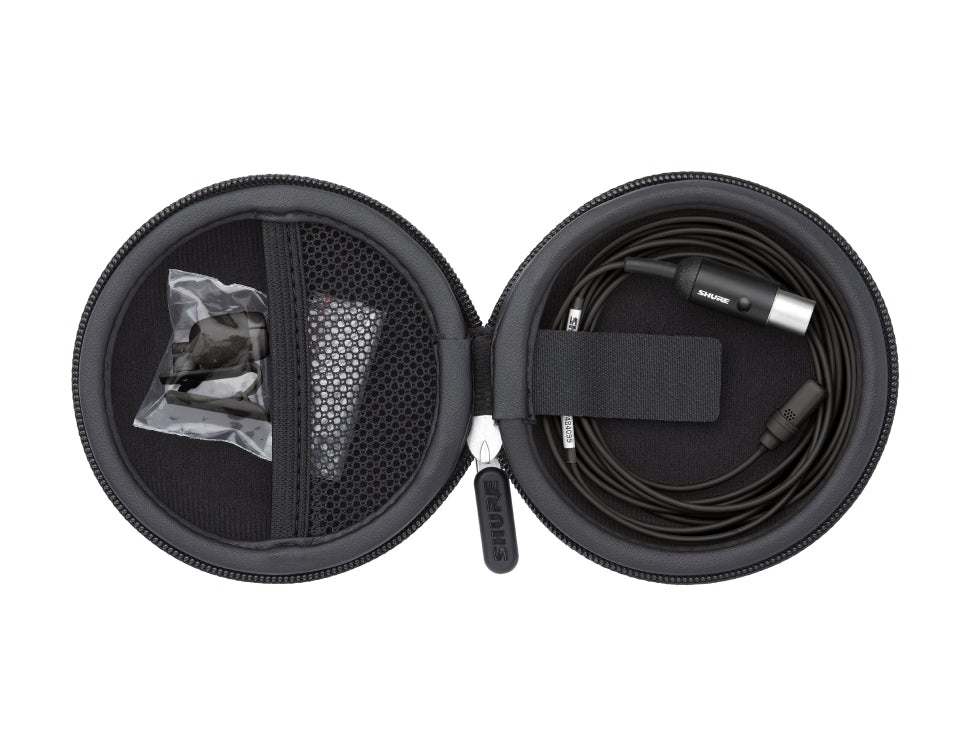

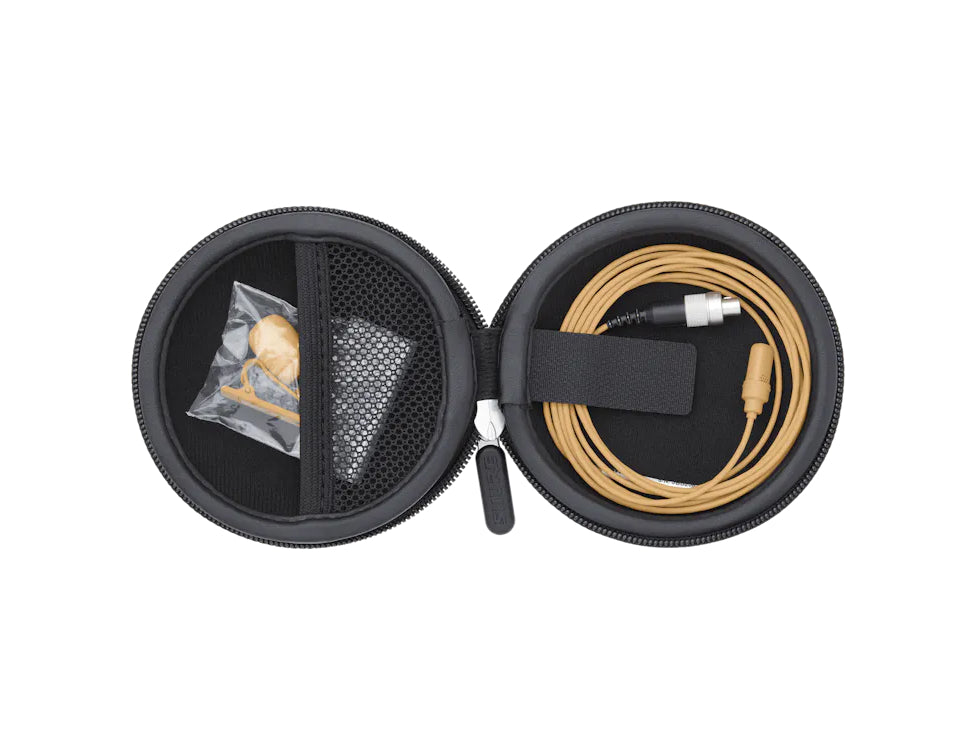

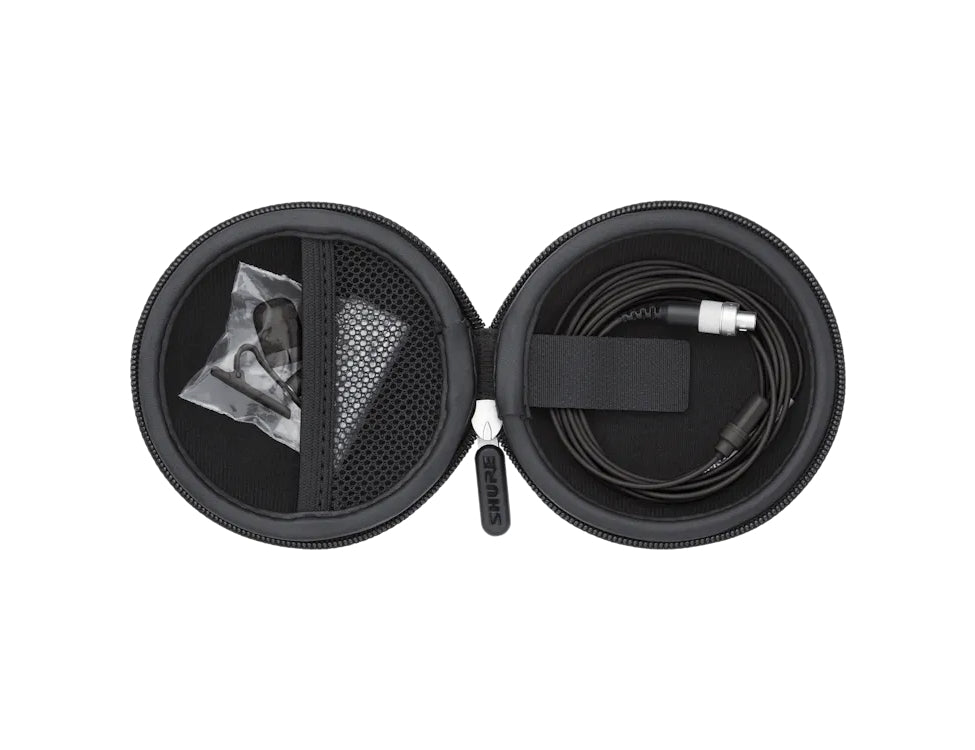

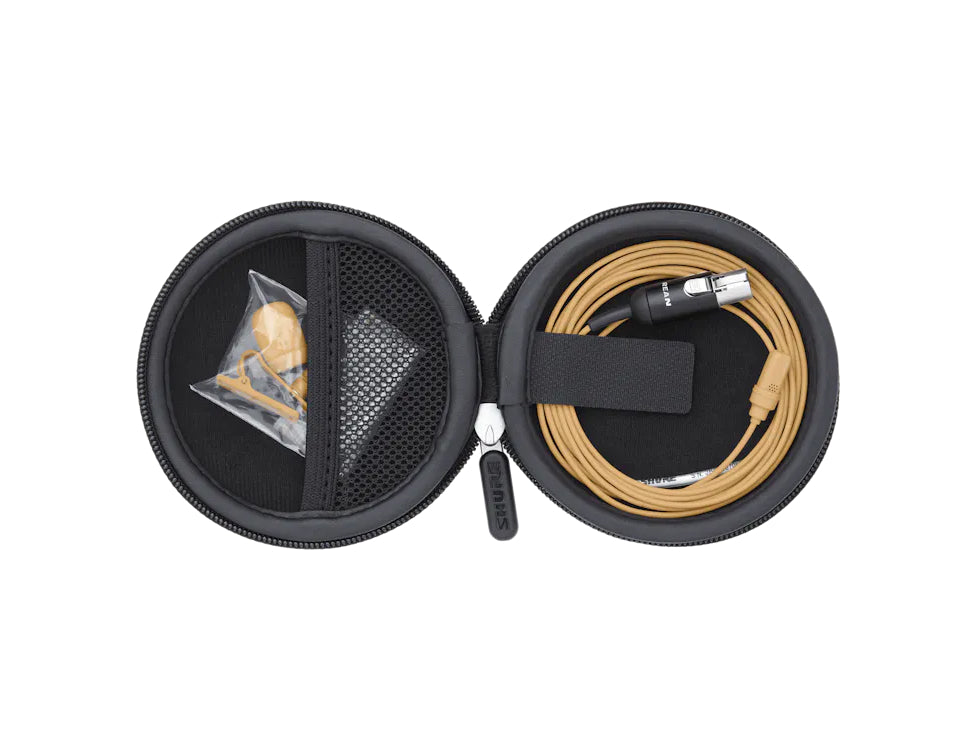

kit includes the following accessories: case, snap-fit windscreen, single tie clip

*NOTE: Shure UniPlex UL4 lavalier microphone with LEMO termination is compatible only with Shure LEMO bodypack transmitters and preamplifiers.

microphone capsule: MEMS
polar pattern: cardioid
frequency response: 40 Hz to 20 kHz
sensitivity: -42.5 dBV/Pa (Pa=94 dB SPL)
self-noise 32 dB SPL-A
signal-to-noise ratio: 62 dB-A
maximum SPL: 130.0 dB SPL / 1 kHz @ 1% THD, typical
dynamic range: 98 dB typical
microphone current draw: 530 µA, maximum
bias voltage (recommended operating voltage): 3.5-5 VDC (5.5VDC MAX)
housing: Molded ABS
polarity: MTQG: positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1 / LEMO: positive pressure on diaphragm produces positive voltage / on Pin 3 with respect to Pin 1
cable diameter: 1.6 mm
cable length: 66.0 in (1.67 m)
net weight: 12.5 g (0.44 oz)
capsule dimensions: (L x D) 17 mm x 5 mm
