Description

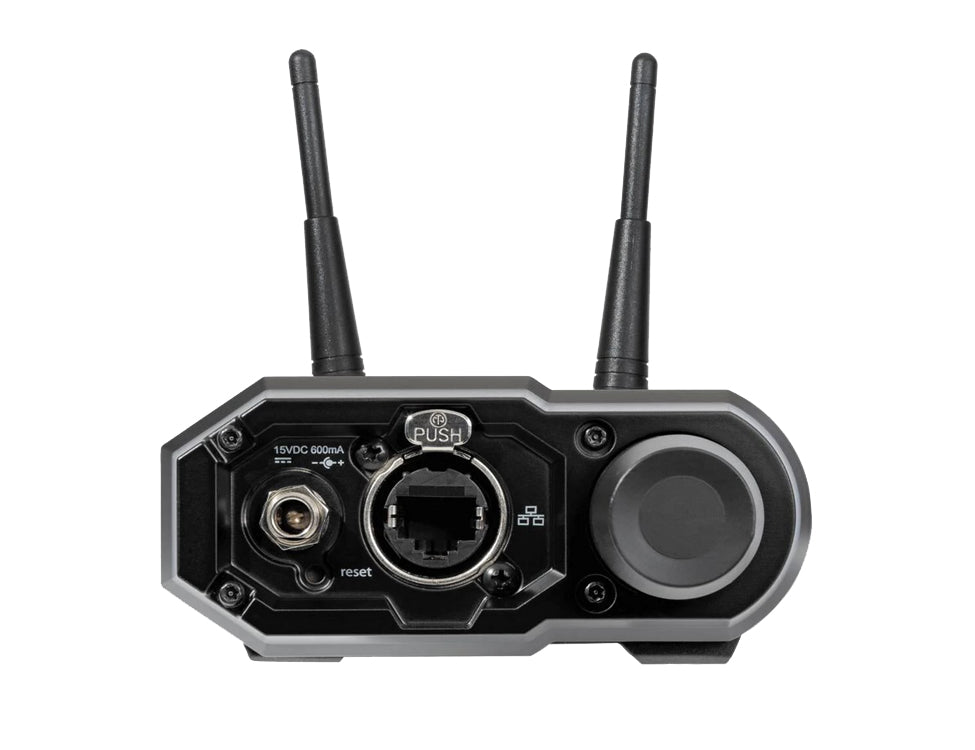

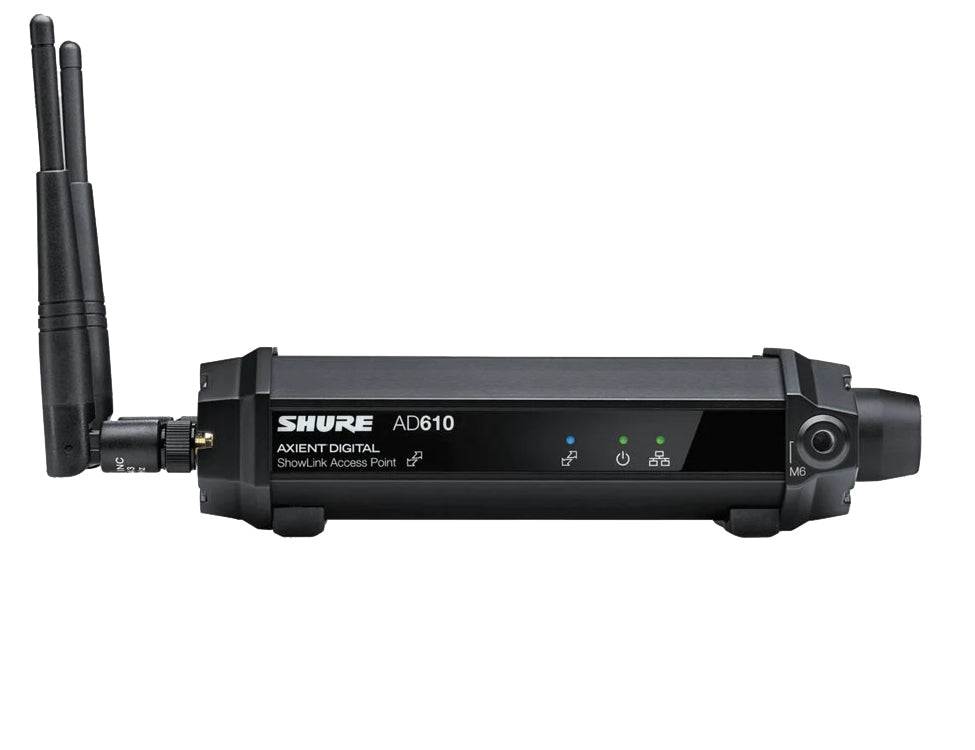

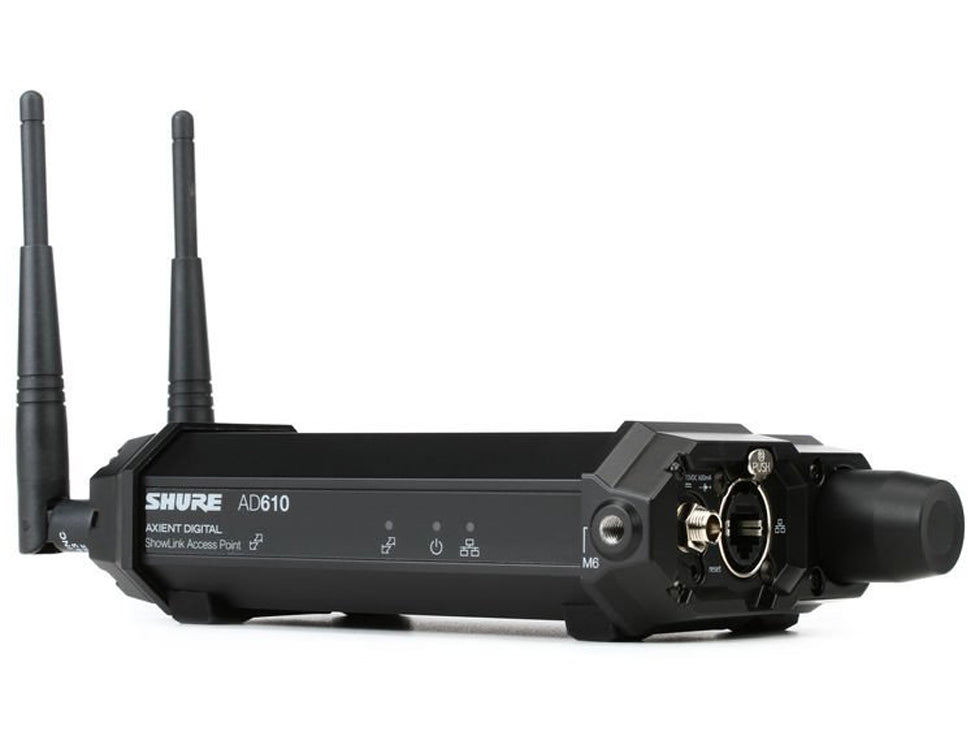

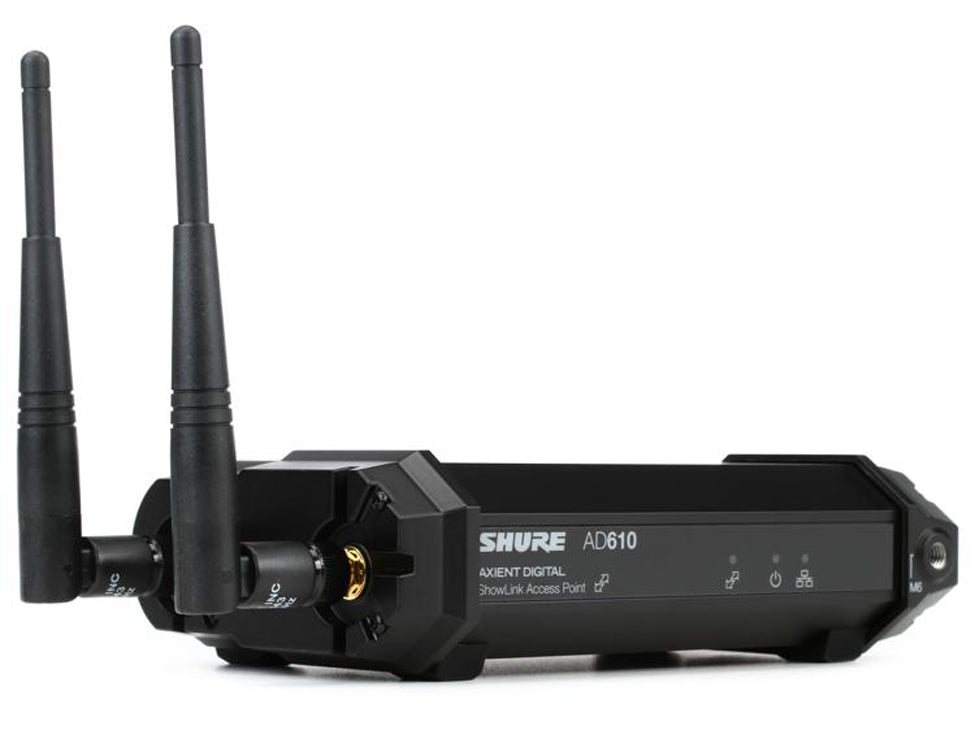

The AD610 ShowLinkr access point enables real-time remote control of all ShowLink-enabled Axientr transmitters, including both ADX and AXT series models. The access point allows comprehensive management of transmitter parameters from the receiver or Wireless Workbenchr using 2.4 GHz (IEEE 802.15.4) wireless communication. All parameter changes occur without interruption to the performer.
Multiple access points can extend the operational range or increase the number of transmitters supported on the ShowLink network. The access point features true diversity antenna inputs along with mounting points for ¼"-20 and M6 x 1.0 thread.
FEATURES:
- wireless network connectivity between all linked transmitters and access points
- enables real-time wireless remote control of up to 24 transmitters per access point
- ShowLinkr offers ability to adjust gain, change frequencies, mute signals, and more
- true diversity antenna scheme maintains a robust link in the 2.4GHz frequency range
- automatic channel selection scans the 2.4GHz range for the best channel. Scans can be saved for future analysis in Wireless Workbench
- automatic frequency agility moves the network to the best available channel if single degrades
- high power option for extended range, accessible via Wireless Workbench (region-dependent)
- compatible with Axient Digital ADX series and Axient analog systems
INCLUDED IN THE BOX:
- 1x WA371 wireless microphone clip for mounting on a microphone stand
- 1x C825 shielded 8m ethernet cable for showLink access point, RJ45-to-ethercon connector
- 1x 31A1856 euro thread adapter for WA371
- 1x PS43 power supply
Specifications
GENERAL:
- antenna type: 2 omnidirectional 2.4 GHz
- capacity: 24 axient ShowLink devices (AXT or ADX models)
- mounting type: WA371 mic clip or 1/4-20 thread mount
- operating temperature range: -18°C to 60°C
- storage temperature range: -29°C to 74°C
- dimensions (H x W x D in mm): 190 x 102 x 47 without antennas
- weight: 464 g without antennas
- housing: extruded aluminum
- ingress protection rating: IPX3
POWER REQUIREMENTS:
- power over ethernet (PoE) Class 1: 36 to 57 V DC/V AC
- external power supply (if PoE is unavailable):15 V DC (600 mA), double insulated
SHOWLINK:
- network type: IEEE 802.15.4
- frequency range: 2.40 to 2.4835 GHz (16 channels)
- RF output power: 10 dBm, ERP / 20 dBm, ERP (dependent on applicable country regulations)
- working range: under typical conditions: 150 m, line of sight, outdoors for a single system: 500 m
ANTENNA CONNECTION:
- connectors: 2 SMA
- impedance: 50 Ohm
SCANNING RADIO:
- scanner RF sensitivity: -106 dBm, typical (integrated antenna)
NETWORKING:
- network interface: ethernet 10/100 Mbps network addressing capability: DHCP or Manual IP address
