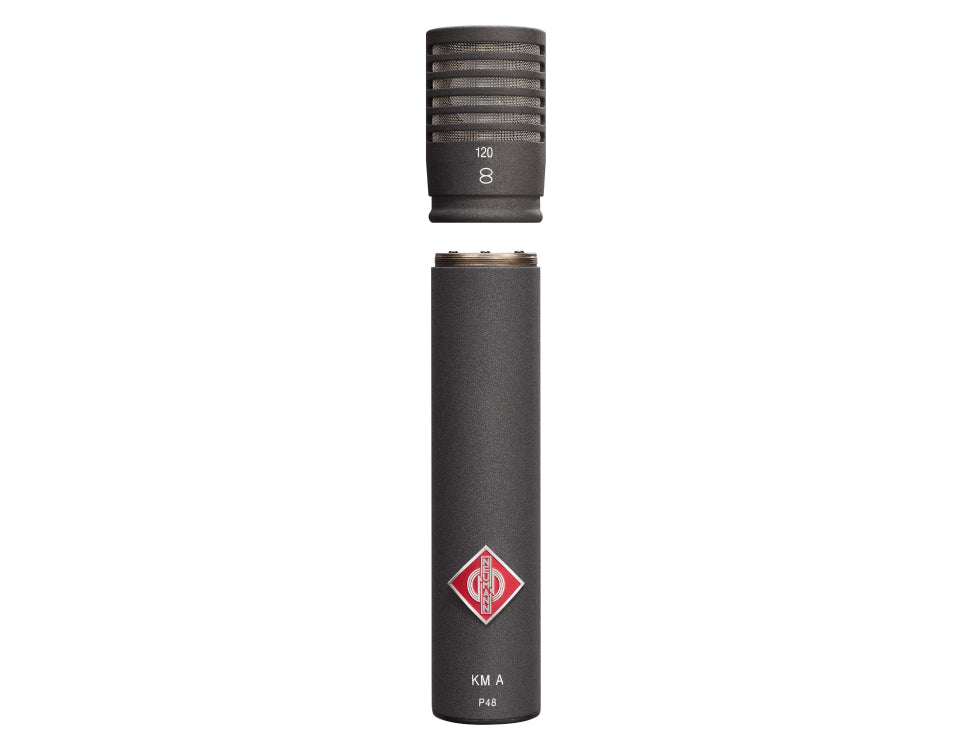

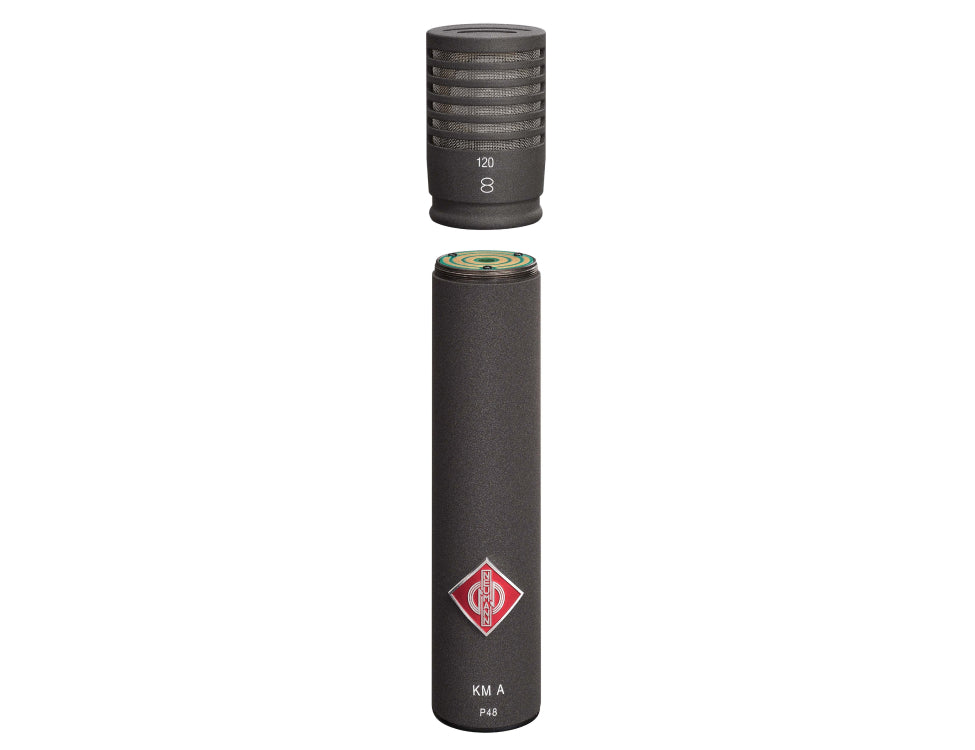

NEUMANN KM 120A nx

The combination of the capsule KK 120 with the analog output stage KM A is only one of the numerous options within the modular Neumann KM A/D small diaphragm microphone system. Eight different small diaphragm capsules (KK 120 up to KK 185) may be combined with either an analog output stage (KM A) or a digital AES 42 output stage (KM D). A comprehensive range of accessories ensures adaptability to the most diverse fields of application.

The KK 120 is a pressure gradient transducer with figure-of-eight characteristic, side-addressed. The figure-8 pattern is realized with a single 16mm diaphragm. Thus, all sound field components reach the diaphragm directly. As a result, the frequency response curves and sensitivities for 0° and 180° are identical. The KK 120 capsule may be combined with other capsules/microphones for MS-stereo recording.

FEATURES:

• directional characteristic: figure-of-eight
• part of the modular microphone system KM A/D
• comprehensive range of accessories
