BSRF LAC-21

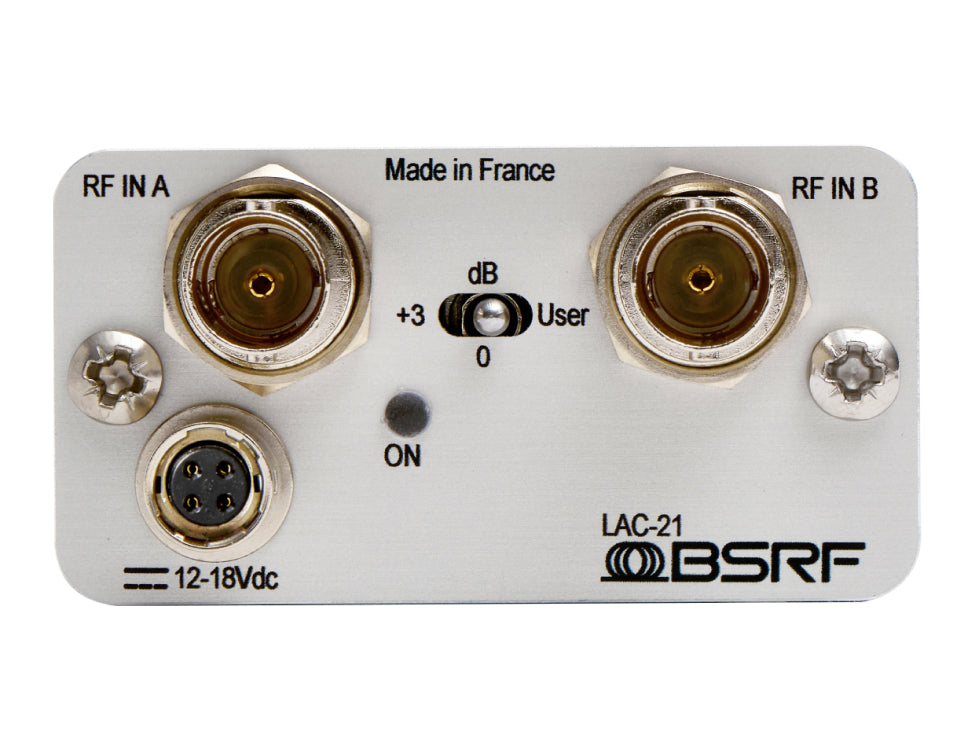

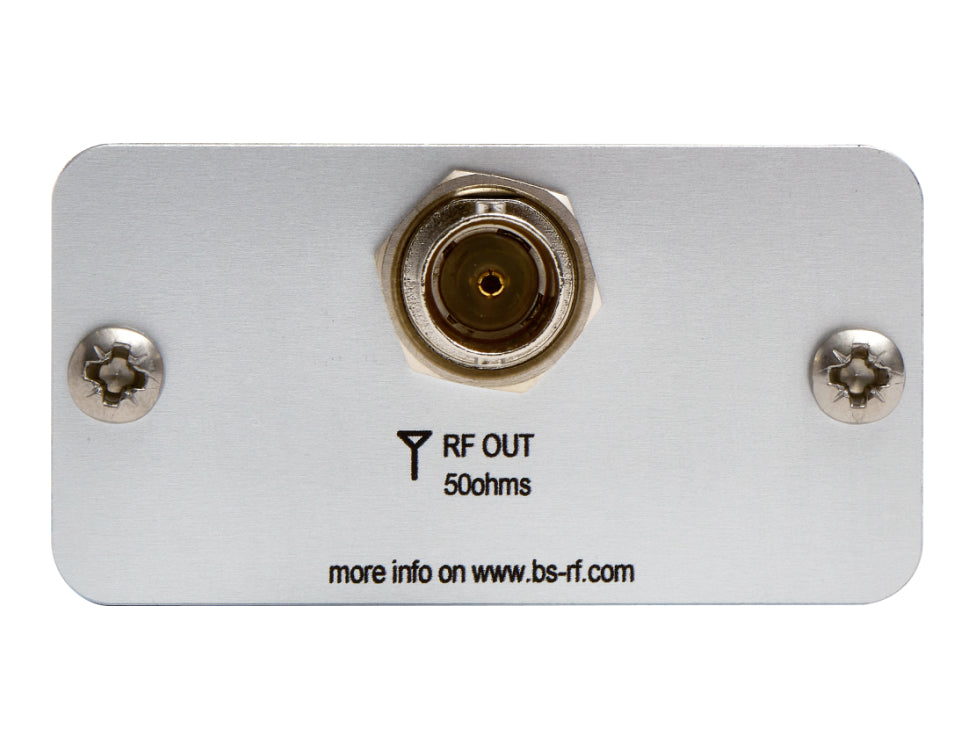

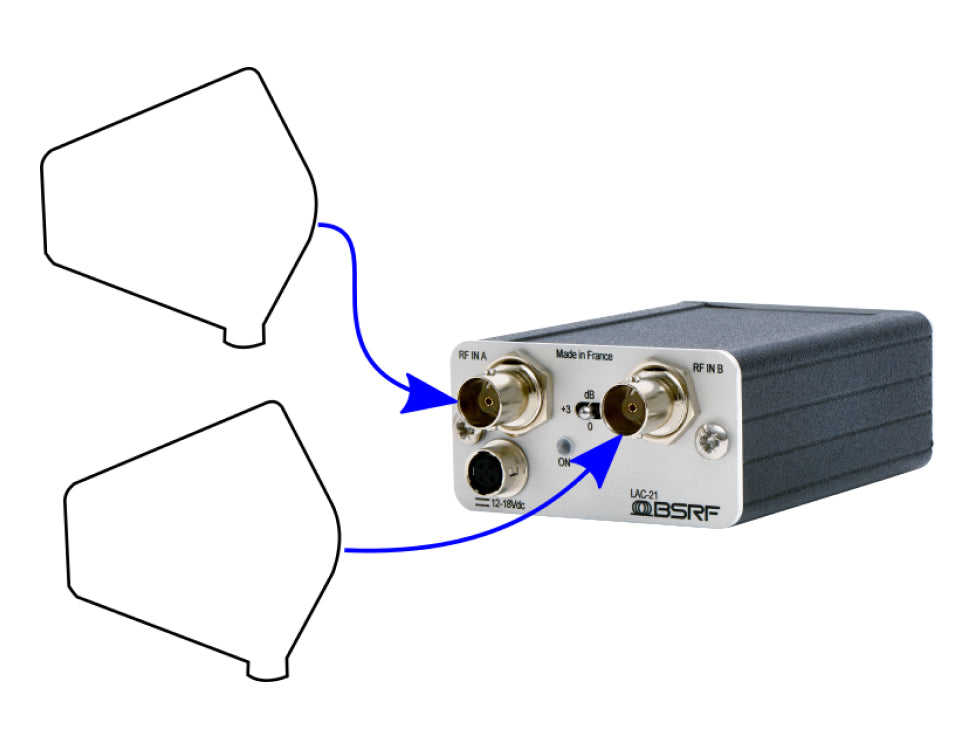

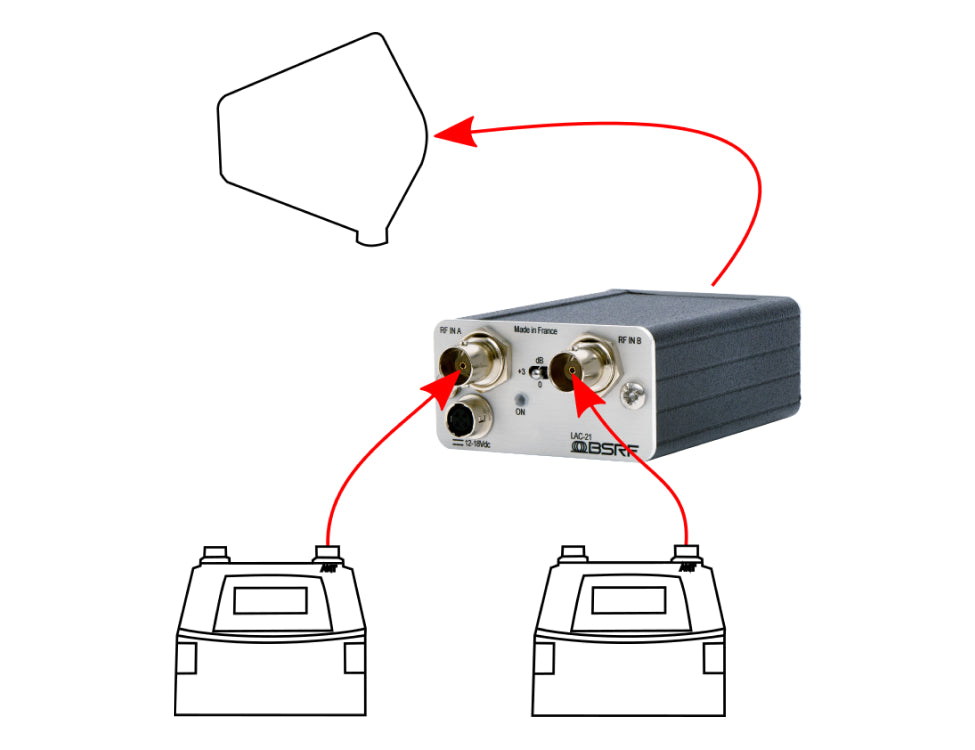

The LAC-21 is a compact RF combiner particuliary usefull when you need to sum up two TX and share one antenna. As it works from 100MHz up to 800MHz you can imagine many configurations. A switch will help you to select the best gain depending on your devices: +3dB, 0dB and a user position that you can customize by configuring solder jumper on the circuit board. It uses linear amplifiers to reduce intermodulation products.

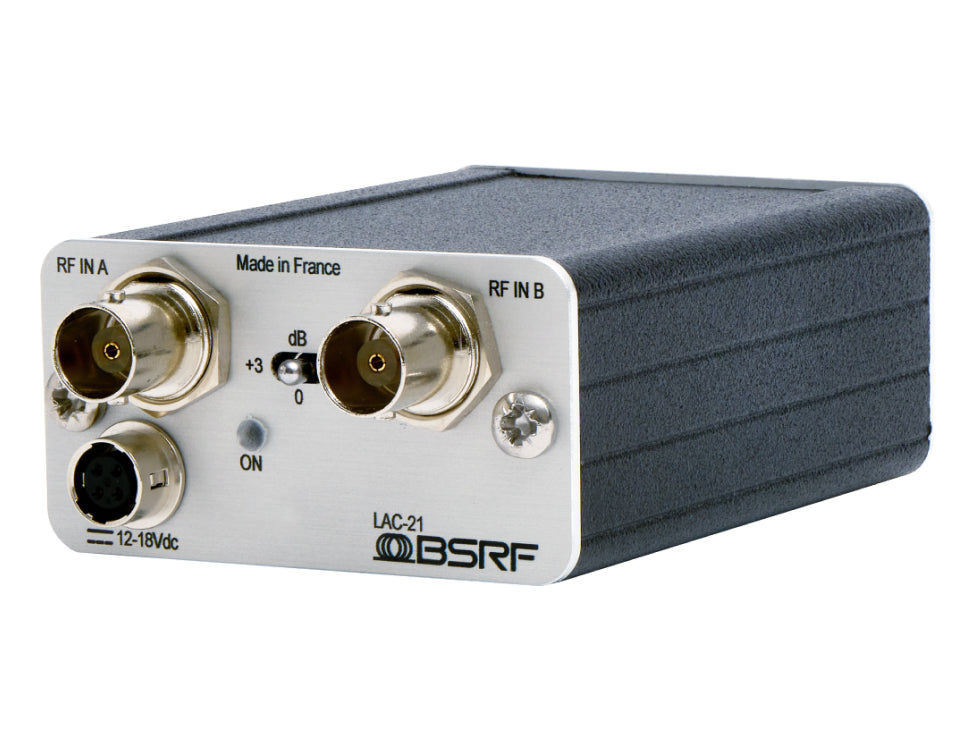

The rugged enclosure and the push-pull power connector bring to LAC-21 longitivity and security of operation. It's build with machined/extruded aluminium, a highly recyclable material.

FEATURES:

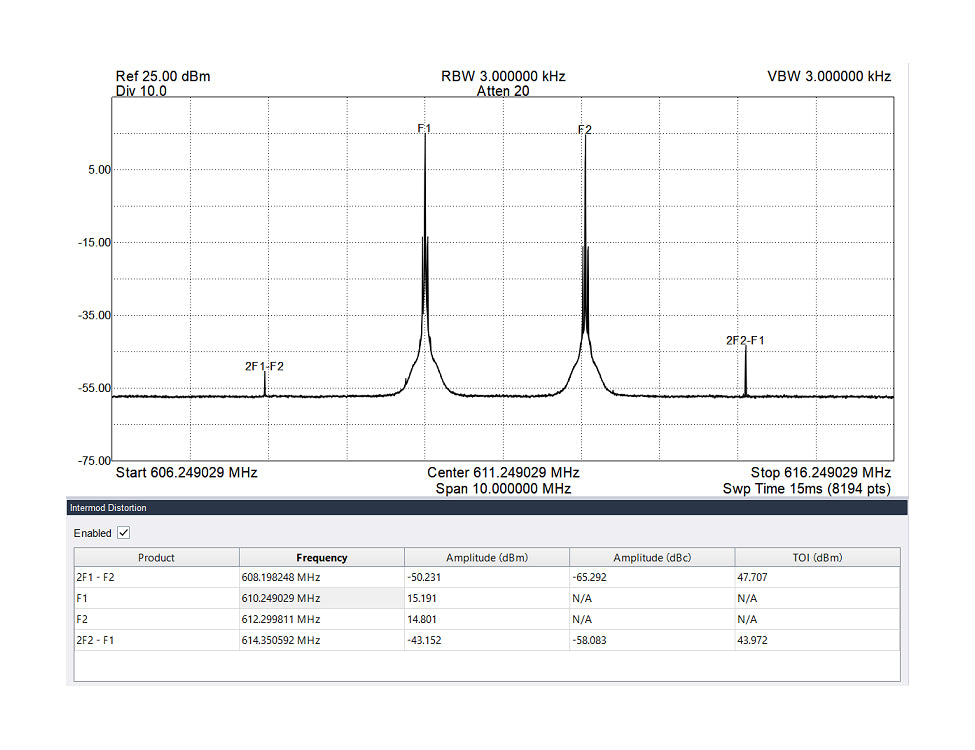

• high OIP3: 46dBm
• wideband
• small form factor
• +3dB and 0dB gain step
• user gain from +6dB to -9dB in
• 1dB step
• 12-18V operating voltage
