ZOOM R12

article code

zoo.r12

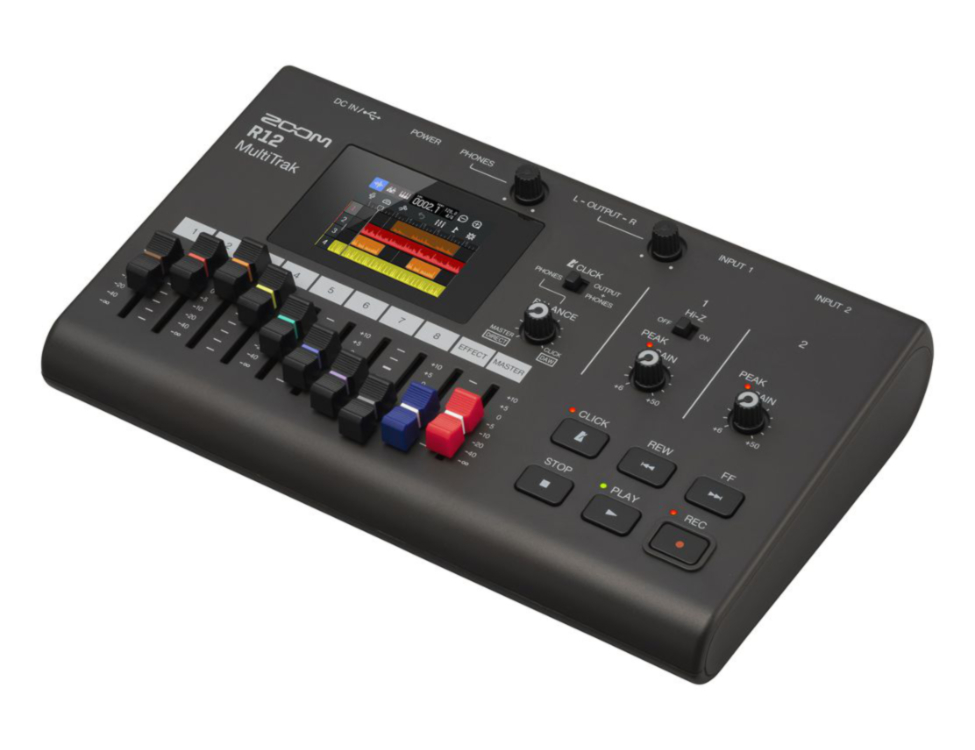

Zoom R12 multitrack recorder

€ 329.00 Our Price € 271.90 Our Price

The R12 is made for musicians who live to make music. And they want the freedom to make music wherever they go. Compact and mobile, you can record and mix songs without a computer. Use the R12's full-color LCD touchscreen to cut, copy, loop, and edit your tracks. The R12 has super-clean preamps and you'll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs. The R12 includes a send effects channel offering reverb, chorus and delay with a dedicated effects return fader. For advanced tones, you can use presets and effects from Zoom's Guitar Lab.

The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2. The R12 provides up to 5 hours on four AA batteries allowing you to bring your production anywhere. Additionally, you can use the R12 with the included AD-17 power adapter or a USB battery. Use Sequence Play to create a playlist of your projects. Then use them as backing tracks, whether you're playing live or rehearsing a set. With 150 preloaded drum loops in a variety of patterns and genres, the R12 provides a versatile rhythm section for any project. Add additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.

The R12 includes an 1/8" stereo headphone jack as well as dedicated 1/4" monitor outputs. Use the R12 as a stereo audio interface with your favorite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software during production. Connect microphones, instruments or line level devices like keyboards, mixers and more. Input 1 on the R12 has a Hi-Z switch, allowing you to plug your guitar directly into the recorder. Both inputs on the R12 offer 48V phantom power for condenser microphones.

Activate the fully customizable click track with the press of a button. Click balance blends the metronome with your playback audio and routes it to your headphones and/or the main outputs. The R12 has 18 FM synth instruments built in. They can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen. The R12 Control App allows you to mix your recording sessions, adjust effects, manage playlists, and change project and system settings. It's perfect for when you want an extra display to make adjustments more quickly.

FEATURES:

multi-track digital recorder with up to 8 tracks of recording
2.4" full color LCD touchscreen display with easy touch and swipe editing
user friendly graphic interface with on-board editing capabilities
battery powered up to 5 hours (4 AA's)
2 XLR / TRS combo inputs with phantom power and HI-Z on input 1 send effects channel with 4 options: reverb, delay, chorus, or guitar lab preset (choose up to 3 effects from our guitar effects collection including distortions, modulation effects, spacial effects and much more)
built-in compressor for inputs 1 and 2
pan and 3-band EQ for each track
sequence play for using backing tracks in a live setting
drum loops (150 preloaded)
records directly to SDXC cards
built-in USB-C audio interface (2-in / 2-out or 2-in/4out) with control surface function

WHAT'S INCLUDED:

1x R12 MultiTrak
1x AD-17 AC adapter
1x USB cable

Specifications

INPUTS:

mic/line (mono): 2

OUTPUTS:

master out: 1
phones: 1

INPUTS MIC/LINE (MONO):

connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT)
input gain: +6 up to +50 dB
input impedance: XLR 3.9 kOhm, TRS 3.9 kOhm/1 MOhm (when Hi-Z ON, INPUT 1 only)
phantom power: +48 V (switchable separately for INPUTS 1 and 2)
equivalent input noise: -121 dBu or less (IHF-A) at +50 dB/150 Ohm input
frequency response: -1.0/+0.5 dB, 20 Hz to 20 kHz

OUTPUT MASTER OUT:

connectors: 2 TRS phone jacks (balanced)
maximum output level: +14 dBu
output impedance: 200 Ohm

OUTPUT PHONES:

connectors: 1 stereo 3.5mm mini jack
maximum output level: 45 mW + 45 mW (into 32 Ohm load)
output impedance: 10 Ohm

RECORDER:

maximum simultaneous recording tracks: 2
maximum simultaneous playback tracks: 8
recording format: 44.1kHz, 16/24-bit, mono/stereo WAV
recording media: cards compatible with microSDHC specifications 4 GB 32 GB
cards compatible with microSDXC specifications 64 GB 1 TB

EQUALISATION:

high: 10 kHz, approx. 12 dB, shelving
middle: 2.5 kHz, approx.12 dB, peaking
low: 100 Hz, approx. 12 dB, shelving

EFFECTS:

input dynamics: comp/limiter/gate
patch memory effects: 3 types can be used simultaneously, 50 patch memories, Guitar Lab supported and can be assigned and used as an insert (input) or send effect
dedicated send effects: 10 types of spatial effects

TUNER:
