ZOOM AMS-44

article code

zoo.ams44

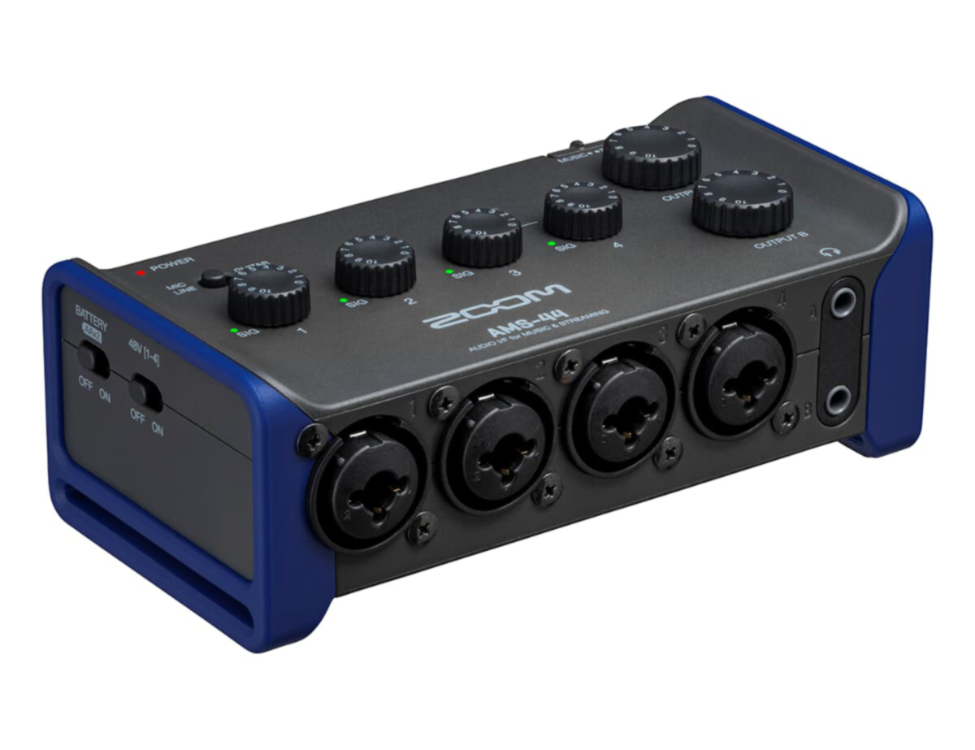

Zoom AMS-44 audio interface for music & streaming, 4-in / 4-out

€ 179.00 Our Price € 147.93 Our Price

AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications. With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Whether you're recording or streaming, the AMS-44 keeps your setup simple. It features four XLR/TRS combo inputs along with Zoom's high-performance, low-noise preamps. The interface also includes two headphone outputs and two TRS outputs for external monitors.

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Toggle from recording to livestreaming with the Music/ Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output. When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

FEATURES:

for musicians who record and stream
4 inputs (4x XLR / TRS Combo), 4 outputs (2x TRS / 2x Stereo 3,5mm)
onboard monitoring
loopback switch
toggle from recording to livestreaming with the Music/ Streaming Switch
includes USB-C cable

Specifications

INPUT AND OUTPUT CHANNELS:

number of input channels mono (mic/line): 4
number of output channels stereo (TRS): 1
number of output channels stereo (phones): 2

CONNECTORS:

input1-4 connectors: XLR/TRS combo jack (XLR: 2 HOT, TRS: TIP HOT)
input1-4 input gain: -infinity +58 dB / -infinity +50 dB (when set to GUITAR)
input1-4 input impedance: XLR: 2.7 k Ohm , TRS: 18 k Ohm / 330 k Ohm (when set to GUITAR)
input1-4 maximum input level: XLR: +0.6 dBu, TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
input1-4 phantom power: +48 V
output (standard phone jacks) connector: TRS phone jack(balanced)
output (standard phone jacks) maximum output level: +10 dBu (at 0 dBFS)
output (standard phone jacks) 100 Ohm
output a-b (headphone jacks) connector: 3.5mm stereo mini jack 30mW + 30mW(32 Ohm load)
output a-b (headphone jacks) output impedance: 10 Ohm
USB: USB Type-C (audio interface function), Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)

FREQUENCY RESPONSE:
