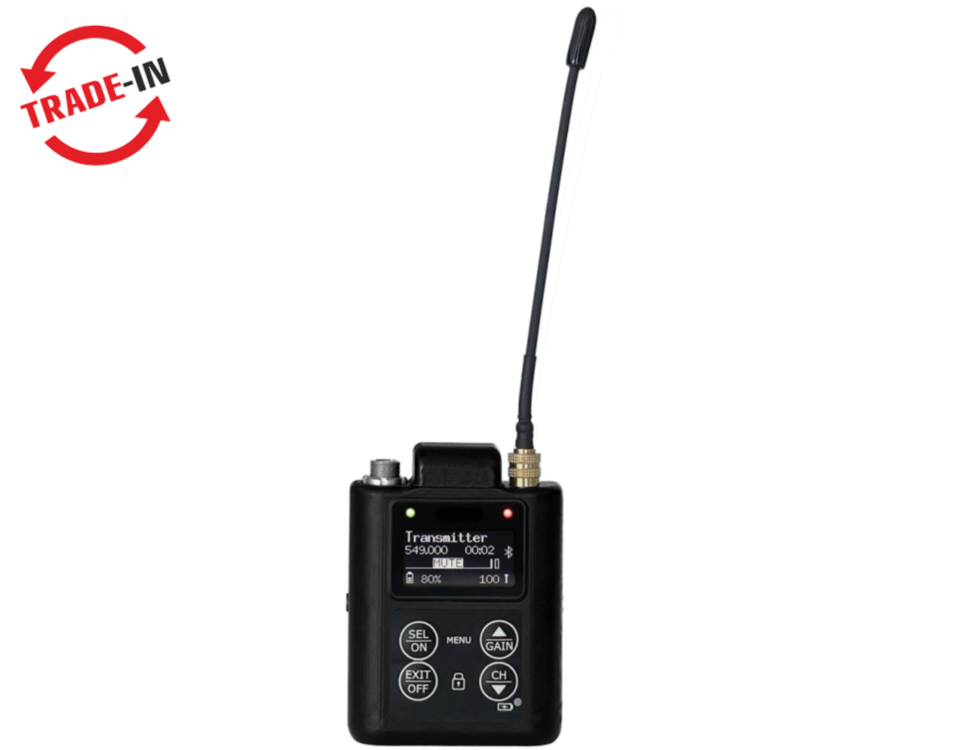

WISYCOM MTP61-EUX
article code
w.mtp61eux
Wisycom MTP61-EUX pocket transmitter with audio recording and Bluetooth control, 100mW, LBP61 rechargeable Li-Ion battery, 470-832 MHz
€ 2,295.00 List Price
Special Price € 2,050.95 Our Price € 1,695.00 Our Price Regular Price € 2,221.56 Our Price
The MTP61 is a miniature pocket transmitter ideal for location sound, theater and all situations where the smallest size is mandatory.
FEATURES:
- monitor & control with Bluetooth via Wisycom BT App to adjust parameters in real time
- the Bluetooth interface and mobile app allows full control from mobile or tablet
- advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
- embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
- DSP based signal processing allows easy switching between wide and narrow band operation
- ENS compander for a totally clear sound
- powering with rechargeable Lithium-Ion battery LBP61
- integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
- front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
DELIVERY INCLUDES:
- whip antennas
- belt clip
- 1x CAUSBM5P adapter/charge cable
- 2x LBP61 Li-Ion rechargeable battery
- frequency range: from 470 to 832 MHz
- switchable channels: 2400 managed in 40 groups of 60 frequencies completely user programmable
- switching-window: up to 362 MHz, depending on band
- frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
- frequency error: ±2.5 ppm, in the rated temperature range
- RF power: 10mW / L10mW / 20mW / L20mW / 50 mW / 100 mW
- antenna connector: SSMA
- modulation: wideband and narrow-band with DSP based digital signal processing
- nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
- peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
- spurious emissions: < 2 nW
- telemetry feature: TX transmits also a digitally modulated sub-carrier suitable for tone-squelch operating, remote battery monitoring, compander and modulation control, optional PTT (push to talk) operation
- noise reduction system: ENS Wisycom ultra-high permorfmance compander
- AF bandwidth in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB)
- AF bandwidth in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)
- distortion: < 0.3 % (0.15 % typ.)
- SND/D ratio (Analogue): typ. 115 dB (A)rms with 40 kHz deviation, typ. 121 dB (A)rms with 56 kHz deviation Wideband
- SND/D ratio (Analogue): typ. 115 dB (A)rms with 25 kHz deviation, typ. 121 dB (A)rms with 35 kHz deviation Narrowband
- audio input connector: Lemo 3pin
- audio input level: from -40 dBu (12mV RMS) to 6 dBu (1.55Vrms) adjustable in 1 dB steps, input dynamic extension with an integrated limiter
- max input level: +6 dBu (1.55Vrms) at clipping
- storage media: internal 64 GB micro SD memory card (industrial grade heavy duty)
- timeccode: linear timecode decoding
- bit rate: 24 bit / 32 bit
- sampling rate: 48 kHz
- managing interface: Bluetooth 5.2 low energy long range, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC)
- LED: 3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger
- battery level indication: percentage or minute/second
- PTT function: pin 3 of AF connector can be controlled via an externall PTT button
- display: high contrast OLED white display (128 x 64 pixels)
- power supply: Cameron Sino Lithium-Ion battery Model CS-BCE10 Part No. CGA-S008E (3.7V, 1050 mAh)
- battery life: approx. 8 hours @ 10mW
- temperature range: -10 to +55 °C
- dimensions: 66.8mm x 47mm x 17mm (HxWxD) without clip
- weight: approx. 72g without battery, 94g with battery
Brand | Wisycom |
---|
