WISYCOM MTP60-EUX_BT1
article code
w.mtp60euxbt1

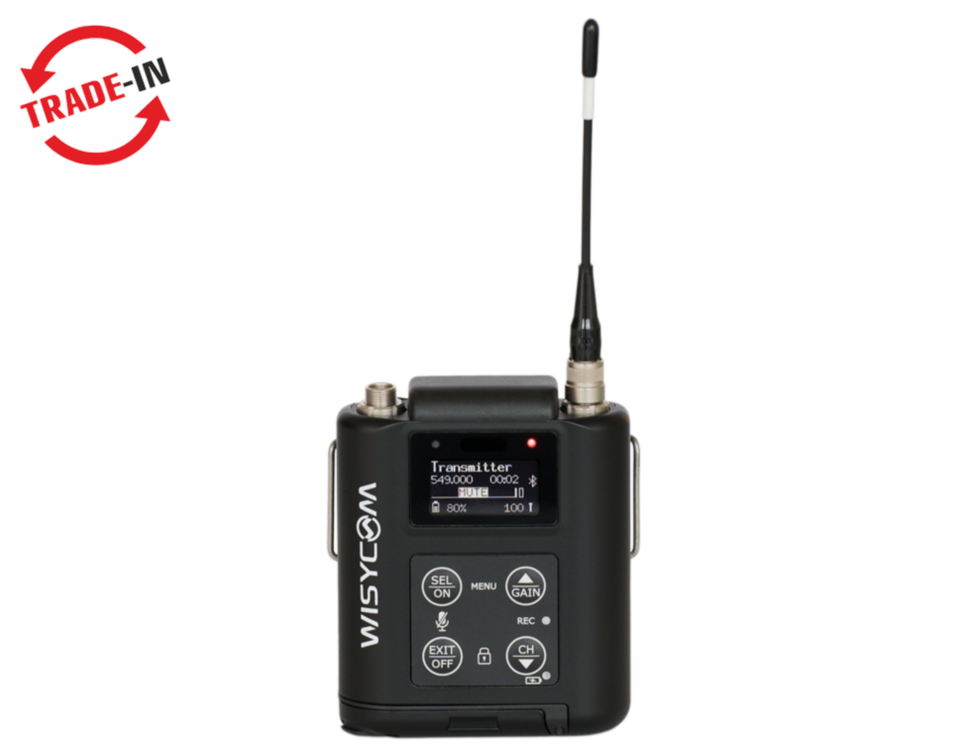

Wisycom MTP60-EUX pocket transmitter with audio recording and Bluetooth control, 100mW, 2x AA, 470-832 MHz
€ 2,150.00 List Price
€ 2,081.20 Our Price € 1,720.00 Our Price
MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.
FEATURES:
- monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
- dedicated hardware allows accurate real time position monitoring with advanced user interface
- advanced linear technology (L20mW) eliminates intermodulation distortion for more robust signal
- embedded recorder to record directly on the MTP60 memory card and integrated Linear Time Code decoding
- enhanced robustness against self-interferences and antenna performances through a proprietary "intermodulation cancellation" circuit
- an integrated haptic engine that gives tactile feedback with different vibration patterns
- FPGA based signal processing allows easy switching between wide and narrow band operation
- miniature design with flexible PCB (no connectors) for extended reliability
- new ENS compander for a totally clear sound
- powering with 2 x AA battery (Alkaline, NiMh, Lithium) or MPRLBP rechargeable Lithium battery (5.55 Wh)
- bluetooth interface and mobile app allows full control from mobile or tablet
- integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
- bluetooth 5 Long Range (Class 1, 100mW) with the MRK16 as a bridge allows remote control the MTP60 over hundreds of meters
- front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
- max input level 26dBu (15.5 V clipping) to connect directly to mixers and instruments
- 48V phantom power to use wired mic thru the PHA60 accessory
- frequency range: 470 to 832 MHz
- switchable channels: 2400 managed in 40 groups of 60 frequencies completely user customizable
- switching-window: up to 362 MHz, depending on band
- frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
- frequency error: ±2.5 ppm, in the rated temperature range
- RF Power: switchable typ. 10mW / L10mW / 20mW/ L20mW / 50mW / 100mW
- antenna connector: LEMO-F 1 pin
- modulation : wideband/narrowband FM, with digital audio conditioning (FPGA)
- nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
- peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
- spurious emissions: < 2 nW
- telemetry feature: TX transmits also a digitally modulated sub-carrier, suitable for: tone-squelch operating, remote battery monitoring, optional PTT (push to talk) operation
- noise Reduction system: ENS Wisycom Extended-Sound Optimized
- AF bandwidth in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB)
- AF bandwidth in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)
- distortion: < 0.3 % (0.15 % typ.)
- SND/D ratio (Analogue): typ. 115 dB (A)rms with 40 kHz deviation, typ. 121 dB (A)rms with 56 kHz deviation Wideband
- SND/D ratio (Analogue): typ. 115 dB (A)rms with 25 kHz deviation, typ. 121 dB (A)rms with 35 kHz deviation Narrowband
- audio input connector: LEMO 3pin
- audio input level: from -36 dBu (12mV RMS) to 26 dBu (15.5 V RMS) adjustable in 1 dB steps
- max input level: +26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
- storage media: micro SD memory card (.wav files BWF)
- time code: Linear time code decoding
- bit rate: 16 bit / 24 bit / 32 bit
- sampling rate: 48 kHz
- managing interface: Bluetooth 5 long range, USB-C, IrDA
- LED: 2 RGB LEDs (red, green and blue) for audio, RF and battery status, 1 LED for recording, 1 LED for battery charger
- battery lifetime indication: percentage or minute/second
- PTT function: pin 3 of the AF connector can be setup to an external push button
- display: high contrast OLED white display (128 x 64 pixels)
- power supply: 2 x AA battery (Alkaline, NiMh or Lithium), MPRLBP lithium (5.55 Wh)
- battery life: approx. 10 hours @ 10mW with Alkaline batteries
- temperature range: -10 to +55 °C
- dimensions(W x H x D in mm): 75,7 x 61,4 x 19,4 without clip
- weight: 140 g. without batteries (183 g. with lithium batt.)
| Brand | Wisycom |
|---|
