WISYCOM MCR54-B2
article code
w.mcr54b2

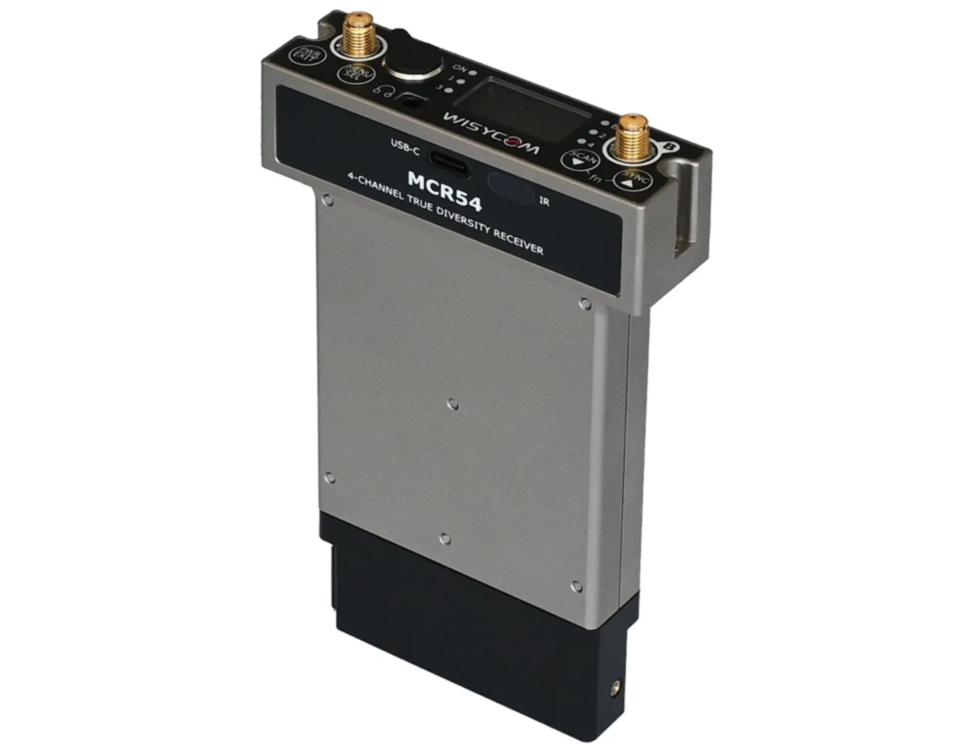

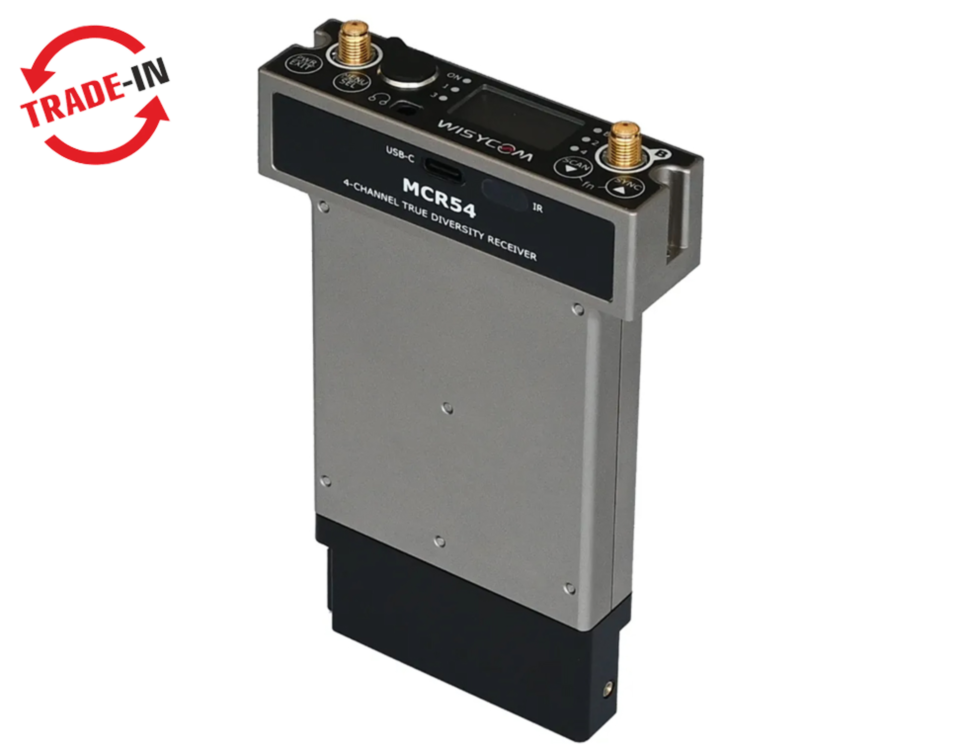

Wisycom MCR54 quad channel true-diversity slot-mount receiver, 470-800 + 823-832 + 940-960 MHz
€ 4,000.00 List Price
€ 3,872.00 Our Price € 3,200.00 Our Price
The MCR54 is a quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It's compatible with most camera's slots and multi-slot mixer accessories.
FEATURES:
- four channel true diversity receiver (8 receiver boards)
- exceptional compactness and high robustness
- DSP analogue & digital audio output (AES3)
- up to 790 MHz bandwidth in 470/1260 MHz range
- multiband front-end filtering, high Q electronically tunable filter in 470-800 MHz, 1st narrowband filter 823-832 MHz, 2nd narrowband filter 940-960 MHz
- sofware selectable wideband and narrowband DSP-FM operation
- narrowband allows more 50% band efficiency
- narrowband allows about 3dB extra sensitivity and noise immunity
- extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
- high contrast OLED display
- automatic scan & transmitter programming through infrared and Bluetooth 5 long range
- DSP based for extreme flexibility and multi-companding operations
- monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
- rear audio and power adapter
- frequency range:470 ÷ 800 + 823÷832 + 940÷960 MHz
- switchable channels: 2400 user programmable frequencies, organized in 40 groups of 60 channels
- switching-window: up 790 MHz, each receiver can be tuned independently
- frequencies: microprocessor controlled frequency synthesizer circuit, with 5 kHz minimum step. The frequencies can be easily PC reprogrammed with USB C, Bluetooth 5 (long range) or optional UPKmini Programming
- frequency error: < ± 2.5 ppm, in the rated temperature range
- modulation: FM mono, wideband or narrowband IFB (SW selectable)
- peak deiation: ±54 kHz (wideband), ± 40 kHz (narrowband)
- antenna input impedance: 50 Ohm sma type (SWR < 1:2, typ. 1:1.4)
- sensitivity: 2 µV ( 6 dBµV), for SND/N > 58 dB / 5 µV (14 dBµV), for SND/N > 98 dB
- amplitude response: < 0.5 dB (for RF input signal:6 dBµV ÷ 100 dBµV)
- adjacent chan. selectivity: > 60 dB typical (for channel spacing = 400 kHz in WB and = 250 kHz in NB)
- spurious emissions: < 2 nW (typical = 0.1 pW)
- AF bandwidth: 30 Hz ÷ 20 kHz (wideband), 30 Hz ÷ 17 kHz (narrowband)
- frequency response: ± 1 dB in the 30 Hz ÷ 20 kHz range (wideband), ± 1 dB in the 30 Hz ÷ 17 kHz (narrowband)
- distortion: 0.3 % typical
- SND/D ratio (Analogue): 100 dB typical*
- SND/D ratio (Digital): > 125 dB typical
- audio output: electronically balanced on 5 pin mini-XLR Female connector analogue or digital (SW selectable)
- digital sample rate: AES3 @ 48 kHz
- monitor output headphone 3.5 mm jack socket
- managing interface: USB C, Bluetooth 5
- LEDs: 2 multicolour RGB LEDs to easy indicates Power & Bluetooth 5, 4 multicolour RGB LEDs to easy indicates the audio status of the 4 RX
- display: OLED 128x64 (white)
POWER:
- external = 6 ÷ 18 Vdc (3 W max)
- autonomous. = with optional BCA 54 Battery Module
- Power consumption: 3 Watt max (with 4 active receivers), 2 Watt max (with 2 active receivers)
- temperature range: -10 ÷ +55 °C
- dimensions(H x W x D in mm): 104 x 87,6 x 25
- weight: 230g
*RMS value, 22 Hz / 22 kHz, unweighted
| Brand | Wisycom |
|---|
