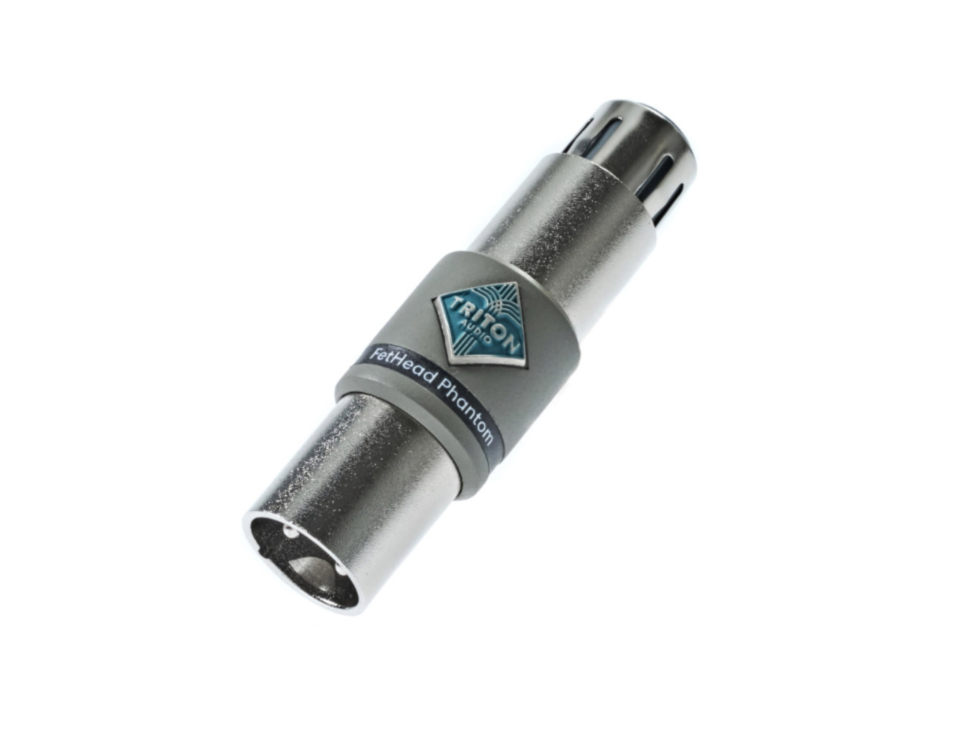

TRITON AUDIO FetHead Phantom

FetHead Phantom is an ultra-low noise, high quality, in-line microphone preamplifier. It provides improved sound for condenser microphones. Small, compact, but powerful, Fethead Phantom utilizes tried and true FET technology to deliver up to 18dB of clean boost. No more cranking your mic preamp and adding unwanted noise to get your microphone to an acceptable volume.

Operation: Fethead will latch straight onto any XLR equipped microphone, or anywhere else in the signal path between microphone and preamp/mixer. Fethead Phantom uses phantom power to power its circuitry, but also provides enough phantom power to power the connected microphone.

The FetHead Phantom is recommended for improving the signal to noise ratio and performance in the following situations:

• recording direct into a DAW interface
• noisy or low gain preamps
• mixers/preamps that negatively impact the sound at higher gain setting
• handheld digital audio recorders
• condenser microphones
• miking all types of softer sound sources

Circuit topology: FetHead Phantom utilizes a low noise FET amplifier circuit, which reveals every detail with pinpoint accuracy and offers high-end sound quality.

FEATURES:

• low noise Class A FET amplifier
• 18 dB amplification (@3000 Ohm load)
• balanced XLR input/output
• lots of headroom
• frequency response 30hz to 100khz (aprox. 1dB)
• Z-in 1000 Ohm
• circuit is powered with 24 to 48V phantom power
