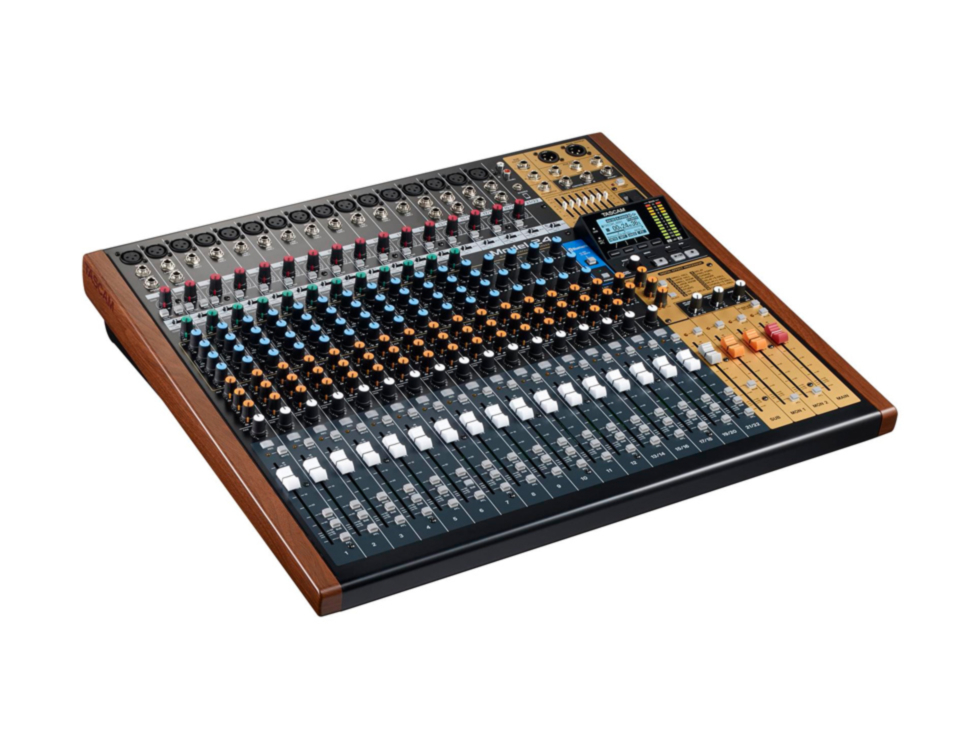

TASCAM MODEL 24
Whether for your rehearsals, live shows or production, Model 24 is the most ideal true multi-track recorder, mixer, and audio interface. The triple-function hybrid recording console has evolved to perfectly meet today's music industry demands.
SIMPLE AND INTUITIVE DESIGN
One glance is all you need - Model 24 was developed to be simple and intuitive for anyone to use. The 100mm physical faders allow for precision when tweaking volume, the accessible 7- band graphic stereo EQ to master the mix, the familiar EQ/Aux knobs, and the input/output jacks are all on the surface for quick and easy access.
TASCAM'S REVOLUTIONARY RECORDING TECHNOLOGY
Model 24 allows the users to directly record to an SD card, 24 tracks simultaneously in 24bit/48kHz, and it is capable of punching in/out 8 tracks at the same time. With TASCAM's revolutionary recording technology, the console can also directly playback 22 tracks simultaneously from an SD card. TASCAM's 16 high-grade mic preamps will guarantee a capture of the most pristine sound possible.
FLEXIBLE CONNECTIVITY
Model 24 is flexibly equipped with 22 analog inputs consisting of 20 balanced inputs (12 mono and 4 stereo), 1 unbalanced stereo input. Also, Model 24 lets you connect to your favorite DAW via USB. Your smartphone can be connected with the BluetoothT feature to stream rehearsal audio for individual practice or to get the audience going with exciting songs before you strike the first chord on stage.
DURABILITY AND RELIABILITY
The console is lightweight - you can easily carry it around between a studio, rehearsal space, venue or wherever you want to work at, and TASCAM's renowned reliability guarantees the console to function smoothly anywhere.
OPTIMALLY PREPARED FOR LIVE STREAMING OF MUSICAL PERFORMANCES OR TALK SHOWS, AND PODCAST PRODUCTION
Model 24 offers a USB stereo mix mode that makes podcast recording or broadcasting convenient and easy. All you need for this is a laptop or tablet computer or a smartphone with a suitable streaming application. Background music or other audio signals can also be fed from your computer or smartphone into Model 24 to be combined with live signals. The mixed sound will then transfer back to the computer for recording or streaming.
RECORDER:
- recording media: SD cards (512 MB 2 GB), SDHC cards (4-32 GB) & SDXC cards (64-512 GB)
- file system: FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)
- recording: WAV
- playback format: WAV
- sampling frequency: 44.1 kHz, 48 kHz
- bit depth: 16 bit, 24 bit
- recordable channels: 24 channels max (22channels+ stereo mix)
MICROPHONE INPUTS:
- connectors: XLR-3-31, balanced
- nominal input level: -8 dBu
- maximum input level: +10 dBu
- minimal input level: -58 dBu
- input impedance: 1.8 kOhm
- phantom power: DC 48 V
LINE INPUT (ch 1-20):
- connectors: 6.3-mmTRS phone jack balanced
- nominal input level: +4 dBu
- maximum input level: +22 dBu
- gain adjustable range: 10 dB to +40 dB (CH 1-12) & 20 dB to +30 dB (CH 13/14 to 19/20)
- input impedance: 22 kOhm
INSERTS (ch 1-2):
- connectors: 6.3-mm TRS phone jacks
- nominal input level: 0 dBu
- maximum input level: +18 dBu
- input impedance: 10 kOhm
- nominal output level: 0 dBu
- maximum output level: +18 dBu
- output impedance: 100 Ohm
STEREO INPUTS (ch 21-22):
- connectors: RCA pin jack, unbalanced 3.5-mm stereo mini jack, unbalanced
- nominal input level: -10 dBv
- maximum input level: +8 dBv
- input impedance: 10 kOhm
MAIN OUTPUT:
- connectors: XLR-3-32 balanced
- nominal output level: +22 dBu
- maximum output level: +4 dBu
- output impedance: 100 Ohm
SUB OUTPUT, MONITOR, FX OUT, CONTROL ROOM OUT:
- connectors: 6.3-mm TRS, balanced
- nominal output level: -2 dBu
- maximum output level: +16 dBu
- output impedance: 100 Ohm
phones output 1/2:
- connectors: 6.3-mm stereo phone jack
- maximum output power: 80 mW + 80 mW(at 32 Ohm)
CHANNEL EQ:
- low cut: 100 Hz, -18 dB/Oct
- high (shelving): 12 kHz, ±15 dB
- mid (peaking): variable 100 Hz to 8 kHz, ±15 dB (Mono), fixed 600 Hz, ±15 dB (Stereo), Q = 0.55
- low (shelving): 80 Hz, ±15 dB
- graphic EQ: 7-band
- frequencies in hz: 125/250/500/1k/2k/4k/8k
- gain: ±15 dB
POWER SUPPLY AND OTHER SPECIFICATIONS:
- power: AC 100-240 V, 50/60 Hz
- power consumption: 52 W
- dimensions (W x H x D in mm): 577 x 529 x 106
- weight in kg: 10.4
- permissible operating temperature range: 5-35°C
- included items: AC power cord
| Brand | Tascam |
|---|
