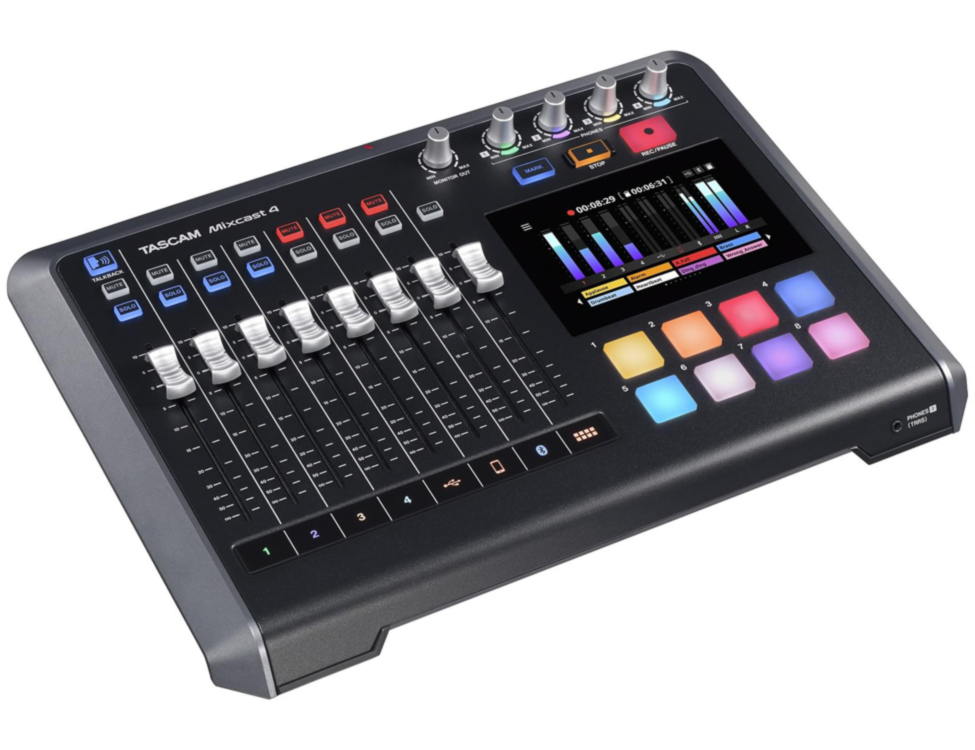

TASCAM MIXCAST 4
A complete workstation with all the functions you need.
Podcasts with up to four people? No problem. From audio recording to the mixing of recorded audio, the Mixcast 4 offers a complete production environment with multiple convenient functions such as 14-track recording direct to the unit's SD card, Bluetooth audio input, an Aux input connector to easily mix and record phone conversations (with mix-minus) or other sound sources, and USB connectivity that allows the unit to add sounds from a computer. The dedicated Tascam Podcast Editor software offers simple and practical waveform editing of audio content, track arming, as well as easy configuration and assignment of sound effects and background music to the sound pads. You can even use Mixcast 4 as a 14-in/2-out USB audio interface with your favourite DAW software.
Mixcast 4 makes professional content creation easy. For Podcast creation, live streaming, event production, or voice over, Mixcast 4 will mix and record mic inputs, internal sounds and music via the trigger pads, and external audio input from your phone or PC. Together with the TASCAM Podcast Editor software, a complete solution - including both waveform editing and sound pad control - is provided from pre-production to completion.
The Mixcast 4 is a one-stop workstation that allows for the recording and mixing of sound sources without complicated settings. It provides all audio-related operation and workflow needed for live-streaming, events, podcasts, and other applications. The bundled TASCAM Podcast Editor software will expand the ability to assign content and sound effects to the internal touchpads, and will allow for smooth and easy remote track arming, effects assignment, audio editing and more without the need for expertise and complexity.
FEATURES
- podcast production of up to 4 people: 4 mic inputs with auto-mix , 4 headphone outputs
- invite guests and friends: mix-minus to connect call-ins with echo-free audio via Bluetooth, USB input or 4-pole TRRS audio cable
- sound pads for instant sound triggering and effects
- easy and intuitive control using the 5-inch touch panel
- fully compatible with the dedicated TASCAM Podcast Editor software to cover the entire production workflow
- direct internal multi-track recording to SD card (up to 14 tracks)
- 14in/2out USB audio interface mode
- nine language options including English, French, German, Italian, Spanish, Russian, Chinese, Japanese and Korean
RECORDER SPECIFICATIONS:
- recording media: SD cards (64 MB 2 GB), SDHC cards (4-32 GB) & SDXC cards (48-512 GB)
- recording/playback format: WAV, 48 kHz, 24 bit, 2-channel stereo / 14-channel poly
- stereo recording: 16:30
- 14-track recording: 2:20
MIC INPUT 1-4:
- connectors: XLR-3-31 / 6.3-mm standard TRS jacks
- maximum input level: +10 dBu
- nominal input level: -10 dBu
- minimal input level: -76.5 dBu
- gain range: 66.5 dB
- input impedance: 2.1 Ohm
HEADSET INPUT:
- connectors: 3.5-mm, 4-pole mini jack
- maximum input level: +4 dBu
- nominal input level: -16 dBu
- minimal input level: -82.5 dBu
- gain range: 66.5 dB
- input impedance: 2.1 Ohm
LINE INPUTS:
- connectors: 3.5-mm, 4-pole mini jack
- maximum input level: +8 dBV
- nominal input level: -12 dBV
- input impedance: 12 kOhm
LINE INPUTS L/R (balanced):
- connectors: 6.3-mm standard TRS jacks
- maximum input level: +24 dBu
- nominal input level: +4 dBu
- input impedance: 11 kOhm
PHONES OUTPUTS 1-4:
- connectors: 6.3-mm standard stereo jacks
- maximum output power: 4 mW + 45 mW
HEADSET OUTPUTS (TRRS):
- connectors: 3.5-mm, 4-pole mini jack
LINE OUTPUT (TRRS, CTIA standard):
- connectors: 3.5-mm, 4-pole mini jack
- maximum output level: -25 dBu
- nominal output level: -45 dBu
- output impedance: 100 Ohm
MONITOR OUTPUT L/R (balanced):
- connector: 6.3-mm standard TRS jacks
- maximum output level: +20 dBu
- nominal output level: 0 dBu
- Output impedance: 200 Ohm
LINE OUTPUT:
- connectors: 3.5-mm stereo mini jack
- maximum output level: +6 dBV
- nominal output level: -14 dBV
- output impedance: 200 Ohm
CONTROL INPUT/OUTPUT:
- USB port: USB type-C connector
- formats: USB 2.0 High Speed, USB Audio Class 2.0 & USB Mass Storage Class
POWER SUPPLY AND OTHER SPECIFICATIONS:
- power supply: dedicated AC adapter
- power consumption: 12.5 W (maximum)
- weight in kg: 2.55
- permissible operating temperature range: 0-40°C
- dimensions (W x H x D in mm): 375 x 71 x 267
