TASCAM DR-10L PRO
Videographers love the TASCAM DR-10L Pro portable recorder with clip-on microphone as a simple and stealthy solution for capturing audio for video.
Combining the clip-on convenience of a lavalier mic with an ultra-compact portable recorder this form factor solves many problems content creators often have. It's a superior solution for busy events like weddings and on-location film shoots where traditional wireless lav systems can pose concerns for your workflow, and the rock-solid capability of a Tascam wired lavalier recorder is proven and assured.
The DR-10L Pro can also be an easy backup system for your typical audio recording setup thanks to simple plug-and-go operation. With the DR-10L Pros 32-bit float recording technology, you can capture a whisper, a scream, and everything in-between with impeccable fidelity, ultra-low noise, and no need to fine-tune gain levels. Support for wireless time code with Atomos products, the ability to control up to 5 units wirelessly via the app, and long battery life and generous storage capacity optimize the DR-10L Pro for professional applications.
*optional AK-BT1 needed for app control and wireless timecode
FEATURES:
- ultra-lightweight and compact high definition audio recorder with lavalier microphone
- 32-bit float resolution and dual A/D Converter technology means you'll never need to scrap a recording due to poor audio levels , and no need to fine-tune input levels
- huge storage capacity by using microSDXC cards up to 512 GB
- record at least 24.5 hours using two AAA lithium batteries for all-day video shoots
- optional Bluetooth Adaptor AK-BT1 for remote control of up to 5 units using the DR-20L pro Connect App and wireless synchronisation with compatible products from Atomos

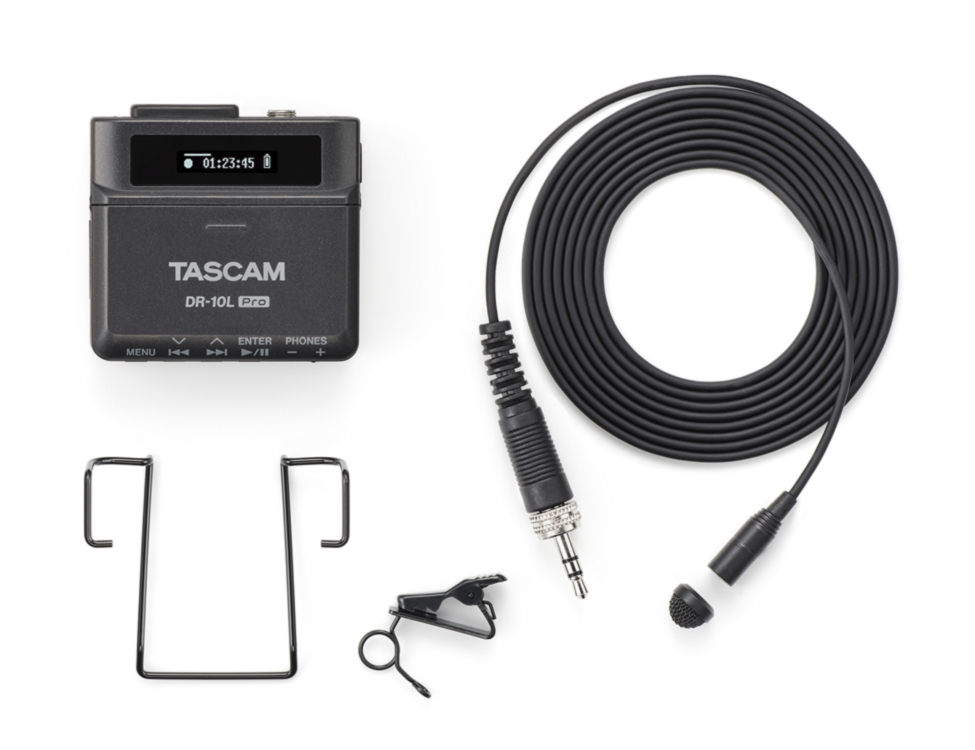

DELIVERY INCLUDES:
- DR-10L PRO recorder
- TM-10L lavalier microphone (cable length 160cm)
- microphone clip
- windscreen
- belt clip
- USB cable
- iZotope RX Elements audio repair software (download voucher)
STORAGE MEDIA AND FILE FORMATS:
- recording media: microSD card (64 MB-2 GB) / microSDHC card (4-32 GB) / microSDXC card (64-512 GB)
- recording and playback formats: WAV: mono/poly (BWF format), 44.1/48 kHz, 16-bit, 24-bit, 32-bit float / MP3: 44.1/48 kHz, 128/192 kbit/s (recording) 32-320 kbit/s (playback)
ANALOGUE AUDIO INPUTS AND OUTPUTS:
- microphone input: 3.5-mm mini TRS jack (with screw lock)
- maximum input level: -11 dBu
- gain range: 7.5-38 dB
- input impedance: =2 kOhm
- included microphone: TM-10L
- sensitivity: -42 dBV/Pa
- maximum sound pressure level: 115 dB SPL
- supply voltage: 2.3 V
- analogue output (Headphones jack): 3.5-mm mini stereo jack (dual mono audio output)
- maximum output power: 10 mW + 10 mW (THD =0.1 %, 32 O)
- working impedance: 16-400 Ohm
AUDIO PERFORMANCE:
- frequency response (input to recorded data): 20 Hz to 20 kHz, +0/-1 dB
- distortion: 0.01 % (1 kHz, input level -21 dBV)
- dynamic range: =105 dB
POWER SUPPLY AND OTHER SPECIFICATIONS:
- power supply: 2 AAA batteries (alkaline, NiMH or lithium rechargeable, sold separately), USB bus power from a computer
- power consumption (batteries): 0.3 W (maximum)
- current consumption (USB bus power): 0.1 A (maximum)
- dimensions (W x H x D): 53 mm x 51 mm x 21 mm (excluding protrusions)
- weight: 65 g (with batteries) / 43 g (without batteries)
- permissible operating temperature range: 0-40 °C
BATTERY OPERATION TIME:
- conditions: WAV recording at 48 kHz, 32-bit float, mic connected, headphones not connected, limiter off, mono file, continuous operation, in hours:minutes (JEITA CP-2905)
- Alkaline battery (Evolta): (16:30 No Bluetooth connection) / (16:00 Bluetooth connection)
- NiMH battery (Eneloop): (11:30 no Bluetooth connection) / (10:30 Bluetooth connection)
- Lithium battery (Energizer Ultimate Lithium): (24:30 no Bluetooth connection) / (23:00 Bluetooth connection)
Note: operation times may vary depending on the recording media being used. Reduced battery life when using headphones.
