SOUND DEVICES SCORPIO + SL-2 BUNDLE

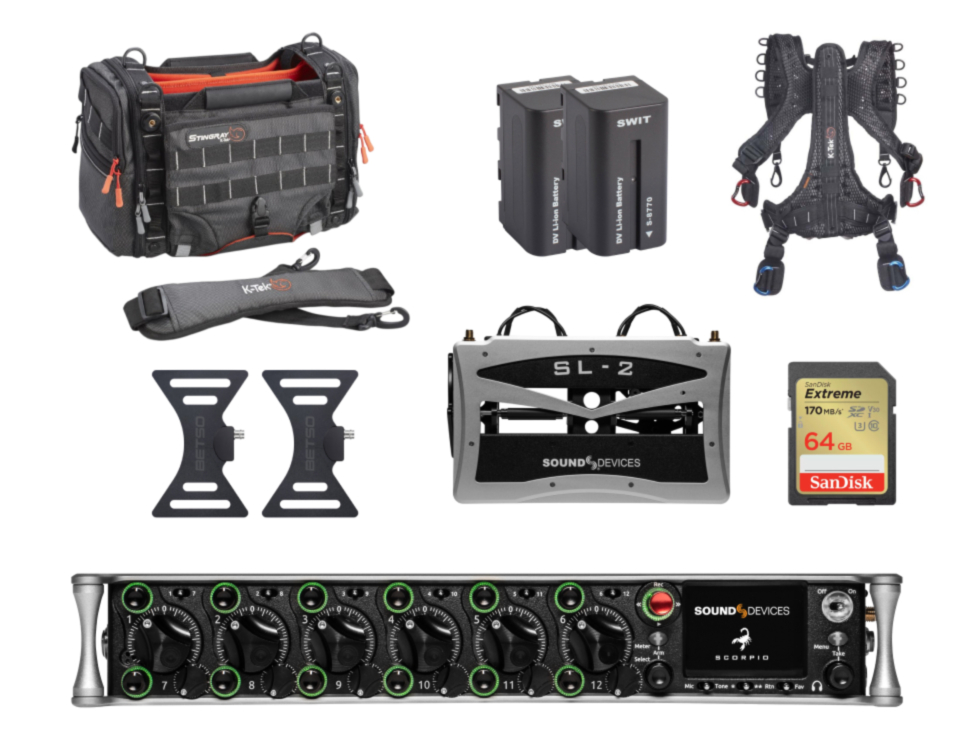

SOUND DEVICES SCORPIO Bundle incl. 1x Sound Devices SCORPIO + 1x Sound Devices SL-2 dual SuperSlot wireless module + 1x K-Tek Stingray Large-X audio mixer recorder bag or 1x ORCA OR334 or 1x LAAVU SCORPIO SL-2 + 1x K-Tek Stingray audio harness (standard size) or 1x K-Tek Stingray audio harness (small size) or ORCA OR40 + 2x Swit Li-Ion 31Wh 4400mAh 7.2V DV battery + 1x SanDisk Extreme 64GB SD card + 2x Betso Bowtie
The Sound Devices Scorpio is a 32 channel, 36 track portable mixer-recorder designed for state-of-the-art production sound. It's the ideal tool for the new era of production sound.
With 16 mic/line preamplifiers, 32 channels of Dante in and out, AES in and out, 12 analog outputs and multiple headphone outputs, Scorpio is well-suited for any production scenario. A fully-customisable routing matrix enables sound professionals to send any input to any channel, bus or output. Up to 12 buses may be individually mixed. Due to its compact form factor, the Scorpio is equally at home over-the-shoulder or in a mobile rig.
An ultra-powerful engine comprised of three FPGA circuits and six ARM processors deliver the horsepower needed for the most complex tasks. FPGA-based audio processing with 64-bit data paths ensures the highest sound quality and reliability. The Scorpio also features Sound Devices' latest and best in analog microphone preamplifier design. These preamps have the smoothest sound and lowest noise of any preamp in the company's history and include built-in analog limiters, high pass filters, delay, 3-band EQ and phantom power.
The Scorpio has an internal SSD that adds the ability to simultaneously record to two SD cards for redundancy. For additional flexibility, sound professionals can send different files to their choice of media. The companion SD-Remote application allows for control of the Scorpio via a large display.
Great attention to detail has been paid to every aspect of the Scorpio's design. Most common menus are accessible with only one or two button presses, and many menu shortcuts can be achieved with only one hand. Scorpio features a built-in dual L-Mount battery charger and may be powered with L-Mount batteries or via the TA4 DC inputs using smart batteries, NP-1 batteries or in-line power supplies. The ultra-accurate, fully-featured timecode generator contains its own battery to hold timecode for up to four hours after power off.
SCORPIO FEATURES:
- well-suited for any production scenario
- compact and mobile
- ultra-powerful engine
- fully-customisable routing matrix
- analog microphone preamplifiers
- built in limiters, HP-filters, delay, EQ and phantom power
- internal SSD allows simultaneously recording to two SD cards
- companion SD-remote app
- easy-to-use interface
- built-in dual L-mount battery charger
- fully-featured timecode generator holds own battery
SCORPIO BUNDLE INCLUDES:
- 1x Sound Devices SCORPIO
- 1x Sound Devices SL-2
- 1x K-Tek Stingray Large-X audio mixer recorder bag or 1x ORCA OR334 or 1x LAAVU SCORPIO SL-2
- 1x K-Tek Stingray audio harness (standard size) or 1x K-Tek Stingray audio harness (small size) or 1x ORCA OR40
- 2x Swit Li-Ion 31Wh 4400mAh 7.2V DV battery
- 1x SanDisk Extreme 64GB SD card
- 2x Betso Bowtie
SOUND DEVICES SCORPIO SPECIFICATIONS:
FREQUENCY RESPONSE
- 10 Hz to 80 kHz +/0.5 dB (192 kHz sample rate, re 1 kHz)
THD + NOISE
- 0.005% max (mic in, 1 kHz, 22 Hz-22 kHz BW, trim at 20, fader at 0, -10 dBu in)
EQUIVALENT INPUT NOISE
- -131 dBV (-129 dBu) max (mic in, A-weighting, 76 dB gain, 150 Ohm source impedance)
PROCESSING ENGINE
- highly extensible, full FPGA-based audio processing, 3 FPGAs six-way ARM multiprocessor system
- 64-bit audio processing precision
AUDIO OVER ETHERNET
- Dante, AES67 compatible
- 32 channels in, 32 channels out (up to 96 kHz): 16 channels in, 16 channels out (192 kHz)
- 1 Gb/s Ethernet, 2 ports, transformer-balanced
INPUTS
- mic/line inputs: 16 total, all fully featured, 6 on full-size XLR, 2 on TA3, 8 on TA5
- mic-level inputs: (XLR, TA3, TA5) class-A, discrete differential long-tail pair, 4k ohm input impedance
- line-level inputs: (XLR, TA3, TA5) active-balanced, 4k Ohm input impedance
- 48V phantom: full 10 mA to all 16 inputs simultaneously
- AES3 or AES42 available on XLR inputs 1 and 6
- AES42: +10 V, 250 mA available, mode-1, auto-ASRC
- RTN A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k Ohm input impedance
- COM RTN 1,2 (TA3, 3.5mm): balanced, 1-channel, 8k Ohm input impedance
- external slate mic (TA5): balanced, 8k Ohm input impedance, menuselectable 12V phantom
MAXIMUM INPUT LEVEL
- mic: +8 dBu (2.0 Vrms)
- line: +28 dBu (19.5 Vrms)
- rtn A, B, C: +18 dBu (6.2 Vrms)
- com rtn 1, 2: +24 dBu (12.3 Vrms)
- external slate mic: +12 dBu (3.2 Vrms)
HIGH-PASS FILTERS
- adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital
LIMITERS
- limiters available at all channels, buses, headphones, for all sample rates
- analog first stage, all subsequent stages digital
- attack time: 1 ms
- release time: adjustable, 50 ms to 1000 ms
- threshold: adjustable, -2 dBFS to -12 dBFS
- selectable knee: hard or soft
- selectable ratio: inf:1, 20:1
DELAY
- channel adjustable: 0-50 ms
- output adjustable: 0-500 ms
MAXIMUM GAIN
- trim stage (mic input): 76 dB
- trim stage (line input): 50 dB
- fader stage: 16 dB
- bus stage: 16 dB
- headphone stage: 20 dB
- mic-to-line: 108 dB
- mic-to-headphone: 112 dB
- TA5 (along with mic input pins) for single connection to headset + mic
- high output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
- compatible with headphones of any impedance
OUTPUTS
- XLR (L, R) active-balanced, 250/3.2k/120 Ohms (mic/-10/line)
- Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 Ohms (mic/-10/ line)
- TA3 (X1-X6) active-balanced, 250/3.2k/120 Ohms (mic/-10/line) 3.5mm (X7, X8): unbalanced, stereo, 1.8k Ohms
HEADPHONE OUTPUTS
- 3.5 mm
- TA5 (along with mic input pins) for single connection to headset + mic
- high output, 4 Ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
- compatible with headphones of any impedance
MAXIMUM OUTPUT LEVEL (all into 10k load)
- line: +20 dBu (7.8 Vrms)
- '-10': +6 dBu (1.5 Vrms)
- mic: -20 dBu (0.078 Vrms)
- X7/X8 Out: +6 dBu (1.5 Vrms)
- headphone outputs (TA-5, X9/X10): +14 dBu (4.0 Vrms)
A/D CONVERTERS
- 32-bit, 120 dB, A-weighted dynamic range typical
- sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
DIGITAL OUTPUTS
- AES3 transformer-balanced, in pairs: 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)
- 110 Ohm, 2 V p-p, AES and S/PDIF compatible
RECORDING
- internal 256 GB SSD, two removable SD Cards. 10% over-provisioned for optimum performance
- simultaneous recording to internal SSD and the two SD cards
- exFAT formatting
- 36 tracks (32 iso channels, 4 buses)
- broadcast WAV monophonic and polyphonic file format
- 64-bit WAV (RF64) monophonic and polyphonic, support for files > 4 G
USB
- USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD cards.
- USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices
TIMECODE AND SYNC
- modes supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes
- frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
- sample/timecode accuracy: 0.1 ppm (0.25 frames per 24 hours)
- timecode input: 20k Ohm impedance, 0.3 V 3.0 V p-p (-17 dBu -/+3 dBu)
- timecode output: 75 Ohm impedance, 5 V p-p (+12 dBu)
- word clock input: 10k/75 Ohm selectable impedance, 1-5 V p-p input sensitivity
- word clock output: 75 Ohm impedance, 5 V p-p output, at SR
REMOTE CONTROL
- USB MIDI MCU Control, supported 3rd party fader controllers
- SD-Remote Android app
- USB Keyboard
- external timecode record trigger
LCD
- 320x240, transflective, excellent sunlight visibility
- larger touchscreen display available via USB-connected SD-Remote app
POWER
- external: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)
- dual rear-mount Sony-style L-Mount batteries with chargers
- intelligent power-down of unused mic preamps and other internal circuits
- current draw at 12V, no battery charging:
- all mic preamps off: 1.04 A
- all mic preamps on: 1.37 A
- all mic preamps on, 192 kHz sample rate, recording to 2 SD cards: 1.55 A
- all mic preamps on, 192 kHz sample rate, recording to 2 SD Cards, Dante enabled: 1.84 A
ENVIRONMENTAL
- operating: -20°C to 60°C, 0 to 90% relative humidity (non-condensing)
- storage: -40°C to 85°C
DIMENSIONS (H X W X D)
- 5.1 cm x 32 cm x 20.5 cm
WEIGHT
- 2.63 kg (unpackaged, without batteries)
