SONY UWP-D22 wireless package

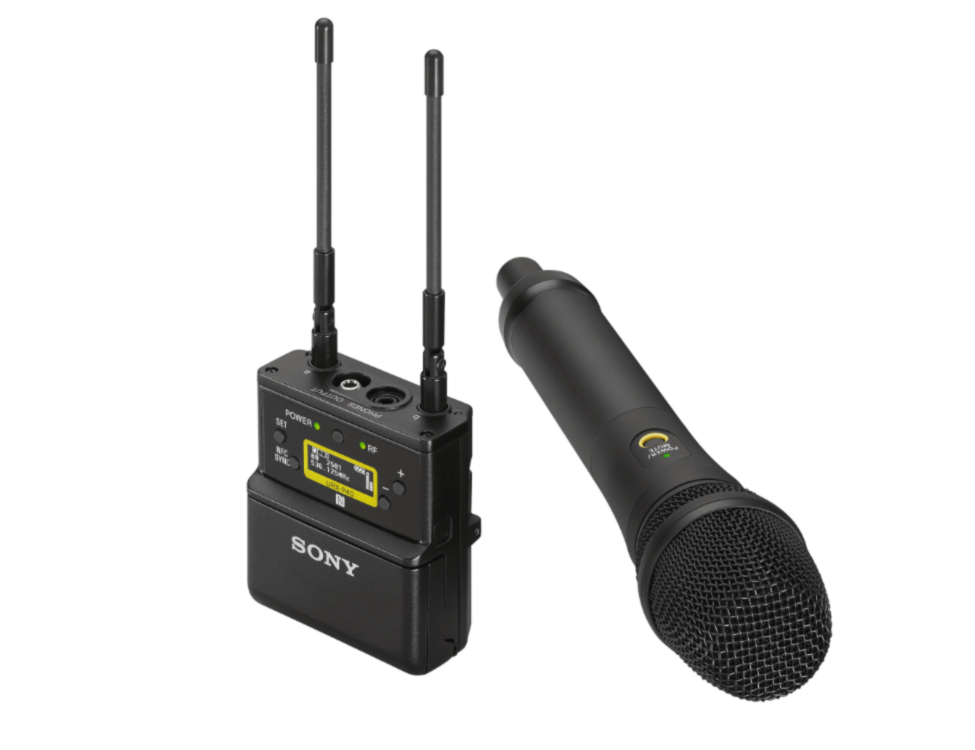

The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today's content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources. Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings. The UWP-D22 bodypack wireless microphone package includes the UTX-M40 handheld microphone and URX-P40 receiver, plus accessories.
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Integration with compatible Sony camcorders (requires SMAD-P5 Multi Interface shoe adaptor) displays audio information such as RF level meter, audio mute status and transmitter low battery alert in the camera's viewfinder. Via the SMAD-P5, audio signals are transmitted from receiver to camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with synchronised power on/off between camera and receiver for more effective power management.
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver's compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.
Sony's uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.
FEATURES:
- high quality sound with Sony digital audio processing
- NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-M40 transmitter from URX-P40, URX-P03, URX-P03D and URX-S03D receivers)
- true double tuner diversity for stable signal reception
- interchangeable head for wide choice of microphone capsules
- auto gain mode volume control
- +15 dB gain volume boost mode for off-mic audio
- channel memory for fast switching between receiver frequencies for two transmitter operation
- transmitter frequency sent to receiver for matching multiple receivers to one transmitter
- headphone output for monitoring
- monitor mode for using a receiver as an ear monitor
- variable muting function
- compatibility with Sony WL-800/UWP/UWP-D series
- receiver output level control
- high visibility OLED display, ideal for indoor/outdoor use
- USB connector for power supply (URX-P40 only)
- digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor
KIT INCLUDES:
- UTX-M40 dynamic cardioid handheld transmitter
- URX-P40 portable receiver
- cold-shoe mount attachment plate, microphone holder, belt clip, output cable to XLR3M and output cable to mini-jack
URX-P40 PORTABLE RECEIVER:
- oscillator type: crystal-controlled PLL synthesizer
- reception type: true diversity method
- antenna type: 1/4 wavelength wire antenna (angle-adjustable)
- carrier frequencies: 21CE 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
- frequency response: 23 Hz to 18 kHz
- signal-to-noise ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
- distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)
- audio delay: approx. 0.35 ms (analog output) and approx. 0.24 ms (digital output)
- audio output connector: 3.5 mm diameter 3-pole locking mini jack, external connection
- audio utput level: -60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level), -20 dBFS (external connection, digital output, 0 dB audio output level) and -50 dBFS (external connection, analog output, 0 dB audio output level)
- analog audio output adjustment range: -12dB up to +12dB (3dB step)
- headphone output connector: 3.5 mm diameter mini jack
- headphone output level: max. 10mW (16 Ohm)
- tone signal frequency: in UWP-D compander mode 32.382 kHz, in UWP compander mode 32 kHz and in WL800 compander mode 32.768 kHz
- display: OLED
- power requirements: DC 3.0 V (two LR6/AA size alkaline batteries) and DC 5.0 V (supplied from USB Type-C connector)
- battery life: approx. six hours (battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C DISPLAY MODE set to AUTO OFF)
- operating temperature: 0 °C to 50 °C
- storage/transport temperature: -20 °C to +55 °C
- dimensions (W x H x D in mm): 63 x 70 x 31 (excluding antenna)
- mass: approx. 131 g (excluding batteries)
UTX-M40 HANDHELD MICROPHONE:
- oscillator type: crystal-controlled PLL synthesizer
- antenna type: 1/4 wavelength wire antenna
- carrier frequencies: 21CE 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
- RF output power: 30 mW/5 mW selectable
- capsule type: dynamic
- directivity: uni-directional
- reference audio input level: -55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
- maximum audio input level: 151 dB SPL (21 dB attenuation, using supplied microphone unit )
- audio attenuator adjustment range: 0 dB to 21 dB (3 dB steps)
- frequency response: 70 Hz to 18 kHz
- signal-to-noise ratio: 60 dB (-60 dBV, 1 kHz sine wave input), 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted) and 96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
- distortion: 0.9% or less (-60 dBV, 1 kHz input )
- audio delay: approx. 0.35 ms
- tone signal frequency: UWP-D compander mode 32.382 kHz, UWP compander mode 32 kHz and WL800 compander mode 32.768 kHz
- display: OLED
- power requirements: DC 3.0 V (two LR6/AA size alkaline batteries) and DC 5.0 V (supplied from USB Type-C connector)
- battery life: approx. 8 hours with output power of 30 mW
- operating temperature: 0 °C to 50 °C
- storage/transport temperature: -20 °C to +55 °C
- dimensions: 48 x 258 mm (diameter / length)
- mass: approx. 255 g (excluding batteries)
| Brand | Sony |
|---|
